• Model NO.：1325
• Customized：Customized
• Condition：New
• Color：Customized
• Bed：New Type Welded Bed Structure
• Inverter：Sunfar Inverter
• Rail：Hiwin Square Guide Rail
• Transmission：Helical Rack
• Spindle：Air Cooling Spindle
• Motor：Easy Servo Motor
• Lubricating：Handle Press Oiling System
• Control System：Ncstudio Control System
• Table：Vacuum Adsorption Table
• Driver：Hybrid Driver
• Transport Package：Exporting Plywood Package
• Specification：1325
• Trademark：ZK
• Origin：Shandong China
• HS Code：84659900
• Production Capacity：100set ,Month

Model

ZK1325

X,Y,Z axis working area

1300*2500*200mm

Whole structure

Welded Steel gantry structure

Table surface

vacuum table with 5.5KW vacuum pump

X,Y,Z structure

Taiwan PMI/HIWIN Square linear guide rail

X,Y structure

Rack and pinion transmission, high speed and more stable;

Y -double motor drive

Z structure

Imported ball screw, high precision

Max. idling speed

50m/min

Max. working speed

25m/min

Repositioning Accuracy

±0.05mm

X Y Z working Accuracy

< 0.02mm

Spindle

3.5KW water cooling spindle(Optional: air cooling spindle)

Spindle rotating speed

6000-24000rpm/min

Collect size

ER 25

Operation language

G code (plt, mmg, uoo, bmp)

Driving system

Easy servo motor

Operating system

Ncstudio control system

Working voltage

 380V/3phase

Software

UcancamV8 / Type3 / Artcam software (option)

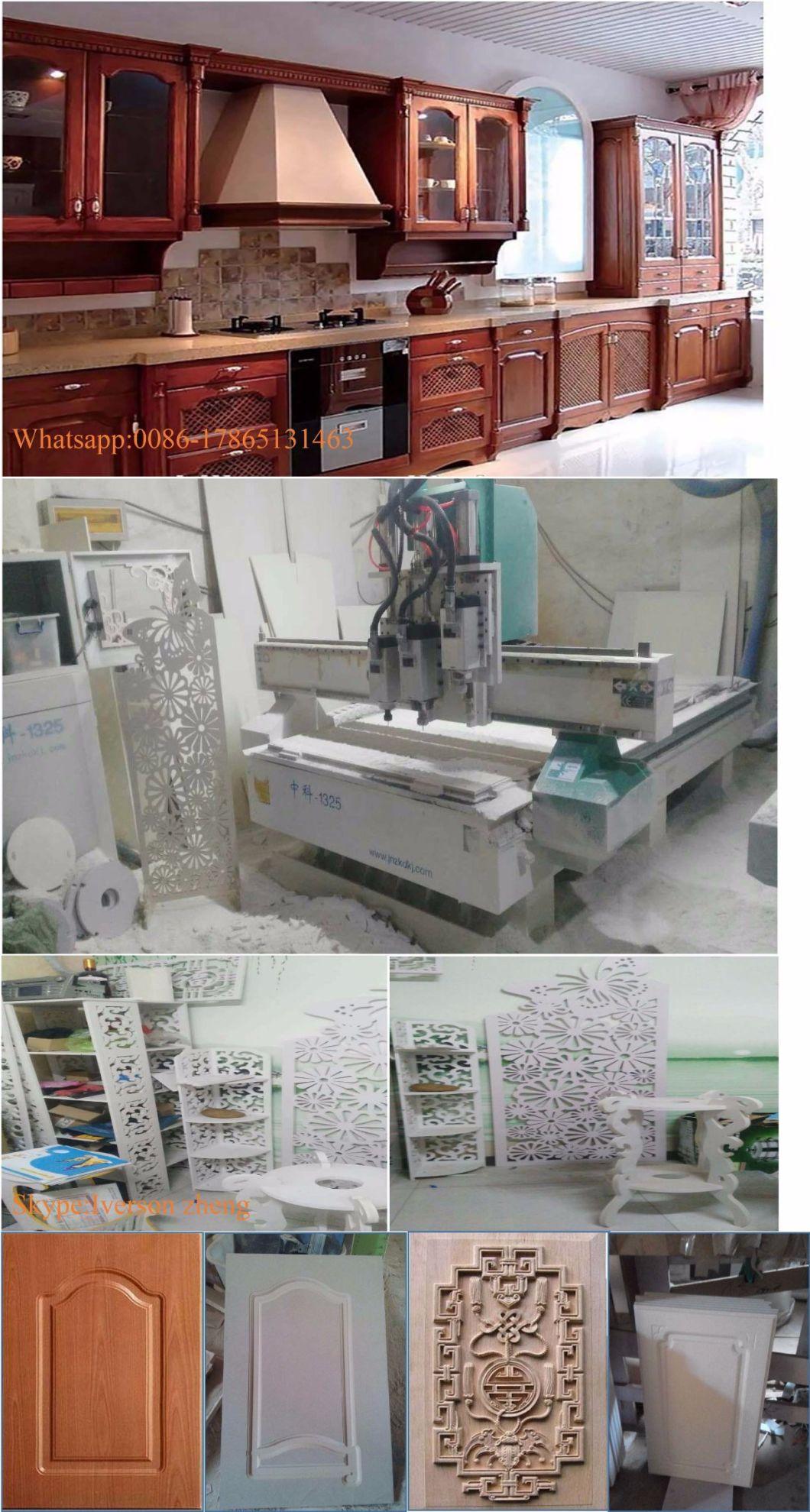

Samples:



Teachinical support:

• Warranty is 1 year
• 24 hour technical support by email or calling
• User-friendly english manual for machine using and maintaining
• We will send you manual and guide video in English,if you still don't know how to operate it, we can help you

Payment terms:

• You can do 30% prepayment at first, then we will start to make machine. when the machine is ready , we will take pictures to you, after we got you payment.We will send the machine to you.
