• Model NO.：1325
• Customized：Customized
• Condition：New
• Color：Customized
• Spindle Power：Italy Hsd Air Cooling Spindle
• Inverter：Best Invetre
• Control System：Ncstudio Control System
• Table：Vacuum Adsorption Table
• Motor：Delta Servo Motor
• Transmission：Helical Rack
• Guide Rail：Taiwan Hiwin Square Guide Rail
• Spindle Speed：6000-18000
• Application：Wooden Industry
• Bed Structure：Welded Bed Structure
• Transport Package：Plywood Package
• Specification：1300*2500mm
• Trademark：ZK
• Origin：Jinan Shandong
• HS Code：8465990000
• Production Capacity：100

Basic Info.

Model NO. 1325 Customized Customized Condition New Color Customized Spindle Power Italy Hsd Air Cooling Spindle Inverter Best Invetre Control System Ncstudio Control System Table Vacuum Adsorption Table Motor Delta Servo Motor Transmission Helical Rack Guide Rail Taiwan Hiwin Square Guide Rail Spindle Speed 6000-18000 Application Wooden Industry Bed Structure Welded Bed Structure Transport Package Plywood Package Specification 1300*2500mm Trademark ZK Origin Jinan Shandong HS Code 8465990000 Production Capacity 100

Product Description

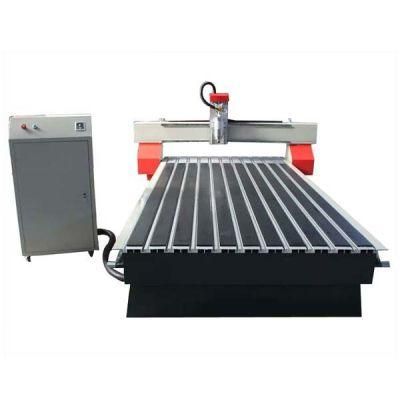

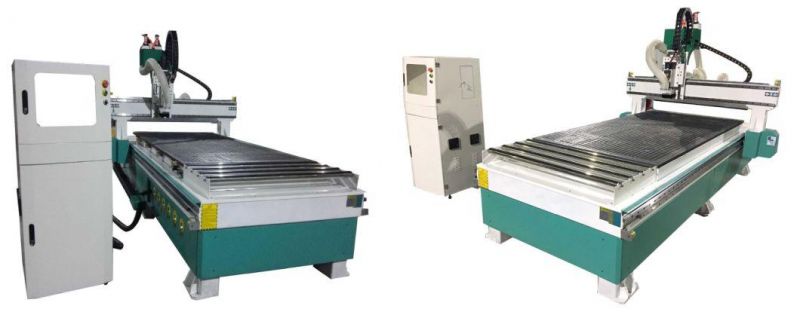

Best Price CNC Router Wood Engraving Machine 1325

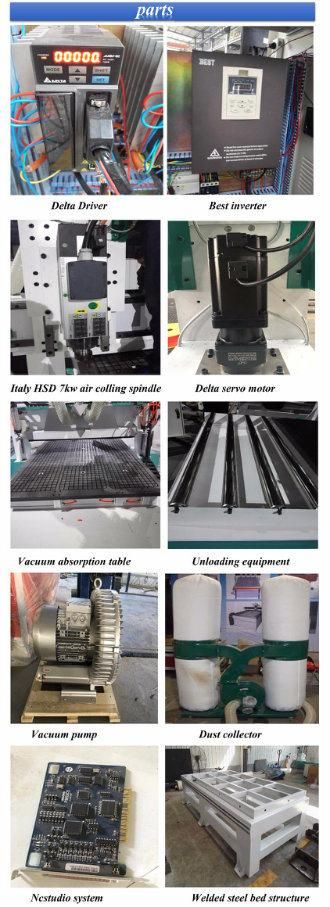

1 Welded steel bed structure , when working its more stable.

2 Vacuum adsorption table can hold the material, improving the working precision.

3 Best brand inverter

4 Ncstudio control system

5 Italy HSD 7kw Air cooling spindel .

6 TaiWan high precision HIWIN square guide rail, improving working accuracy.

7 Delta servo motor working mode

8 Transmission by helick rack

9 TaiWan TBI Ball Screw

10 Servo motor and SYNTEC control system is optional


Model	ZK 1325 CNC router
X,Y,Z Working Area	1300*2500*200mm
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z repositioning Positioning Accuracy	±0.02mm
Lathe Structure	Thick wall square tubes welding bed
X Structure	Taiwan HIWIN square guide rails
Y Structure	Taiwan HIWIN square guide rails
Z Structure	Taiwan TBI ball screw
Max.Speed	0-30000mm/min
Max.Working Speed	0-25000mm/min
Spindle	Italy HSD 7kw air cooling spindle
Spindle Speed	6000-18000RPM
Working Mode	Delta servo motor
Working Voltage	380V/3ph    50HZ/60Hz for standard machine, if optional vacuum  system or servo system, it need 380V 3 phase
Command Code	G code(*uoo,*nc,*mmg, *plt)
Operating System	Ncstudio control system or DSP control system( also can  choose LNC or SYNTECH control system, it depends on your requirement)
Interface	USB
X,Y Working Delicacy	<0.01mm
Software	Type3 software or Wentai software
Running circumstance	Temperature: 0°C~45°C
Waranty	One year
Delivery time	2 weeks
