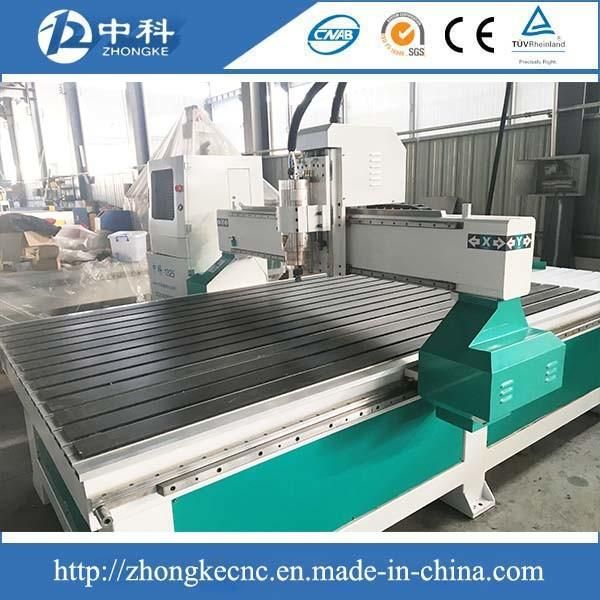

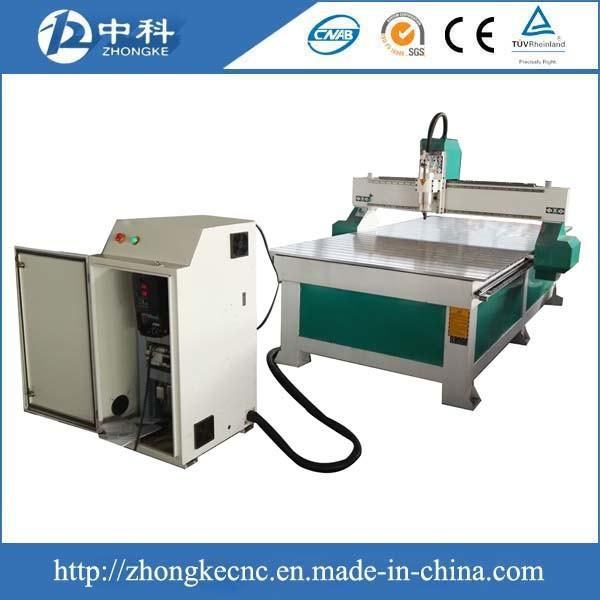

Hot Sale! 1325 Plywood CNC Cutting Router
Jinan Zhongke CNC Equipment Co., Ltd.- Type：Engraving Router
- Spindle Layout：Vertical
- Spindle Number：Single-Spindle
- Feed Mode：Manual
- Controlling Mode：CNC
- Certification：CE, ISO
Base Info
- Model NO.：1325
- Customized：Customized
- Condition：New
- Color：Customized
- Spindle Power：3.2kw Water Cooling Spindle
- Inverter：Sunfar
- Control System：Ncstudio
- Table：Aluminum T-Slot Table
- Motor：Stepper Motor
- Transmission：Helical Rack
- Guide Rail：Taiwan Hiwin Square Guide Rail
- Spindle Speed：600-24000rpm
- Application：Wooden Industry
- Bed Structure：Welded Bed Structure
- Transport Package：Plywood Package
- Specification：1300*2500*200mm
- Trademark：ZK
- Origin：Jinan Shandong
- HS Code：8465990000
- Production Capacity：100
Description
Basic Info.
Model NO. 1325 Customized Customized Condition New Color Customized Spindle Power 3.2kw Water Cooling Spindle Inverter Sunfar Control System Ncstudio Table Aluminum T-Slot Table Motor Stepper Motor Transmission Helical Rack Guide Rail Taiwan Hiwin Square Guide Rail Spindle Speed 600-24000rpm Application Wooden Industry Bed Structure Welded Bed Structure Transport Package Plywood Package Specification 1300*2500*200mm Trademark ZK Origin Jinan Shandong HS Code 8465990000 Production Capacity 100Product Description
Feature:
1 Welded steel bed structure , when working its more stable.
2 Aluminum T-slot table with PVC
3 Sunfar brand inverter
4 Ncstudio control system
5 Water cooling spindel .
6 TaiWan high precision HIWIN square guide rail, improving working accuracy.
7 Stepper motor working mode
8 Transmission by helick rack
9 TaiWan TBI Ball Screw
10 Servo motor and SYNTEC control system is optional
Configuration
Specification
| Model | ZK 1325 CNC router |
| X,Y,Z Working Area | 1300*2500*200mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z repositioning Positioning Accuracy | ±0.02mm |
| Lathe Structure | Thick wall square tubes welding bed |
| X Structure | Taiwan HIWIN square guide rails |
| Y Structure | Taiwan HIWIN square guide rails |
| Z Structure | Taiwan TBI ball screw |
| Max.Speed | 0-25000mm/min |
| Max.Working Speed | 0-15000mm/min |
| Spindle | water cooling spindle |
| Spindle Speed | 600-24000RPM |
| Working Mode | Stepper motor and driver |
| Working Voltage | 220V 1 phase 50/60HZ |
| Command Code | G code(*uoo,*nc,*mmg, *plt) |
| Operating System | Ncstudio control system |
| Interface | USB |
| X,Y Working Delicacy | <0.01mm |
| Software | Type3 software or Wentai software |
| Running circumstance | Temperature: 0°C~45°C |
| Waranty | One year |
| Delivery time | 2 weeks |

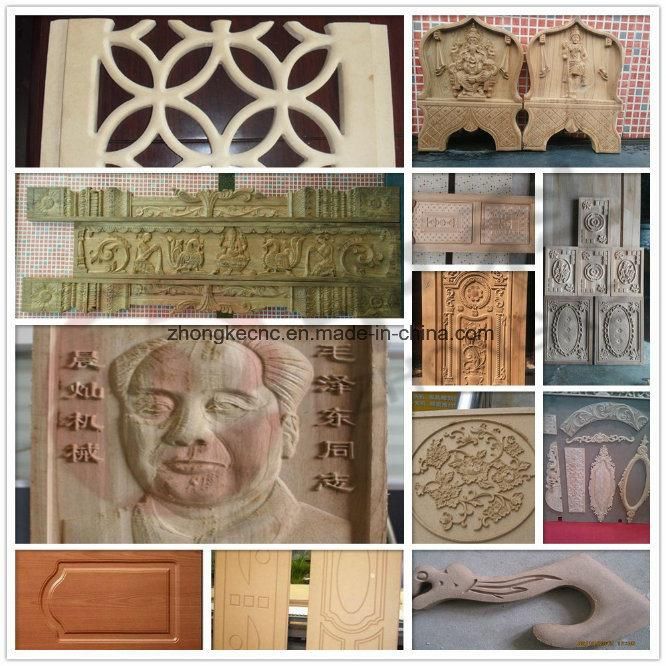

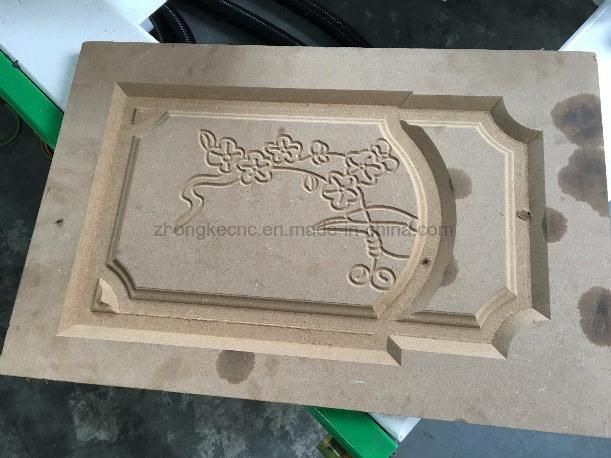

Sample photos:
