Woodworking Machinery

Large Output New Condition Drum Type Wood Chipper

Jiangsu Liangyou Zhengda Co., Ltd.
  • Warranty:Provided
  • Certification:CE, ISO
  • After-sales Service:1 Year
  • Delivery Detail:30-45 Days After Receive Down Payment
  • Rotor Dia(mm):800
  • Number of Flying Knives(PCS):2

Base Info

  • Model NO.:LYGX
  • Feed Opening Size(mm):225*680
  • Knife Rotor Speed(Rpm):650
  • Feed Speed(M/Min):37
  • Capacity(M3/H):15-20
  • Main Motor Power(Kw):110
  • Transport Package:Iron Pallet or Depending on Customers′ Request
  • Specification:1000KG
  • Trademark:FDSP
  • Origin:Jiangsu, China (Mainland)
  • HS Code:84659600
  • Production Capacity:20 Set,Sets Per Month

Description

Basic Info.

Model NO. LYGX Feed Opening Size(mm) 225*680 Knife Rotor Speed(Rpm) 650 Feed Speed(M/Min) 37 Capacity(M3/H) 15-20 Main Motor Power(Kw) 110 Transport Package Iron Pallet or Depending on Customers′ Request Specification 1000KG Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 84659600 Production Capacity 20 Set/Sets Per Month

Product Description

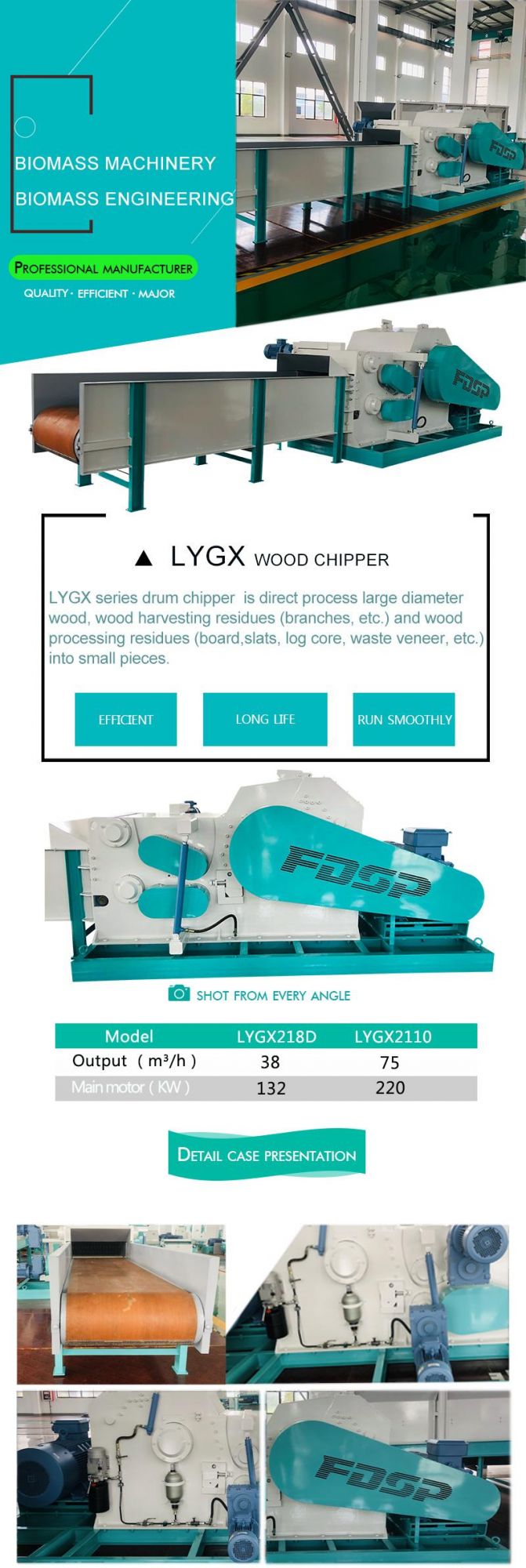

Large Output New Condition Drum Type Wood Chipper
LYGX series drum chipper is direct process large diameter wood, wood harvesting residues (branches, etc.) and wood processing residues (board, slats, log core, waste veneer, etc.) into small pieces. LYGX series drum chipper is compact and reasonable in structure, easy to operate, high in productivity, wide in adaptability of raw materials, high in quality of cutting chips, safe and reliable, and easy to maintain. It is one of the most advanced chipping machines in China.

Feature
1.The chipper consists of a base, a knife roll, upper and lower feeding mechanism, feeding device, hydraulic buffer system and electrical control system;
2. The blade is made of special material, high strength and strong wear resistance;
3. The knife roll is processed as a whole, and it is checked by dynamic balance to improve accuracy and run smoothly;
4.The press material system adopts the hydraulic system automatic control, and the feeding system adopts frequency conversion control;
5. The bottom knife seat is made of forgings with high strength and long service life;
6. Patented knife roll structure, the chipping efficiency is increased by 30%-50%, and the main power is reduced by 30%-50%, and the use cost is greatly reduced.

Raw material

all kinds of wood, timber scraps, branches, wood chips, edge material, tree bark, bamboo skin and other raw material into sawdust once.
Large Output New Condition Drum Type Wood ChipperLarge Output New Condition Drum Type Wood Chipper
Equipment configuration

Fly-cutter:Use alloy tool steel material with good impact toughness and good wear resistance

Bearing :NSK

Reducer: Zhejiang dongli or FDSP custom brand

Shaft type: forge

Motor :Wannan/Siemens (China)

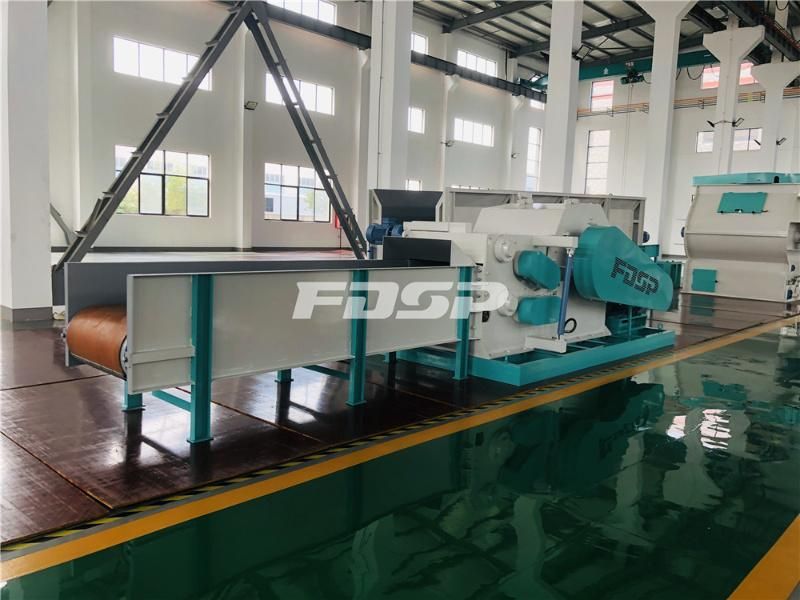

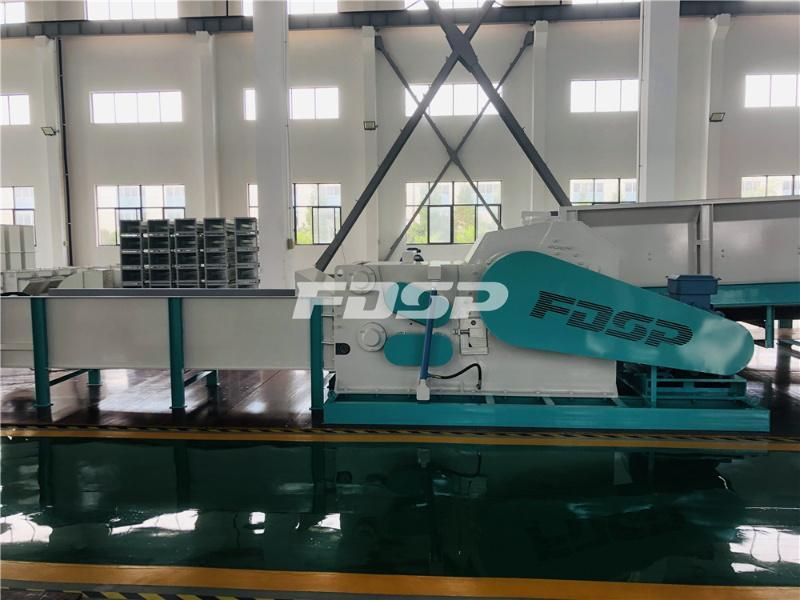

Our workshop
Large Output New Condition Drum Type Wood ChipperLarge Output New Condition Drum Type Wood Chipper

About us
As a Chinese listed company and a national high-tech enterprise, (FDSP) is a large-scale manufacturing system solution provider for feed machinery, biomass machinery, fertilizer machinery, storage machinery and complete sets of projects. Has served in Europe, Africa, Australia, South America, Southeast Asia, the Middle East and more than 30 countries and regions.
The products have obtained ISO9001:2015 international quality system certification, EU national CE certification for biomass energy equipment and its complete production line, Russian GOST-R certification, and 6 years of SGS field certification. Reliable and reliable.
We have a professional technical team to customize your own system solutions, providing one-stop services from pre-design, manufacturing to post-construction, maintenance and so on. Committed to providing "safe, reliable, energy-saving" stand-alone products to customers around the world, we are committed to creating high-quality, low-energy, strong and stable quality projects, and continuously create more and greater value for our customers.

Large Output New Condition Drum Type Wood Chipper
Certificates
Large Output New Condition Drum Type Wood Chipper
Our clients from around the world
Large Output New Condition Drum Type Wood Chipper
Packaging:Depending on customers' requirement,such as wooden box or Iron crate etc.

Shipping:Our shipping operator and delivering equipment will be ready on time to ensure goods shipped based on Sales Order requirement.

Large Output New Condition Drum Type Wood Chipper
