• Model NO.：WZLH420
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：Provided
• Capacity(T/H)：0.8-1.2
• Main Power(Kw)：75-90
• Pellet Size(Mm)：6-8
• Transport Package：Iron Pallet and Soft Guard
• Specification：1000KG
• Trademark：FDSP
• Origin：Jiangsu, China (Mainland)
• HS Code：8479300000
• Production Capacity：0.8-1.2t,H

Basic Info.

Model NO. WZLH420 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Provided Capacity(T/H) 0.8-1.2 Main Power(Kw) 75-90 Pellet Size(Mm) 6-8 Transport Package Iron Pallet and Soft Guard Specification 1000KG Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8479300000 Production Capacity 0.8-1.2t/H

Product Description

Factory Manufacturer High Capacity Biomass Pellet Making Machine
Product introductions:

1. Main driving adopt high precise of gear driving, rind die adopt quick dismantling clamp, the efficiency improve approximately 20% higher than belt driving.
2. The machine's driving parts use high quality of imported bearing and oil seal to ensure
high efficient driving, stable and low noise operation.
3. The advanced compensation type serpentine spring coupling is with novel, compact, safe structure and low faulty etc.,
4. Considering material and heat treatment,the running parts' have been strengthened in
order to meet the requirement of biomass pelleting.
5. Patented ring die technology,mainly improve ring's crack prevention and increased c
apacity per our and overall capacity.
6. Additional oil adding system, additional air cooling system, with high efficiency, low
energy consumption, stable operation, good quality pellets and reliable performance.


Performance Parameters

Model	WZLH420	WZLH508	WZLH680
Ring die inner diameter (mm)	420	500	688
Ring die working width(mm)	90	100	110
Ring die linear speed (m/s)	3.16	3.78	3.54
Number of clamp	3 pcs	3 pcs	8 pcs
Number of roller	2 pcs	2 pcs	2 pcs
Number of cutter	1 pcs	1 pcs	1 pcs
Motor power	90+2.2+0.75	90+2.2+1.5	185+3.0+1.5
Motor rotation speed	750	750	595
Ring die hole   diameter(mm)	6/8/10	6/8/10	6/8/10

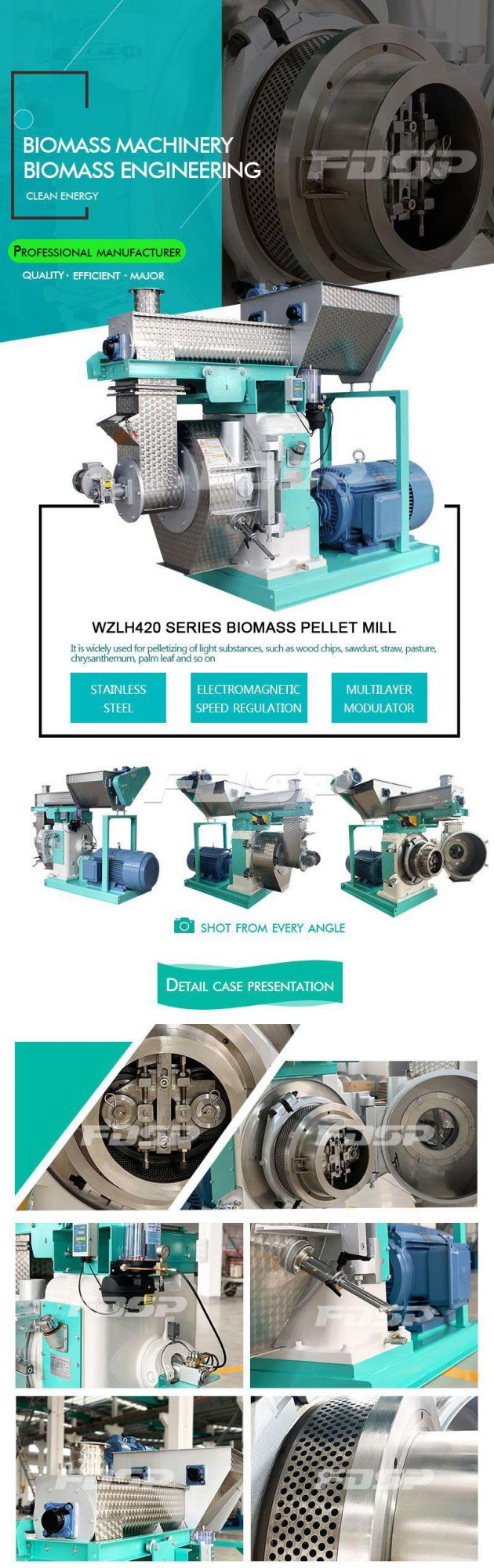

Product display:

Customers visit our company:
