MDF Woodworking Brush Polish Sander Sanding Machine

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty:12months
  • Type:Belt Wood Sander
  • Automatic Grade:Semiautomatic
  • Variable Speed:Variable Speed
  • Certification:CE, ISO
  • Customized:Customized

Base Info

  • Model NO.:B-R-RP1000
  • Condition:New
  • Color:Customized
  • After-sales Service:24 Hours on The Line
  • Working Width:1300mm
  • Min Working Length:500mm
  • Working Thickness:3-110mm
  • Conveyor Speed:6-30m,Min
  • Total Motor Power:80.05kw
  • Application:Wood Door, Cabinet Door
  • Transport Package:Strong Stretch Film
  • Specification:4800KG
  • Trademark:SOSN
  • Origin:China
  • HS Code:846593000
  • Production Capacity:150 Sets Per Month

Description

Basic Info.

Model NO. B-R-RP1000 Condition New Color Customized After-sales Service 24 Hours on The Line Working Width 1300mm Min Working Length 500mm Working Thickness 3-110mm Conveyor Speed 6-30m/Min Total Motor Power 80.05kw Application Wood Door, Cabinet Door Transport Package Strong Stretch Film Specification 4800KG Trademark SOSN Origin China HS Code 846593000 Production Capacity 150 Sets Per Month

Product Description

Woodworking  Wide Belt Brush Polish Sander Sanding Machine for Cabinet MDF

Sanding Machine is reasonable to match the planer roller and sander. The planer is generally used for sand planing of raw materials. The planer can remove 3mm at a time, without the effect of sanding, and the flatness is not as good as the sanding machine. The sanding machine sands 70-80 threads at a time. If you want to sand to 3mm, you need to sand 3-4 times, and the sanding machine can complete it. It is relatively slow. The combination of the two is a planing sander.



1. Imported planer roll, will be thick roll and soft roll (or a combination of sand frame), and then after the first plane sand polishing process, energy efficient.

2. With floating pressure boots, short sand material available.

3. Casting stop device is used to avoid rebounding and hurting the plate during processing.

4. Conveyor belt drive adopts variable-frequency helical gear worm reducer, more stable and reliable.

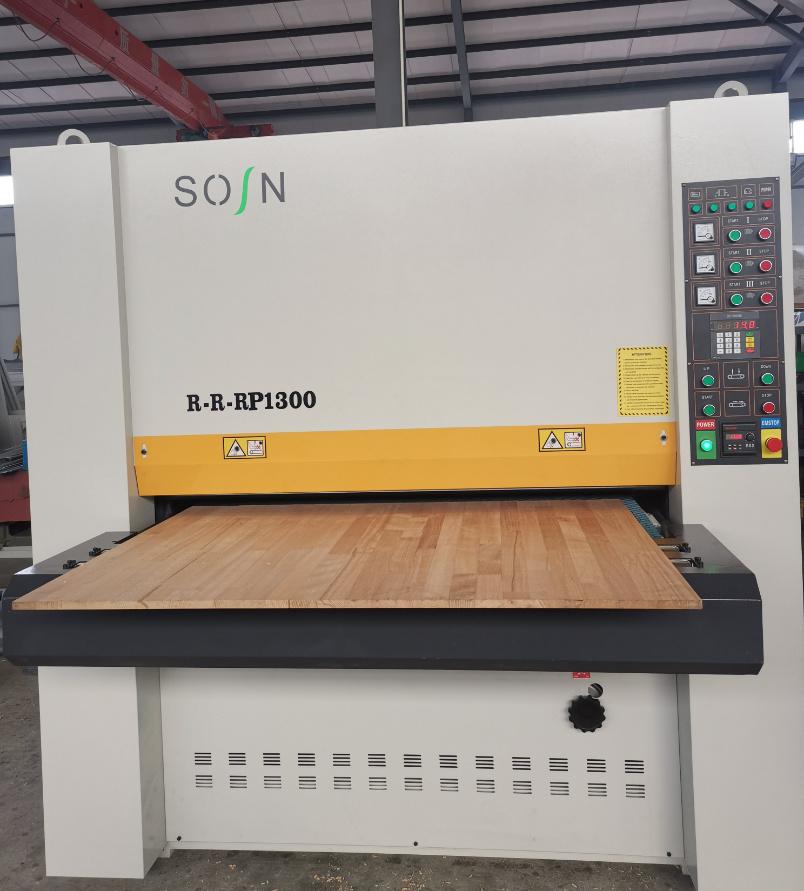

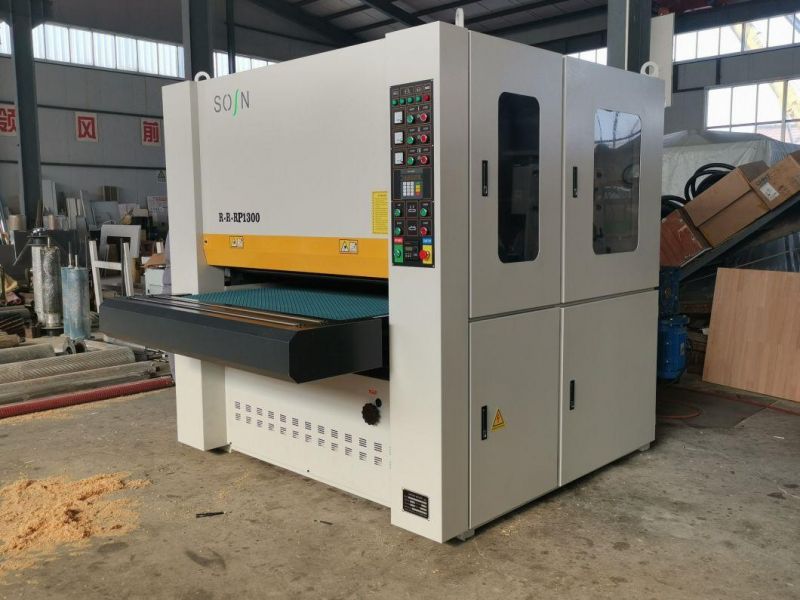

1). Machine picture
MDF Woodworking Brush Polish Sander Sanding Machine


2). Features
--Imported planer roll, will be thick roll and soft roll (or a combination of sand frame), and then after the first planer sand polishing process.
--With floating pressure boots, short sand material available.
--Casting stop device is used to avoid rebounding and hurting the plate during processing.
--Conveyor belt drive adopts variable-frequency helical gear worm reducer, more stable and reliable.

3). Main parameter
Working  width1300mm
Min.Working  length500mm
Working  thickness3-110mm
Feeding  speed5-25m/min
Total  motor  power80.05kw
Motor  for  first  unit22kw
Motor for second unit30kw
Motor for third unit22kw
Feeding motor5.5kw
Lifting motor0.55kw
Abrasive belt size1330*2200mm
Working air pressure 0.6MPa
Volume of dust collection device12000m3/h
Overall dimensions3000*2000*2050mm
Net weight4800kg

We also have 630mm, 1000mm, 1300mm working width planer sanding machine for your choice.

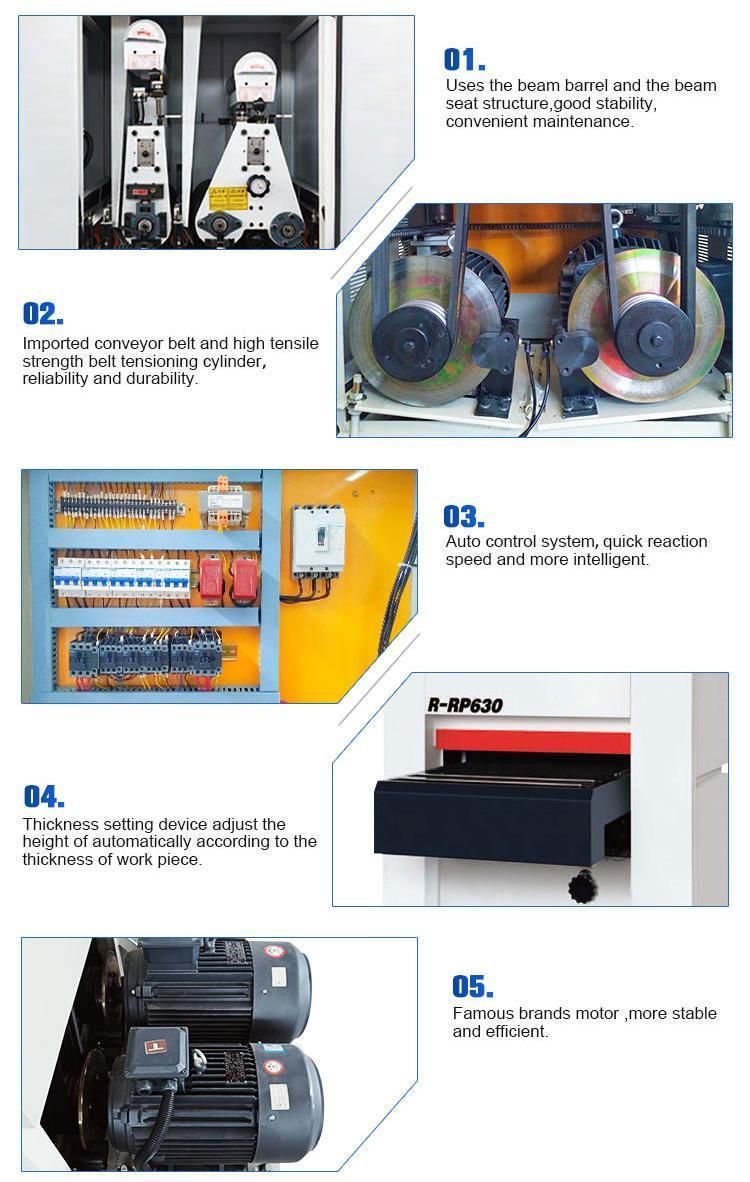

4). Details
Inside structure of  the sanding machine: one planer roller + one sanding roller + one sanding roller + one polishing pad.

MDF Woodworking Brush Polish Sander Sanding MachineApppication
MDF Woodworking Brush Polish Sander Sanding Machine

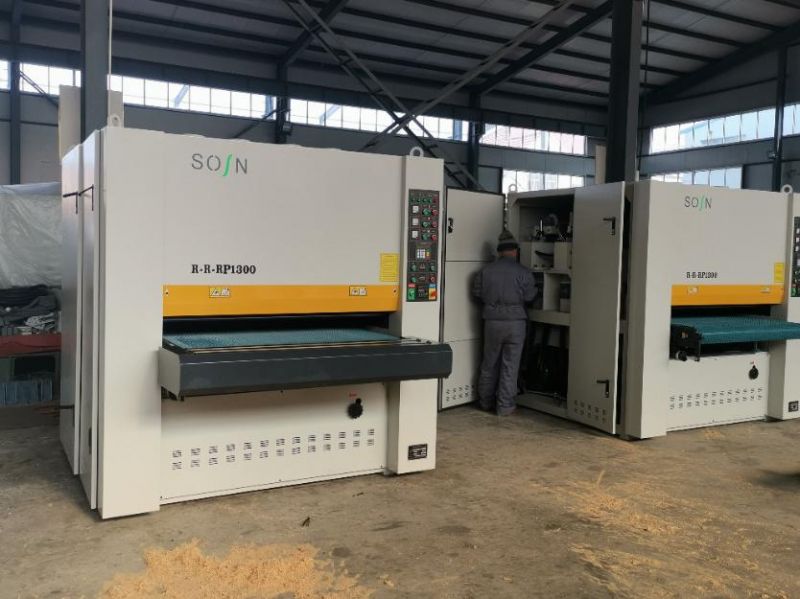

 5).Machine at workshop.

MDF Woodworking Brush Polish Sander Sanding MachineMDF Woodworking Brush Polish Sander Sanding Machine
6). Package and delivery

MDF Woodworking Brush Polish Sander Sanding Machine

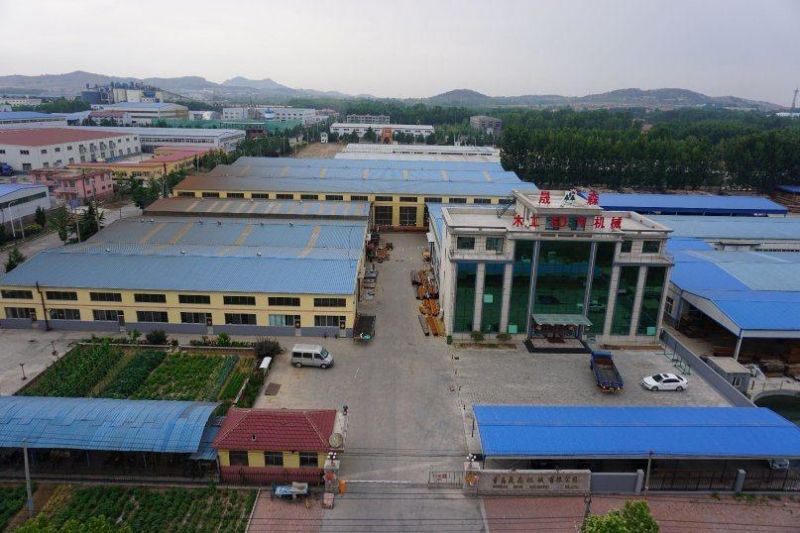

7).Our factory
MDF Woodworking Brush Polish Sander Sanding Machine
MDF Woodworking Brush Polish Sander Sanding Machine
With rich professional exprience for woodworking machine, we sincerely welcome your visiting to our factory.

--Delivery:
We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we can't deliver on time, we will give the product a corresponding discount.
--Package:
After testing the sanding machine well, our workers will do cleaning work before package.
 stretchy film for the whole machine and some spare parts which will also be seperatly packed well by strong stretch film.
--Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
--Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
--After sales services:
Our machine is installed and tested well before delivery to you, when you get the machine, you just need to install it and then can operated, of course ,all of these steps our technician will give you professional help.

No worry for any installation or operation of this sanding machine, we are here to help you.

Heavy duty frame, Unique internal structure, top-brand spare parts, professional installation workers, in time after sale service, this machine surely can highly improve your working efficiency!

Please contact me now to start your working upgrading!

Welcome to ask sanding machine price .
