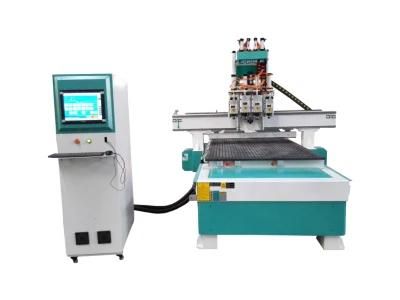

4 Spindles Atc Wood CNC Router Machine
Jinan Zhongke CNC Equipment Co., Ltd.- Type：Engraving Router
- Spindle Layout：Vertical
- Spindle Number：Four Spindles
- Feed Mode：Manual
- Controlling Mode：CNC
- Certification：CE, ISO
Base Info
- Model NO.：1325,1530,2030. etc
- Customized：Customized
- Condition：New
- Color：Customized
- Model：1325
- Spindle：4.5kw*2 and 6kw*2 Air Cooling Spindle
- Guide Rails：Square Guide Rails
- Ball Screw：Tbi Ball Screw
- Inverter：Fuling Brand Inverter
- Control System：Syntec Control System
- Motor：Easy Servo Motor
- Driving Way：Easy Servo Driver
- Transmission in X,Y：Helical Rack
- Table Surface：Vacuum Absorption Table
- Transport Package：Exporting Plywood Package
- Specification：1300*2500*200mm
- Trademark：zhongke
- Origin：Jinan Shandong China
- HS Code：84659900
- Production Capacity：100set ,Month
Description
Y -double motor drive

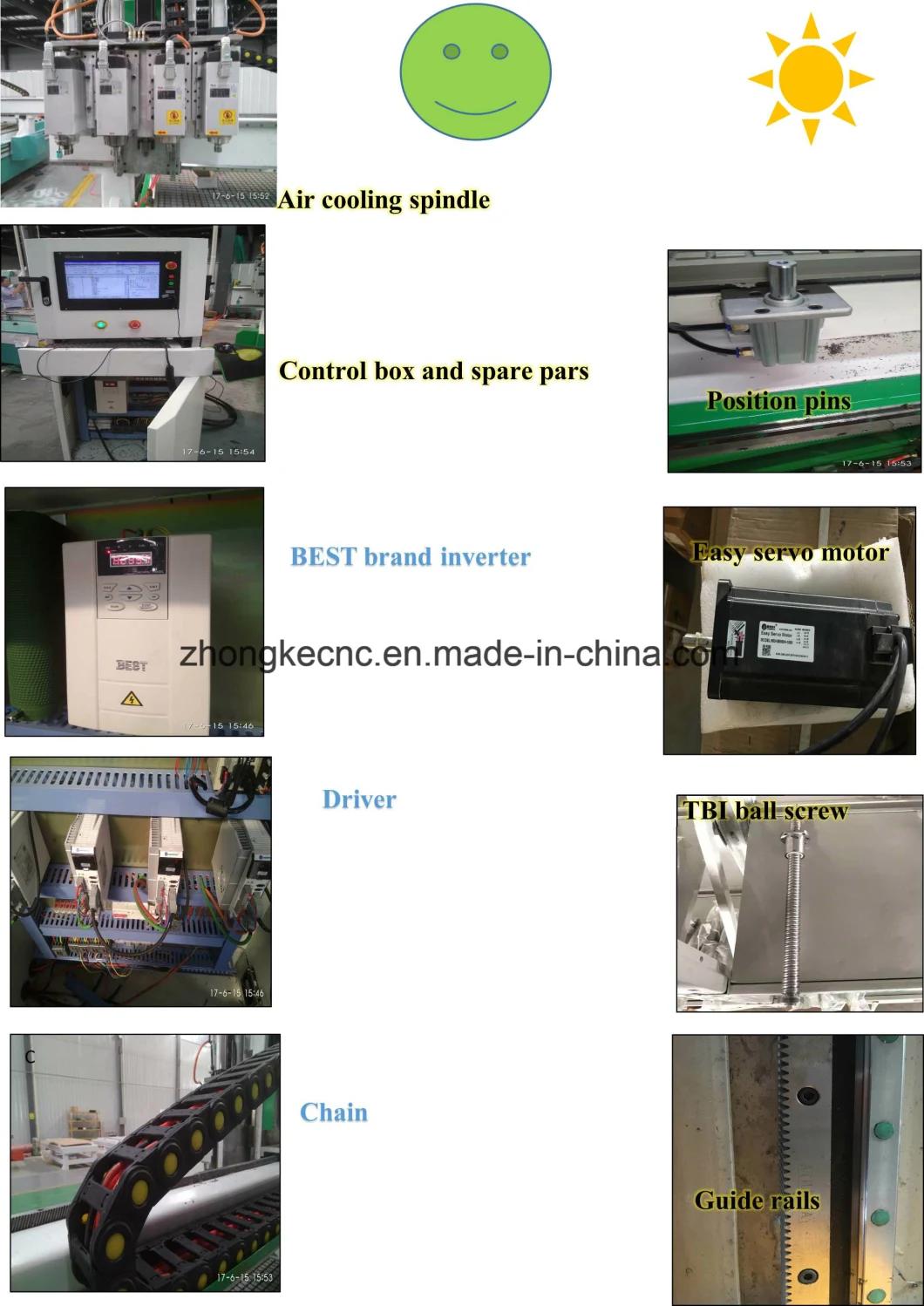

Configuration:
1.Air cooling spindle with high speed,high efficency and little noise.
2.All of the spindles can work together to save you time and costs.
3.The lathe is founded by welded steel that ensures the high stability and longtime use.
4.Taiwan HIWIN square guide rails and Taiwan TBI ball screws with high precision,large load bearing and stable running.
5.High speed driver and easy servo motor enhance work efficiency.
6.Our controller is Ncstudio,easy to operate(optional:DSP control system).
7.Equipped with professional Aluminum with PVC base with the high strength engineering plastics surface in order to ensure can bear large load and longtime working.
8.Adopt high powerful weled steel bed structure.
9.The pressing handly oiling system it's extreamly convenient.
10.Many parts can change according to your requirement.
After sale service:
1 we offer 1 year warranty
2 we offer 24 hourses technical support online
3 Druring the warranty, if there is part broken, we will offer you the same for free.

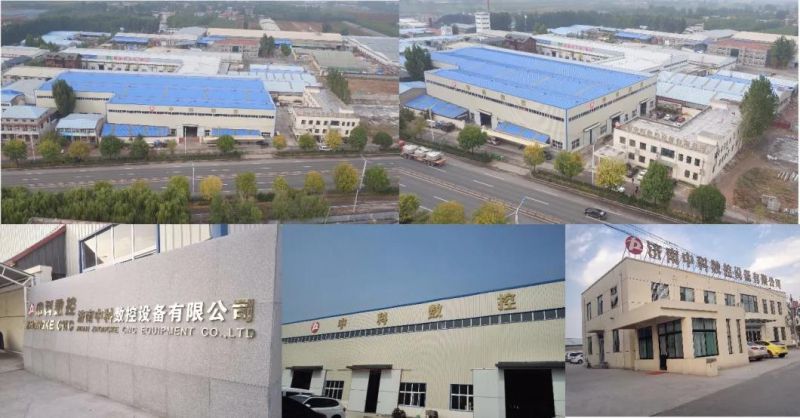

Our factory photo
