• Model NO.：1325
• Customized：Customized
• Condition：New
• Color：Customized
• Spindle Power：3.5kw Air Cooling Spindle
• Inverter：Sunfar
• Control System：Ncstudio
• Table：Aluminum T-Slot Table with PVC
• Motor：Stepper Motor
• Transmission：Helical Rack
• Guide Rail：Taiwan Hiwin Square Guide Rail
• Spindle Speed：6000-24000
• Application：Wooden Industry
• Bed Structure：Welded Bed Structure
• Transport Package：Plywood Package
• Specification：1300*2500*200mm
• Trademark：ZK
• Origin：Jinan Shandong
• HS Code：8465990000
• Production Capacity：100

Basic Info.

Model NO. 1325 Customized Customized Condition New Color Customized Spindle Power 3.5kw Air Cooling Spindle Inverter Sunfar Control System Ncstudio Table Aluminum T-Slot Table with PVC Motor Stepper Motor Transmission Helical Rack Guide Rail Taiwan Hiwin Square Guide Rail Spindle Speed 6000-24000 Application Wooden Industry Bed Structure Welded Bed Structure Transport Package Plywood Package Specification 1300*2500*200mm Trademark ZK Origin Jinan Shandong HS Code 8465990000 Production Capacity 100

Product Description

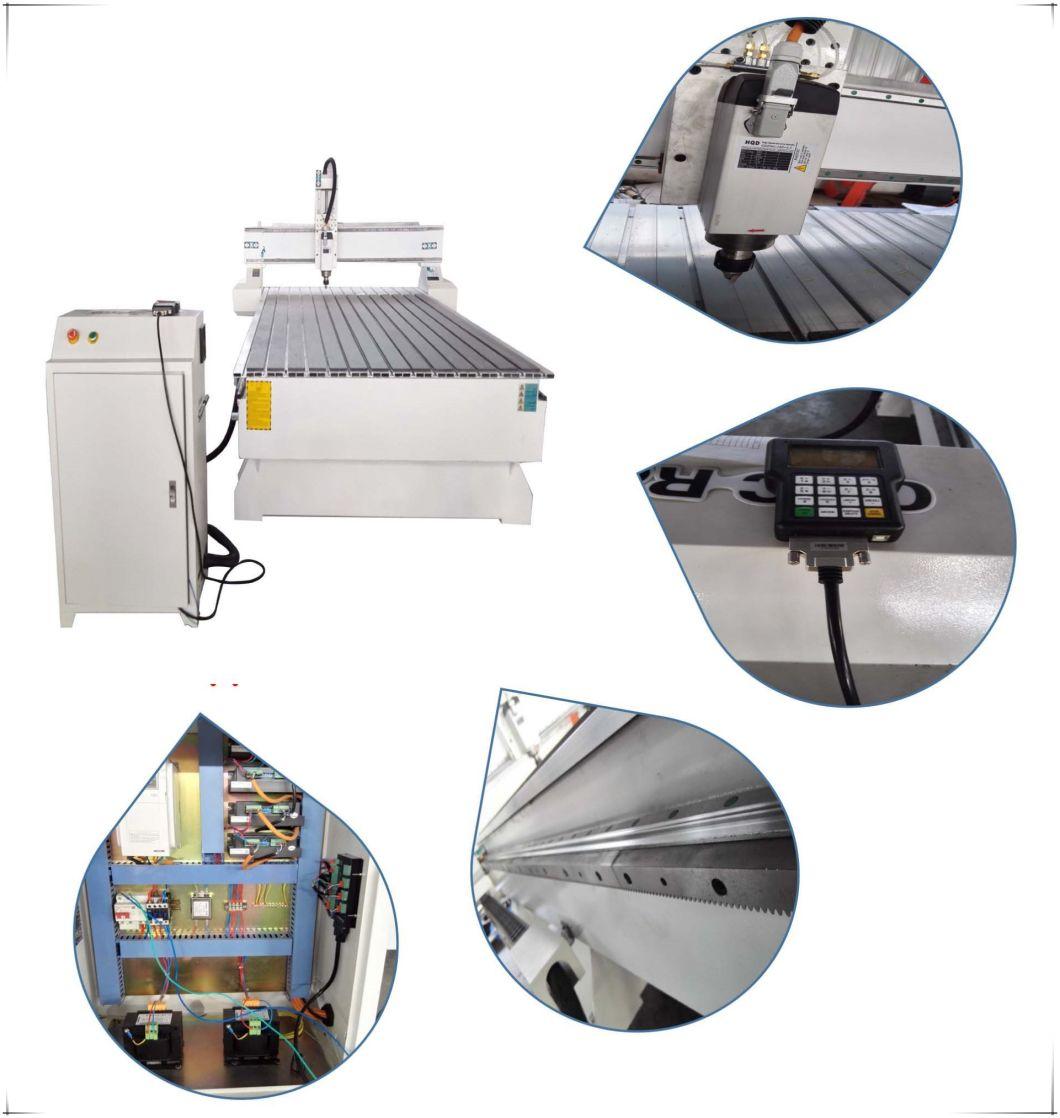

Wood Cabinet Plastic Furniture Engraving Cutting CNC Router


Feature:
1 Welded steel bed structure , when working its more stable.
2 Alumiun T-slot table, fixing the materiales by clamps
3 Sunfar brand inverter
4 Ncstudio control system
5 Air cooling spindel .
6 TaiWan high precision HIWIN square liner guide rail, improving working accuracy.
7 Stepper motor working mode
8 Transmission by helick rack
9 TaiWan TBI Ball Screw
10 Servo motor and SYNTEC control system is optional

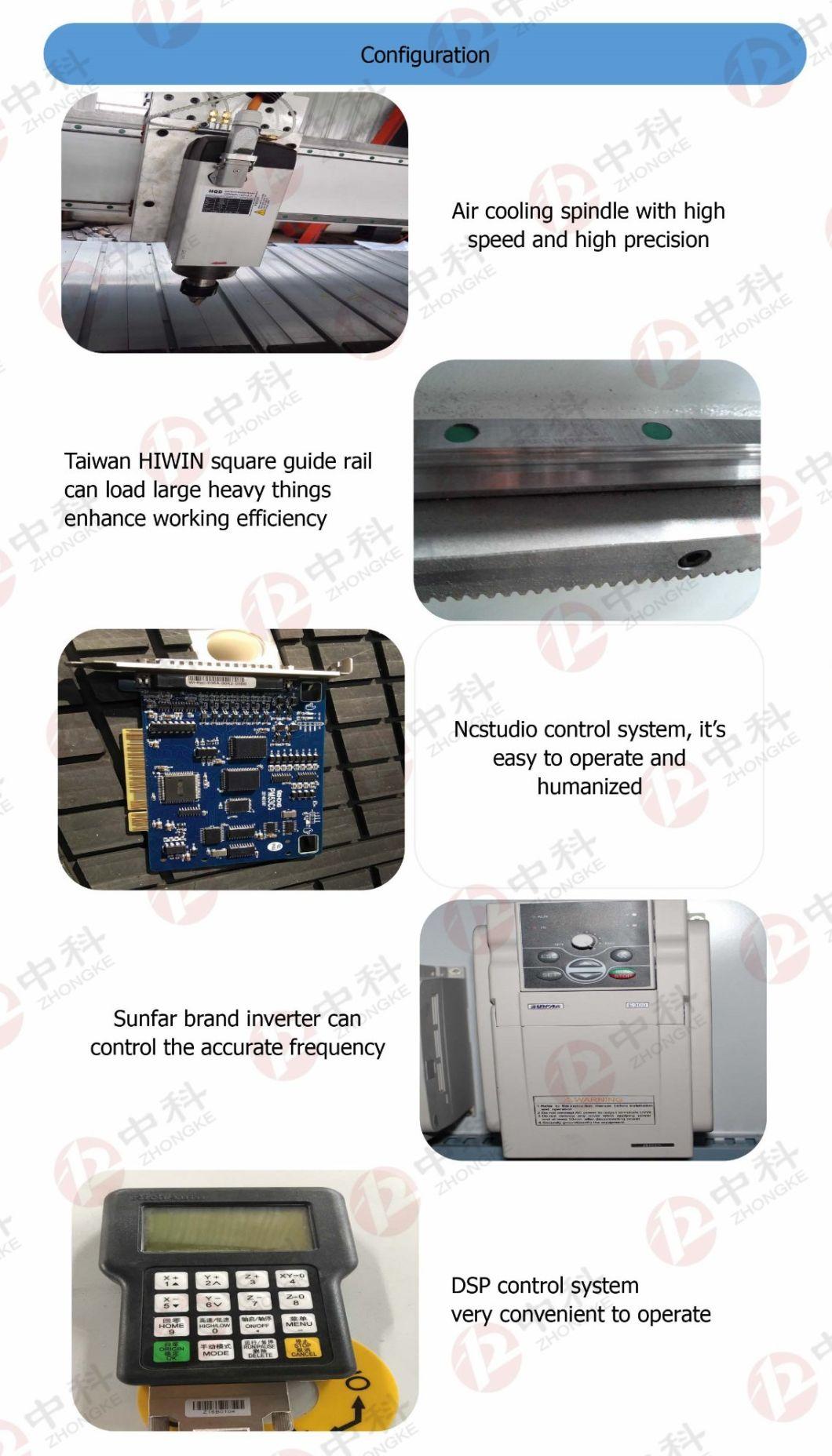

Configuration:



Specification:

Model	ZK 1325 CNC router
X,Y,Z Working Area	1300*2500*200mm
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z repositioning Positioning Accuracy	±0.02mm
Lathe Structure	Thick wall square tubes welding bed
X Structure	Taiwan HIWIN square guide rails
Y Structure	Taiwan HIWIN square guide rails
Z Structure	Taiwan TBI ball screw
Max.Speed	0-30000mm/min
Max.Working Speed	0-25000mm/min
Spindle	water cooling spindle
Spindle Speed	6000-24000RPM
Working Mode	Stepper motor
Working Voltage	380V/3ph    50HZ/60Hz for standard machine, if optional vacuum system or servo system, it need 380V 3 phase
Command Code	G code(*uoo,*nc,*mmg, *plt)
Operating System	Ncstudio control system or DSP control system( also can choose LNC or SYNTECH control system, it depends on your requirement)
Interface	USB
X,Y Working Delicacy	<0.01mm
Software	Type3 software or Wentai software
Running circumstance	Temperature: 0°C~45°C
Waranty	One year
Delivery time	2 weeks

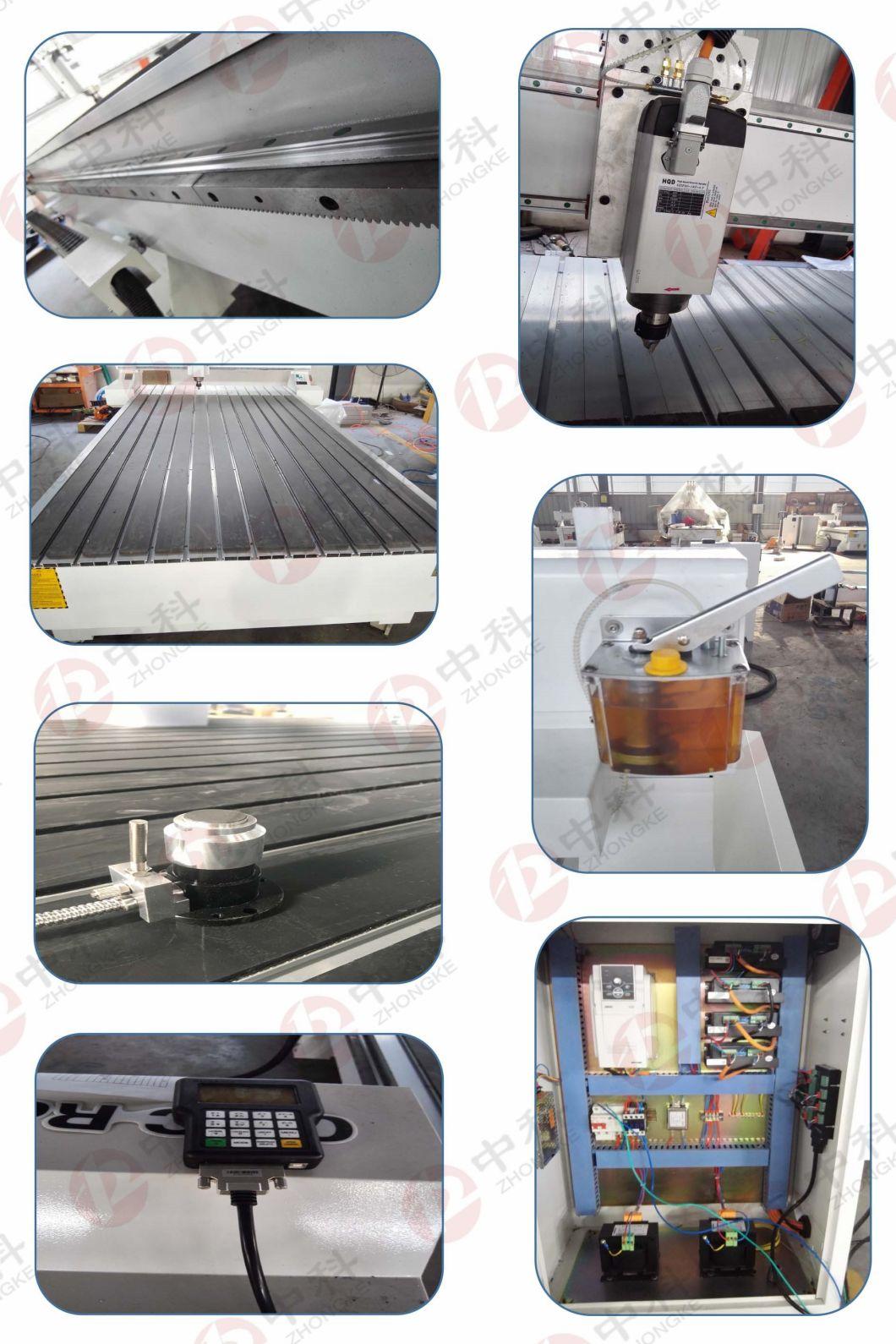

Details:

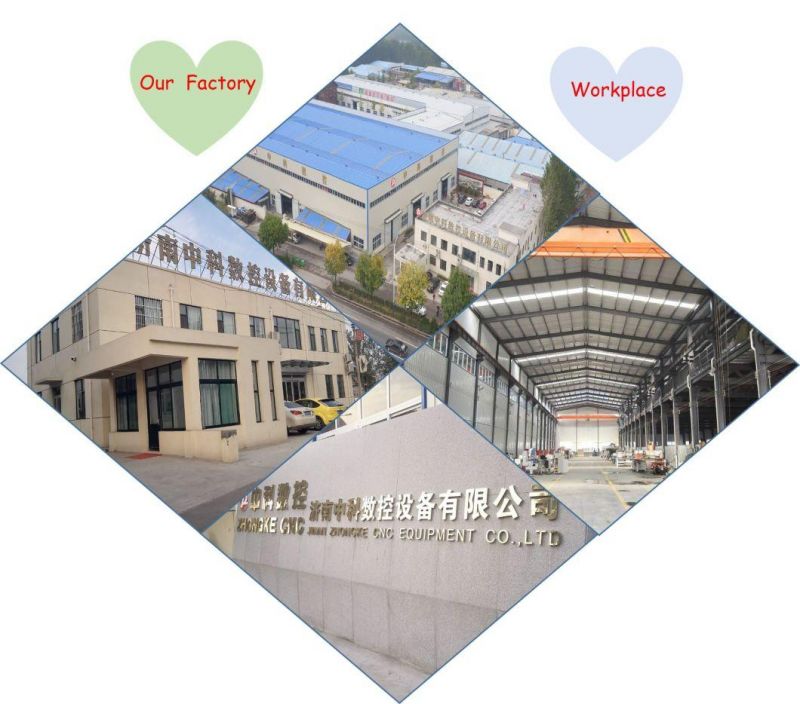

Our factory:
