• Model NO.：HPL330HG
• Drive System：Yaskawa Servo Motor
• Converter：Zoncn, Fuling Brand
• Net Weight：5800kg
• Working Voltage：380V,50Hz
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：6500*5500*2000mm
• Trademark：Mars
• Origin：China
• HS Code：8465910000
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. HPL330HG Drive System Yaskawa Servo Motor Converter Zoncn/ Fuling Brand Net Weight 5800kg Working Voltage 380V/50Hz Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 6500*5500*2000mm Trademark Mars Origin China HS Code 8465910000 Production Capacity 3000 Sets/Year

Product Description

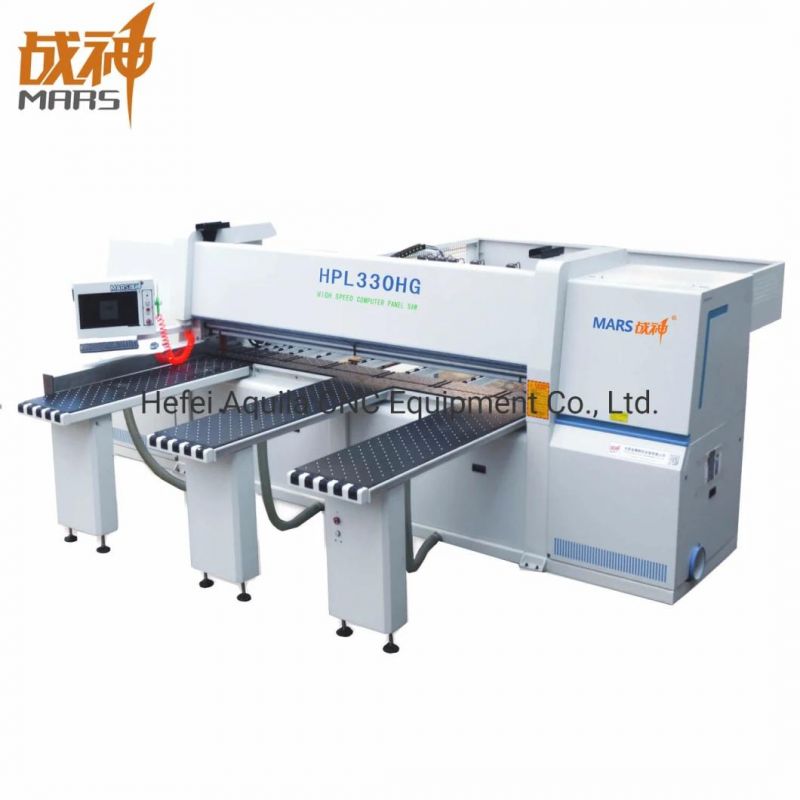

MARS Computer Electronic Panel Saw /High Speed Wood Cutting Nesting MachineKeywords:15 years experience of production
                      ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                      Three Brand: Mars, Golden Eagle,Borio





Description:
The new machine is a fully automatic touch-screen control. Workers input the data to be cut on the touch-screen, start the machine, and the machine runs automatically. It is a CNC cutting machine that precisely cuts the plates to be processed.

Functions:
The main function of this machine is cutting.

Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.


Application Scope:
It is suitable for cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings.


Parameters:

Max.Cutting Length	3280mm
Max.Cutting Width	3280mm
Max.Cutting Thickness	100mm(Intelligent lifting)
Large Saw Blade	400 x 4.4 x 75 x 72teeth/1
Slot Saw Blade	160 x 4.4 / 5.4 x 45 x 24teeth/1
Saw Carriage Forward Speed	5-100m/min
Saw Carriage Backward Speed	100m/min
Manipulator Forward Speed	0-100m/min
Manipulator Backward Speed	100m/min
Main Saw Motor	18.5kw
Air Floating Workbenth	3pcs
Scoring Saw Motor	2.2kw
Worktable Height	920mm
Total Air Consumption	150L/min

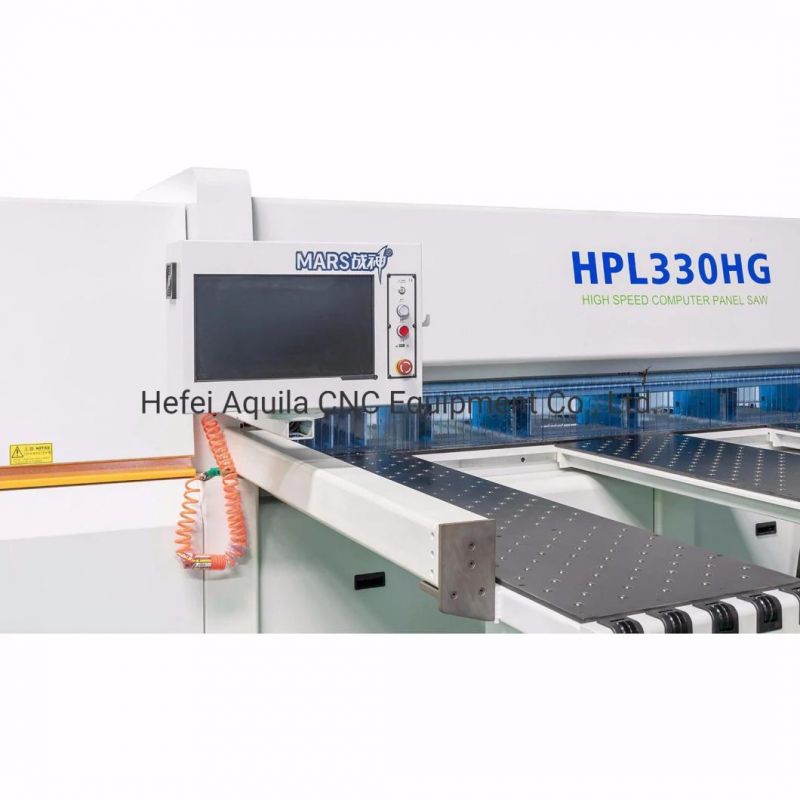

Color LCD	Delta 10.4 inch
Minimum Dust Extraction Speed	26m/sec
Negative Pressure	1200pa
Exhaust Air Volume	4400m3/h
Diameter of Dust Extraction Pipe	100×2pcs
Number of manipulators	8pcs

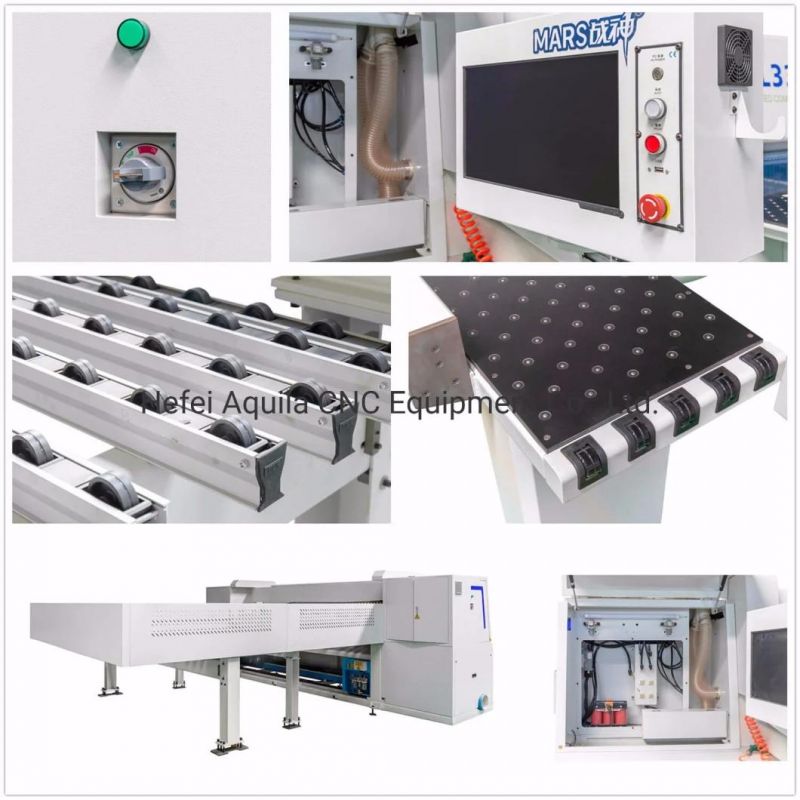

Accessories:



Performance Features:
1.Multi -layer sheet can be superimposed for one-time cutting to improve processing efficiency.
2.Independent main and auxiliary saw blade matching,smooth cutting.

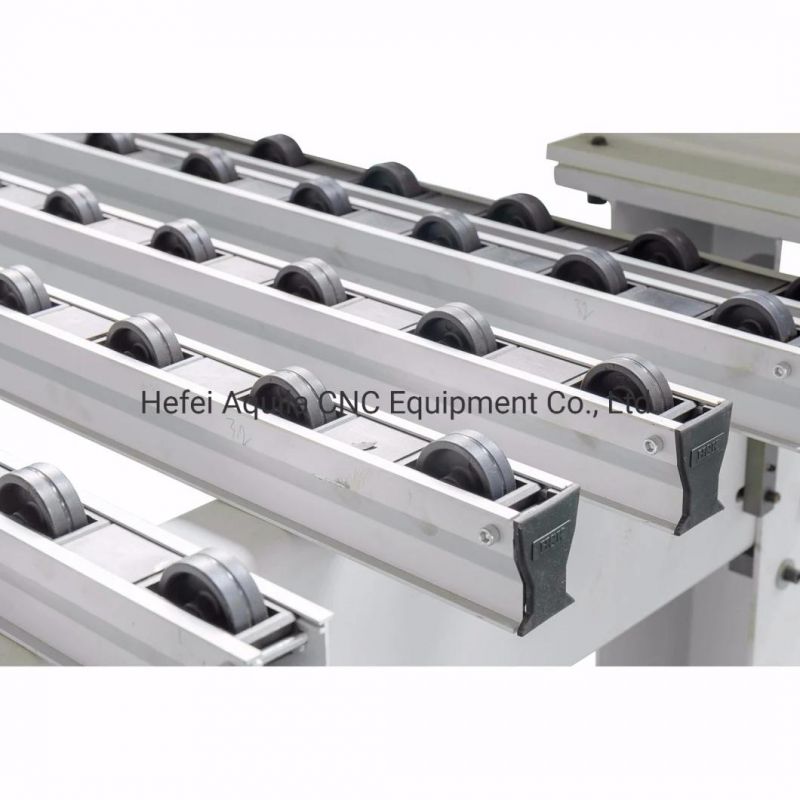

3.Pneumatic mechanical clamping device,automatic feeding.
4.Dockable intelligent automation whole plant production line.
