Plywood PVC Bevel Angle Edge Banding Machine Price
Qingdao High-Class Service Import & Export Co., Ltd.- Type：Becel Vertical Integrate
- Edging thickness：0.4-3mm
- Automatic Grade：Automatic
- Panel Feeding Speed：0-23m,Min
- Certification：CE, ISO
- Panel Thinkness：10-60mm
Base Info
- Model NO.：HC368JX
- Min.width panel：60mm
- Customized：Customized
- Name：Edge Banding Machine
- Feed Speed：0-23,Min
- Feed Speed (Bevel)：0-18,Min
- Panel Thickness：10-60mm
- Banding Tape Width：10-65mm
- Banding Tape Thickness：0.4-3mm
- Working Pressure：0.7MPa
- Motor Power：20kw
- Overall Size(L*W*H)：8200*750*1700mm
- Transport Package：Plywood Pallet
- Specification：3000kg
- Trademark：Hicas
- Origin：Shan Dong China
- HS Code：8465990000
- Production Capacity：10sets,Mouth
Description
Basic Info.
Model NO. HC368JX Min.width panel 60mm Customized Customized Name Edge Banding Machine Feed Speed 0-23/Min Feed Speed (Bevel) 0-18/Min Panel Thickness 10-60mm Banding Tape Width 10-65mm Banding Tape Thickness 0.4-3mm Working Pressure 0.7MPa Motor Power 20kw Overall Size(L*W*H) 8200*750*1700mm Transport Package Plywood Pallet Specification 3000kg Trademark Hicas Origin Shan Dong China HS Code 8465990000 Production Capacity 10sets/MouthProduct Description

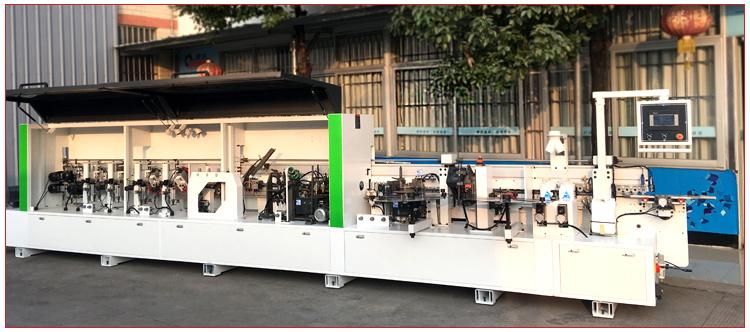

Plywood Pvc Bevel Angle Edge Banding Machine Price
Specification
| Model | HC368JX |
| Electrical Lift | Yes |
| Motor Power | 20kw |
| Overall size(L*W*H) | 8200*750*1700mm |
| Feed Speed | 0-23/min |
| Feed Speed (bevel) | 0-18/min |
| Panel Width | ≥60mm |
| Panel Thickness | 10~60mm |
| Banding tape width | 10~65mm |
| Banding tape thickness | 0.4-3mm |
| Working Pressure | 0.7MPa |

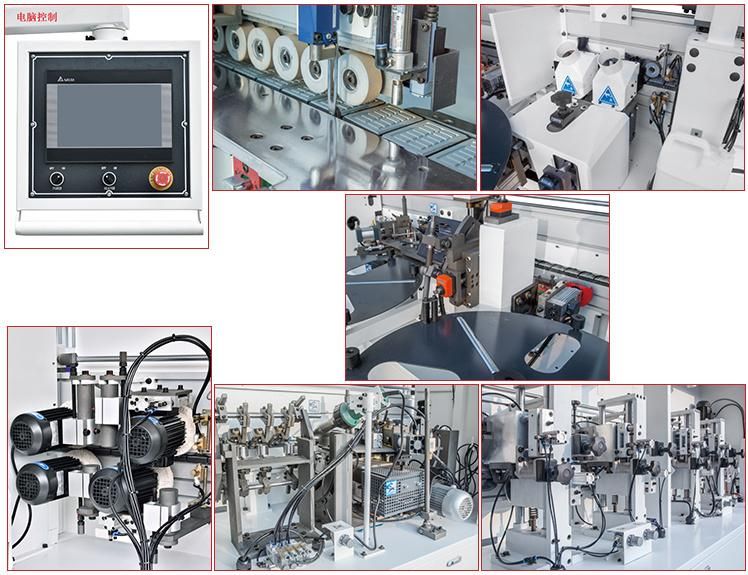

Advantages:

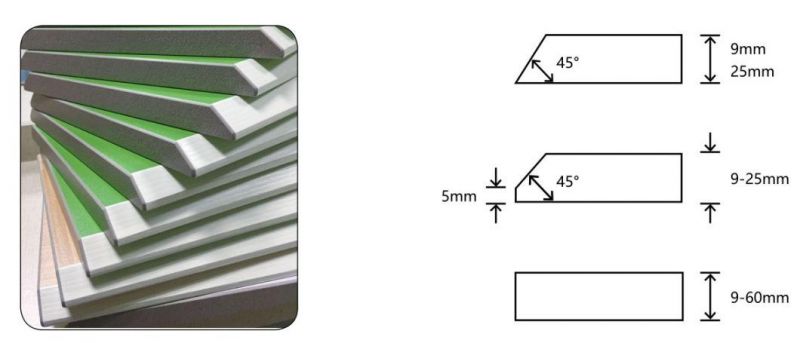

Final Product

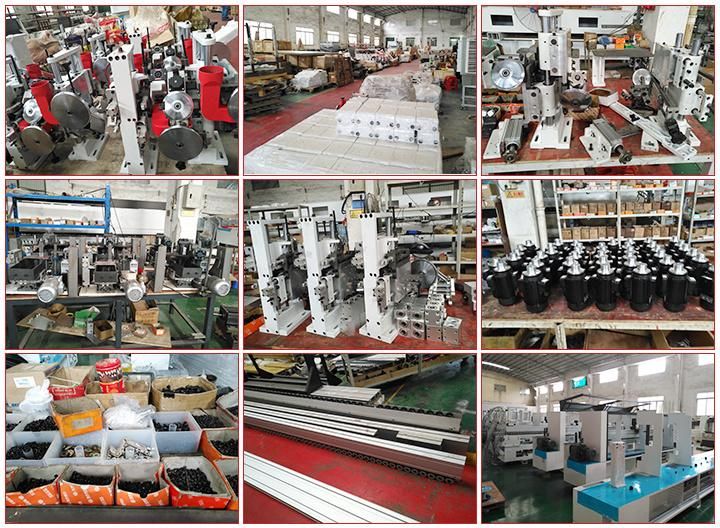

Spare Parts
Package

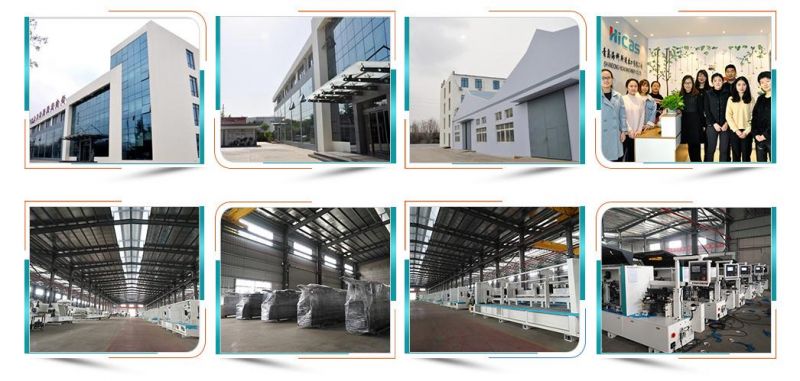

Why Choose Us
1. We have our own woodworking machinery factory.
2. As a professional manufacturer, we have 14 years factory experience for woodworking machinery.
3.Our products are widely sold in made-in-china.
4. More and more customers in the world are using our machine, we received many good feedbacks from lots of countries.
5.We have perfect after-sales service.
a. Machine guarantees 12 months.(The host machine warranty for one year, the wearing parts is no guarantee, but support will be provided)
b. 24 hours technical service by email or calling.
c. English manual and operation video.
d. Engineers available to service machine overseas, also welcome to our factory to learn the installation and use of the machines.
e. Regularly follow-up by email or cellphone
f. Expanding your production or upgrading machine in the future, professional solution will be provided.
6. We are looking for Good customers like you! and Distributor or Agents Wanted!!!
