• Model NO.：JCT1530L 4  axis
• Customized：Customized
• Condition：New
• Color：Customized
• Xyz Working Size：1500*3000*500mm(Customized)

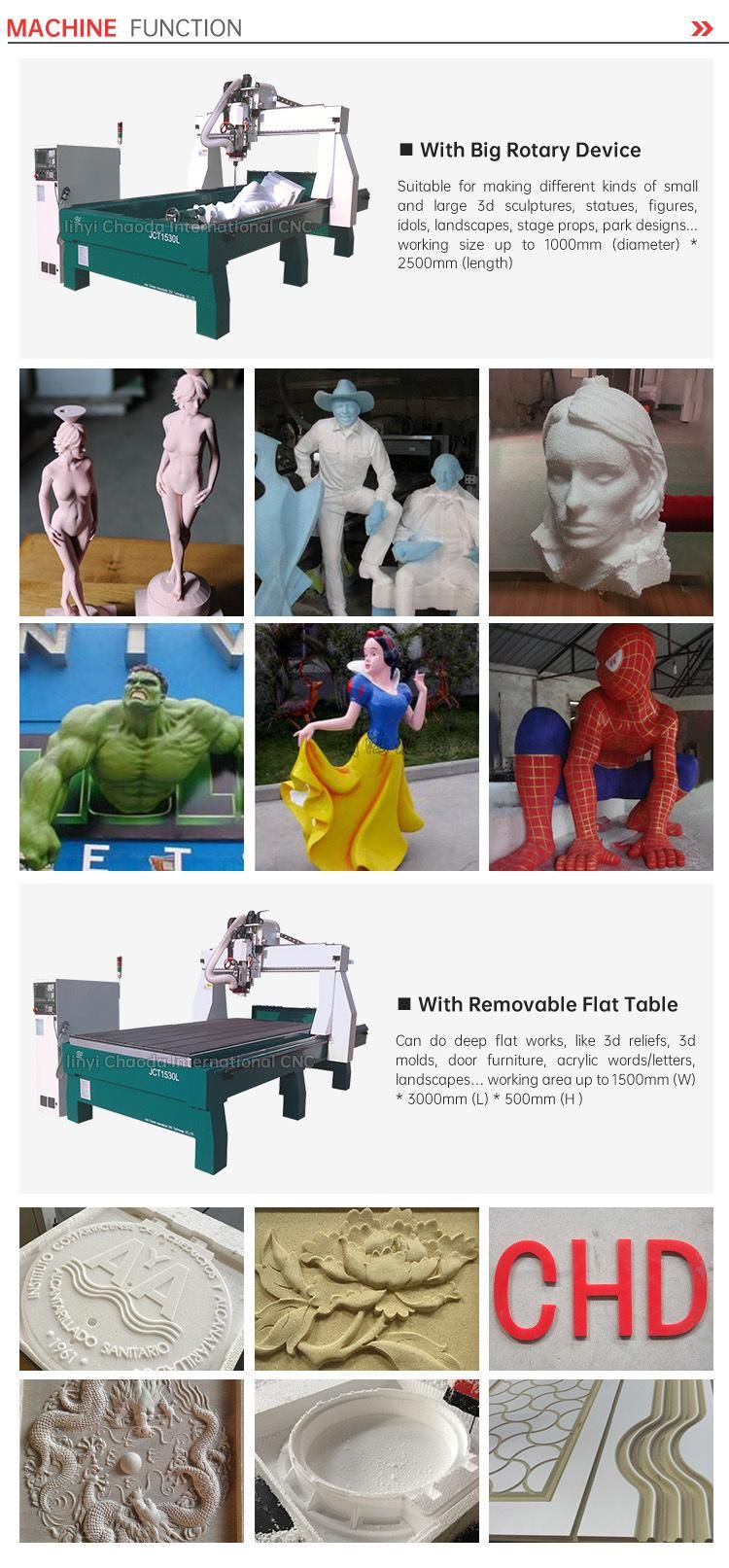

• Rotary Working Size：1000mm Diameter, 2500mm Length(Customized)
• Table Surface：Aluminium T-Slot with Clamps
• Pindle Power：9kw Air Cooling Spindle
• Working Mode：Japan Yaskawa Servo Motor and Driver
• Working Voltage：3 Phase AC380V ,220V
• Operating System：4 Axis Weihong Control System
• Software：Powermill
• Transport Package：Wooden Case Packages
• Specification：working size diameter 1000mm, length 2500mm
• Trademark：CHAODA
• Origin：China
• HS Code：8464909000
• Production Capacity：800sets,Year

X,Y,Z,working area1500*3000*500mm(customized)rotary working size1000mm diameter,2500mm length(customized)Lathe bed structureT-extrusion,Thick Steel frameTable surfaceAluminium T-slot with clampsX structureRack and pinion, HIWIN linear square railY structureRack and pinion, HIWIN linear square railZ structureBall screw, HIWIN linear square railResolution±0.02mmReposition accuracy±0.05mmMax. rapid0-60000mm/minMax. working speed0-30000mm/minSpindle power9kw air cooling ATC spindleTool magazineLinear type auto tool changer system,8 tool magazineSpindle speed0-24000RPMWorking modeJapan YASKAWA servo motor and driverWorking voltage3 phase AC380V /220VCommand codeG code(*uoo,*nc,*mmg, *plt)Operating system4 axis WEIHONG control system( optional syntec control system )Collet ER32SoftwarePowerMillRunning circumustanceTemperature: 0°C~45°C
relative humidity: 30%~75%
