• Model NO.：LSP1325
• Control System：Start with USB Interface (Starfire Optional)
• Cooling Way：Water Pump and Water Tank
• Transport Package：Wooden Boxes
• Specification：1300kg
• Trademark：Lansen
• Origin：China
• HS Code：8465990000

Basic Info.

Model NO. LSP1325 Control System Start with USB Interface (Starfire Optional) Cooling Way Water Pump and Water Tank Transport Package Wooden Boxes Specification 1300kg Trademark Lansen Origin China HS Code 8465990000

Product Description

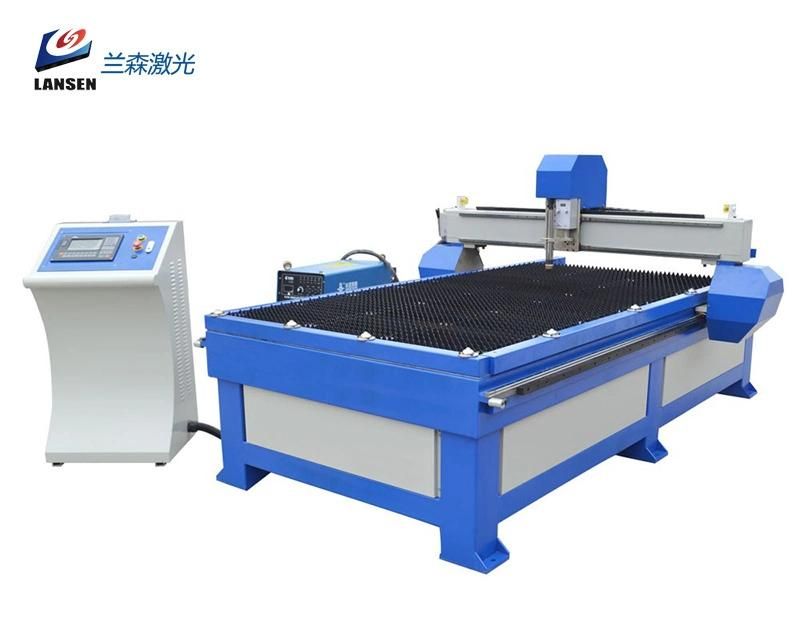

Industry 120A Plasma Stainless Steel CNC Cutter Cutting machine
Features:

1. This machine adopts thick square tube wholly welding; the machine body adopts shaking preventing technical disposal, with the features of firm, shape retention, and high rigidity.
2. Reasonable platform design, the flat table adopts 10mm precision process steel plate install on the machine table, and then install precision process cast iron cover to protect the vertical steel, to prevent the steel plate affected by high strength flame. The level difference of whole double-deck platform remains in 0-1.5mm.
3. Reasonable pitch leaks design, to make the work piece and other fragments slide to the sides of the knife rack, safe and convenient to use.
4. This machine adopts Starfire control system. StarCAM Software.
5. The machine adopts Huayuan power source (power 40A/120A/200A) together with high sensitive arc pressure adjuster. Self-adjusting to choose the best distance between plasma head and work piece automatically in order to ensure cutting accuracy
6. Perfect reasonable design and high immaculate surface's work piece make the machine best choice for different thickness material and heterotypic sheet cutting

Parameters:

Model	LSP1325
Working Area(X*Y)	1300×2500mm
Working Material	Metal steel, Stainless steel, carbon steel, aluminum,etc.
Cut Material Thickness	3-30mm

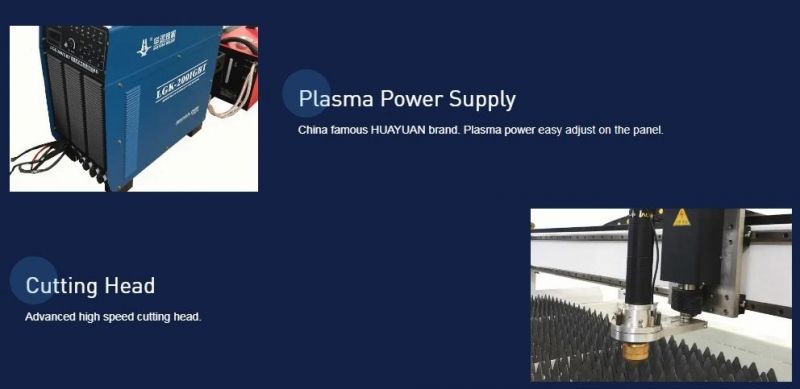

Plasma Power	HUAYUAN 63A/100A/120A/160A/200A/300A (HYPERTHERM and Thermal Dynamics optional)
Plasma Power Supply	63A/100A/120A/160A/200A/300A
X Y Z Rail	Taiwan PMI Square railway Linear guide
Transmission	X/Y rack and pinion, Z Ball Screw
Motor Driver	Stepper motor and driver

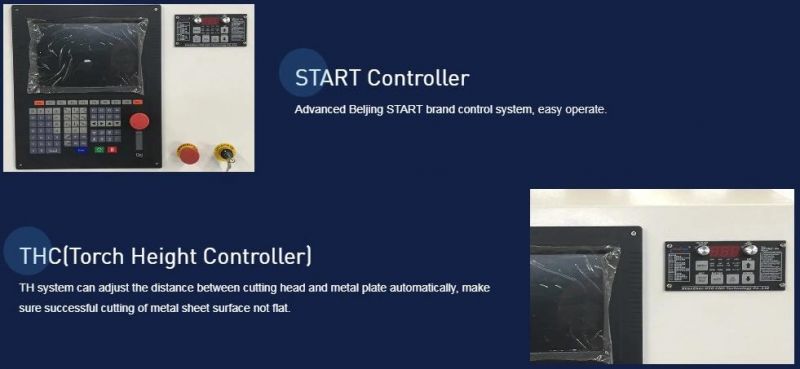

Control System	START with USB interface (STARFIRE optional)
Design software	FASTCAM (STARCAM,IBE optional)
Command	G code, . PLT
Working Mode	Untouched THC(torch height controller)
Working Speed	0-8000mm/min
Plasma Cutting accuracy	+0.5mm
Repeatability	0.05mm
Working Voltage	380V,3PH,50/60HZ
Table type	Sawtooth table
Cooling way	Water pump and water tank
Plywood package size	3.61*2.28*1.61m
Optional	Servo motor, water table, etc

Applications:

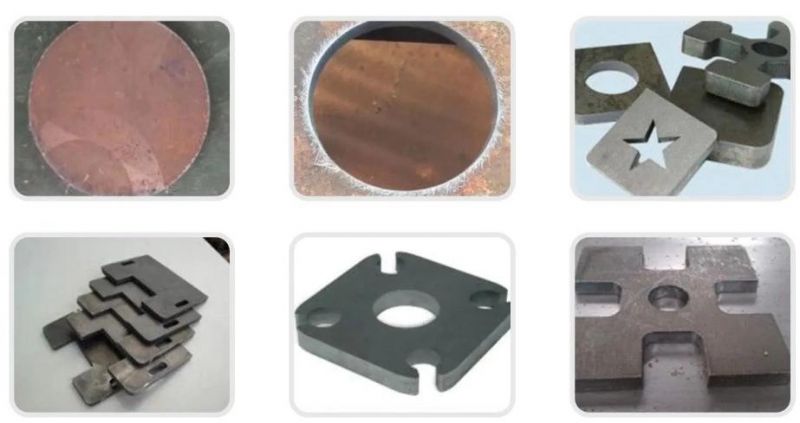

Application Materials:

Stainless steel, steel, iron,carbon steel, brass, copper, aluminum alloy, Titanium, etc

Application Industry:

Sheet metal, kitchenware, components, decorations industry, Ship Building,Construction Equipment,Transport Equipment,Aerospace Industry,Bridge Building,

Military Industrial,Wind Power, Structural Steel, Boiler Containers, Agriculture Machinery, Chassis Electrical Cabinets, Elevator Manufacturers,Textile Machinery,etc.



Machine details:





Warranty:
1. 2 year for the whole machine.
2. 6 months for the Plasma generator.
3. Consumable parts are beyond the warranty lines.
4. etailed manual and video to guide the uses how to use the machine and maintenance supplied.
5. Technical support by website and phone.
6. If you meet the problems, we can solve it with pictures, videos ect

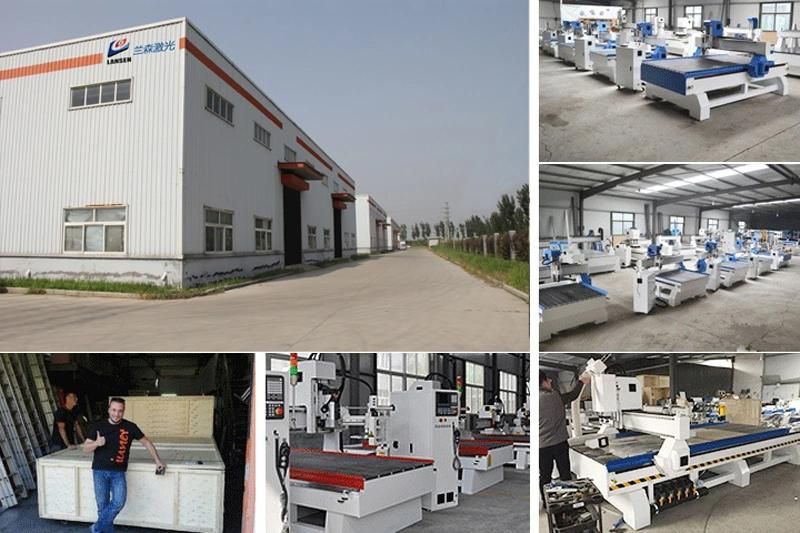

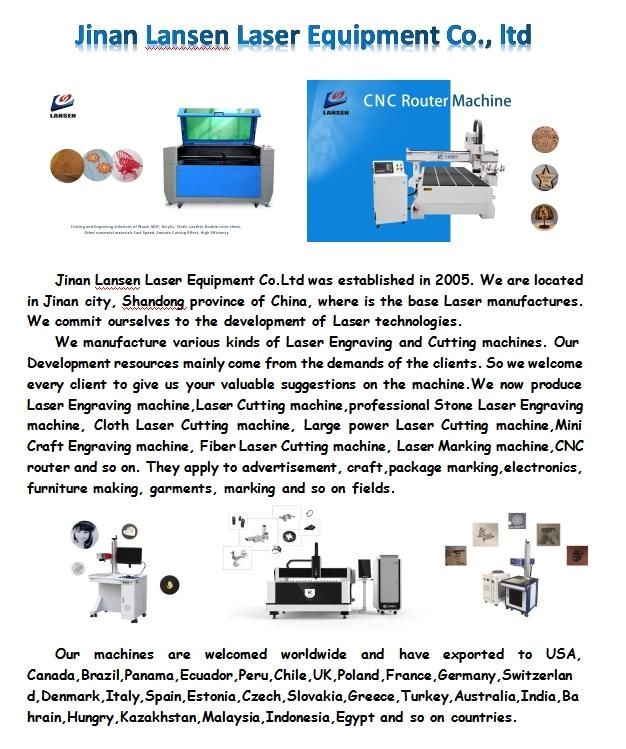

About us:
