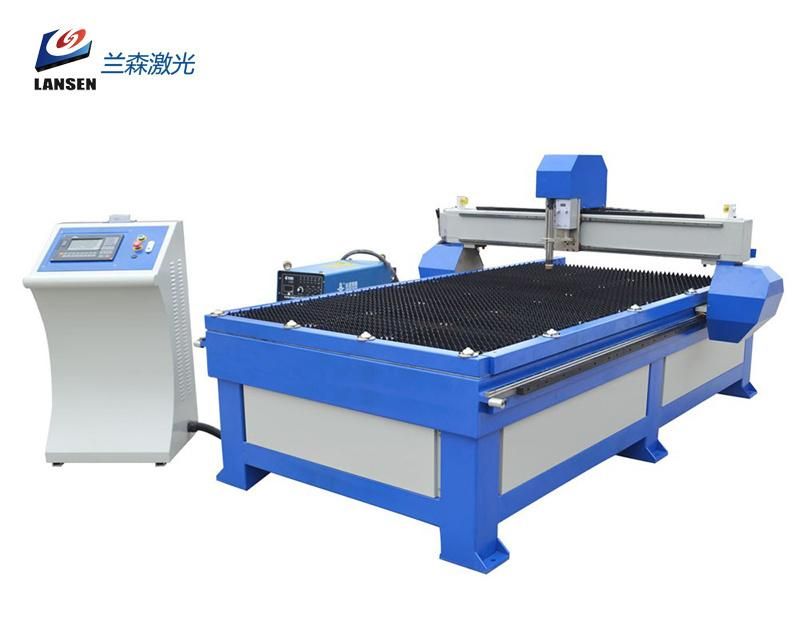

1530 CNC Plasma Router Metal Cutting Machine High Power Industry
Jinan Lansen Laser Equipment Co., Ltd.- After-sales Service:Online Service
- Warranty:2 Years
- Condition:New
- Certification:CE, FDA
- CNC or Not:CNC
- Voltage:380V
Base Info
- Model NO.:LSP1530
- Working Material:Metal Steel, Stainless Steel, Carbon Steel, Alumin
- Motor Driver:Stepper Motor and Driver
- Control System:Start with USB Interface (Starfire Optional)
- Cooling Way:Water Pump and Water Tank
- Transport Package:Wooden Boxes
- Specification:1300kg
- Trademark:Lansen
- Origin:China
- HS Code:8465990000
Description
Basic Info.
Model NO. LSP1530 Working Material Metal Steel, Stainless Steel, Carbon Steel, Alumin Motor Driver Stepper Motor and Driver Control System Start with USB Interface (Starfire Optional) Cooling Way Water Pump and Water Tank Transport Package Wooden Boxes Specification 1300kg Trademark Lansen Origin China HS Code 8465990000Product Description
1530 cnc plasma ROUTER metal cutting machine high power industryFeatures:- This machine adopts thick square tube wholly welding; the machine body adopts shaking preventing technical disposal, with the features of firm, shape retention, and high rigidity.
- Reasonable platform design, the flat table adopts 10mm precision process steel plate install on the machine table, and then install precision process cast iron cover to protect the vertical steel, to prevent the steel plate affected by high strength flame. The level difference of whole double-deck platform remains in 0-1.5mm.
- Reasonable pitch leaks design, to make the work piece and other fragments slide to the sides of the knife rack, safe and convenient to use.
- This machine adopts Starfire control system. StarCAM Software.

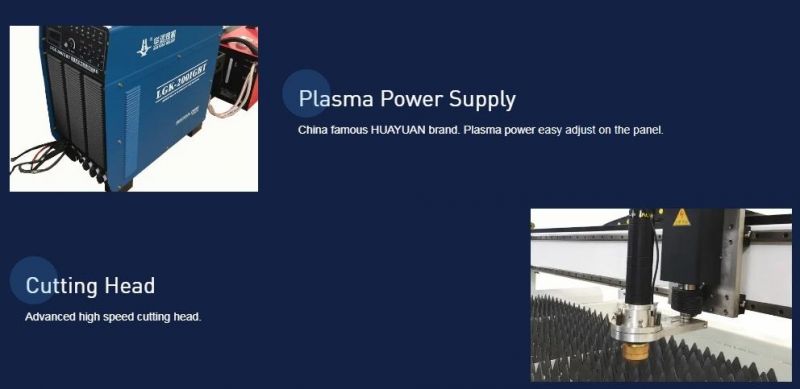

- The machine adopts Huayuan power source (power 40A/120A/200A) together with high sensitive arc pressure adjuster. Self-adjusting to choose the best distance between plasma head and work piece automatically in order to ensure cutting accuracy
- Perfect reasonable design and high immaculate surface's work piece make the machine best choice for different thickness material and heterotypic sheet cutting
Model | LSP1325 |
Working Area(X*Y) | 1300×2500mm |
Working Material | Metal steel, Stainless steel, carbon steel, aluminum,etc. |
Cut Material Thickness | 3-30mm |
Plasma Power | HUAYUAN 63A/100A/120A/160A/200A/300A (HYPERTHERM and Thermal Dynamics optional) |
Plasma Power Supply | 63A/100A/120A/160A/200A/300A |
X Y Z Rail | Taiwan PMI Square railway Linear guide |
Transmission | X/Y rack and pinion, Z Ball Screw |
Motor Driver | Stepper motor and driver |

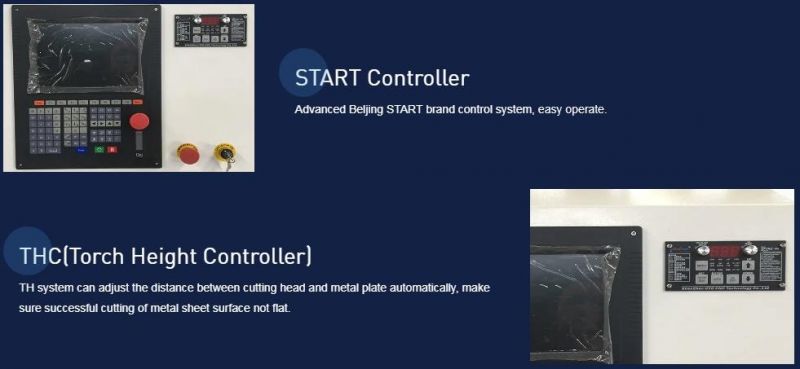

Control System | START with USB interface (STARFIRE optional) |
Design software | FASTCAM (STARCAM,IBE optional) |
Command | G code, . PLT |
Working Mode | Untouched THC(torch height controller) |
Working Speed | 0-8000mm/min |
Plasma Cutting accuracy | +0.5mm |
Repeatability | 0.05mm |
Working Voltage | 380V,3PH,50/60HZ |
Table type | Sawtooth table |
Cooling way | Water pump and water tank |
Plywood package size | 3.61*2.28*1.61m |
Optional | Servo motor, water table, etc |

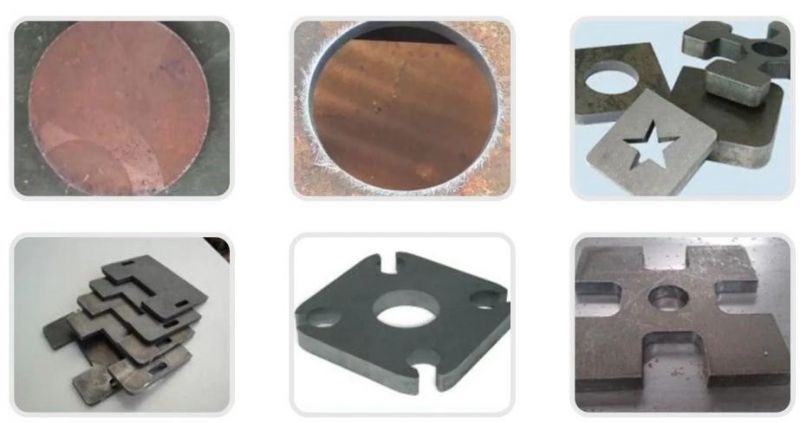

Application Materials:
Stainless steel, steel, iron,carbon steel, brass, copper, aluminum alloy, Titanium, etc
Application Industry:
Sheet metal, kitchenware, components, decorations industry, Ship Building,Construction Equipment,Transport Equipment,Aerospace Industry,Bridge Building,
Industrial,Wind Power, Structural Steel, Boiler Containers, Agriculture Machinery, Chassis Electrical Cabinets, Elevator Manufacturers,Textile Machinery,etc.
Machine details:
Warranty:
1. 2 year for the whole machine.
2. 6 months for the Plasma generator.
3. Consumable parts are beyond the warranty lines.
4. etailed manual and video to guide the uses how to use the machine and maintenance supplied.
5. Technical support by website and phone.
6. If you meet the problems, we can solve it with pictures, videos ect
