• Model NO.：UG-1325
• Guide Rail：Linear Square Guide Rail ( Hiwin, Taiwan)
• Transmission：Helical Rack &Pinion for X Y -Axis, Lead Ball Scre
• Driving Mode：Stepper Motor (86bygh450b) and Driver or Xyz-Axis
• Spindle Motor：3.2kw Water Cooling, Er20
• Spindle Speed：0-24000rpm
• Control System：Mach3, with USB Port
• Vacuum Pump：5.5kw Air Cooling
• Lubrication System：Semi-Auto
• Transport Package：Plywood Case
• Specification：3200*2180*1960mm, 1300KGS
• Trademark：UPGOAL
• Origin：Jinan City, Shandong Province, China
• HS Code：84659900
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. UG-1325 Guide Rail Linear Square Guide Rail ( Hiwin, Taiwan) Transmission Helical Rack &Pinion for X Y -Axis, Lead Ball Scre Driving Mode Stepper Motor (86bygh450b) and Driver or Xyz-Axis Spindle Motor 3.2kw Water Cooling, Er20 Spindle Speed 0-24000rpm Control System Mach3, with USB Port Vacuum Pump 5.5kw Air Cooling Lubrication System Semi-Auto Transport Package Plywood Case Specification 3200*2180*1960mm, 1300KGS Trademark UPGOAL Origin Jinan City, Shandong Province, China HS Code 84659900 Production Capacity 200 Sets/Month

Product Description

Vacuum Table 1325  4*8 Feet CNC Wood Furniture Cabinet Carving Machine





Features

1.Welded steel tube structure as a whole with vibration Temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.

2. Large power 3.2kw water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter.

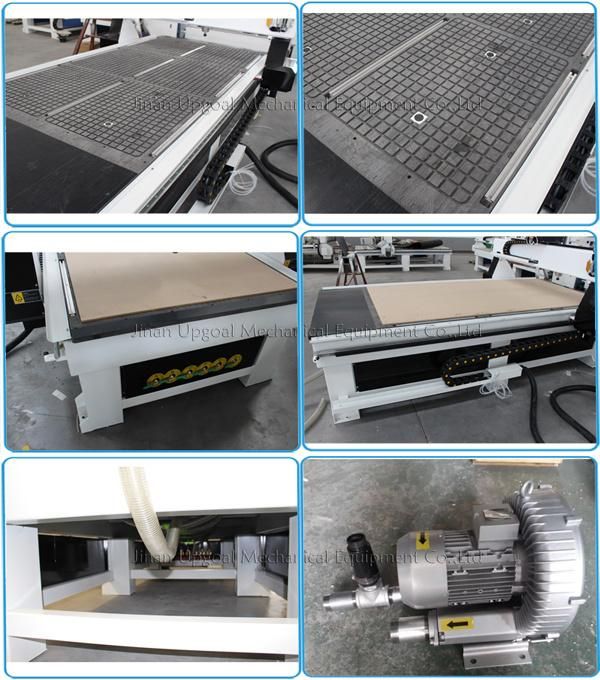

3. Vacuum adsorption system with 5.5kw air cooling vacuum pump,  vacuum table which is divided into 6 zones,also with aluminum alloy T slot, can adsorb different size materiel from small to big, , saving materials load-unloaded time.

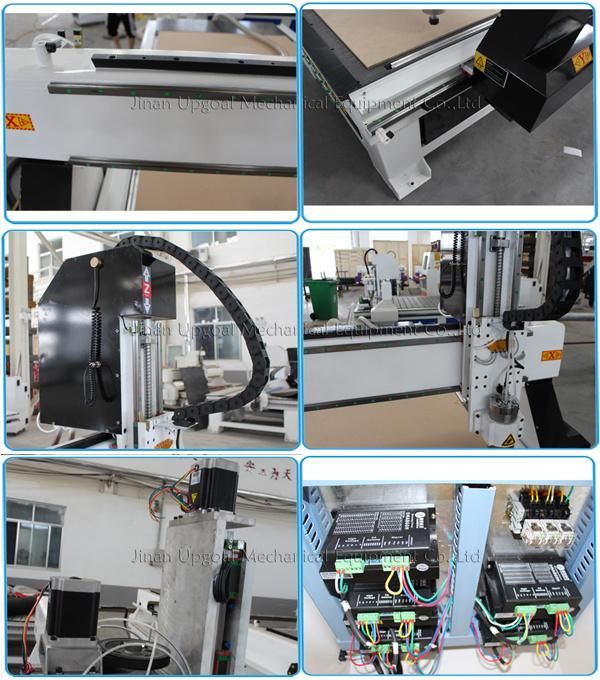

4. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.
5. Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.

6. China famous 86BYGH450B stepper motor and driver for XYZ-axis,  high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.




7. Mach3 control system with USB interface, can use laptop or desktop computer. More Humanizeddesign with Simple and Convenient operation.With per-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle start up and stop automatically.



Optional control system: PCI NcStudio/DSP Ofline/NK105offline!

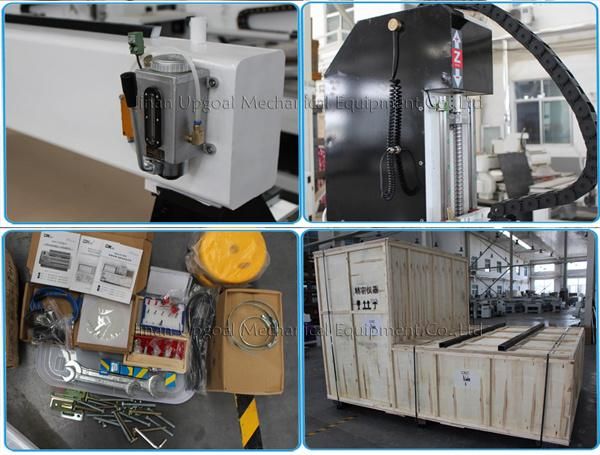

8.Semi-auto lubrication system more convenient for maintenance.

9 .Auto tool calibration, more convenient for each time Z-axis 0 point setting.




10. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

11. With the function of Break-point memory ,power failure resuming and automatic home/orgin correction function, effectively ensure long time working precision.

Technical Parameters


Effective working area	1300(X)mm*2500(Y)mm*300(Z)mm
Materials	More thickness steel pipe welded machine holder bed, cast iron gantry
Working table	Vacuum table with aluminum T slot working table
Moving type	Gantry moving
Guide rail	Linear square guide rail ( Hiwin, Taiwan, diameter 20mm)
Transmission	Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis
Driving mode	Stepper motor (86BYGH450B) and driver( DMA860H, Leadshine for XYZ-axis
Spindle motor	3.2kw, water cooling
Spindle speed	0-24000rpm
Collets type	ER20
Inverter	Sunfar
Voltage	AC 220V± 10%, 50/60Hz, single phase or AC 380V±10%, 50/60Hz, three phases
Traveling speed	>25000mm/min
Engraving speed	>12000mm/min
Machine accuracy	0.03mm
Control system	Mach3 with USB port
Suitable software	Artcam, Type3, Ucancam V9,etc
Carving Instructions	G code *Uoo *mmg *plt HPGL
Running environment temperature	0-45 ºC
Relative humidity	30%-75%
Lubrication system	Semi-auto
Tool calibration	Auto
Vacuum pump	5.5kw, air cooling
Certificate	CE



Application

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc

Reference Sample Photos



Reference Working Videos
