• Model NO.：RMZ-612B
• Warranty：1 Year
• Customized：Customized
• Condition：New
• After-sales Service：1 Year
• Work Length：150-3050mm
• Work Width：40-1200mm
• Work Thickness：10-60mm
• Upper Horizontal Drill：(X: 2*2+Y: 2*2)*2
• Total Power：22kw
• Transport Package：Soft Packing & Plywood Packing
• Specification：RMZ-612B
• Trademark：SAMACH
• Origin：China
• HS Code：84659500
• Production Capacity：100sets,Month

Basic Info.

Model NO. RMZ-612B Warranty 1 Year Customized Customized Condition New After-sales Service 1 Year Work Length 150-3050mm Work Width 40-1200mm Work Thickness 10-60mm Upper Horizontal Drill (X: 2*2+Y: 2*2)*2 Total Power 22kw Transport Package Soft Packing & Plywood Packing Specification RMZ-612B Trademark SAMACH Origin China HS Code 84659500 Production Capacity 100sets/Month

Product Description

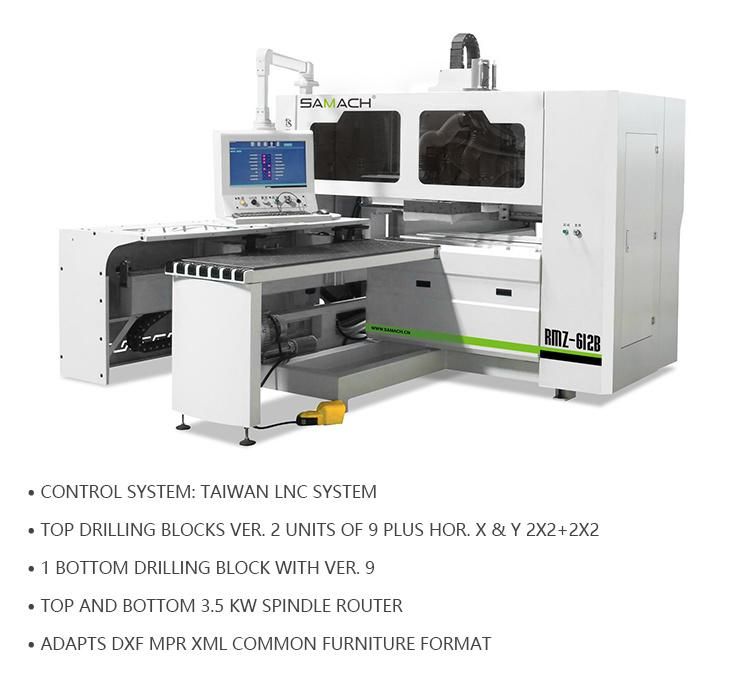

Ptp Six Sides Drilling Machine for Modular Cabinet Panel Furniture

Model	RMZ-612A	RMZ-612B
Work length	150-3050mm	150-3050mm
Work width	40-1200mm	40-1200mm
Work thickness	10-60mm	10-60mm
X/Y/Z travel	4200/1800/250mm	4200/1800/250mm
X/Y/Z Max.Speed	135/100/30m/min	135/100/40m/min
Upper vertical drill	9 pcs	9 pcs*2
Upper horizontal drill	X: 2*2+Y: 2*2	(X: 2*2+Y: 2*2)*2
Bottom vertical drill	9 pcs	9 pcs
Drill group power	2.2kw*2	2.2kw*2
Milling spindle mode	Er3	Er3
Milling speed	18000r/min	18000r/min
Milling spindle power	3.5kw*2	3.5kw*2
Workbench height	900mm	900mm
Diameter of the main suction pipe	125mm	125mm
Total power	19.8kw	22kw
Operating voltage	380V 50Hz	380V 50Hz
Working pressure	0.6-0.8Mpa	0.6-0.8Mpa
Weight	3500kg	3500kg
Dimensions	5000*2750*2300mm	4800*2750*2300mm

1. How to make an order?
You can order online by Made in china, Or Email us your details, and we will contact you immediately and help you proceed with the orders.

2. Where is your factory?
Our factory is located in shandong which is a famous city for producing the machine. Welcome to visit our factory any time.

3. Can you offer special discounts to the wholesaler or we make big quantity?
Yes, we will give you best support according to your quantity, and will arrange some promotion products every month.

4. What is your delivery time?
Normally, we can finish one order at about 25-30days, but the exact time depends on different styles and different quantities you order.

5. Can you arrange the shipment by door to door?
We can offer door to door service both by sea and by air, which can save your time and money. Also, we have cooperated forwarder in some countries and can arrange the customs clearance for you.

6. Do I have to assemble all items by myself or by my customer himself?
Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts), and others need to be assembled, But it is so easy to assemble with the user manual or video teaching.

7. What's your warranty?
We normally will provide one years warranties. If the product is caused by factory mistakes, We will give you free replacement for the spare parts. If it was damaged during the shipping or other reasons, we will provide the best solutions for you.

8. What payment do you accept?
Normally we can provide T/T, L/C ect. Any other ideas, please contact us for better support.


Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time ^_^ !
