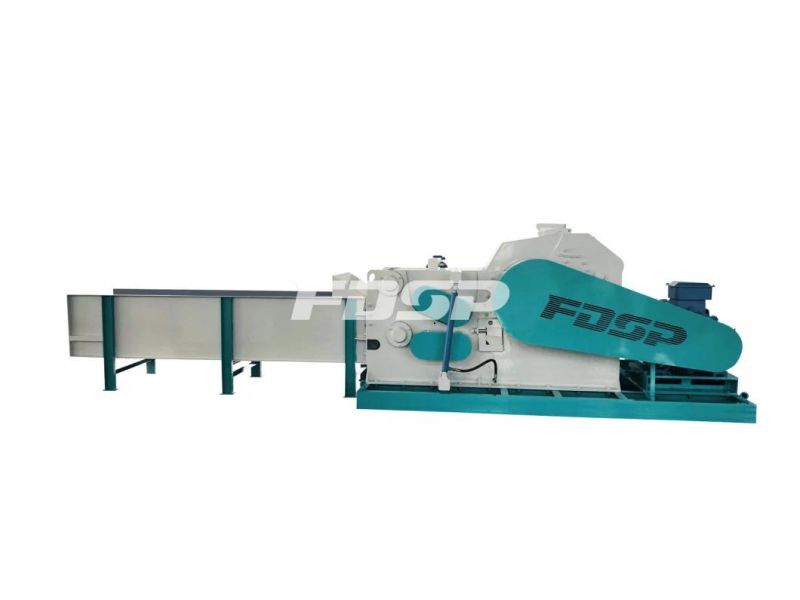

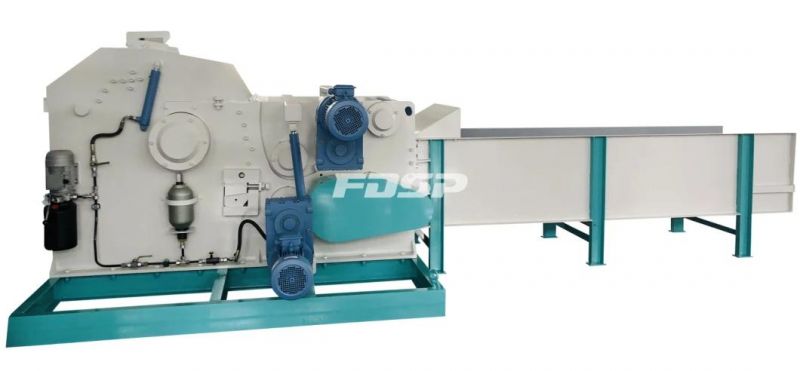

Timber Hammer Mill Wood Chipps Grinder for Feed Plant

Jiangsu Liangyou Zhengda Co., Ltd.
  • Certification:CE, ISO
  • Rotor Diameter(mm):850
  • Rotor Speed(Rpm):650
  • Number of Knives(PC):2
  • Capacity(Kg/H):15,28
  • Main Motor Power(Kw):110,132

Base Info

  • Model NO.:  LYGX218,  LYGX218D
  • Motor Brand:Imported Brand
  • Transport Package:Iron Pallet and Soft Guard
  • Specification:ISO9001, CE, SGS
  • Trademark:FDSP
  • Origin:China
  • HS Code:84368000
  • Production Capacity:5 Sets,Month

Description

Timber Hammer Mill Wood Chipps Grinder for Feed PlantTimber Hammer Mill Wood Chipps Grinder for Feed Plant





Hammer Mill is hammer beater type.It can crush barks,wood veneer and oversize shavings moreover,it can crush raw material which are used for particle board or fuel boiler.

Timber Hammer Mill Wood Chipps Grinder for Feed Plant









Parametre of the drum chippers:

 Data/Model

 LYGX218 LYGX218D Potor Dia 800 800 Number of Flying Knives(pcs) 2 2 Feed Opening Size(mm)  225×680  240×780 Knife Rotor Speed(rpm) 650 650 Feed Speed (m/min) 37 38 Max Dia of Raw Material  160 160 Wood Chips Length 30 30 Capacity(m³/h) 15-20 38 Main Motor Power(kw) 110 132 Feed Roller Motor Power(kw) 2×4 2×5.5 Weigh(kg) 7000 8000




FAQ:

1. Is FDSP a plant or not?
Yes,it is.Accurately it is an professional export enterprise with production capabilities.



2. What is FDSP's main business?
Its main business are R&D ,manufacturing,sales installation,complete project service for feed machinery,biomass machinery,fertilizer machinery,silo machinery,pellet mill mould,electrical control system.


3.Why choose FDSP?
Because they have passed the SGS,ISO9001:2008,CE certifications.
Moreover,they own several patents,such as "utility model patents certificate"and "high-tech products certificate",etc.
They have a professional technical team, with two departments for developing single machine and customizing complete pellet line solution.



4.Where are their products exported to?
Products are exported to many countries in Middle East, Europe, America, South East Asia and Africa etc.
