• Model NO.：QMB412D
• Motor Power：16.75kw
• Cutter Shaft：4
• Spindle Speed：8000 r,min
• Process Type：Heavy Processing
• Certification：CE, ISO
• After-sales Service：3 years
• Weight：2300kg
• Total motor power：16.75kw
• Feeding speed：8-33 meters
• Max. sawing thickness：100mm
• Min. sawing length：530mm (intermittent) 300mm(continuous)
• Dia. of spindle：40mm
• Max. working width：20-120mm
• Transport Package：Plywood Carton or Bulk Packing
• Specification：2960*1450*1660 (MM)
• Trademark：Qingcheng
• Origin：China
• HS Code：8465920000
• Production Capacity：20000,Sets

Basic Info.

Model NO. QMB412D Motor Power 16.75kw Cutter Shaft 4 Spindle Speed 8000 r/min Process Type Heavy Processing Certification CE, ISO After-sales Service 3 years Weight 2300kg Total motor power 16.75kw Feeding speed 8-33 meters Max. sawing thickness 100mm Min. sawing length 530mm (intermittent) 300mm(continuous) Dia. of spindle 40mm Max. working width 20-120mm Transport Package Plywood Carton or Bulk Packing Specification 2960*1450*1660 (MM) Trademark Qingcheng Origin China HS Code 8465920000 Production Capacity 20000/Sets

Product Description

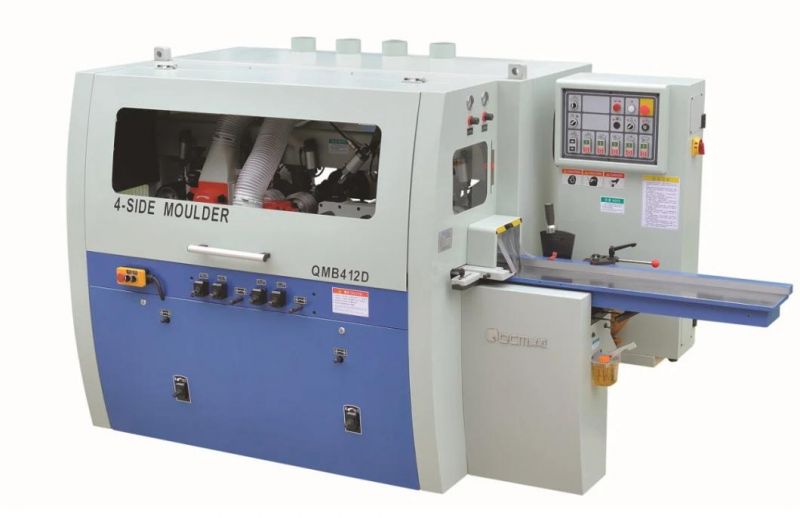

QMB412D Woodworking Machinery Wood Planer Four-side Moulder

Reference photo:















1. Technical parameters


Specifications	Unit	QMB412D
Working width	mm	20-180
Working thickness	mm	8-100
Min.working length(intermittent/continuous)	mm	450/180
Dia of spindle	mm	Φ40
Feeding speed	m/min	8-33
Rotation speed of spindle	r/min	/
The First spindle speed	r/min	6800
Other spindle speed	r/min	8000
Cutter dia of first bottom cutter	r/min	Φ125
Left/Right vertical cutter	mm	Φ115-Φ140
The first upper cutter	mm	Φ105-Φ140
The Second upper cutter	mm	/
Back bottom cutter	mm	/
The Second right vertical cutter	mm	/
Total power	kW/HP	16.75/23
The First bottom cutter	kW/HP	3/4
Left vertical cutter	kW/HP	3/4
Right vertical cutter	kW/HP	3/4
The first upper cutter	kW/HP	4/5.5
The second upper cutter	kW/HP	/
The second bottom cutter	kW/HP	/
The second right vertical cutter	kW/HP	/
Feeding motor	kW/HP	3/4
Beam lifting motor	kW/HP	0.75/1
Air supply pressure	MPa	0.3-0.6
Vacuum port diameter	mm	4*Φ120
Overall dimensions	mm	2960*1450*1660
Weight	kg	2300

2. About Qingcheng Woodworking Machinery:

Qingcheng Woodwokring Machinery Co., Ltd is a professional manufacturer of woodworking machinery since 1970. With more than 40 years experience, we have developed to the top and most powerful manufacturer of woodworking machinery in China.

We mainly engaged in six series of woodworking machinery:
Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoner , and Sanding Machine

To make machinery with high precision and stability, we have introduced the world's advanced modern processing and testing equipment, including OKUMA five-surface gantry machining-center, FMS flexible machining production line, MAKINO horizontal machining center, MORI SEIKI(nine-axis linkage) lathe-mill cutting center, LGMazak vertical machining center, Mitsubishi laser cutting machine, OKK large machining center, Okamoto CNC grinding center, and Mitutoyo three coordinate measuring machine.










3. Our Products:

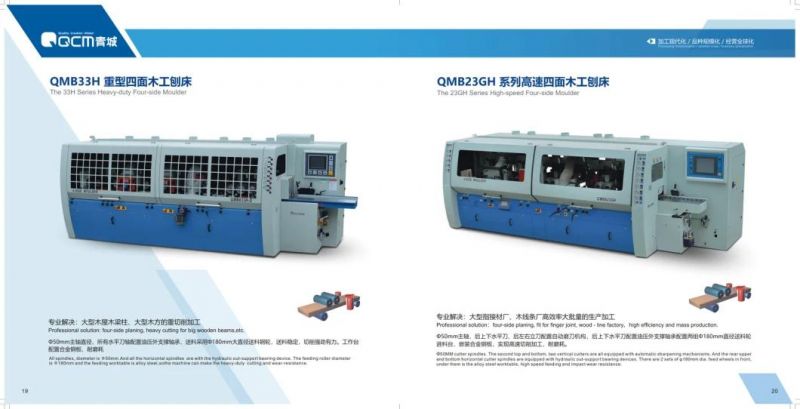

A: Four Side Moulder



B: Double Side Planer



C: Rip Saw



D: Planing and Sawing Combination Machine




E:Double-end Tenoining Machine




F: Sanding Machine
