• Model NO.：QMB206F-GH
• Motor Power：30.75kw
• Cutter Shaft：2
• Spindle Speed：5800 r,min
• Process Type：Heavy Processing
• Certification：CE, ISO
• After-sales Service：3 years
• Weight：3600kg
• Total motor power：30.75kw
• Feeding speed：10-40 meters
• Max. sawing thickness：170mm
• Min. sawing length：310mm
• Dia. of spindle：125mm
• Max. working width：630mm
• Transport Package：Plywood Carton or Bulk Packing
• Specification：3120*1180*1830 (MM)
• Trademark：Qingcheng
• Origin：China
• HS Code：8465920000
• Production Capacity：20000,Sets

Basic Info.

Model NO. QMB206F-GH Motor Power 30.75kw Cutter Shaft 2 Spindle Speed 5800 r/min Process Type Heavy Processing Certification CE, ISO After-sales Service 3 years Weight 3600kg Total motor power 30.75kw Feeding speed 10-40 meters Max. sawing thickness 170mm Min. sawing length 310mm Dia. of spindle 125mm Max. working width 630mm Transport Package Plywood Carton or Bulk Packing Specification 3120*1180*1830 (MM) Trademark Qingcheng Origin China HS Code 8465920000 Production Capacity 20000/Sets

Product Description

QMB206F-GH Woodworking Machinery Wood Planer Double-side Planer

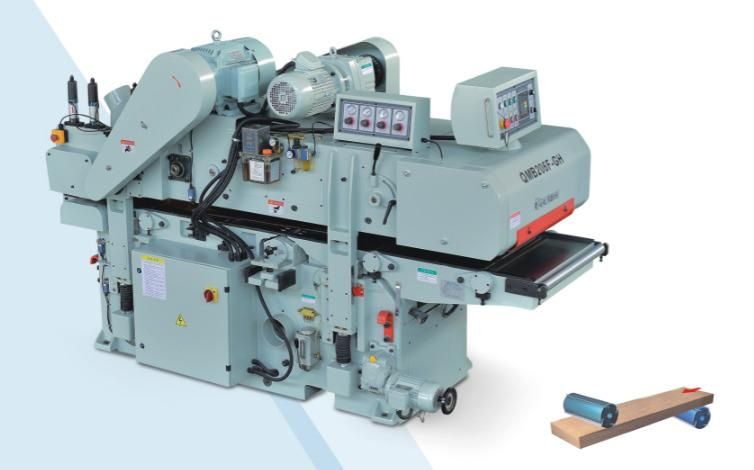

Reference photo:



1. Technical parameters


Specifications	Unit	QMB206F-GH
Working width	mm	630
Working thickness	mm	10-170
Min.working length	mm	310
Max cutting depth(Upper and Bottom)	mm	53
Feeding speed	m/min	10-40
spindle speed	r/min	5800
spindle cutting dia	mm	Φ125
Total power	kW/HP	30.75/41
Spindle motor	kW/HP	/
Top Spindle motor	kW/HP	1520
Bottom Spindle motor	kW/HP	1115
Front blade spidle motor	kW/HP	/
Back blade spidle motor	kW/HP	/
Feeding motor	kW/HP	4/5.5
Lifting motor	kW/HP	0.75/1
Suction hood dia	mm	4*Φ150
Overall dimensions	mm	3120X1180X1830
Weight	kg	3600

2. About Qingcheng Woodworking Machinery:

Qingcheng Woodwokring Machinery Co., Ltd is a professional manufacturer of woodworking machinery since 1970. With more than 40 years experience, we have developed to the top and most powerful manufacturer of woodworking machinery in China.

We mainly engaged in six series of woodworking machinery:
Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoner , and Sanding Machine

To make machinery with high precision and stability, we have introduced the world's advanced modern processing and testing equipment, including OKUMA five-surface gantry machining-center, FMS flexible machining production line, MAKINO horizontal machining center, MORI SEIKI(nine-axis linkage) lathe-mill cutting center, LGMazak vertical machining center, Mitsubishi laser cutting machine, OKK large machining center, Okamoto CNC grinding center, and Mitutoyo three coordinate measuring machine.










3. Our Products:

A: Four Side Moulder



B: Double Side Planer



C: Rip Saw



D: Planing and Sawing Combination Machine




E:Double-end Tenoining Machine




F: Sanding Machine
