• Model NO.：MFSP66*60
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Blue
• Output (T/H)：3.5-4
• Power (Kw)：75
• Rotor Diameter(mm)：660
• Grinding Chamber Width(mm)：600
• Rotating Speed(R/Min)：2970
• Transport Package：Pallet
• Specification：CE, ISO, SGS
• Trademark：Liangyou
• Origin：Jiangsu China
• HS Code：8479300000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. MFSP66*60 Warranty 1 Year Customized Customized Condition New Color Blue Output (T/H) 3.5-4 Power (Kw) 75 Rotor Diameter(mm) 660 Grinding Chamber Width(mm) 600 Rotating Speed(R/Min) 2970 Transport Package Pallet Specification CE, ISO, SGS Trademark Liangyou Origin Jiangsu China HS Code 8479300000 Production Capacity 5 Sets/Month

Product Description

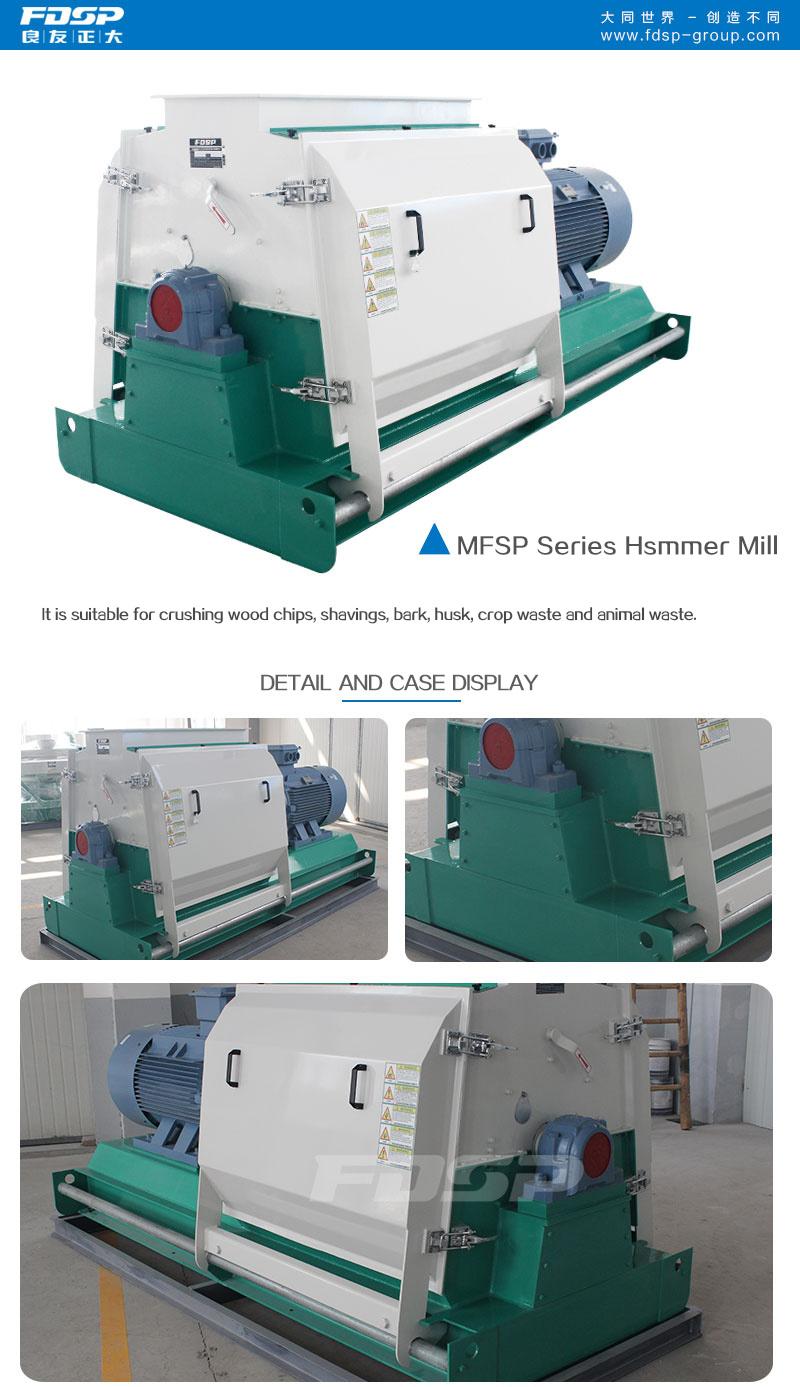

Factory Directly SellingTimber Wood Grinding Equipment/ Wood Crush Pulverizer

Wood hammer grinding machine is suitable for preparing sawdust or biomass small grains for briquette press and dryer in the biomass briquetting plant. It can crush raw wood of size less than 200mm(diameter) into size of 3-5mm(diameter).


Features:
1. It is used for grinding of small wood block, chip before pelleting;
2. Multi grinding chamber to increase efficiency by 15%;
3. Multi grinding chamber to prolong service life of screen and beater;
4. Modified rotor to increase stability and minimize over heating of bearing;
5. Modified screen locking device to make assembling &disassembling easily;
6. Unique structure design of door to absorb shake and reduce noise;
7. Modified design for grinding chamber to reduce airflow resistance and increase efficiency;
8. Depress barycenter of rotor to make more balance and coarse and fine grinding can be executed easily.


Parameters of technical and performance as below:

Model	MPSF56*40	MFSP60*45	MFSP60*60	MFSP66*60	MFSP66*80	MFSP66*100
Power(kw)	37	45	55	75	90	110
Capacity(t/h)	0.8-1	1.8-2	2-2.5	3.5-4	5-6	6-7
Rotor diameter(mm)	560	600	600	660	660	660
Grinding chamber width(mm)	400	450	600	600	800	1000
Rotating speed(r/min)	2970	2970	2970	2970	2970	2980
Dimension(L*W*H)(mm)	1.8*0.8*1.1	1.8*0.8*1.1	1.92*1.1*1.1	2.1*1.3*1.4	2.6*1.3*1.4	3*1.3*1.4



Related main machinery during biomass burning pellets production process:
wood chipper-wood hammer mill(pulverizer grinder)-pre-screener-dryer-pellet mill-cooler-vibrating screener-packing machine
Please note the wood pulverizer grinder is used for cutting the wood chips which approximate size 5cm length into sawdust .

Our advantages:
Our products have passed the SGS,ISO9001:2008,CE certifications.Moreover,we own several patents,such as "utility model patents certificate"and "high-tech products certificate",etc.we have a professional technical team, with two departments for developing single machine and customizing complete pellet line solution. Most of our engineers are with over 25 years' experience in this field and also have a lot of experience in overseas projects.
Our goods exported to many countries and won the good reputation by the high quality and superior service.
