Log Debarking Machine Wood Making Machine

Linyi Gaotong Import & Export Co., Ltd.
  • Work Forms：Hydraulic Pressure
  • Processing Technics：Cold Press
  • Structure：Frame Type
  • Pressing Shape：Flat Press
  • Platen Surface Pressure：High Pressure
  • Pressing Layer：Multi Layer

Base Info

  • Model NO.：GTXM
  • Work Mode：Continuous
  • Controlling Mode：CNC
  • Automatic Grade：Automatic
  • Certification：CE, ISO, FDA
  • Total Pressure：400160
  • Board Feeding Direction：Transverse
  • Layers：1
  • Layer Spacing：1800mm
  • Work Plate Size：2700*1450mm
  • Cylinde：320mm*2PCS
  • Stroke ：1000mm
  • Power：11kw
  • Overall Dimension：3550mm*1450mm*4200mm
  • Working Methods：Full Automatic
  • Transport Package：by Stretch Film with Wooden Case
  • Specification：3500kg
  • Trademark：GTCO
  • Origin：Shandong, China
  • Production Capacity：5000set,Year

Description

Basic Info.

Model NO. GTXM Work Mode Continuous Controlling Mode CNC Automatic Grade Automatic Certification CE, ISO, FDA Total Pressure 400160 Board Feeding Direction Transverse Layers 1 Layer Spacing 1800mm Work Plate Size 2700*1450mm Cylinde 320mm*2PCS Stroke  1000mm Power 11kw Overall Dimension 3550mm*1450mm*4200mm Working Methods Full Automatic Transport Package by Stretch Film with Wooden Case Specification 3500kg Trademark GTCO Origin Shandong, China Production Capacity 5000set/Year

Product Description

   Log Debarking Machine Wood Making Machine

Product Application of factory supplier high quality wood log debarker plywood veneer debarking machine
1. CNC rotary skin rouding machine
2.Working size: 500*2600mm
3.Mitsubishi or Siemens CNC system, simple operation.
5.Speed adjustable from to 40- 50m/min high efficiency.
6. Servo motor and Shanghai Motors.
7. Heavy duty frame, Compact structure.

Product information
  1) Log debarking machine:
Log dimension processing (DxL):500X1400 mm
Driving roller diameter:130mm
Average centering speed:5s/pc
Rotary linear speed:56m/min
Total motor:18kw, chief motor: 2x7.5kw, 380V-50Hz 3phase
Product dimension:2800x2000x1250 mm
Weight:2.5 t

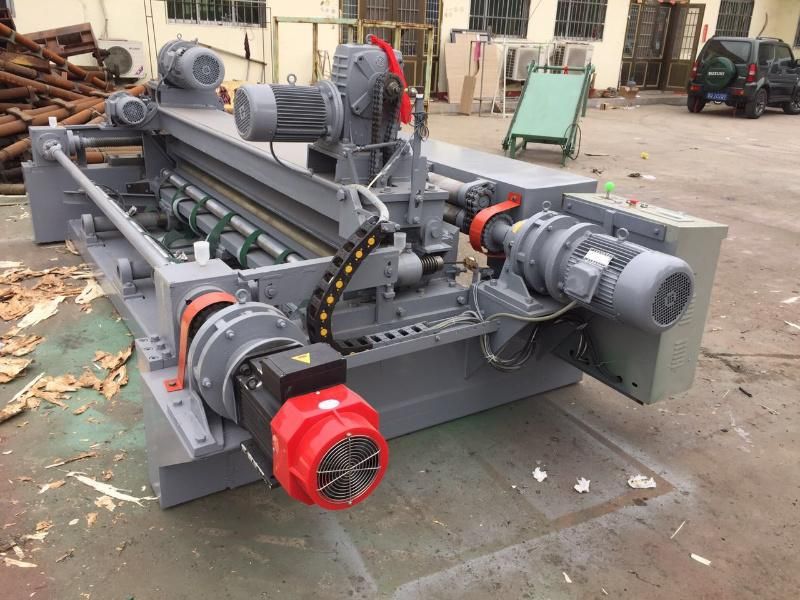

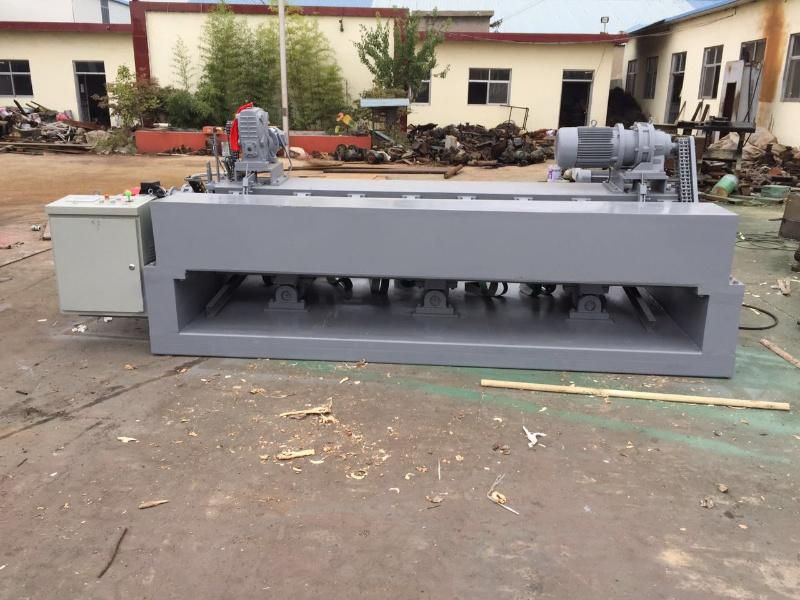

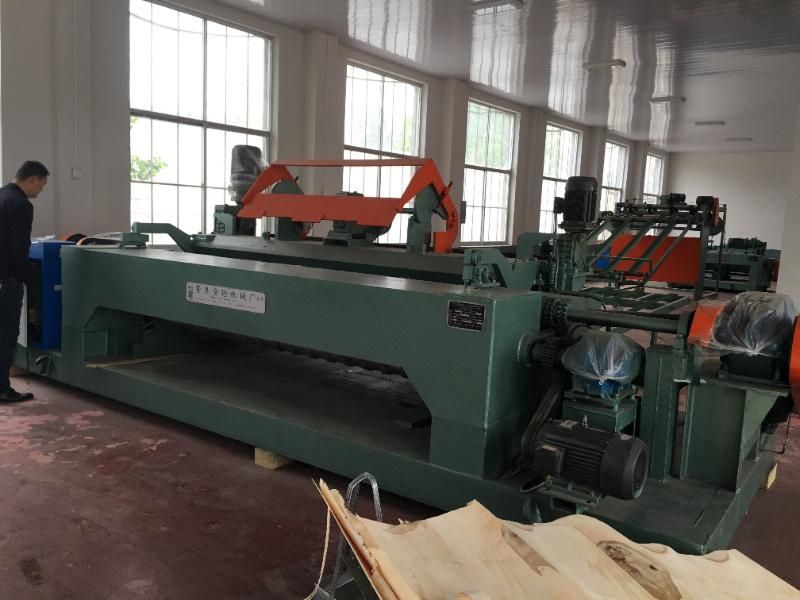

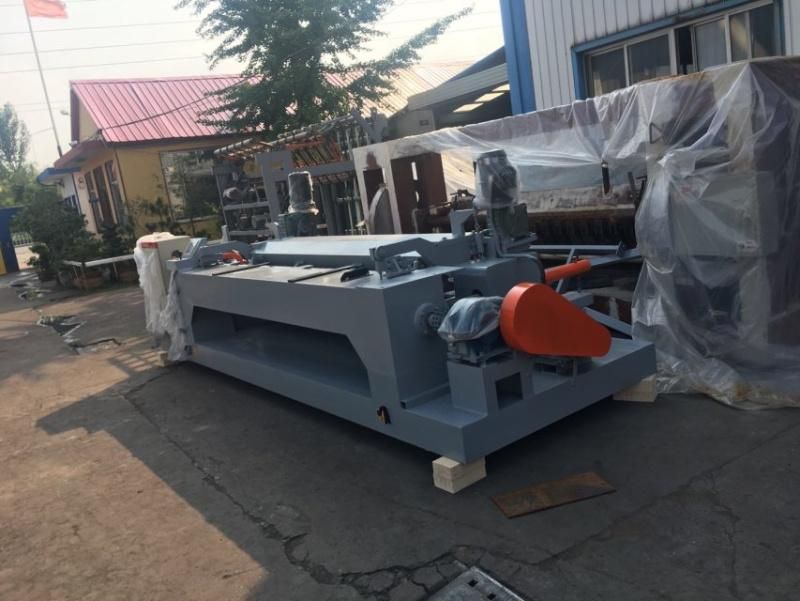

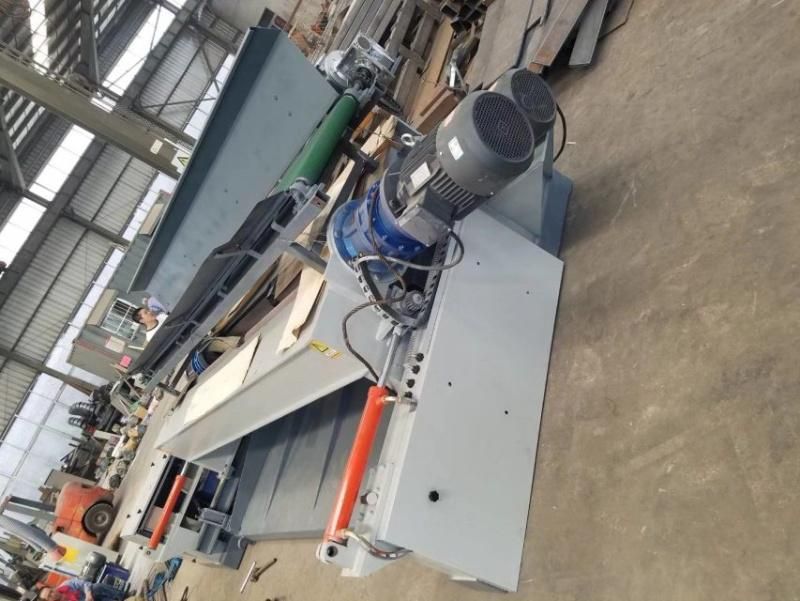

Product show
Log Debarking Machine Wood Making Machine
Log Debarking Machine Wood Making MachineLog Debarking Machine Wood Making MachineLog Debarking Machine Wood Making MachineLog Debarking Machine Wood Making Machine
We have 4f, 6f and 8f and other special size to meet different requirement.
( Full veneer production line machinery for your choice :
 Log Debarker , Conveyor, ,Veneer Peeler , Veneer stacker etc )
