• Model NO.：SK1000-P6
• Condition：New
• Color：Customized
• After-sales Service：24hours Online
• Name：Heavy Duty Brush Sanding Machine
• Max. Working Width：1000 mm
• Min. Working Length：500 mm
• Working Thickness：2-150 mm
• Belt Size：1330*2200 mm
• Total Power：13.87kw
• Products：Door, Carbinet, Photo Frame .Drawer Frame
• Transport Package：Stretch Film
• Specification：3650*1850*2100mm
• Trademark：SOSN
• Origin：China
• HS Code：84659300
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. SK1000-P6 Condition New Color Customized After-sales Service 24hours Online Name Heavy Duty Brush Sanding Machine Max. Working Width 1000 mm Min. Working Length 500 mm Working Thickness 2-150 mm Belt Size 1330*2200 mm Total Power 13.87kw Products Door, Carbinet, Photo Frame .Drawer Frame Transport Package Stretch Film Specification 3650*1850*2100mm Trademark SOSN Origin China HS Code 84659300 Production Capacity 200 Sets/Month

Product Description

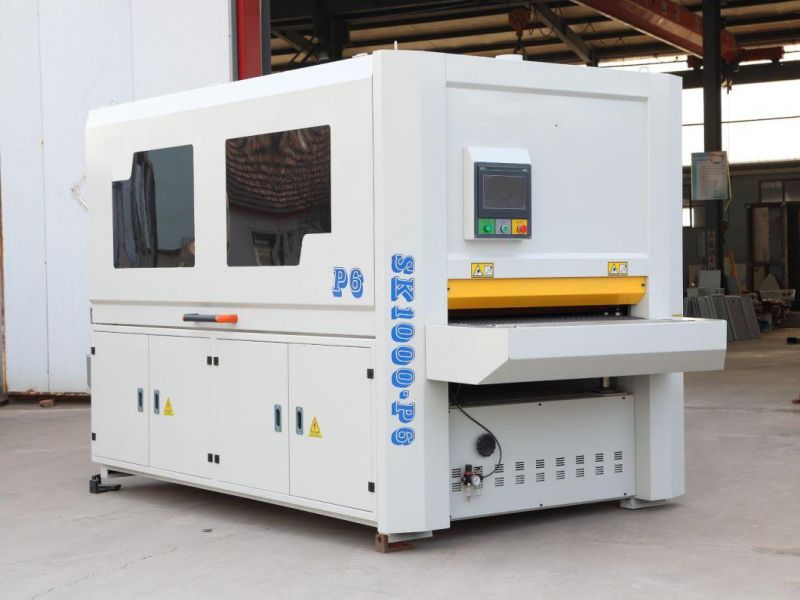

Woodworking Brush Sanding Machine for Door Sanding
polishing sander machine
SOSN  Woodworking Automatic Brush Sanding Machine SK1000-P6 for Cabinet and Door Sanding Woodworking Machinery
Wood Sanding Machine Cabinet Door Brush Polish Sanding Machine
---Ideal polish machine for white wood, sealer, primer, MDF, and composite sanding applications for both flat and irregular surfaces.


1.different voltage is available
2.have button control and touch screen control optional ,different language support
(the touch screen model have momery function ,can save 30 groups size which no need adjust the size each time )
3.the work width have 1000mm and 1300mm optional
4.can add dust brush device
5.vacuum table optional for small panel which less than 30cm (please confirm with us about it )
6.consume goods sugguest to buy with machine together

feature :

1 . Vertical and horizontal combination of special-shaped sander can effectively solve the carved furniture parts, and the cabinet door vertical sand marks problem.
 2 This model uses foreign modular design concept, touch screen + PLC control, each group of sanding units are used frequency control to meet the requirements of different parts processing technology, so that sanding effect is more perfect.
3. Each group of sanding unit is designed to be out of the sand frame, you can more easy to  change the  sandpaper or sanding parts, easy maintenance operations.
4. . There are two sets of lifting devices in this model. The first set of devices can make the overall table up and down to achieve the overall adjustment of the height of the sand frame, the second set of devices can make each group of sanding unit alone lift, in order to meet the requirements of different workpiece sanding process, sanding effect more perfect.

Main parameters :

Working  width	1000mm
Min.Working  length	500mm
Working  thickness	2-150mm
Polishing roller speed	Frequency
Feeding  speed	3-12.5m/min
Total  motor  power	13.87kw
Overall dimensions	3650*1850*2100mm
Net weight	4200kg
Disc motor	1.5KW*1
Cross motor	1.5KW*2
Screw roller motor	2.2KW *2
Up and down motor	0.37KW*4
Table up and down motor	0.55KW
Feeding motor	2.2KW
Swing motor	0.37KW *2

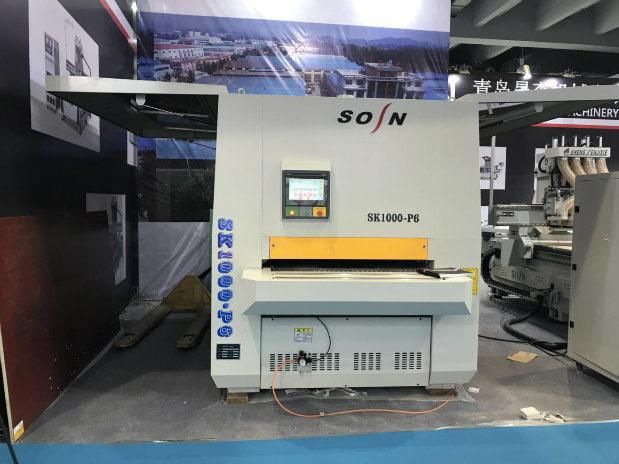

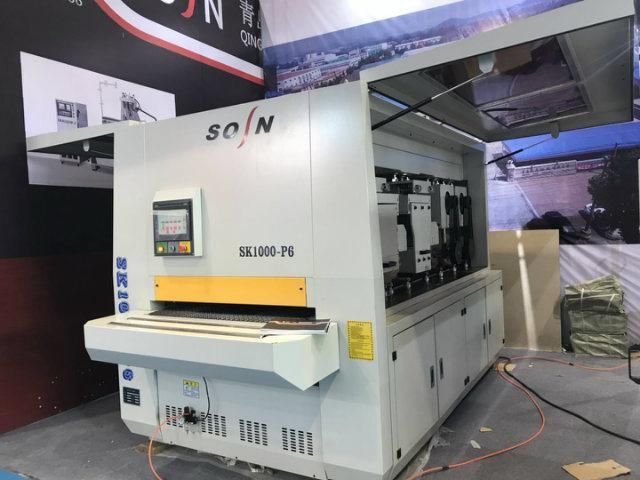

machine in germany exhibition:

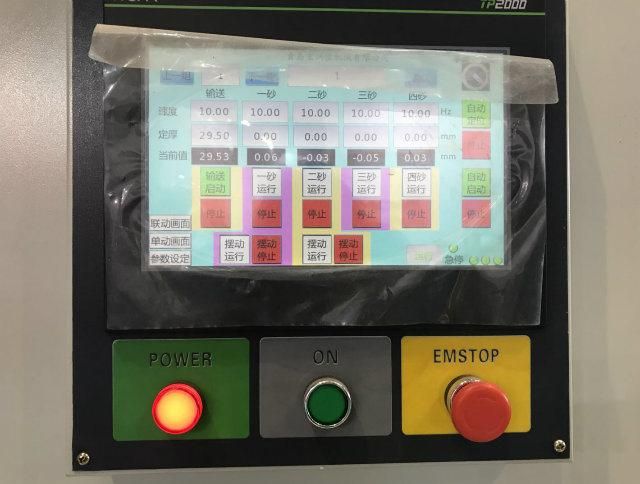

(touch screen page reference)

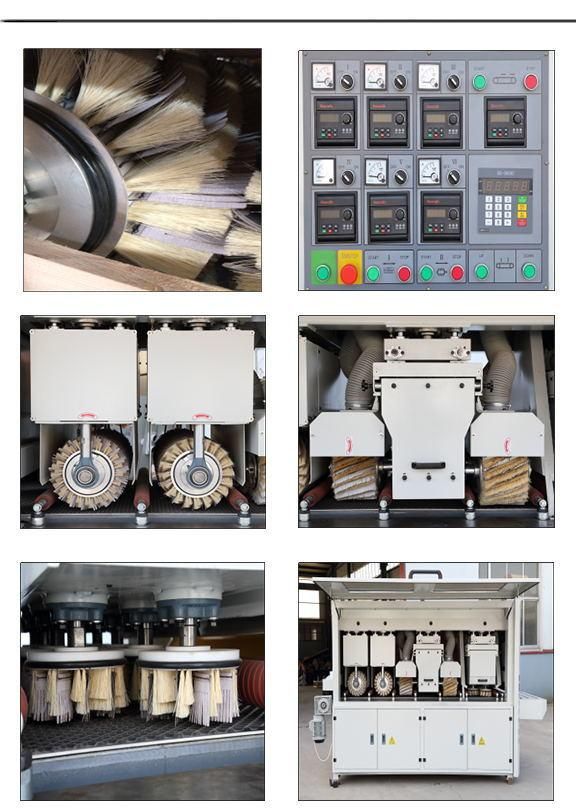

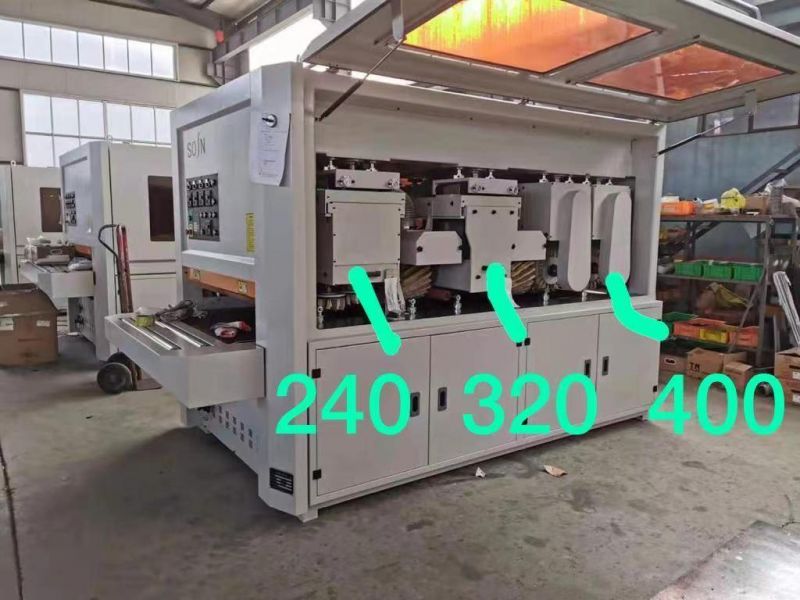

inner structure:
(that is the standard grid of each roller we matched ,but can adjust as your different work need )
   (import sanding belt and mexico Switzerland sisal,in high quality)

 sanding effect:

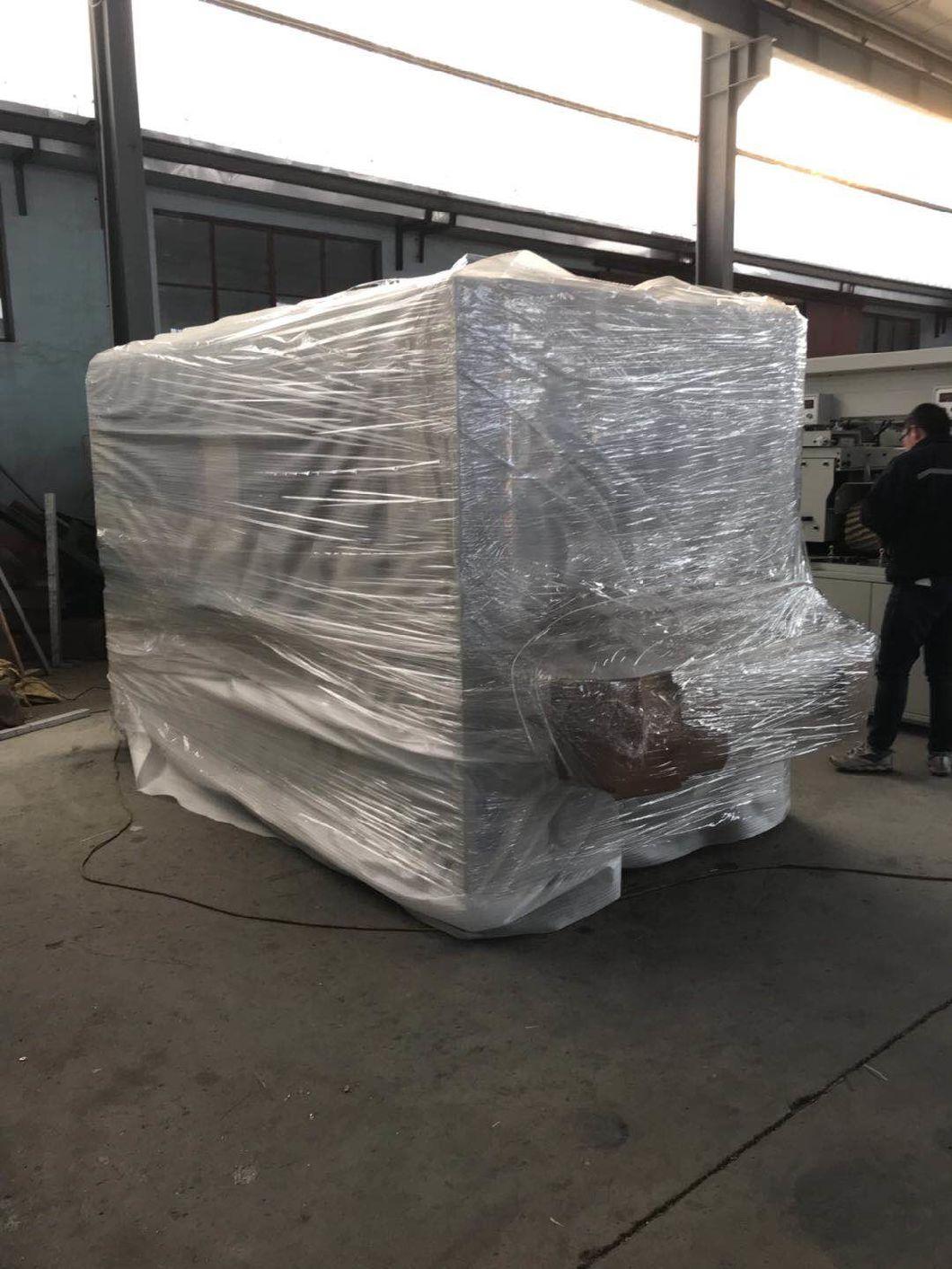

package :

NOTE:
1. We can arrange shipment for you if you need.
2. We guarantee the machine body for one year, three months for easy-broken parts.
3. Package: strong stretch film,
4. Delivery time:20 days after getting the deposit (depends on the quantity)

Reasons to choose SOSN:

1: professional team--as much as possible to meet your needs
2: quick delivery--timely and effective
3: excellent after-sale services--no worries anymore
4: friend partner relationship--a win-win cooperation

If any question,feel free to contact me, we are ready to serve you any time.
