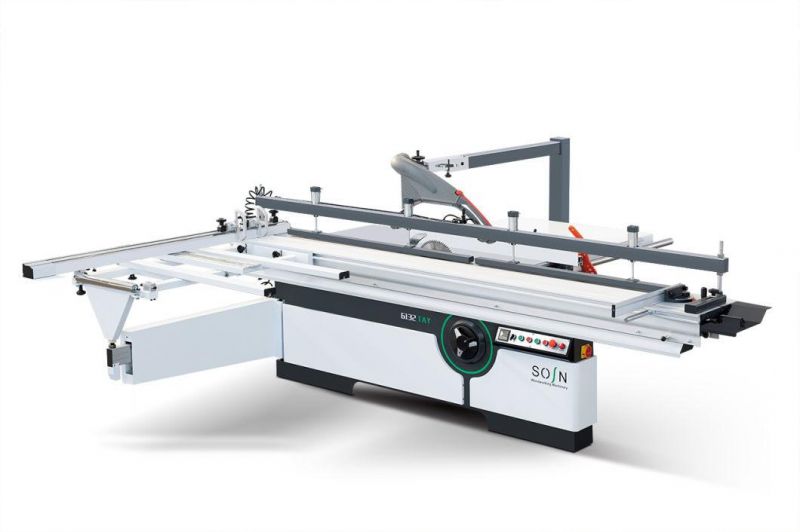

Wood Cutting Machine 3200 mm Precision Panel Saw with Heavy Sliding Table

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty：2 Year Warranty
  • Type：Table Panel Saw
  • Power Type：Electric
  • Layout：Horizontal
  • Controlling Mode：Artificial
  • Automatic Grade：Semiautomatic

Base Info

  • Model NO.：MJ61-32TAZ
  • Precision：High Precision
  • Certification：CE, ISO
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • After-sales Service：2 Year Warranty
  • Name：Panel Saw
  • The Size of Sliding Table：3200X410mm
  • Saw Blade Tilting：0-45 Tilting
  • The Diameter of Main Blade：300 mm
  • The Diameter of Scoring Blade：120mm
  • The Power：5.5 Kw +1.1 Kw
  • The Function：Wood Cutting
  • Max. Cutting Length：3200 mm
  • Transport Package：Plywood Package
  • Specification：3200 mm
  • Trademark：SOSN
  • Origin：China
  • Production Capacity：500 Sets, Month

Description

Main technical parameter for panel saw MJ61-32TAZDimension of sliding table3200X410mmGross cut capacity3200mmWidth of cut between saw blade and rip fence1250mmSaw blade diameter300mm(250-400mm)Height of cut (300mm)80mmSpeed of main saw spindle4500/6000rpmMain spindle diameter30mmTilting saw blade0-45°Main motor5.5kwScoring saw blade diameter120mmSpeed of scoring saw blade8000rpmScoring saw diameter20mmScoring motor1.1kwNet weight850kgsOverall dimension3250X3150X900mmPacking size of the machine body(L*W*H)2170*1100*1150mmPacking size of the sliding table(L*W*H)3250*400*260mm


Wood Cutting Machine 3200 mm Precision Panel Saw with Heavy Sliding Table

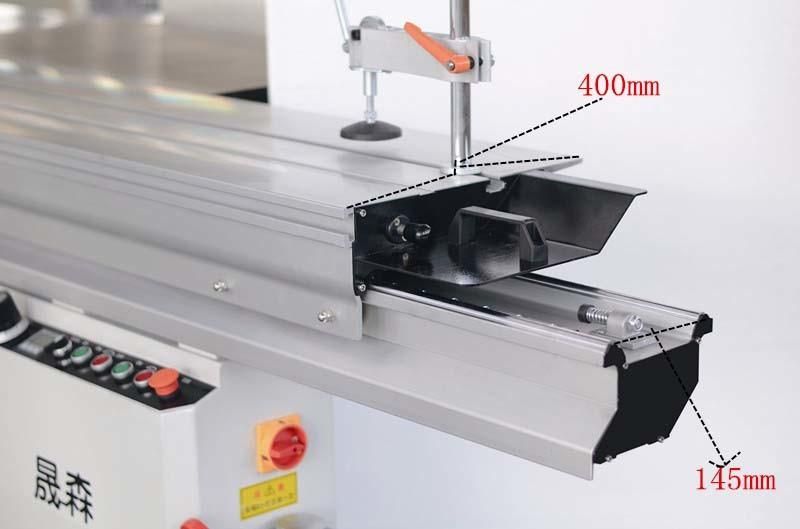

For A sliding table, the width is 400mm, inside width is 145mm, so much more precision and stable
Wood Cutting Machine 3200 mm Precision Panel Saw with Heavy Sliding Table

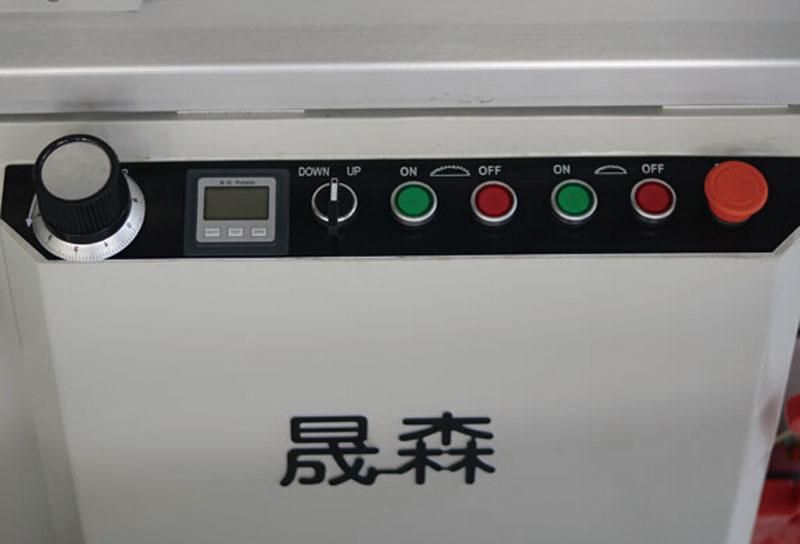

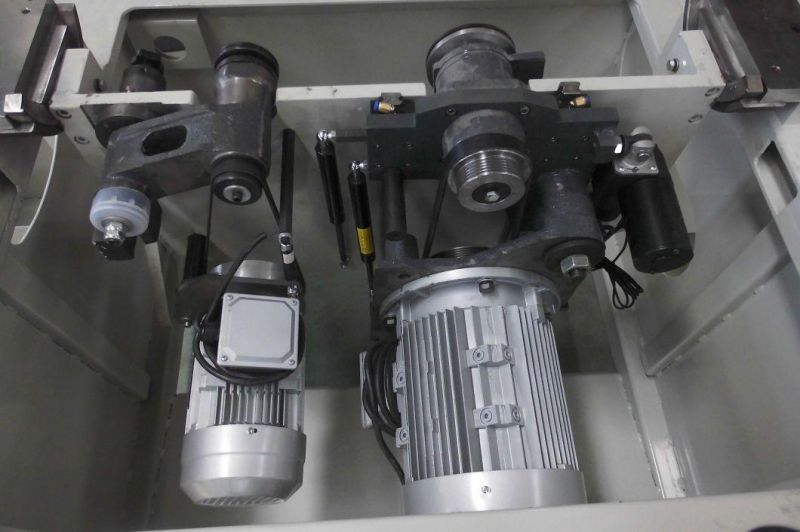

This is new inside structure, same with Altendorf, much much better in using, lower noise, easy to operate, and with electric lifting of main blade
Wood Cutting Machine 3200 mm Precision Panel Saw with Heavy Sliding Table

Wood Cutting Machine 3200 mm Precision Panel Saw with Heavy Sliding Table
Wood Cutting Machine 3200 mm Precision Panel Saw with Heavy Sliding Table
Wood Cutting Machine 3200 mm Precision Panel Saw with Heavy Sliding Table
Wood Cutting Machine 3200 mm Precision Panel Saw with Heavy Sliding Table



Wood Cutting Machine 3200 mm Precision Panel Saw with Heavy Sliding Table
