Woodworking Machinery

1000 mm Heavy Duty Wide Belt Sanding Machine

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty:1 Year Warranty
  • Type:Belt Wood Sander
  • Automatic Grade:Semiautomatic
  • Variable Speed:Without Variable Speed
  • Certification:CE, ISO
  • Customized:Customized

Base Info

  • Model NO.:SOSN R-RP1000
  • Condition:New
  • Color:Iron Grey
  • After-sales Service:1 Year Warranty
  • Name:Sanding Machine
  • Max. Working Width:1000 mm
  • Min. Working Length:500 mm
  • Working Thickness:3-110 mm
  • Belt Size:1020*2000 mm
  • Total Power:35.25 Kw
  • Transport Package:Simplified Package and Plywood Package
  • Specification:1900*1600*2100 mm
  • Trademark:SOSN
  • Origin:China
  • Production Capacity:200 Sets,Month

Description

Basic Info.

Model NO. SOSN R-RP1000 Condition New Color Iron Grey After-sales Service 1 Year Warranty Name Sanding Machine Max. Working Width 1000 mm Min. Working Length 500 mm Working Thickness 3-110 mm Belt Size 1020*2000 mm Total Power 35.25 Kw Transport Package Simplified Package and Plywood Package Specification 1900*1600*2100 mm Trademark SOSN Origin China Production Capacity 200 Sets/Month

Product Description

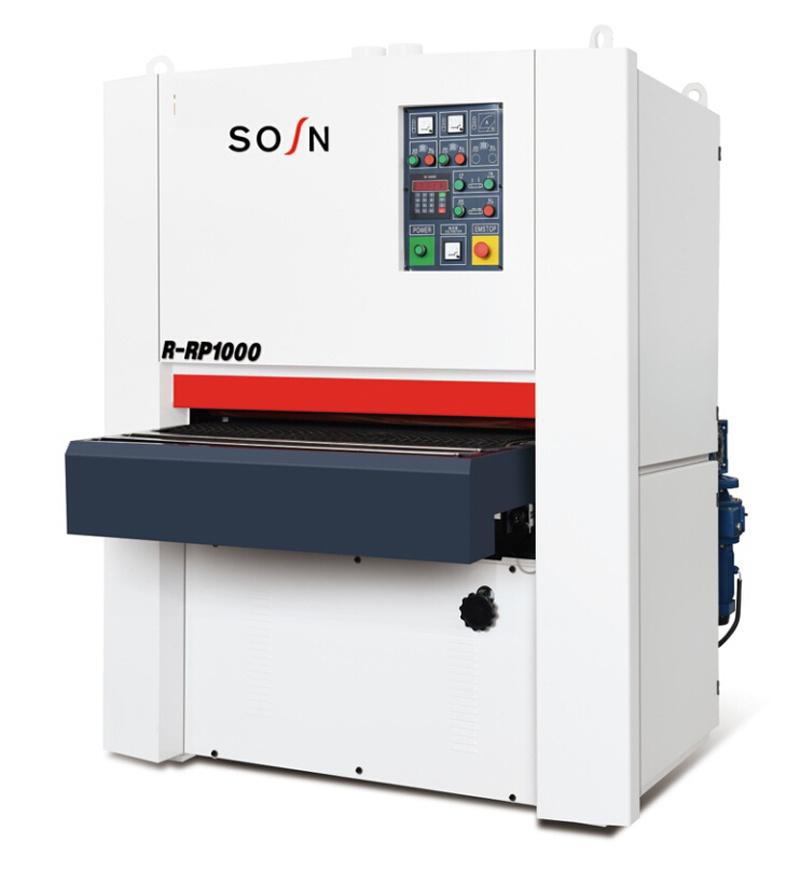

heavy duty wide belt sanding machine R-RP1000
1000 mm Heavy Duty Wide Belt Sanding Machine
1000 mm Heavy Duty Wide Belt Sanding Machine
R-RP1000/2 Roller and 1 Pad Model

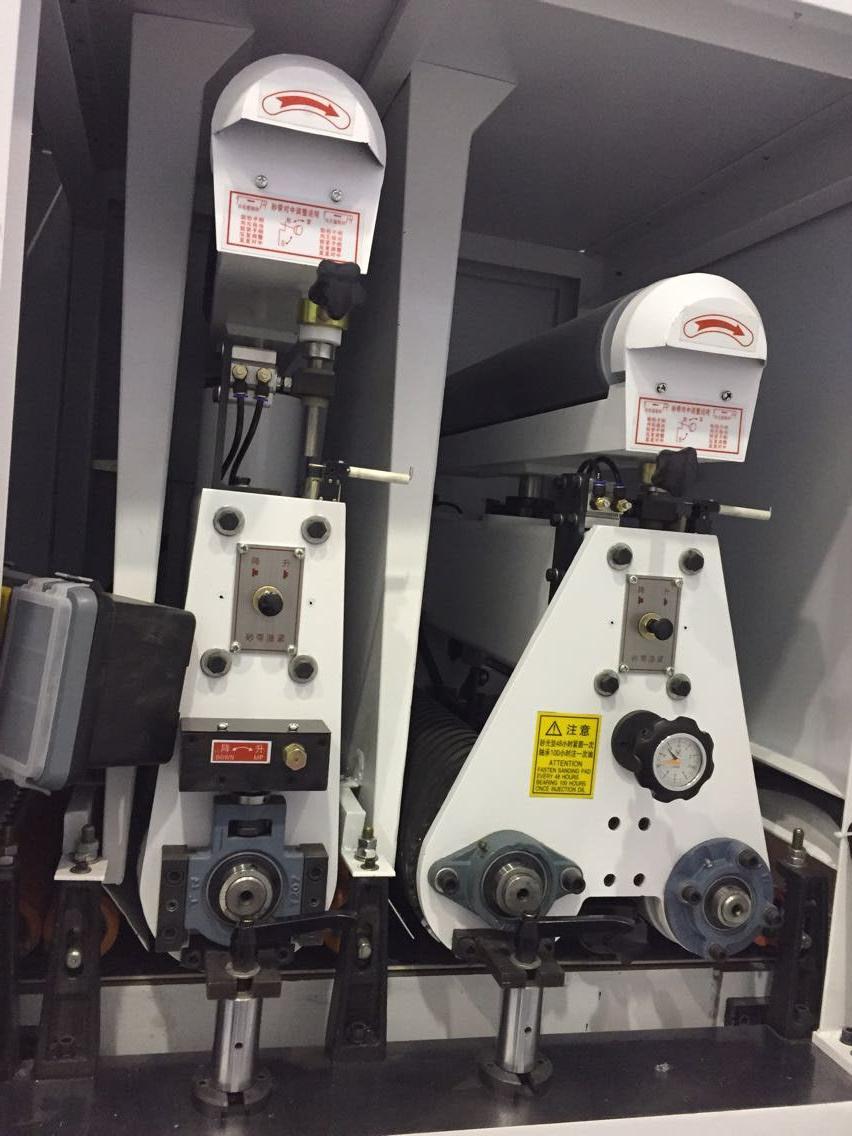

The front roller is adjustable steel roller,the back one is rubber roller with sanding pad, this structure is suitable for thickness-fixed sanding and fine polishing of all kinds of boards.
Main Technical Parameter:
Working width1000mm
Working thickness3-110mm
Min. Working length500 mm
Speed of feed belt6-30m/min
Total motor power35.25kw(18.5/15/0.2/1.5)
Size of sanding belt1020X2000mm
Working air pressure>=0.6Mpa
The voltage 380v,50hz, 3phase
Overall dimensions(LxWxH)1900X1600X2100
Weight2200kg
1000 mm Heavy Duty Wide Belt Sanding Machine
1000 mm Heavy Duty Wide Belt Sanding Machine

Have any need, pls feel free to tell me
We will try our best to supply you the considerate service
