• Model NO.：MF515BT45
• Certification：CE, ISO
• Panel Thinkness：10-40mm
• Min.length panel：120mm
• Min.width panel：80mm
• Manufacturing Principles：Glue Tank Underneath
• Customized：Customized
• Name：Manual Edge Banding Machine
• Working Air Pressure：6 Kg,Cm3
• The Heating Power：1800 W
• Motor Power：180W
• Transport Package：Plywood Package
• Specification：1000*725*1050 mm
• Trademark：SOSN
• Origin：China
• Production Capacity：200 Sets ,Month

Basic Info.

Model NO. MF515BT45 Certification CE, ISO Panel Thinkness 10-40mm Min.length panel 120mm Min.width panel 80mm Manufacturing Principles Glue Tank Underneath Customized Customized Name Manual Edge Banding Machine Working Air Pressure 6 Kg/Cm3 The Heating Power 1800 W Motor Power 180W Transport Package Plywood Package Specification 1000*725*1050 mm Trademark SOSN Origin China Production Capacity 200 Sets /Month

Product Description

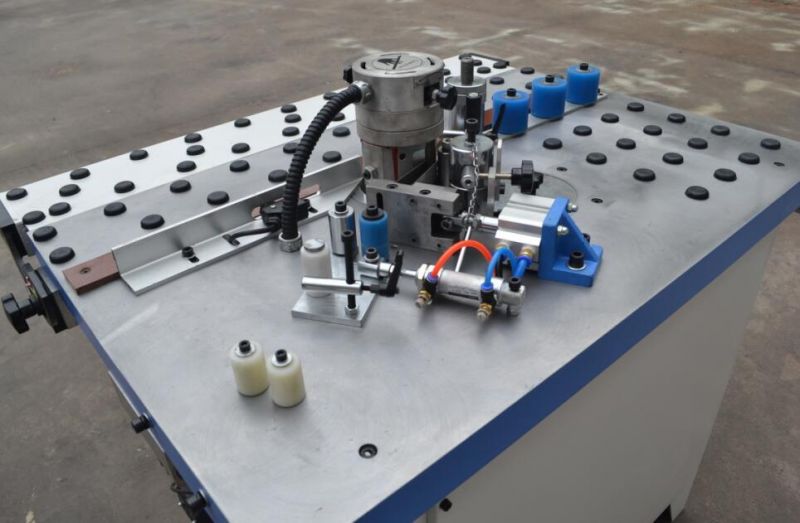

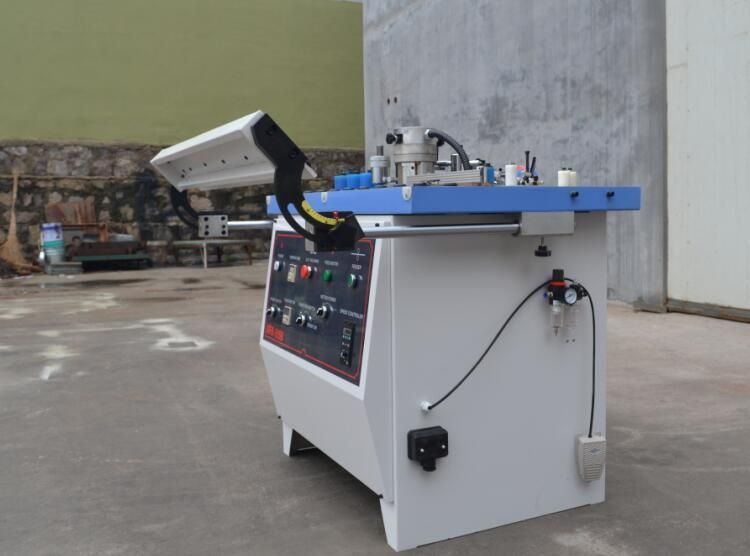

woodworking machinery manual edge banding machine for pvc and veneer


Main technical parameter:

Main technical specifications	MF515BT45
Panel thickness	10-40mm
Edge thickness	0.4-3mm
Edge width	12-45mm
Surface minimum radius	20mm
Feed rate	1-6m/min
Heater power	1.8kw
Atmospheric pressure	0.4-0.5Mpa
Motor Power	0.18kw
The total power	2kw
Weight	295kg
Shape of workpiece	straight & curved

Main features:

1.Body of high quality steel plate welded.
2.Work surface with a special treatment process, durability.
3.Special treatment process of the glue pot, more uniform coating.

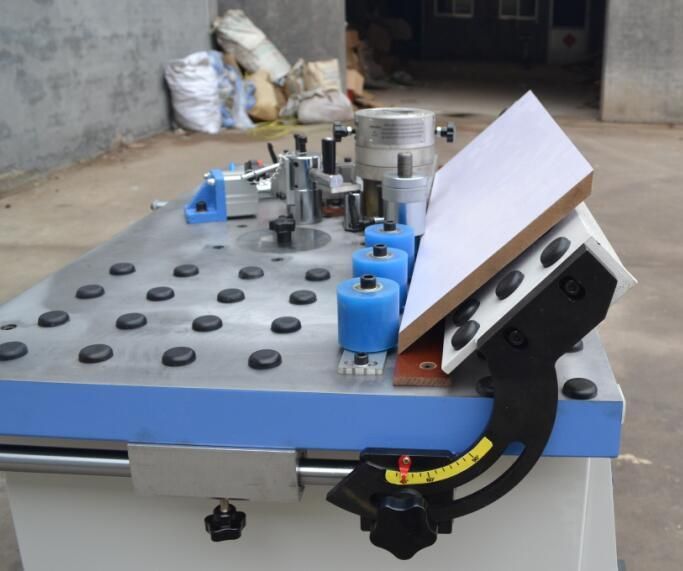

4.0-45 ° tilt angle of the auxiliary table, the angle of the workpiece processing.
5.The parts are precision CNC machining center to complete to ensure the long-term nature of the equipment operation.
6.Strict elaborate assembly process to ensure the equipment the requirements of the standard indicators.
