• Model NO.：WZLH420
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：Provided
• Capacity(T/H)：0.5-1.8
• Main Power(Kw)：37-160
• Pellet Size(mm)：6-8
• Weight(Kg)：3200
• Power of Feeder(Kw)：2.2
• Transport Package：Pallet
• Specification：CE, ISO
• Trademark：FDSP
• Origin：Jiangsu China
• HS Code：8479300000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. WZLH420 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Provided Capacity(T/H) 0.5-1.8 Main Power(Kw) 37-160 Pellet Size(mm) 6-8 Weight(Kg) 3200 Power of Feeder(Kw) 2.2 Transport Package Pallet Specification CE, ISO Trademark FDSP Origin Jiangsu China HS Code 8479300000 Production Capacity 5 Sets/Month

Product Description

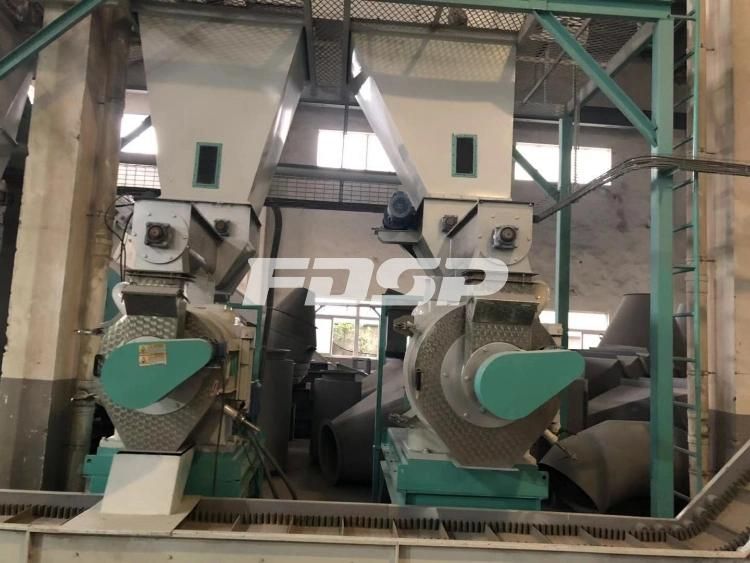

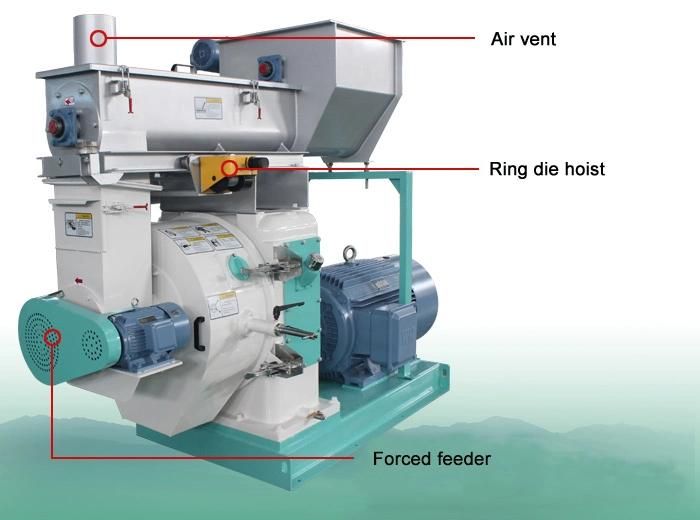

Wood Process Biomass Pellet Mill
 We supply wood pellet mill, wood chips pellet mill, wood shavings pellet machine, wood pllet plant, wood pellet line, sawdust pellet mill, sawdust pellet machine, sawdust pellet plant, wood sawdust granulating machine, pine wood pelletizer, forestry wastes pelletizer, cork pelleting machine and so on.

Model	WZLH420	WZLH508	WZLH680
Ring die inner diameter (mm)	420	500	688
Ring die working width(mm)	90	100	110
Ring die linear speed (m/s)	3.16	3.78	3.54
Number of clamp	3 pcs	3 pcs	8 pcs
Number of roller	2 pcs	2 pcs	2 pcs
Number of cutter	1 pcs	1 pcs	1 pcs
Motor power	90+2.2+0.75	90+2.2+1.5	185+3.0+1.5
Motor rotation speed	750	750	595
Ring die hole   diameter(mm)	6/8/10	6/8/10	6/8/10

Features:
1. It is widely used for pelletizing of light substances, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;

2. The feeder's especial structure makes materials conveyed evenly. It is specially designed for pelletizing of  light substances with the density of 0.15-0.65g/cm3;

3. Feeder,conditioner and chute are made of stainless steel with long service life;

4. It is with magnet and over load protection system which can protect machine well during production;

5. It makes gear directly-connecting as the driver and is with quick-release die fixed by clamps,which can increase the output by 15% more than the same type machine with belt-convey;

6. The bearings and oil seals in the main drivers are imported from Japan to ensure highly-efficient,stability and credibility.
