• Model NO.：WZLH420
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：Provided
• Capacity(T/H)：0.8-1.2
• Main Power(Kw)：75,90
• Pellet Size(mm)：6-8
• Power of Screw Feeder(Kw)：3
• Power of Force Feeder(Kw)：1.5
• Transport Package：Iron Pallet and Soft Guard
• Specification：1500KG
• Trademark：FDSP
• Origin：Jiangsu, China (Mainland)
• HS Code：8479300000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. WZLH420 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Provided Capacity(T/H) 0.8-1.2 Main Power(Kw) 75/90 Pellet Size(mm) 6-8 Power of Screw Feeder(Kw) 3 Power of Force Feeder(Kw) 1.5 Transport Package Iron Pallet and Soft Guard Specification 1500KG Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8479300000 Production Capacity 5 Sets/Month

Product Description

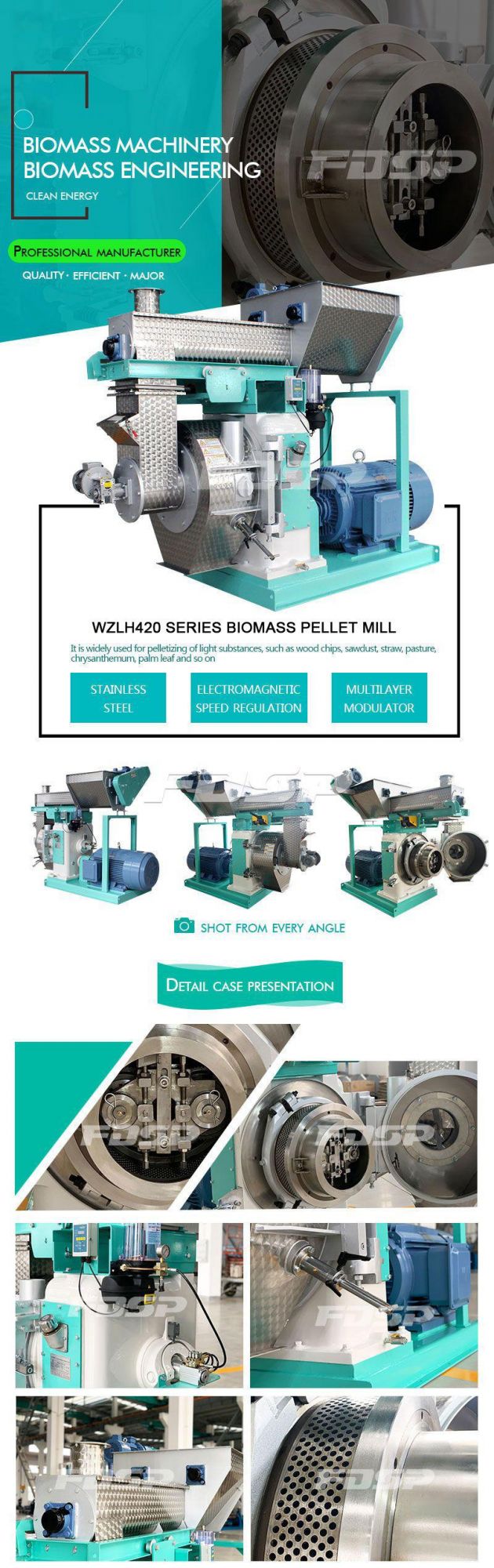

New Design Environmental Protection Ring Die Bio-Fuel Pellet Making Machine
Introductions of pellet making machine:
1.Biomass wood pellet machine is a kind of machine which could process sawdust,straw dust,rice husk,peanut shell,tree branches etc biomass through pre-treatment and process.Those biomass material will be solidified into high-density pellet fuel.

2.Advantages of wood pellet machine:
a.  Biomass fuel is a kind of solid pellet fuel made up from corn straw,wheat straw,rice straw,peanut shell,rice husk,tree branches,leaves,sawdust,tree bark etc solid waste.These materials are processed with crushing,pressing and molding to small rod-like solid  granular fuel.The fuel is extruded by rollers and ring die under common temperature.The density of the fuel is about 0.9-1.6g/m³.

b. The technological process:Materials collection-----Crushing-----Drying-----Molding----Packing

c. The application of biomass fuel:A new kind of bio-energy,which could talk place of wood,coal,gas etc and widely used in heating,life stoves,industrial boilers,biomass power plant etc.

3.Classification:Flat die wood pellet machine,horizontal ring die wood pellet machine and vertical ring die wood pellet machine.Our product is horizontal ring die pelletizer,which have higher output than flat die machine,compared with vertical ring die pelletizer,our product is better choice with the stable performance for long time and easy maintenance.Moreover,our finished pellets are compact so they can be applied for industrial boiler.

The features of our biomass pellet machine:

Model	WZLH420	WZLH508	WZLH680
Ring die inner diameter (mm)	420	500	688
Ring die working width(mm)	90	100	110
Ring die linear speed (m/s)	3.16	3.78	3.54
Number of clamp	3 pcs	3 pcs	8 pcs
Number of roller	2 pcs	2 pcs	2 pcs
Number of cutter	1 pcs	1 pcs	1 pcs
Motor power	90+2.2+0.75	90+2.2+1.5	185+3.0+1.5
Motor rotation speed	750	750	595
Ring die hole   diameter(mm)	6/8/10	6/8/10	6/8/10

FAQ
1.Q:Are you a factory or trading company?
A:We are a factory .
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai.You can fly to Shanghaiairport directly.All our clients, from home or abroad, are warmly welcome to visit us!

WHY CHOOSE US?
Our products have passed the SGS,ISO9001:2008,CE certifications.Moreover,we own several patents,such as "utility model patents certificate"and "high-tech products certificate",etc.Our goods exported to many countries and won the good reputation by the high quality and superior service.
