Patent Products Biomass Fuel 6/8/10mm Wood Sawdust Pellet Mill

Jiangsu Liangyou Zhengda Co., Ltd.
  • Type:Wood Pellet
  • Voltage:380V
  • Automatic Grade:Automatic
  • Controlling Mode:Artificial
  • Energy Saving:Energy Saving
  • Certification:CE, ISO

Base Info

  • Model NO.:WZLH420
  • Warranty:1 Year
  • Customized:Customized
  • Condition:New
  • Color:Blue
  • After-sales Service:Provided
  • Capacity(T/H):0.8-3.5
  • Main Power(Kw):75,90,110,132,160,185,200,220
  • Ring Die Diameter:420,508,680,762
  • Pellet Diameter:6-10
  • Transport Package:Iron Case
  • Specification:1000KG
  • Trademark:FDSP
  • Origin:Jiangsu China
  • HS Code:8436990000
  • Production Capacity:800-100h,400-500h

Description

Basic Info.

Model NO. WZLH420 Warranty 1 Year Customized Customized Condition New Color Blue After-sales Service Provided Capacity(T/H) 0.8-3.5 Main Power(Kw) 75/90/110/132/160/185/200/220 Ring Die Diameter 420/508/680/762 Pellet Diameter 6-10 Transport Package Iron Case Specification 1000KG Trademark FDSP Origin Jiangsu China HS Code 8436990000 Production Capacity 800-100h/400-500h

Product Description

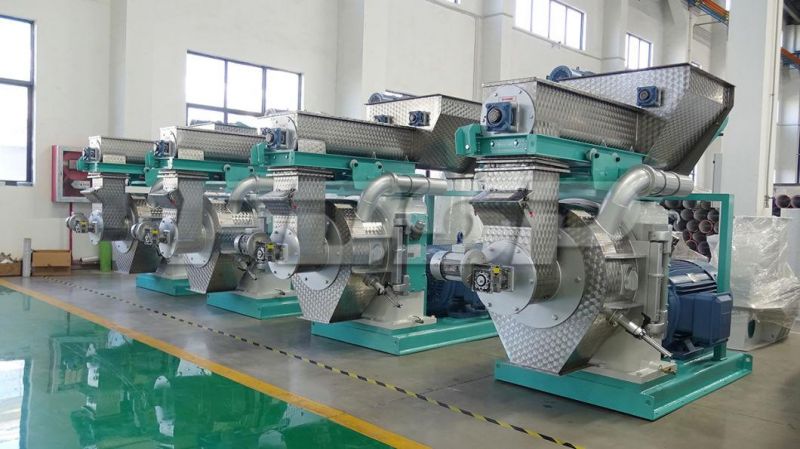

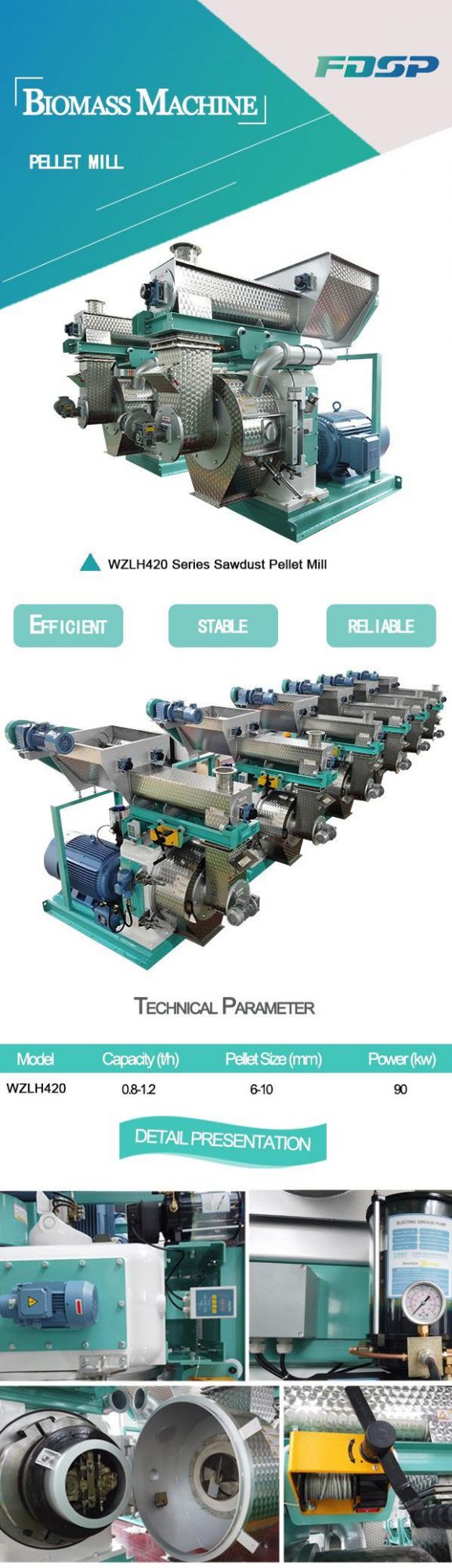

Patent Products Biomass Fuel 6/8/10mm Wood Sawdust Pellet Mill


It is widely used for pelletizing of light substances, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on.



Product Features
1. It is widely used for pelletizing of light substances, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;
2. The feeder's especial structure makes materials conveyed evenly. It is specially designed for pelletizing of  light substances with the density of 0.15-0.65g/cm3;
3. Feeder,conditioner and chute are made of stainless steel with long service life;
4. It is with magnet and over load protection system which can protect machine well during production;
5. It makes gear directly-connecting as the driver and is with quick-release die fixed by clamps,which can increase the output by 15% more than the same type machine with belt-convey;

6.The bearings and oil seals in the main drivers are imported from Japan to ensure highly-efficient,stability and credibility.

Patent Products Biomass Fuel 6/8/10mm Wood Sawdust Pellet Mill

Biomass wood pellet application

Civilian heating:high use ratio and easily

Biomass industrial boiler:be used as the main fuel of the industrial boiler,solve the problem of environmental pollution.

Power generation:be as the fuel of thermal power generation.



Technical Parameter

ModelWZLH420WZLH508WZLH680
Ring die inner diameter (mm)420500688
Ring die working width(mm)90100110
Ring die linear speed (m/s)3.163.783.54
Number of clamp3 pcs3 pcs8 pcs
Number of roller2 pcs2 pcs2 pcs
Number of cutter1 pcs1 pcs1 pcs
Motor power90+2.2+0.7590+2.2+1.5185+3.0+1.5
Motor rotation speed750750595
Ring die hole   diameter(mm)6/8/106/8/106/8/10



Equipment configuration



Ring die materials:4Cr13

Stainless steel feeder:With broken arch function

Door cover of granulating chamber:-6/SUS304

Forced feeding: worm gearing reducer

Gearbox Casing:HT250

Wheel gear:42CrMo

Gear shaft:20CrMnMo

Main shaft:40Cr

Hollow shaft:forge piece 45#

Bearing:gear shaft, main shaft bearing is NSK, roller bearing is domestic high quality bearings

Oil seal:Germany/Taiwan

Overload mechanical protection:safety pin

Serpentine spring coupling drive

Lubrication system: Automatic oil filling system is available

Morot: Siemens (China) motor or Wannan motor

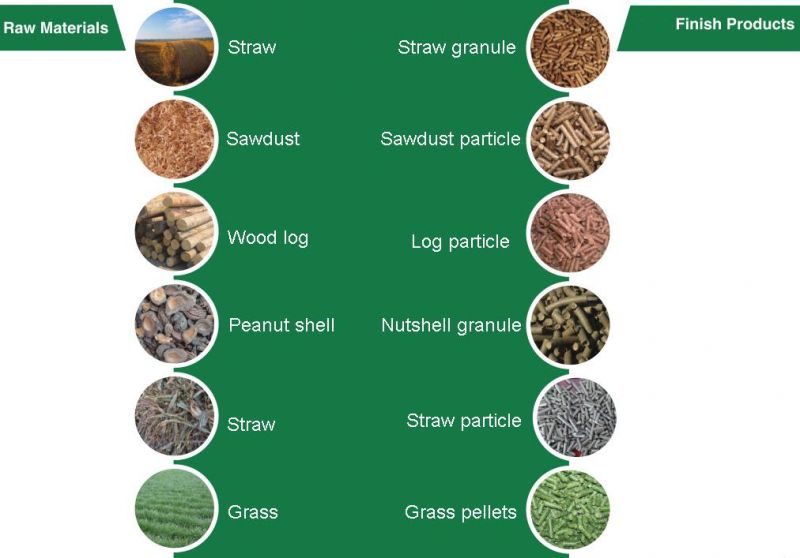

Biomass raw material and pellets show

Patent Products Biomass Fuel 6/8/10mm Wood Sawdust Pellet Mill

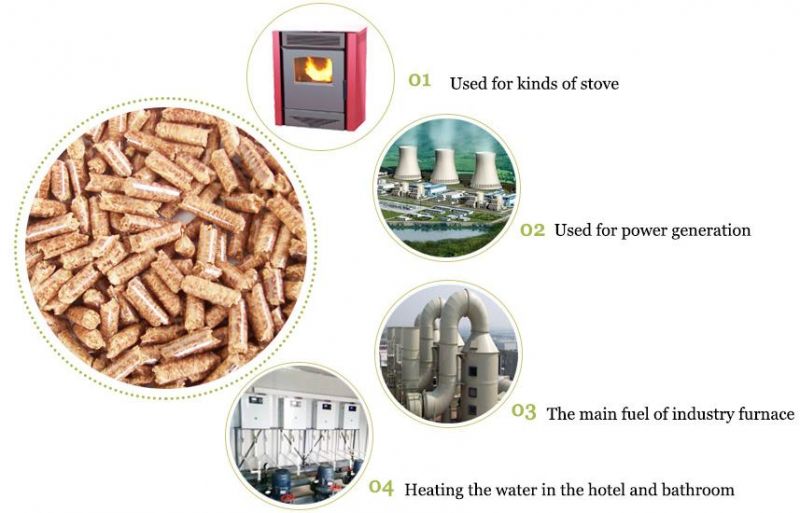

Application of biomass pellets

Patent Products Biomass Fuel 6/8/10mm Wood Sawdust Pellet Mill

Our workshop

Patent Products Biomass Fuel 6/8/10mm Wood Sawdust Pellet Mill



Our Certifications

Patent Products Biomass Fuel 6/8/10mm Wood Sawdust Pellet Mill

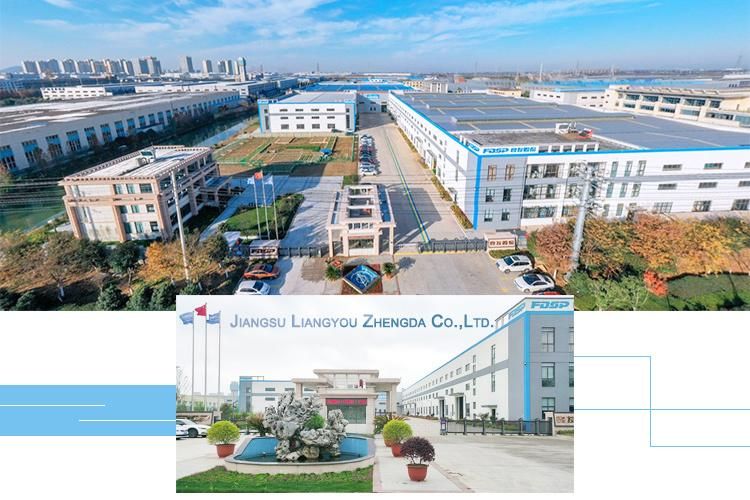

ABOUT US

As a Chinese listed company and a national high-tech enterprise, (FDSP) is a large-scale manufacturing system solution provider for feed machinery, biomass machinery, fertilizer machinery, storage machinery and complete sets of projects. Has served in Europe, Africa, Australia, South America, Southeast Asia, the Middle East and more than 30 countries and regions.

The products have obtained ISO9001:2015 international quality system certification, EU national CE certification for biomass energy equipment and its complete production line, Russian GOST-R certification, and 6 years of SGS field certification. Reliable and reliable.

We have a professional technical team to customize your own system solutions, providing one-stop services from pre-design, manufacturing to post-construction, maintenance and so on. Committed to providing "safe, reliable, energy-saving" stand-alone products to customers around the world, we are committed to creating high-quality, low-energy, strong and stable quality projects, and continuously create more and greater value for our customers.
