• Model NO.：WZLH420
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：Provided
• Capacity(T/H)：0.8-1.2
• Main Power(Kw)：75-90
• Pellet Size(mm)：6-8
• Weight(Kg)：3200
• Power of Feeder(Kw)：2.2
• Transport Package：Iron Pallet and Soft Guard
• Specification：1500KG
• Trademark：FDSP
• Origin：Jiangsu, China (Mainland)
• HS Code：8479300000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. WZLH420 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Provided Capacity(T/H) 0.8-1.2 Main Power(Kw) 75-90 Pellet Size(mm) 6-8 Weight(Kg) 3200 Power of Feeder(Kw) 2.2 Transport Package Iron Pallet and Soft Guard Specification 1500KG Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8479300000 Production Capacity 5 Sets/Month

Product Description

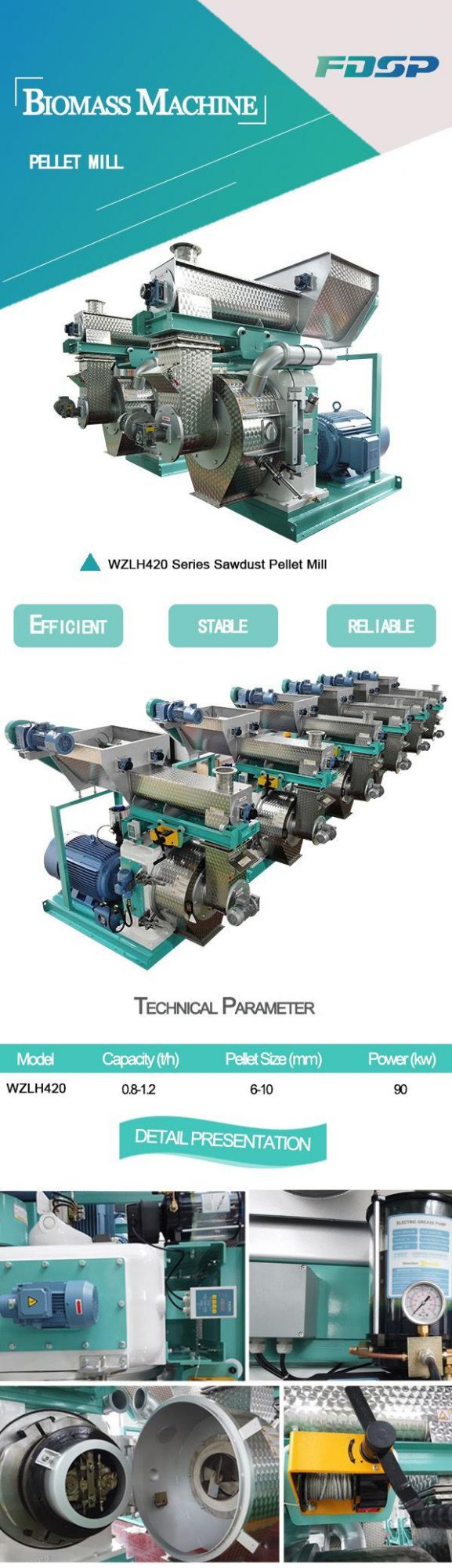

1.5-2.5 t/h Ring Die Wood Pellet Press Machines For SaleFeatures:

1. It is widely used for pellet of light substance, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;
2. The feeder's especial structure makes materials conveyed evenly, it is specially designed for pellet of light substance with the density of 0.3-0.6g/ cm3;
3. Feeder, conditioner and chute are made of stainless steel with long service life;
4. It is with magnet and over load protection system, which can protect machine well during production;
5. Feeder is with a variable speed controlled to meet different outputs requirements;
6. It makes gear directly-connecting as the driver, and is with quick-release die fixed by clamps, which can increase the output 15% more than the same type machine with belt-convey;
7. The bearing and oil seal in the main drive are imported from Japan to ensure highly-efficient, stability, credibility;
8. The alloy steel die is with international advanced equipment and technics, and has long service life, slippery pellet and high quality.

Performance Parameter


Model	WZLH420	WZLH508	WZLH680
Ring die inner diameter (mm)	420	500	688
Ring die working width(mm)	90	100	110
Ring die linear speed (m/s)	3.16	3.78	3.54
Number of clamp	3 pcs	3 pcs	8 pcs
Number of roller	2 pcs	2 pcs	2 pcs
Number of cutter	1 pcs	1 pcs	1 pcs
Motor power	90+2.2+0.75	90+2.2+1.5	185+3.0+1.5
Motor rotation speed	750	750	595
Ring die hole   diameter(mm)	6/8/10	6/8/10	6/8/10

On basis of absorbed advanced technology for biomass pelleting from abroad, we are leading company to develop independently turn-key equipment for biomass pelleting for agricultural crops in China. Meanwhile it can be pelleted for waste of forestry, too. We can customize and design turn-key project for all kinds of materials for customers according to their various request, materials, and site.

FAQ

1.Q:Are you a factory or trading company?
A:We are a factory .

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai.You can fly to Shanghaiairport directly.All our clients, from home or abroad, are warmly welcome to visit us!
