• Model NO.：MF3800
• Certification：CE
• Panel Thinkness：10-60mm
• Min.length panel：160mm
• Min.width panel：60mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• After-sales Service：on Line
• for：Wardrobe
• Weight：1200kg
• Transport Package：Wood Box
• Specification：4200*1000*1750
• Trademark：HT
• Origin：China
• HS Code：84659900
• Production Capacity：600

Model

468J-2

Overall Dimensions

8700*910*1540mm

Min Panel Side

300(L)*60(W)

150(L)*150(W)

Feed Speed

15-23m/min

Edge Thickness

0.2-3mm

Panel Thickness

10-60mm

Panel Length

≥150mm

Panel Width

≥60mm

Working Air Pressure

0.6mpa

Weight

2950kg

Total Power

24.1kw

Automatic edge banding machine function

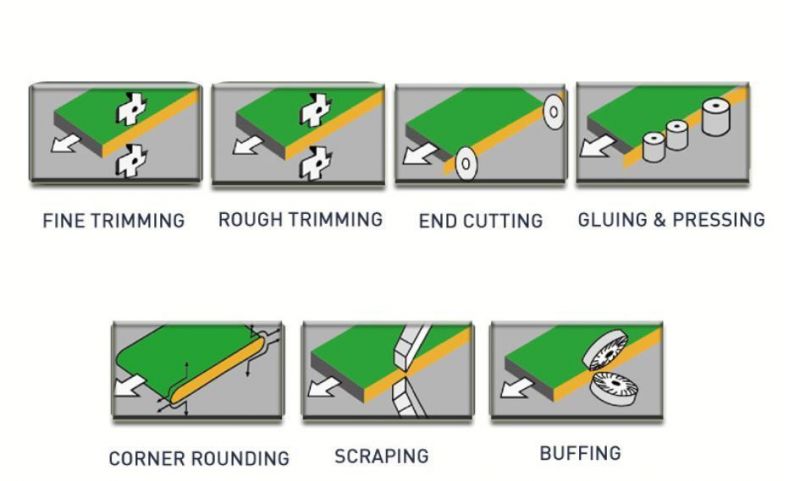

pre milling-gluing and pressing-end cutting-rough trimming-fine trimming-corner trimming-scraping-buffing

Features

1.Adopt domestic famous motor and high quality electrical components.
2.The fuselage is firm and steady,thus increasing the stability of the whole machine.
3.Aluminum alloy beam is a relatively advanced method, its precision and straightness are far superior to cast iron.
4.Auto cleaning, high precision, high efficiency.
5.The machine can be customized.
6.Automatic and precise gluing procedure as well integrated double finishing side within one workflow .The end cutting can be done at the rear side of the machine.
7.Multiple Air cylinder will assembled on the machine, mainly used for positioned location assured the panel materials processing accuracy in a very high level.
8.Secondary Dust Exhaust System, mainly used for sawdust collection during processing period, to keep the material smooth and clean.
9.The machine adopts the devices of sound insulation, controlling of dust, platform frame Micro adjustment by manual operation.

Our company produces all kinds of woodworking machinery.Woodworking edge banding machine  ,polishing machine,table saw and so on,Welcome come to  China,welcome come to my company ,


Dear friends
We have different kinds of edge banding machine.The price is different,
Welcome to contact us for helping you to choose .
