Woodworking Machinery

Home > Product > Wood Pellet Mill

CE Certified Wood Pellets Machine Plant/Wood Pellet Production Line

Shandong Lintianzhiyuan CNC Equipment Co., Ltd.
  • Type：Ring Die,Flat Die
  • Voltage：380V
  • Automatic Grade：Automatic
  • Controlling Mode：Electric Control
  • Energy Saving：Energy Saving
  • Certification：CE

Base Info

  • Model NO.：wood pellets maker
  • Warranty：1 Year
  • Customized：Customized
  • Condition：New
  • Color：Customiaed
  • After-sales Service：Online Service
  • Raw Material：Wood Branch, Sawdust,Wood Chips,etc.
  • Final Pellet：6-12mm Wood Pellets
  • Application：Burn
  • Function：Pelleting
  • Suitable for：Production Line
  • Transport Package：Ocean Shipping
  • Specification：350kg,h, 500kg,h, 1t,h, 3-5t,h, etc.
  • Trademark：LEABON
  • Origin：Zhengzhou, Henan, China
  • Production Capacity：100 Sets Per Month

Description

NameQTYInformationwood crusher1Power:15kw+4kw Dimension: 1.6*0.9*1.2mm Weight: 520KG Capacity: 600kg/hdryer1

Power:4kw Size of Pipes: 1.9*1.22*1.65 M Size of Stove: 1.5*1.1*1.1M

Machine weight: 2280Kg  Capacity:350-400kg/h

pellet maker1

Power:30kw Dimension: 1.45*0.8*1.3m Weight:

850kgs Capacity: 350kg/h

cooler with screen1Power: 2.2kw*2 Dimension: 1.58*0.68*0.945 Weight: 250kgs Capacity: 350-400kg/hpellet packing machine1Power:0.37kw+1.5kw Machine Size:2.45*0.7*0.65m Machine Weight: 550KG   Packing speed15 kgs/bag; 300bags/hconveyor3Power:1.5kw*3 controller1Total power: 63.77kw Control all machines.

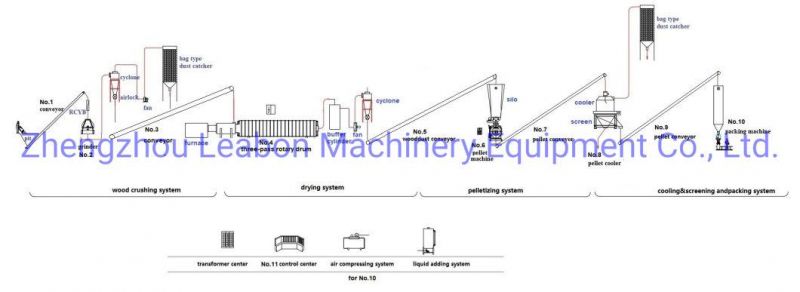

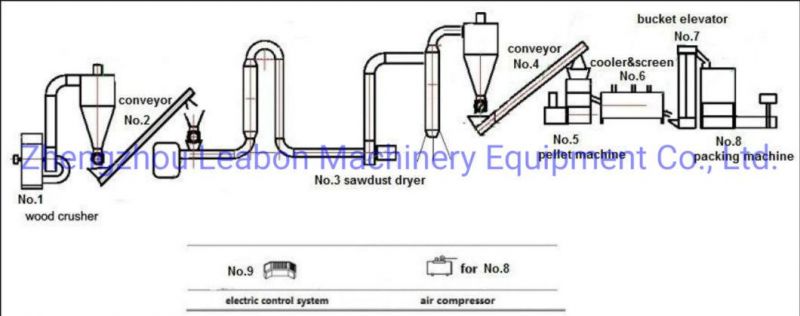

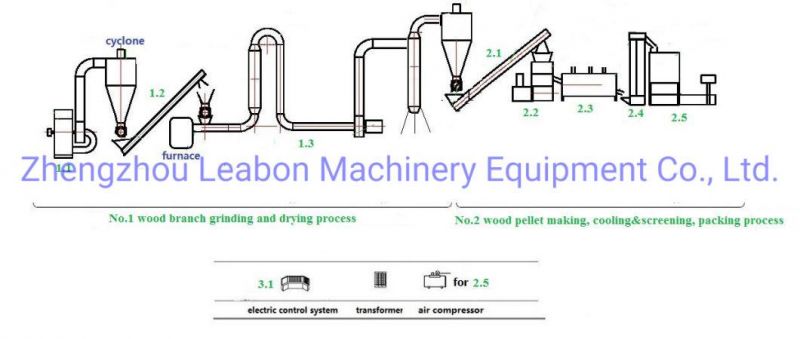

Different wood pellet making line design:
CE Certified Wood Pellets Machine Plant/Wood Pellet Production Line                                                                            350kg/h wood pellet making line
CE Certified Wood Pellets Machine Plant/Wood Pellet Production Line
                                                                           500kg/h wood pellet making line
CE Certified Wood Pellets Machine Plant/Wood Pellet Production Line
                                                                                    2t/h wood pellet making line

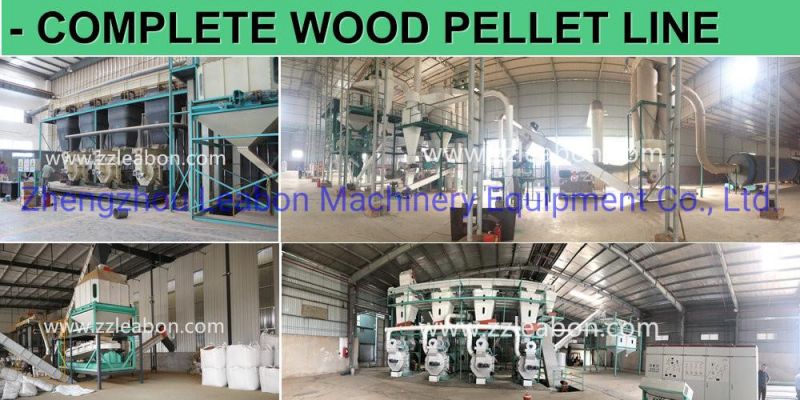

Customers' production line :
CE Certified Wood Pellets Machine Plant/Wood Pellet Production LineCE Certified Wood Pellets Machine Plant/Wood Pellet Production Line



Raw material&Final wood pellets:
CE Certified Wood Pellets Machine Plant/Wood Pellet Production Line

Usage:
CE Certified Wood Pellets Machine Plant/Wood Pellet Production Line
Application:
CE Certified Wood Pellets Machine Plant/Wood Pellet Production Line
Packing:
1). 1*20'GP Container
2).Inland freight and port sur-charge in Qingdao port, China.
CE Certified Wood Pellets Machine Plant/Wood Pellet Production Line
Features:
1. Compact structure;
2. Small floor space;
3. Low energy consumption;
4. High efficiency;
5. CE Certification.

CE Certified Wood Pellets Machine Plant/Wood Pellet Production Line
Our company:
CE Certified Wood Pellets Machine Plant/Wood Pellet Production Line

Note:
If you need machines to build the pellets production line or want to know more about it, pls email or call me direct.
