• Model NO.：MHZ15L
• Setting Mode：Table
• Controlling Mode：CNC
• Power Source：Joint Drive
• Processing Accessory：Centre CNC Lathe
• Certification：CE
• After-sales Service：Free Service on Internet
• Max. Working Width：250mm
• Max. Working Thickness：110mm
• Max. Feeding Speed：36m,Min
• Saw Blade Diameter：400
• Motor Power for Cutting：2.2kw
• Motor Power for Feeding：0.75kw
• Motor Power for Hydraulic：5.5kw
• Total Power：8.45kw
• Rated Air Pressure：0.6 ~0.7MPa
• Rated Hydraulic Pressure：10MPa
• Transport Package：PE Film
• Trademark：CHANCSMAC
• Origin：China
• HS Code：8465910000
• Production Capacity：20 Sets, Month

ModelMHZ15LWorking length   Freely set as required (Infinite length)Max. Working width250mmMax. Working thickness110mmMax. Feeding speed36m/minSaw blade diameterΦ400Motor power for cutting2.2kwMotor power for feeding0.75kwMotor power for hydraulic5.5kwTotal power8.45KW Rated air pressure0.6 ~0.7Mpa Rated hydraulic pressure10MPaOverall dimensions (L*W*H)13000(~+N×6000)×2500×1650mm Total weight4800Kg

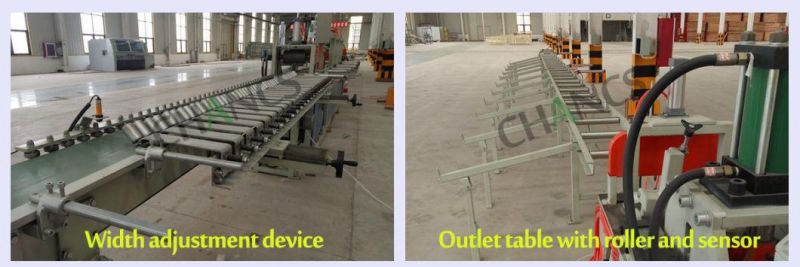

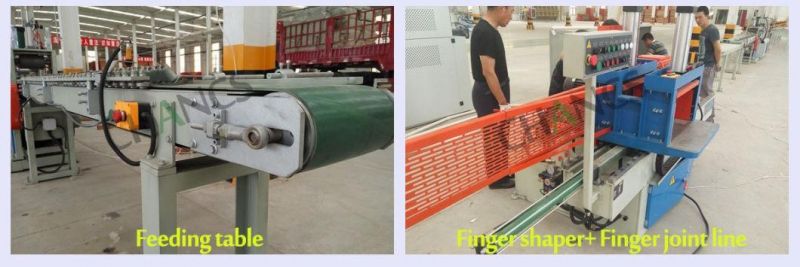

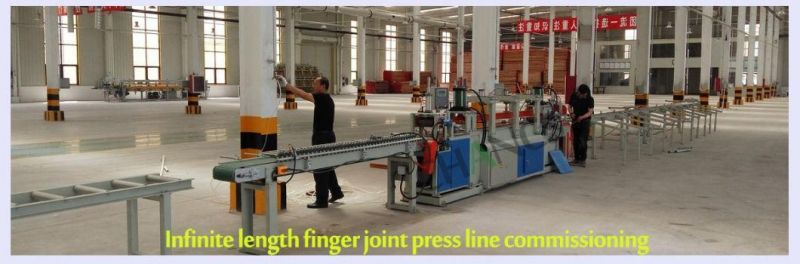

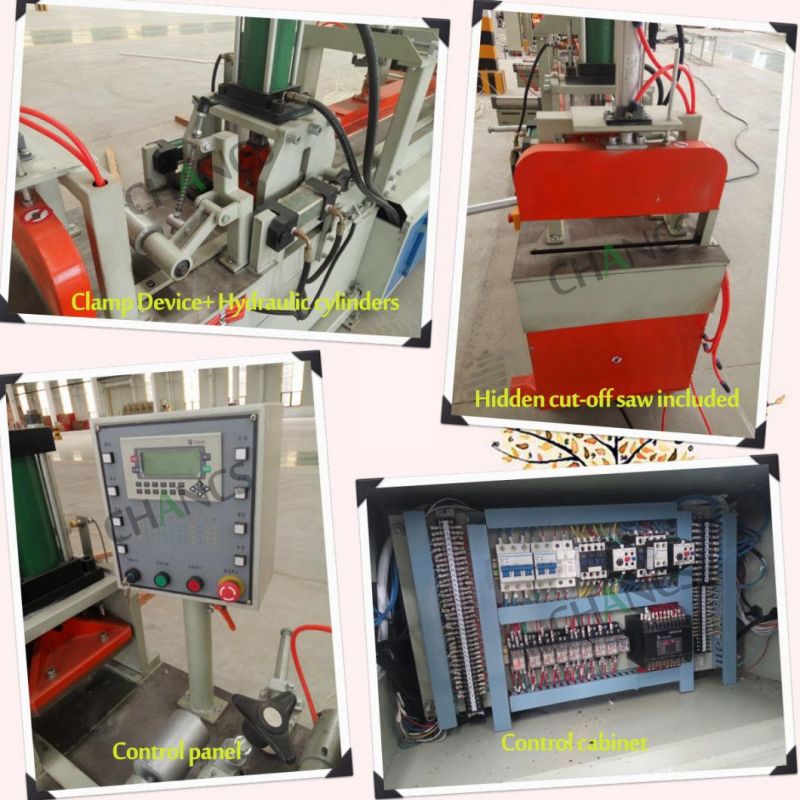

3.Detailed Images:



4 FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact with us
1. Q: What's the MOQ?
R: One set will be ok.
2. Q: Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q: What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after insepction.
4. Q: What is warranty time?
R: One year.
