QCM Qingcheng woodworking Machinery Automatic Saw for cutting wood
Hangzhou Smart Panther Tech Ltd- Type:Double-sided Pressure Planer
- Working Depth:10-170
- Working Width:500-700mm
- Drivetrain:Feed Drivetrain
- Enter Method:Mechanical
- Motor Power:>10Kw
Base Info
- Model NO.:QMB206F-K,F-H
- Cutter Shaft:2
- Spindle Speed:<5000rpm
- Process Type:Medium-Sized Processing
- Certification:CE, ISO
- Certificate:Ce & ISO
- Product Name:thicknesser planer
- total weight:3200kg
- total power:22.25 kw
- spindle quantity:2
- working thicknesss:10-170mm
- Machine body:casting
- Transport Package:Plywood Carton
- Specification:2900X1180X1830
- Trademark:Qingcheng
- Origin:China
- HS Code:84659200
- Production Capacity:10000set,Y
Description
Basic Info.
Model NO. QMB206F-K/F-H Cutter Shaft 2 Spindle Speed <5000rpm Process Type Medium-Sized Processing Certification CE, ISO Certificate Ce & ISO Product Name thicknesser planer total weight 3200kg total power 22.25 kw spindle quantity 2 working thicknesss 10-170mm Machine body casting Transport Package Plywood Carton Specification 2900X1180X1830 Trademark Qingcheng Origin China HS Code 84659200 Production Capacity 10000set/YProduct Description

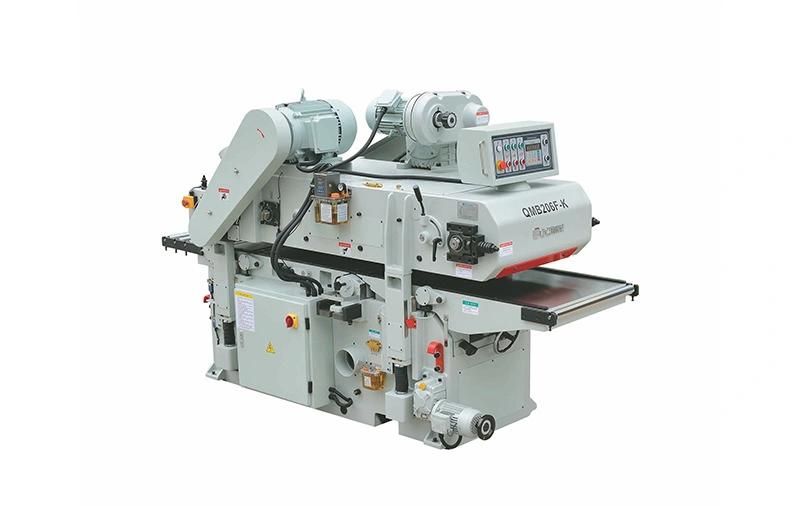

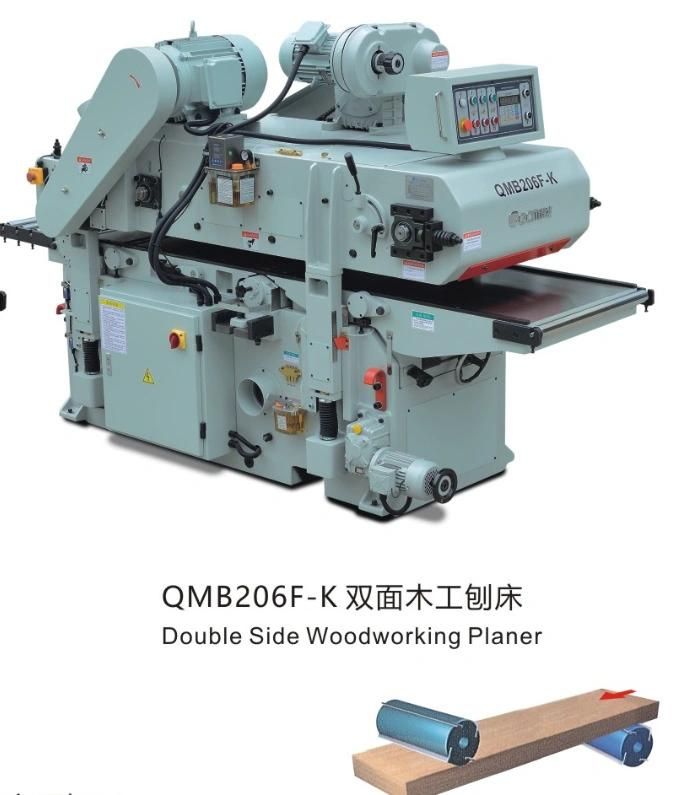

2-side Planer/Double Side Planer/Woodworking planer Woodworking Machinery for Solid wood/wooden FurnitureQMB206F-K/F-H
Double side planer
Thicknesser planer
Excellent features:
1. The machine adopts whole casting body, aging treatment, stable performance;
2.The working table adopts special wear-resisting material, which has enough rigidity and wear resistance;
3. The cutter shaft is precision machined, dynamically balanced and precision assembled, with smooth running and good precision;
4.Feeding material adopts elastic pressure claw, with adjustable strength, smooth feeding and good quality of processed board surface;
5. The upper and lower drive rollers are adopted in the upper pressure planing system, which makes the material feeding strong and powerful;
6. The feeding system adopts frequency conversion speed control (F series is stepless transmission) to ensure the quality of different wood products;
7. The lifting system adopts digital display, intuitive and convenient operation;
All electrical components and transmission parts are of good brand and components, stable performance;
9.Quick belt tension adjustment and quick planer replacement, convenient operation;
10.630 series is equipped with manual lubrication pump to lubricate the column sliding plate to ensure the flexibility of lifting;
11.K-type products are equipped with numerical control automatic thickness gauge, which is accurate in thickness setting and convenient in operation.
Specifications | Unit | QMB206F-K/F-H |
Working width | mm | 630 |
Working thickness | mm | 10-170 |
Min.working length | mm | 310 |
Max cutting depth(Upper and Bottom) | mm | 53 |
Feeding speed | m/min | 5.3-20 |
spindle speed | r/min | 4800 |
spindle cutting dia | mm | Φ125 |
Total power | kW/HP | 22.25/30 |
Spindle motor | kW/HP | / |
Top Spindle motor | kW/HP | 1115 |
Bottom Spindle motor | kW/HP | 7.5/10 |
Front blade spidle motor | kW/HP | / |
Back blade spidle motor | kW/HP | / |
Feeding motor | kW/HP | 34 |
Lifting motor | kW/HP | 0.75/1 |
Suction hood dia | mm | 4*Φ150 |
Overall dimensions | mm | 2900X1180X1830 |
Weight | kg | 3200 |

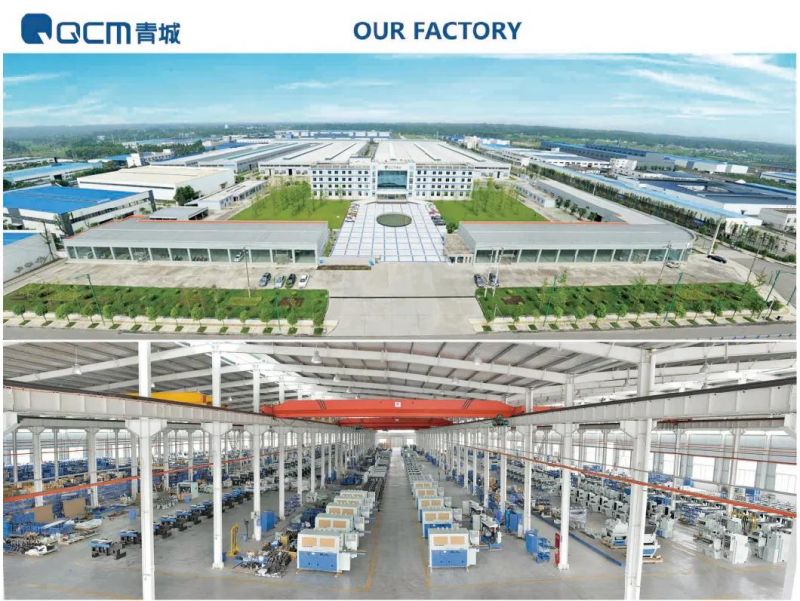

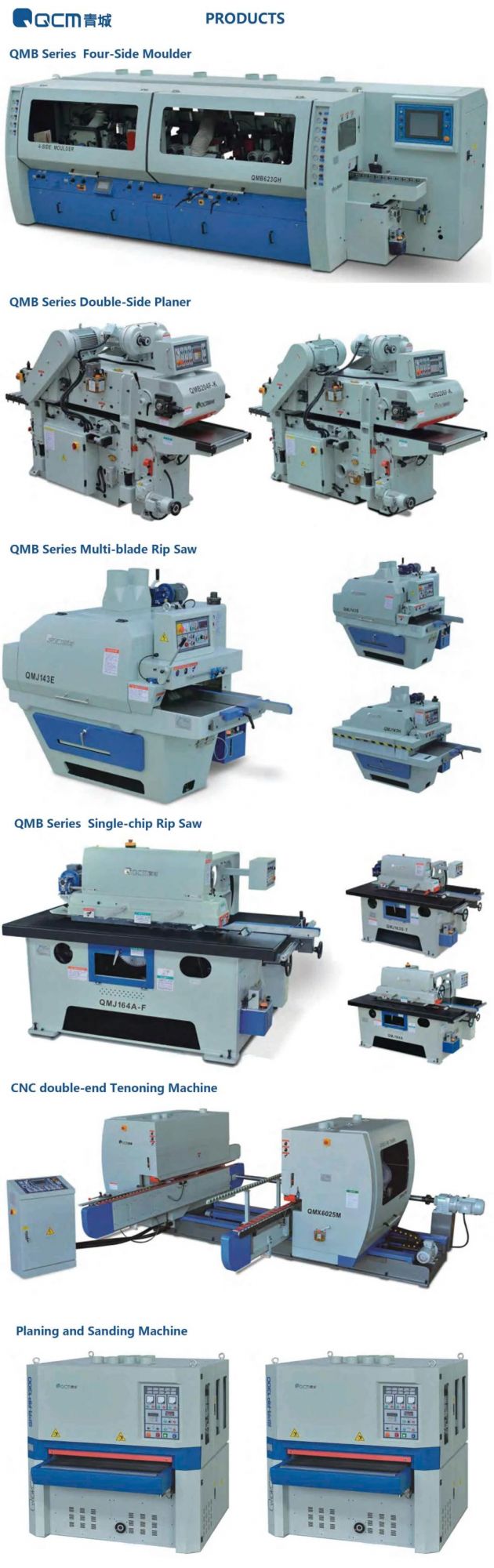

Qingcheng Machinery Co.,LTD established in 1970 which are speclializing in producing all kinds of woodworking machines, like Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoning Machine, Wood Planer etc.

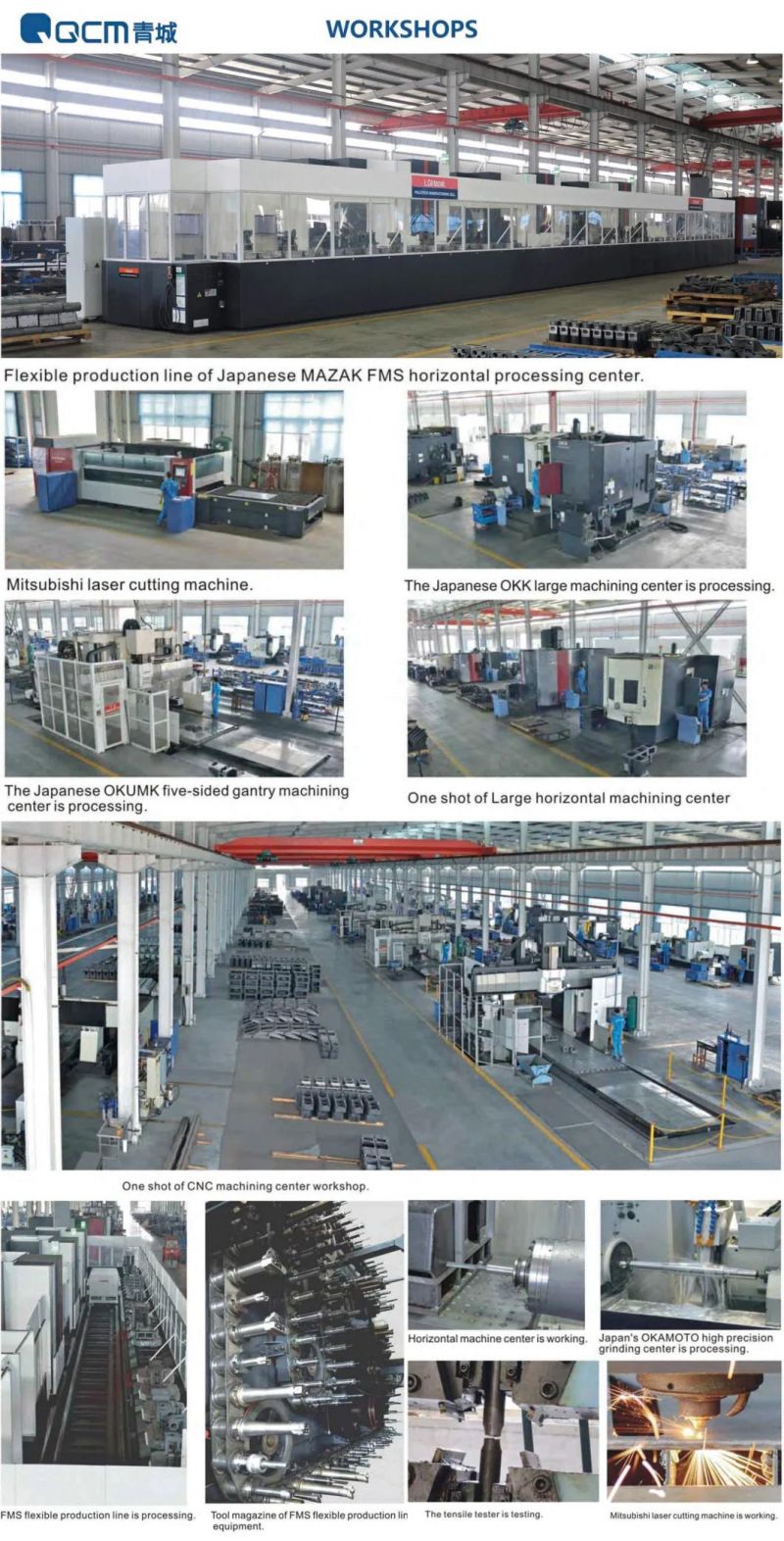

It's been 50years since we have devoted our-self to the development and manufacturing of woodworking machinery. As a top manufacturer in wood machinery, we insist on investment on research and develop and equipment. We have purchased vertical machining centers, muti-function CNC lathes produced by Japan Mazak, horizontal machining centers of Japan MAKINO, Japanese gantry machining centers of OKUMA, and laser cutting machines from Mitsubishi.
Those advanced equipment insure you precision, performance and durability, with mass production in big quantity. So that we can insure our customers fast delivery time, high quality and perfect performance.
FAQ
Below FAQ for your reference, if you have any further questions, we are always here for you.
1, Manufacturer or Trading company?
Yes, we are professional machine producer since 1970.During the last 50 years, we devoted our-self to the development and manufacturing of woodworking machinery with passion and innovation. You will be always welcomed to visit our factory.
2, What's your payment term?
30% deposit and 70% balance should be paid before delivery.
3, How about your after-sale service?
Our engineers are available to service overseas to provide professional technical support.
4, Warranty of double side planer?
Its warranty is 12 months.
5, What's your leading time of wood planer?
Within 2 days for regular stocked machine after receiving deposit.
2 months for OEM machines.
7, What's your delivery term of planer thicknesser?
---FOB shanghai/Ningbo
