Mini Vertical Biomass Pellet Mill Straw Pellet Machine with Small-Capacity

Jiangsu Liangyou Zhengda Co., Ltd.
  • Type：Gear Driven
  • Voltage：380V
  • Automatic Grade：Semiautomatic
  • Controlling Mode：Artificial
  • Energy Saving：Energy Saving
  • Certification：CE, ISO

Base Info

  • Model NO.：LZLH470
  • Warranty：1 Year
  • Customized：Customized
  • Condition：New
  • Color：Green
  • After-sales Service：Engineer Available
  • Capacity(T/H)：0.5-0.6
  • Main Power(Kw)：45
  • Pellet Size(mm)：8-10
  • Brand of Motor：Siemens
  • Power of Feeder(Kw)：1.5
  • Transport Package：Iron Pallet and Soft Guard
  • Specification：CE, ISO
  • Trademark：FDSP
  • Origin：Jiangsu, China (Mainland)
  • HS Code：84793000
  • Production Capacity：5 Sets,Month

Description

Model

LZLH470

Capacity(T/H)

0.5-0.6

Main motor power(kw)

45

Feeder power(kw)

1.5

Ring die dia(mm)

470

Pellets dia(mm)

6/8/10

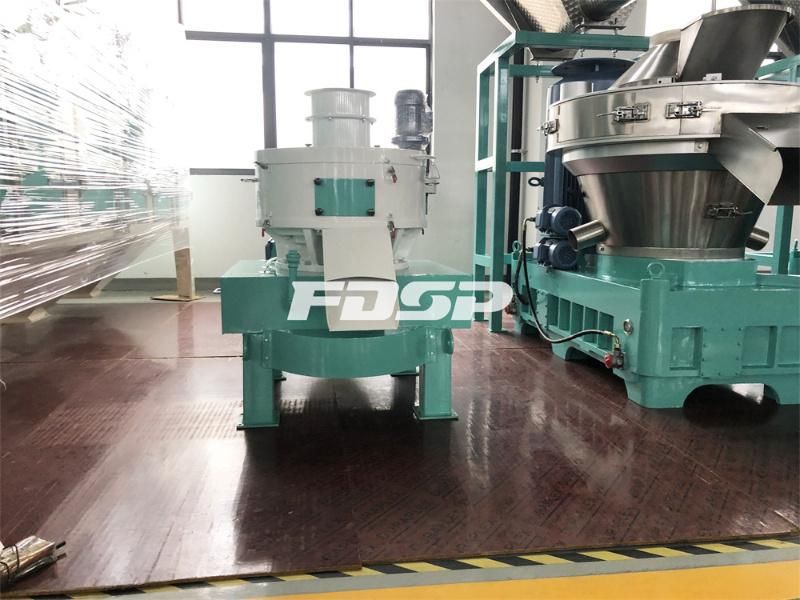

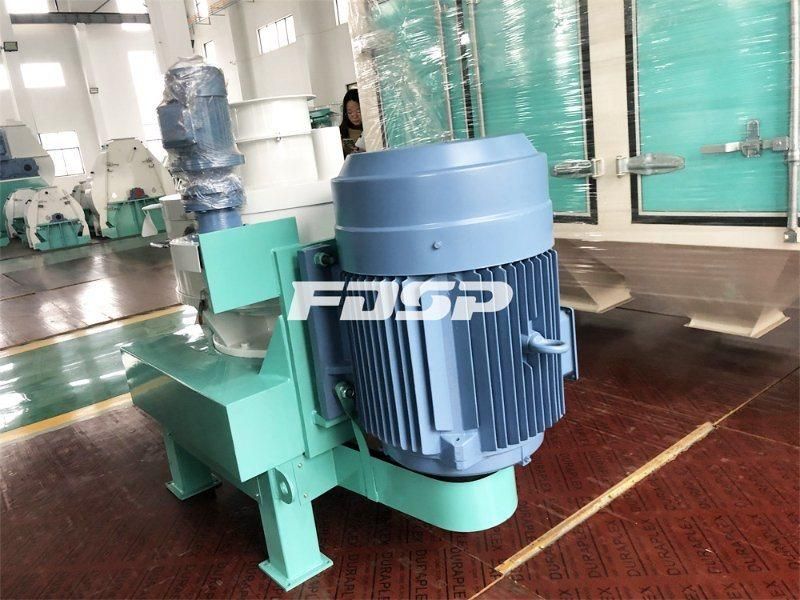

Mini Vertical Biomass Pellet Mill Straw Pellet Machine with Small-CapacityMini Vertical Biomass Pellet Mill Straw Pellet Machine with Small-Capacity

Equipment configuration
Ring die materials:4Cr13
Stainless steel feeder:With broken arch function
Door cover of granulating chamber:-6/SUS304
Forced feeding: worm gearing reducer
Gearbox Casing:HT250
Wheel gear:42CrMo
Gear shaft:20CrMnMo
Main shaft:40Cr
Hollow shaft:forge piece 45#
Bearing:gear shaft, main shaft bearing is NSK, roller bearing is domestic high quality bearings
Oil seal:Germany/Taiwan
Overload mechanical protection:safety pin
Serpentine spring coupling drive
Lubrication system: Automatic oil filling system is available
Morot: Siemens (China) motor or Wannan motor
Mini Vertical Biomass Pellet Mill Straw Pellet Machine with Small-Capacity

FAQMini Vertical Biomass Pellet Mill Straw Pellet Machine with Small-CapacityMini Vertical Biomass Pellet Mill Straw Pellet Machine with Small-Capacity

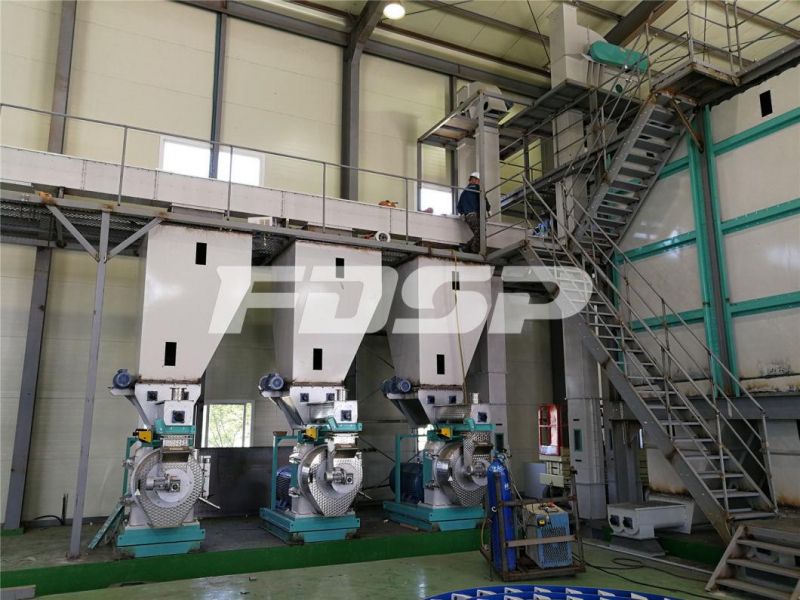

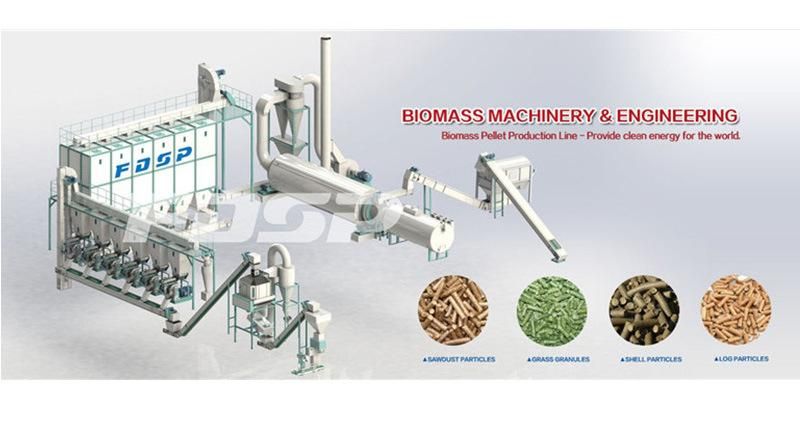

biomass and fertilizer granulation


Mini Vertical Biomass Pellet Mill Straw Pellet Machine with Small-CapacityMini Vertical Biomass Pellet Mill Straw Pellet Machine with Small-Capacity

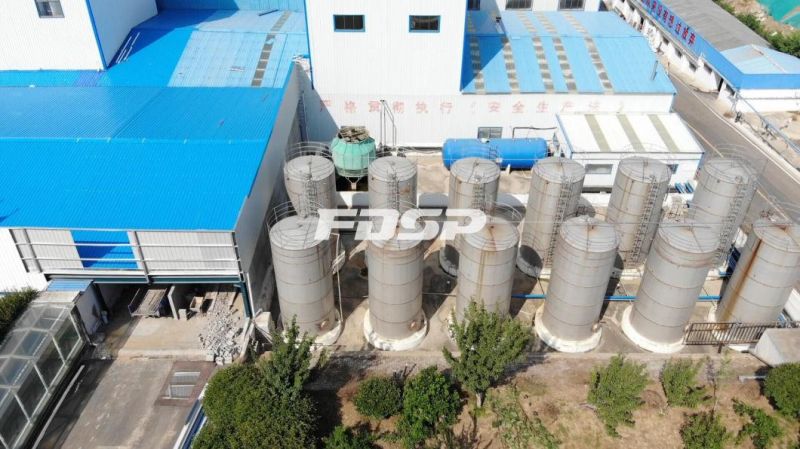

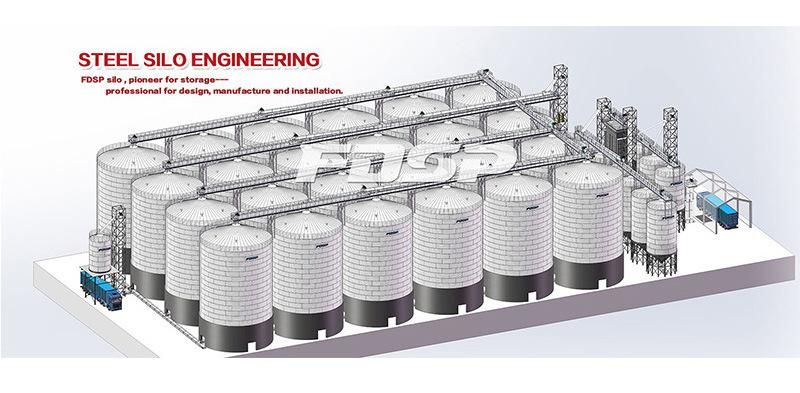

silo storage


Mini Vertical Biomass Pellet Mill Straw Pellet Machine with Small-CapacityMini Vertical Biomass Pellet Mill Straw Pellet Machine with Small-CapacityOur company view and certificates:
Mini Vertical Biomass Pellet Mill Straw Pellet Machine with Small-Capacity

WHY CHOOSE US?
Our products have passed the SGS,ISO9001:2008,CE certifications.Moreover,we own several patents,such as "utility model patents certificate"and "high-tech products  certificate",etc. we have a professional technical team,with two departments fordeveloping single machine and customized complete pellet line solution.Most of our engineers are with over 20 year's experience in this field and also have a lot of experience in oversea projects. Our goods exported to many countries and won the good reputation by the high quality and superior service.
