• Model NO.：ET-1325
• Panel Thinkness：10-60mm
• Min.length panel：120mm
• Min.width panel：60mm
• Manufacturing Principles：Glue Tank Underneath
• Customized：Customized
• PLC System：Delta Brand-Taiwan
• Guide Rail：Hiwin-Taiwan
• Electric Element：Airtac-Taiwan
• Input Voltage：380 V(220V,400V,415V,440V etc)
• Edge Thickness：0.4-3 mm
• Edge Width：10-60 mm
• Panel Length：Min.120 mm
• Panel Width：Min.60 mm
• Panel Thickness：10-50 mm
• Transport Motor：1.5 Kw
• Panel Preheating Power：0.3 Kw
• Glue Melting Power：1.5 Kw
• Total Power：12.5 Kw
• Dimension：4700,925,1560mm
• Net Weight：1500kg
• Transport Package：Plywood Box with Strength Film
• Specification：4080,925,1560 mm
• Trademark：ET
• Origin：China
• HS Code：8465940000
• Production Capacity：10000,Year

Basic Info.

Model NO. ET-1325 Panel Thinkness 10-60mm Min.length panel 120mm Min.width panel 60mm Manufacturing Principles Glue Tank Underneath Customized Customized PLC System Delta Brand-Taiwan Guide Rail Hiwin-Taiwan Electric Element Airtac-Taiwan Input Voltage 380 V(220V,400V,415V,440V etc) Edge Thickness 0.4-3 mm Edge Width 10-60 mm Panel Length Min.120 mm Panel Width Min.60 mm Panel Thickness 10-50 mm Transport Motor 1.5 Kw Panel Preheating Power 0.3 Kw Glue Melting Power 1.5 Kw Total Power 12.5 Kw Dimension 4700/925/1560mm Net Weight 1500kg Transport Package Plywood Box with Strength Film Specification 4080/925/1560 mm Trademark ET Origin China HS Code 8465940000 Production Capacity 10000/Year

Product Description

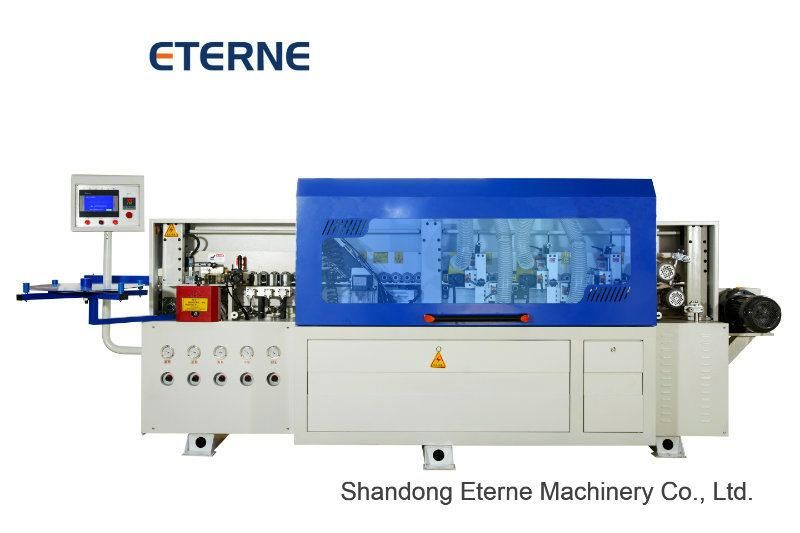

ET-360B Automatic Woodworking End Trimming Edge Bander
1. Brief Introduction:

1) Used for different plate: MDF, block board, particle board, solid wood board, polywood, polymer plate, fire board etc.

2) Banding edge for desks,carbinet,wardrobe and stright line furniture.

3) Tape material can be PVC,melamine, veneer etc.

4) Can save lots of labors and cost, especially suitable for suitable for medium and large scale users.

5) Concentrated modern design for automatic woodworking production line.






2. Specification: ( can be customized)

Model	ET-360B
Input Voltage	380 V(220V,400V,415V,440V etc)
Edge Thickness	0.4-3 mm
Edge Width	10-60 mm
Panel Length	Min.120 mm
Panel Width	Min.60 mm
Panel Thickness	10-50 mm

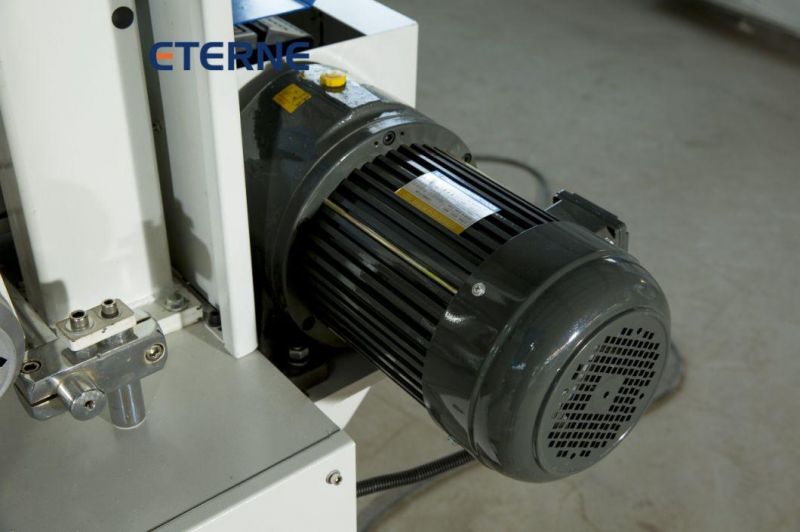

Transport Motor	1.5 kw
Glue Post Motor	0.37 kw
End-trimming Motor Power	0.37 kw*2
Rough-trimming motor power	0.75 kw*2
Fine-trimming Motor Power	0.75 kw*2
Polishing Motor	0.18 kw*2
Total Power	8.5 kw
Scraping Blade model	R2*2 or R3*2
Dimension	4080/925/1560 mm
Net Weight	1350kg

3. Features :

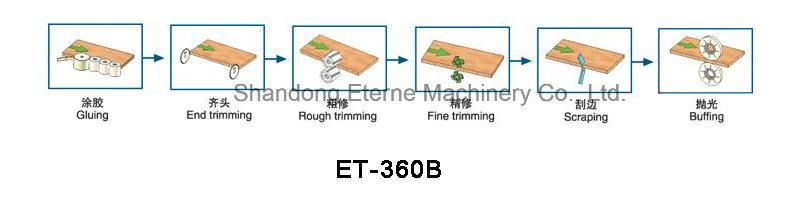

1) Multi-Fuction: Linear edge banding machine with Gluing--Edge banding-end trimming--rough trimming--fine trimming--scrapping--buffing.

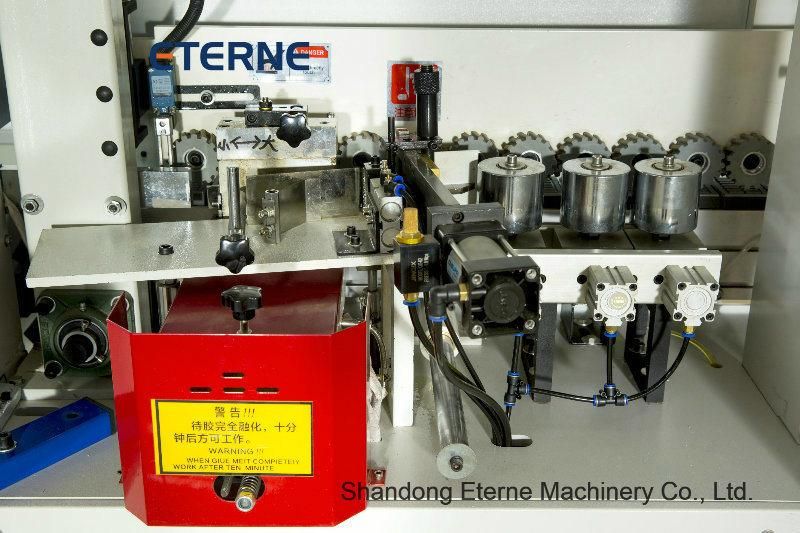

 2) Gluing and edge banding: mechanism adopts glue melting device to gelatinize the plates and tape uniformly, meanwhile make sure they can be conglutinated firmly.

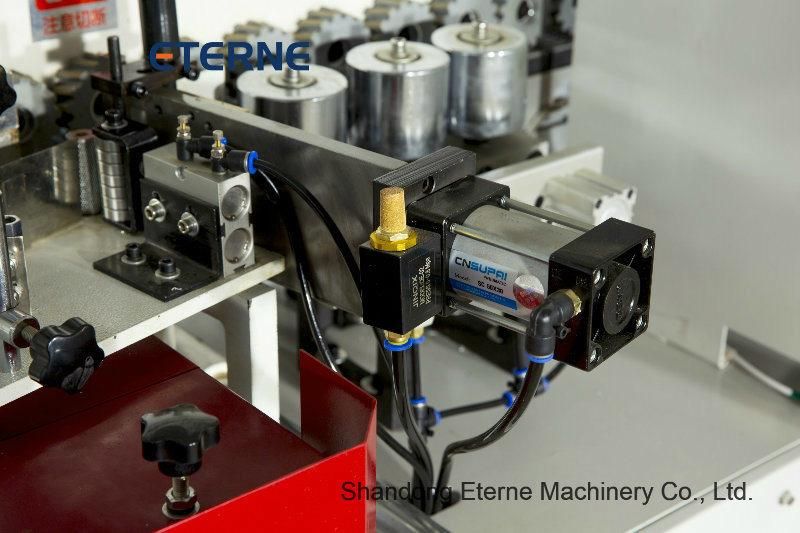

3) End-trimming mechanism is to cut the forward and rear tape after gluing and press process by the movement of the precise guide track, it is with automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.

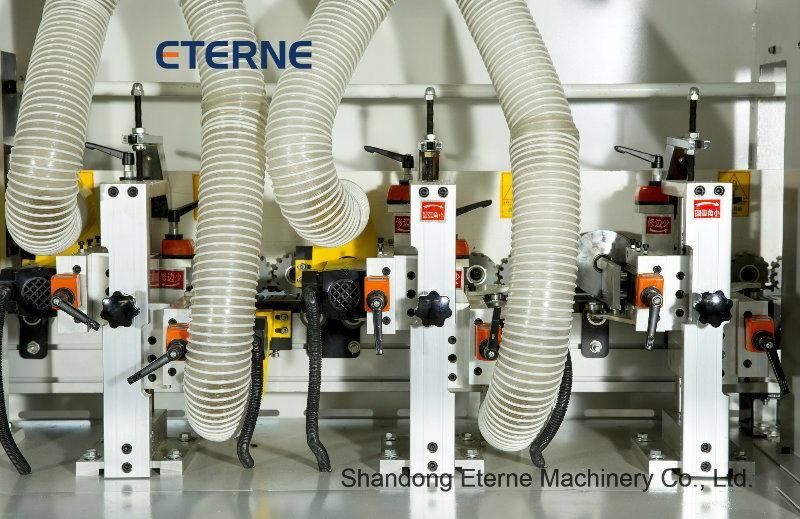

4) Rough &Fine Trimming unit, with two individual high frequency motors, trim the exceeding edge on the top and bottom side of the panel, ensure both sides of the edge smooth and even.

5) Scraping unit for a perfect finishing of the applied edge.

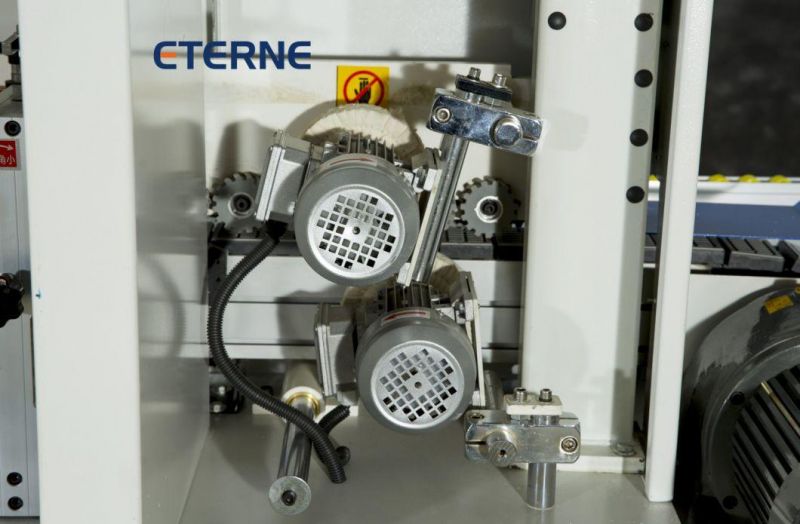

6) Buffing unit is equipped with cotton polishing wheels to make smooth surface by end-polishing.

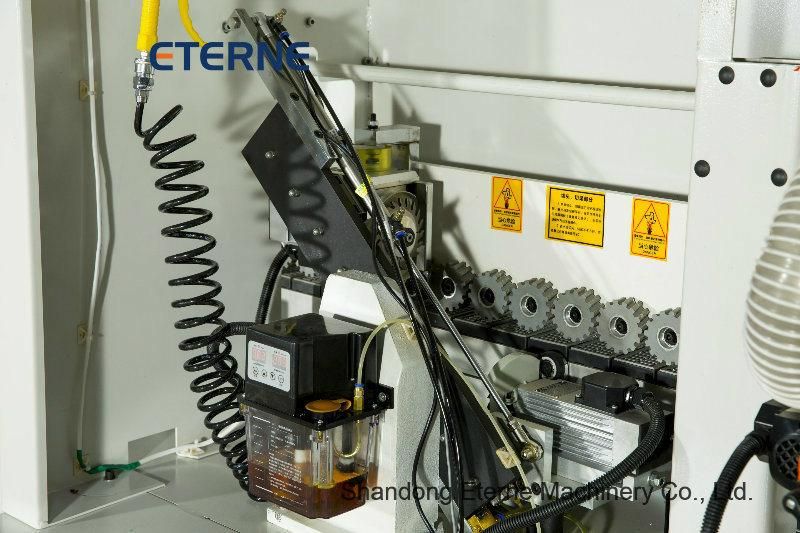

4. Pictures and details

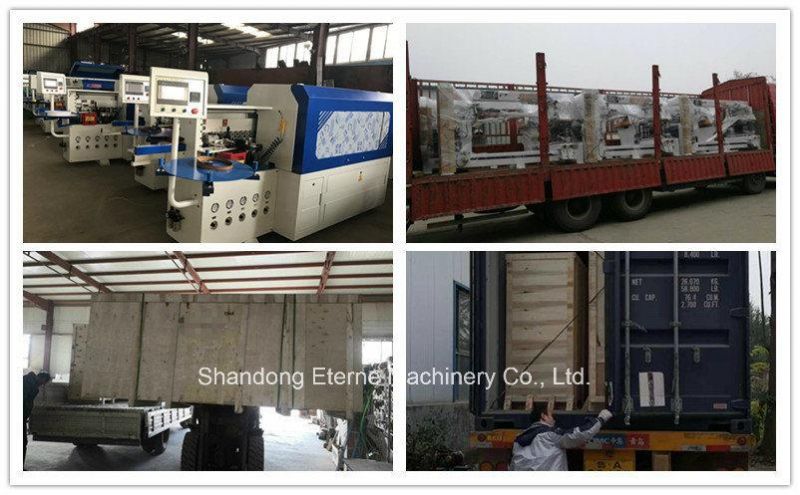

5.Delivery and Package




1) No matter container shipping or LCL shipping, the machine will be packaged with standard plywood case and plastic flim rolling all around the machine for anti-dust.

2) Usually, If have machine in stock, it can deliver 2 days after deposit, if no, can be deliver within 7 days after deposit.

6. Why Choose Us

1. Factory direct, with more than 10 years woodworking machinery production experience.
2. Can do OEM/ODM according to your request.
3. Engineer is available to help commissioning overseas.
4. Within 24 hours response if any enquiry and quick after-sales service system.
5. With own R&D strength .

7. Contact:




Thanks for your time and welcome to send enquiry.
