6090 2.2kw CNC Router Machine for Acrylic Plastic Wood
Perfect Laser (Wuhan) Co., Ltd.- Type:Metal and Non-Metal
- Spindle Layout:Vertical
- Spindle Number:Single-Spindle
- Feed Mode:Manual
- Controlling Mode:CNC
- Certification:CE, ISO
Base Info
- Model NO.:PEM-6090 PEM-1212 PEM-1215 PEM-1218 PEM-1325
- Customized:Customized
- Condition:New
- Color:Customized
- Spindle Power:1.5kw, 2.2kw, 3kw, 4.5kw
- Working Area:900*600, 1200*1200, 1200*1500, 1200*1800, 1300*250
- Table Material:Aluminium Alloy
- Max Engraving Speed:4, 000-7, 000mm,Min
- Spindle Cooling:6000 - 24, 000rpm
- Interface:PCI Port or USB Port
- Operational Software:Original Type3 Software, Artcam Software or Wentai
- Software Compatibility:Support CAD,Cam Software, Plt Format, Corel Draw

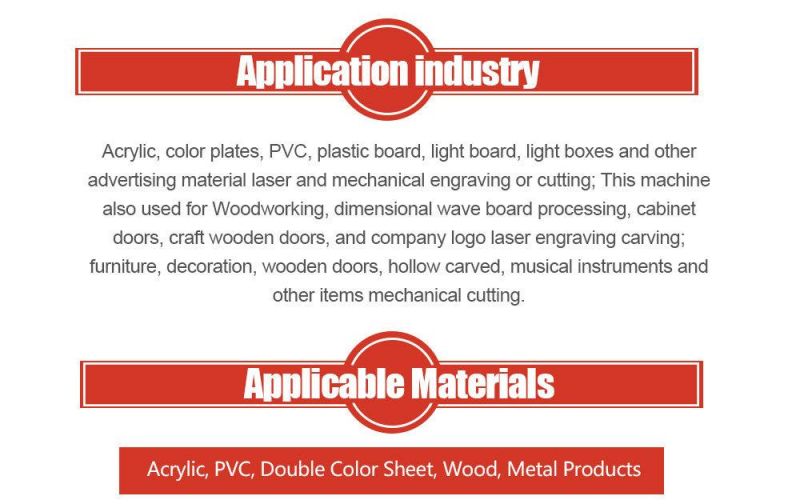

- Application:Cutting and Engraving Nonmetal and Metal Material
- Command Language System:English
- Transport Package:Export Sea-Worthy Packing or Air-Worthy Packing
- Specification:ISO 9001 & CE
- Trademark:Perfect Laser
- Origin:China
- HS Code:84609090
- Production Capacity:3000 Sets,Year
Description
Basic Info.
Model NO. PEM-6090 PEM-1212 PEM-1215 PEM-1218 PEM-1325 Customized Customized Condition New Color Customized Spindle Power 1.5kw, 2.2kw, 3kw, 4.5kw Working Area 900*600, 1200*1200, 1200*1500, 1200*1800, 1300*250 Table Material Aluminium Alloy Max Engraving Speed 4, 000-7, 000mm/Min Spindle Cooling 6000 - 24, 000rpm Interface PCI Port or USB Port Operational Software Original Type3 Software, Artcam Software or Wentai Software Compatibility Support CAD/Cam Software, Plt Format, Corel Draw Application Cutting and Engraving Nonmetal and Metal Material Command Language System English Transport Package Export Sea-Worthy Packing or Air-Worthy Packing Specification ISO 9001 & CE Trademark Perfect Laser Origin China HS Code 84609090 Production Capacity 3000 Sets/YearProduct Description

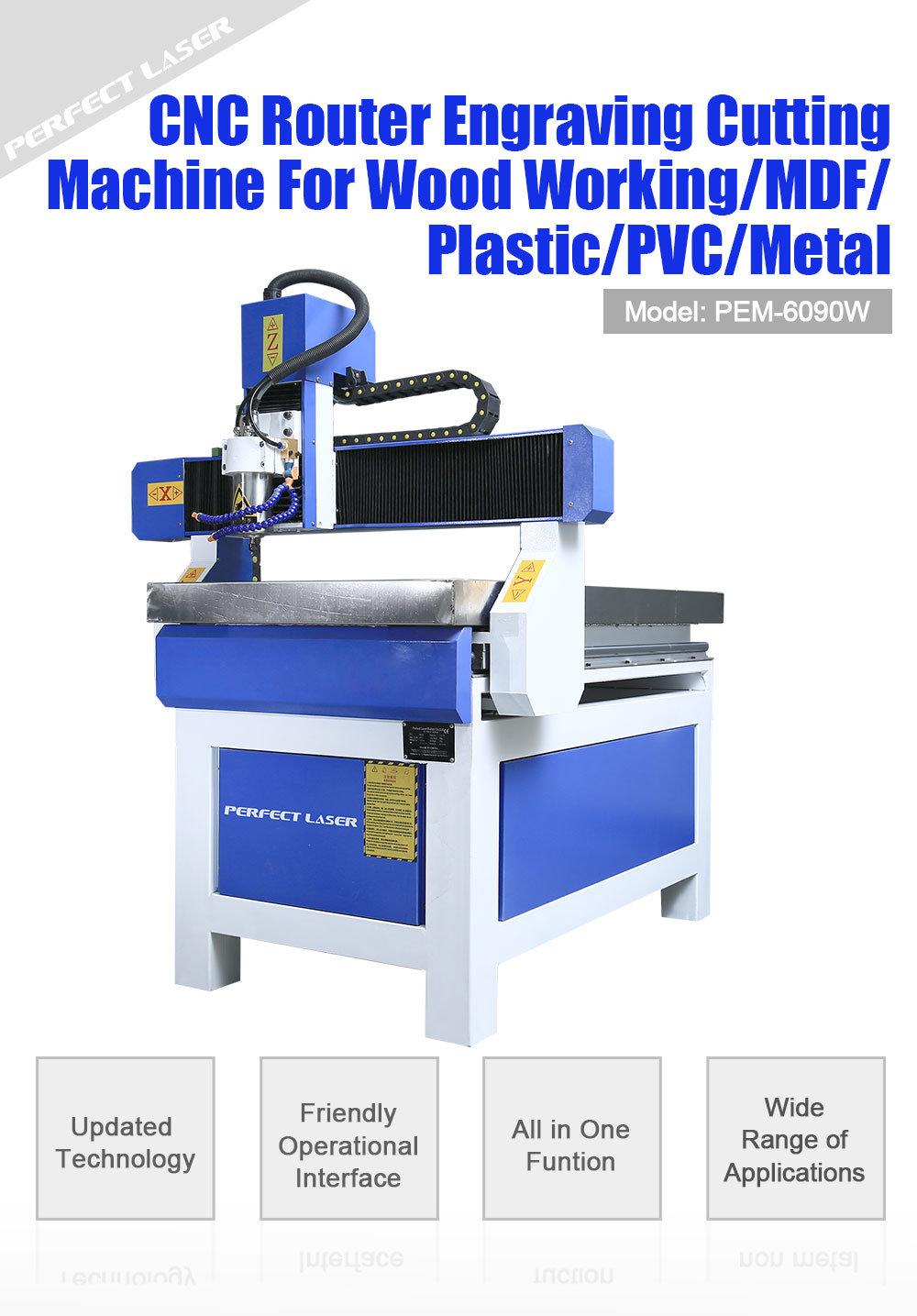

High Accuracy Cheap CNC Router Machine for Wood 900*600mm(Model:PEM-6090W) Contact:CandyCNC Router Engraving Cutting Machine for Wood Working /MDF/Plastic/PVC PEM-6090W is a kind of 3 axis cnc router which is designed with pure aluminum, which ensures the parallelism and greatly increases the precision and speed of the engine bed.

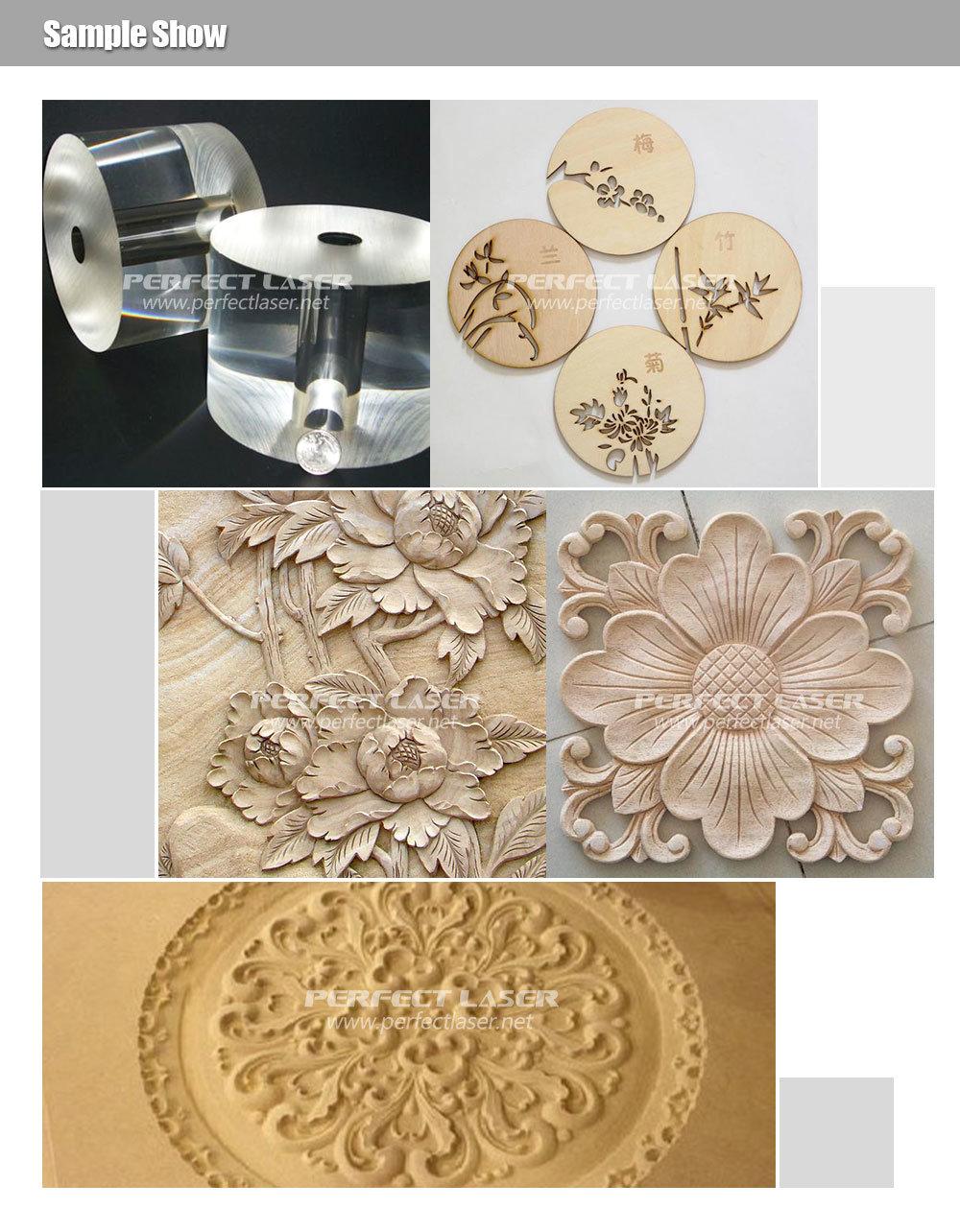

This CNC Router Engraving Cutting Machine for Wood Working /MDF/Plastic/ PVC PEM-6090W is applied in cutting of kneading board of large size and making of large-scale relief and label. The size of the CNC router engraver is calculated and customized according to optimization rules in market Statistics.
CNC Router Engraving Cutting Machine PEM-6090W adopts square guide rail and gear transmission, compared with common advertisment CNC router (adopts round guide rail and rod transmission), PEM-6090W have higer precision and better effect, more suitable for wooden product's cutting and engraving.
CNC wood router Features:
CNC router machine with ATC/DSP/Vacuum Absorbing table/dust collecting system lands the market with efficient and convenient STUDIO-Pro controlling system. It solves the problems for operating engineers that the processing is troublesome and complex. The complex working procedure such as preparing profiling work piece can be completed by computer 3D Hypothesize. It can ensure the quantity, quality and process easily in one time. The users dont need to worry about the time. With its help, they can complete their tasks easily and unmistakably.
Technical parameter of CNC router:
Power stroke of X, Y, Z axis | 1350× 2500× 120mm |
Size of working table | 1540× 3000mm |
Power of main axle | 2.2 KW(standard); 3 KW(optional) |
Running location precision of X, Y, Z axis | +/-0.03mm |
Repeating location precision of X, Y, Z axis | +/-0.01mm |
Power stroke of Z axis | 120mmor 200mm |
Working style | Stepping motor |
Spindle speed of frequency conversion main axis | 6000-24000rpm/min |
Working voltage | AC220V/50HZ |
Engraving order | G Code. uoommg |
Optional main axis and Cartridge | φ 3.175. φ 6φ . 12.7 |
XY Running sensitivity | 0.02mm |

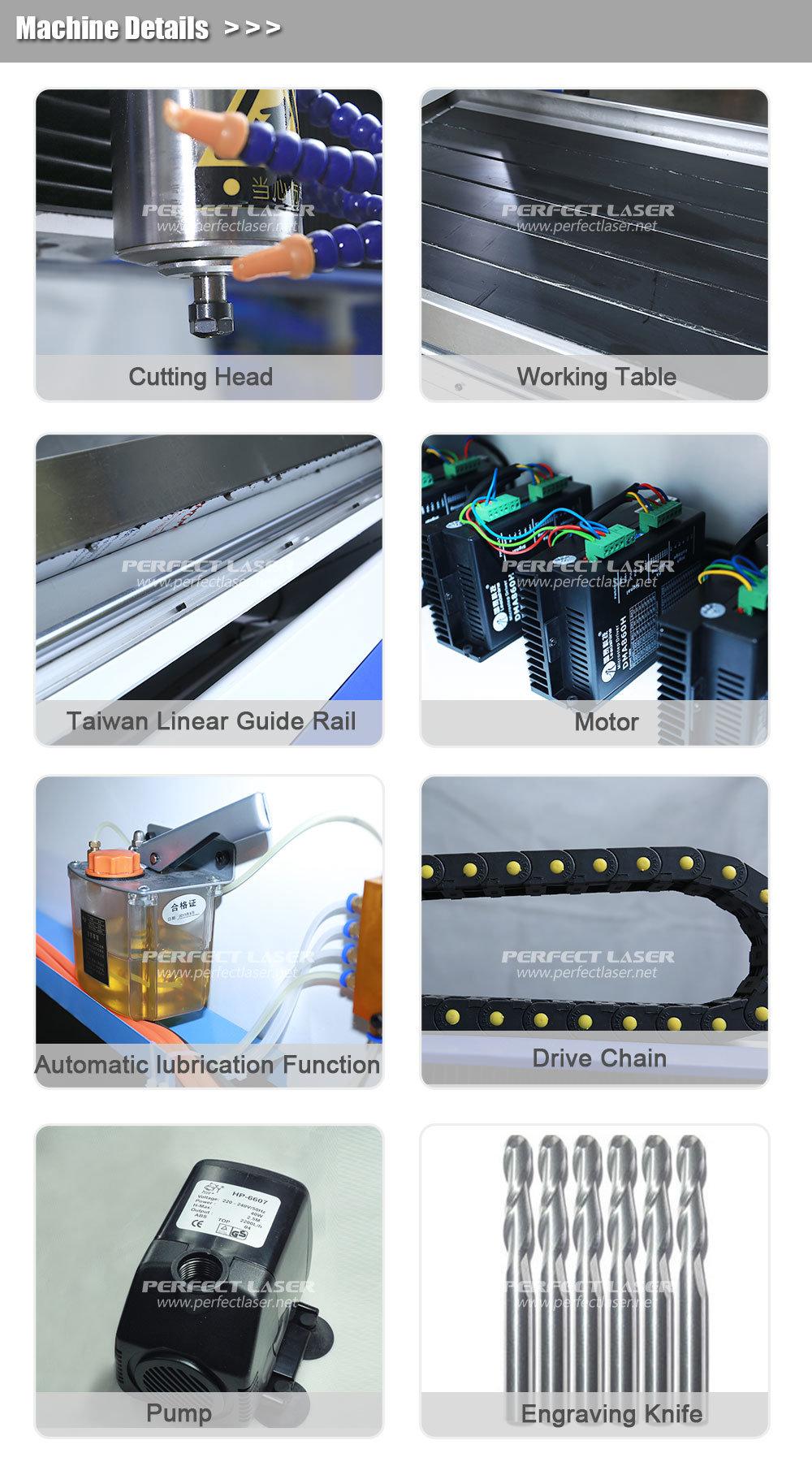

1) X, Y, Z axis use imported ball bearing guide screws. It's precise and fast. Even the letters of 1mm can be clearly discernible. The small-power machine uses large-power main axis, it's an ideal product for manufacturing labels, construction models and moulds in batches.
2) High speed calculation It uses DSP64 contouring control system and FPGA technology which can continually and smoothly run the three axes with high speed. It has the ability of calculation of 5000 vector/s.
3) Steble data transmission. Adopt ISA/IP DNC/IP straight technology, it associate the machine without interruption, enable no limitation of the amount of the document.
4) Double-nut guide screw .It uses Germany-imported high-precision ball bearing guide screw which can eliminate cracks automatically. Coordinated with the imported shaft coupling, it can realize precise control. It uses straight line guide rail (cylinder or square), which can ensure the working life.
5) Large internal memory capacity of 32M is able to store 30 processing files simultaneously and open and process any of them.
6) Connection with the computer via USB interface enables data to be transmitted in a second, supports hot plug and play, no driver installation required(WindowXP)
