Woodworking Kdt Type Automatic Edge Banding Machine PVC Edge Bander

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty:2 Year Warranty
  • Function:Pre Milling, Gluing, Edge Banding, End Trimming, Rough Trimming, Fine Trimming, Contour Tracking, Scraping, Buffing
  • Type:Linear Edge Banding Machine
  • Edging thickness:0.4-3mm
  • Automatic Grade:Automatic
  • Panel Feeding Speed:20m,min

Base Info

  • Model NO.:FZ-450DJ
  • Certification:CE, ISO
  • Panel Thinkness:10-60mm
  • Min.length panel:120mm
  • Min.width panel:80mm
  • Manufacturing Principles:Glue Tank Underneath
  • Customized:Customized
  • After-sales Service:2 Year Warranty
  • Name:Edge Bander
  • Working Air Pressure:0.8 MPa
  • The Power:15.6 Kw
  • The Function:Seal PVC,Veneer on The Edge of Furniture
  • Transport Package:Plywood Package
  • Specification:6800*1100*1600 mm
  • Trademark:SOSN
  • Origin:China
  • Production Capacity:200 Sets ,Month

Description

Basic Info.

Model NO. FZ-450DJ Certification CE, ISO Panel Thinkness 10-60mm Min.length panel 120mm Min.width panel 80mm Manufacturing Principles Glue Tank Underneath Customized Customized After-sales Service 2 Year Warranty Name Edge Bander Working Air Pressure 0.8 MPa The Power 15.6 Kw The Function Seal PVC/Veneer on The Edge of Furniture Transport Package Plywood Package Specification 6800*1100*1600 mm Trademark SOSN Origin China Production Capacity 200 Sets /Month

Product Description

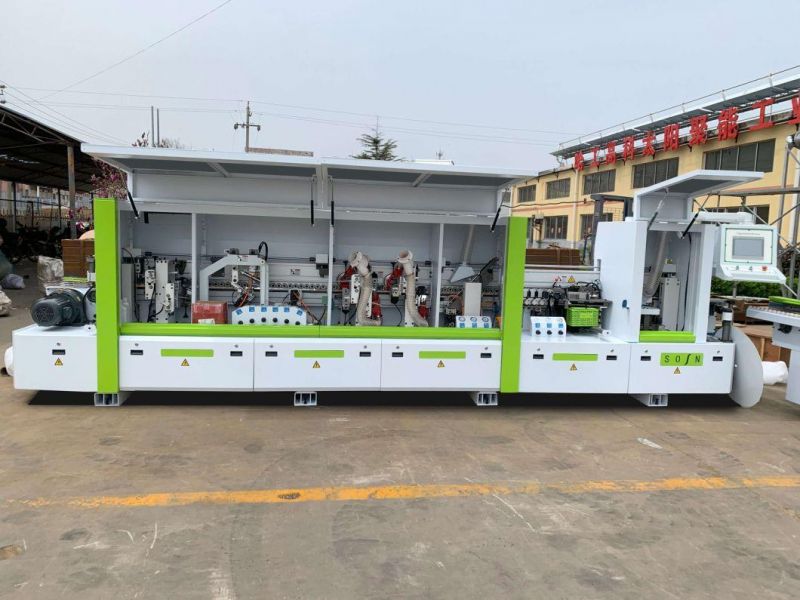

Woodworking KDT type Automatic Edge Banding Machine pvc edge bander  FZ-450DJ
Woodworking Kdt Type Automatic Edge Banding Machine PVC Edge Bander
Main function:
Pre-milling+ gluing+ end trimming+ rough trimming+ fine trimming+ corner trimming +scraping + buffing


Adopt to the linear sealing of PVC, wood plank and veneer etc.
  1. using imported quality engines and electric components
  2. Serialized products, a wide range of selection by customers
  3. High precision and efficiency
Main technical parameter:
Motor power 15.6 kw
Overall size 6800x1100x1600mm
Feed speed12-20m/min
Panel thickness10-60mm
Edge banding tape thickness0.4-3mm
Panel width  80mm
Working air pressure 0.8Mpa
Weight 2800kg

Following is the imported accessories of our full automatic Edge banding machine:
Touch screen:  Taiwan Delta
Travel switch:  The United States Honeywell
High speed motor:  HST/CC high speed motor
PLC:  Taiwan Delta
Electrical switch:   Germany Siemens
Pneumatic element:  Taiwan Airtac
Temperature controller: Japan Omron
Press-button:  Germany Siemens
Frequency converter:  Taiwan Delta

Features of edge banding machine

a,Edge Banding Material:PVC, Melamine,ABS,Veneer,Solid Wood Strip,etc

b,Workpiece:Plywood, Fire board, MDF board,Solid Wood,Particle board,etc.

c,imported quanlity engines and electric components.

d.serialized products,a wide range of selection for customers.

e.high precision&efficiency.

Introductions

1. This machine is mainly used for the Linear sealing side of the plywood, fibreboard, Particle board, and so on.
2. Its structure is compact and have a reasonable disposition. It works steadily and operates safely.3. It is adjustable; The machine adopts the devices of sound insulation, controlling of dust, preventing the overloading, Auxiliary frame electrical adjusted; It has the function of glue spreading, Trimming before and after, Rough up and down the sides.

4.Blow up and down the side, Surface polishing up and down and so on.

 We have auto, semi-auto and manual Edge banding machines for your choice
Woodworking Kdt Type Automatic Edge Banding Machine PVC Edge Bander
Control board:
Woodworking Kdt Type Automatic Edge Banding Machine PVC Edge Bander

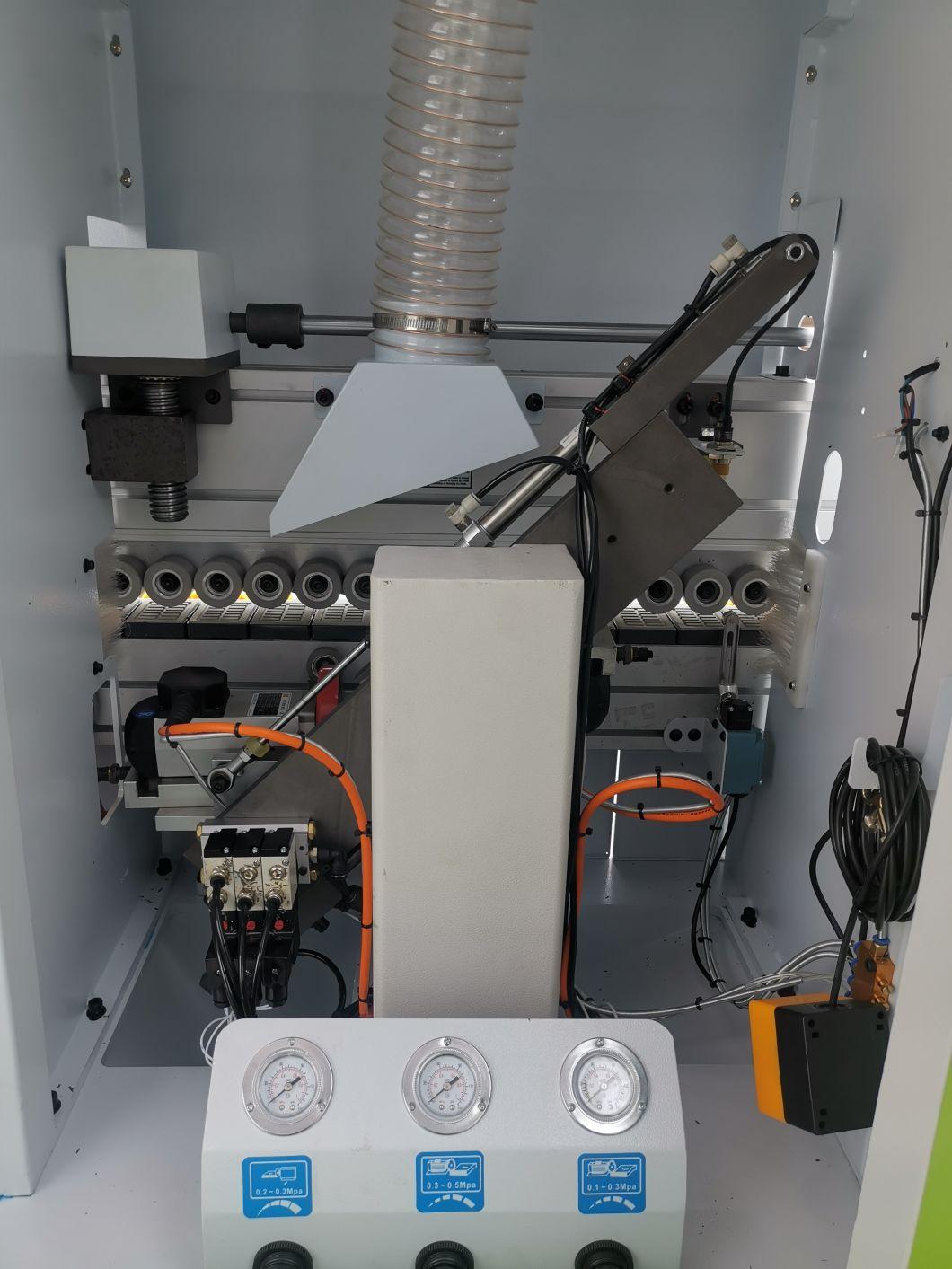

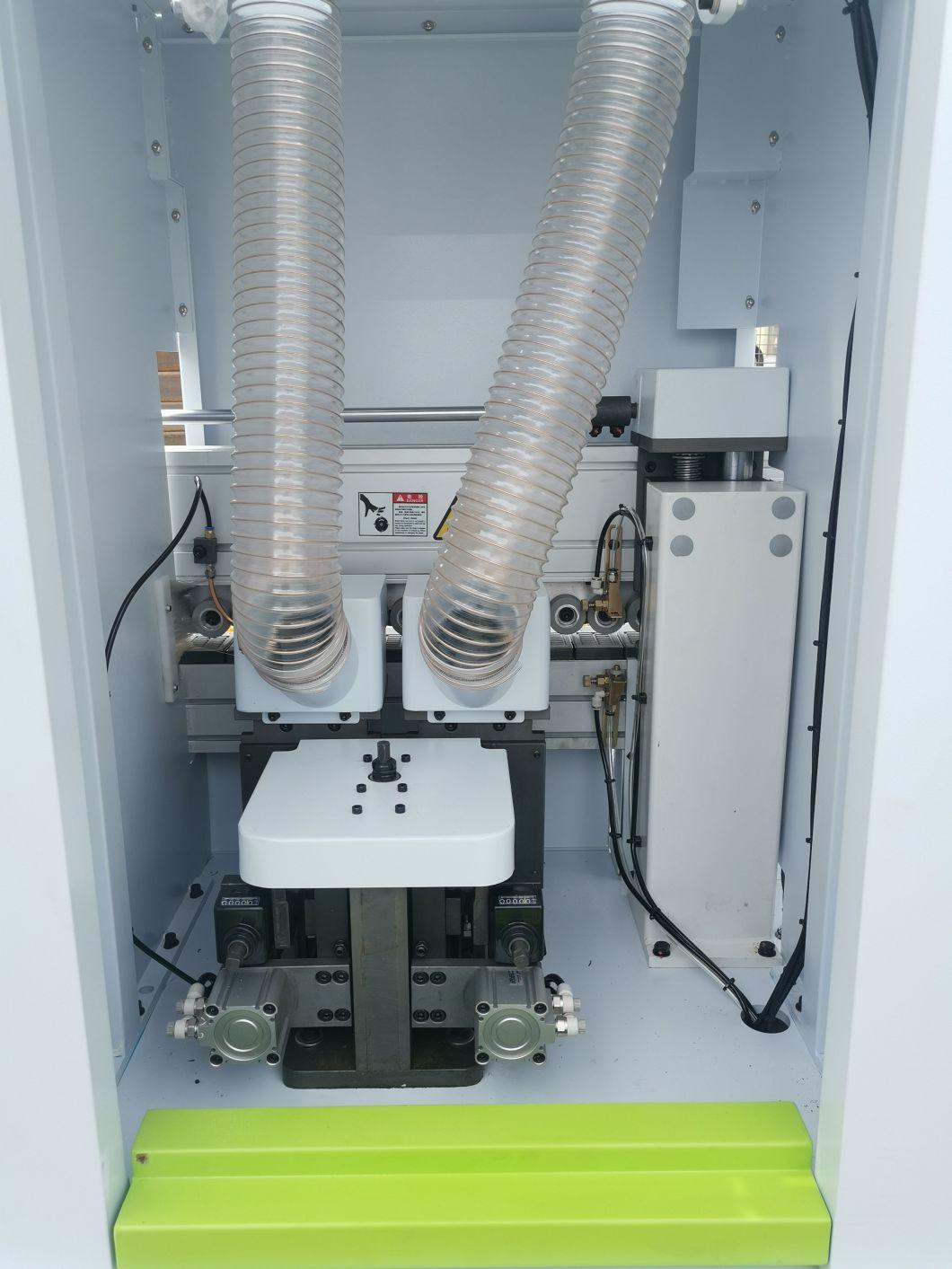

Pre-milling function:
Woodworking Kdt Type Automatic Edge Banding Machine PVC Edge Bander

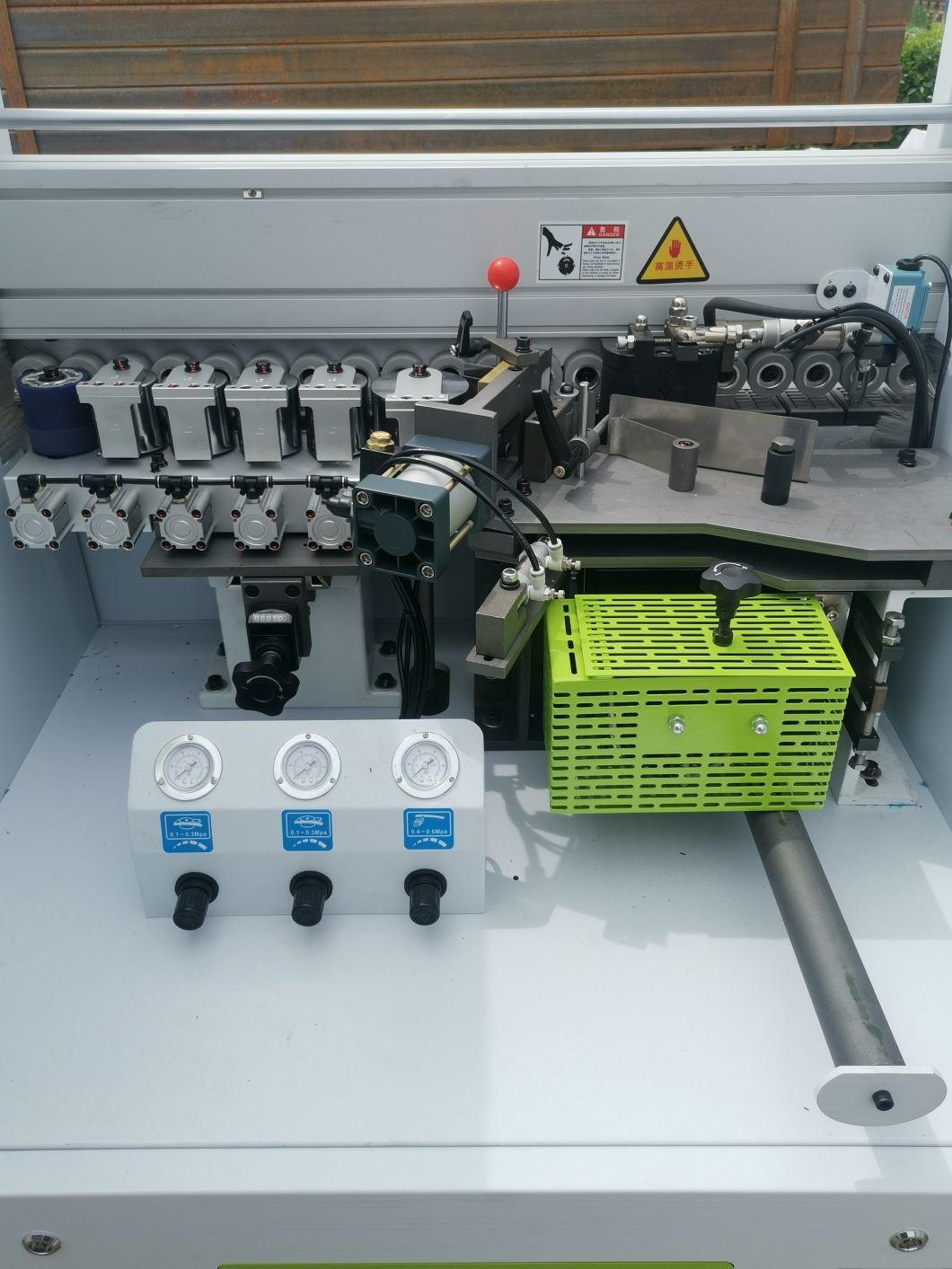

Gluing function:
Woodworking Kdt Type Automatic Edge Banding Machine PVC Edge Bander

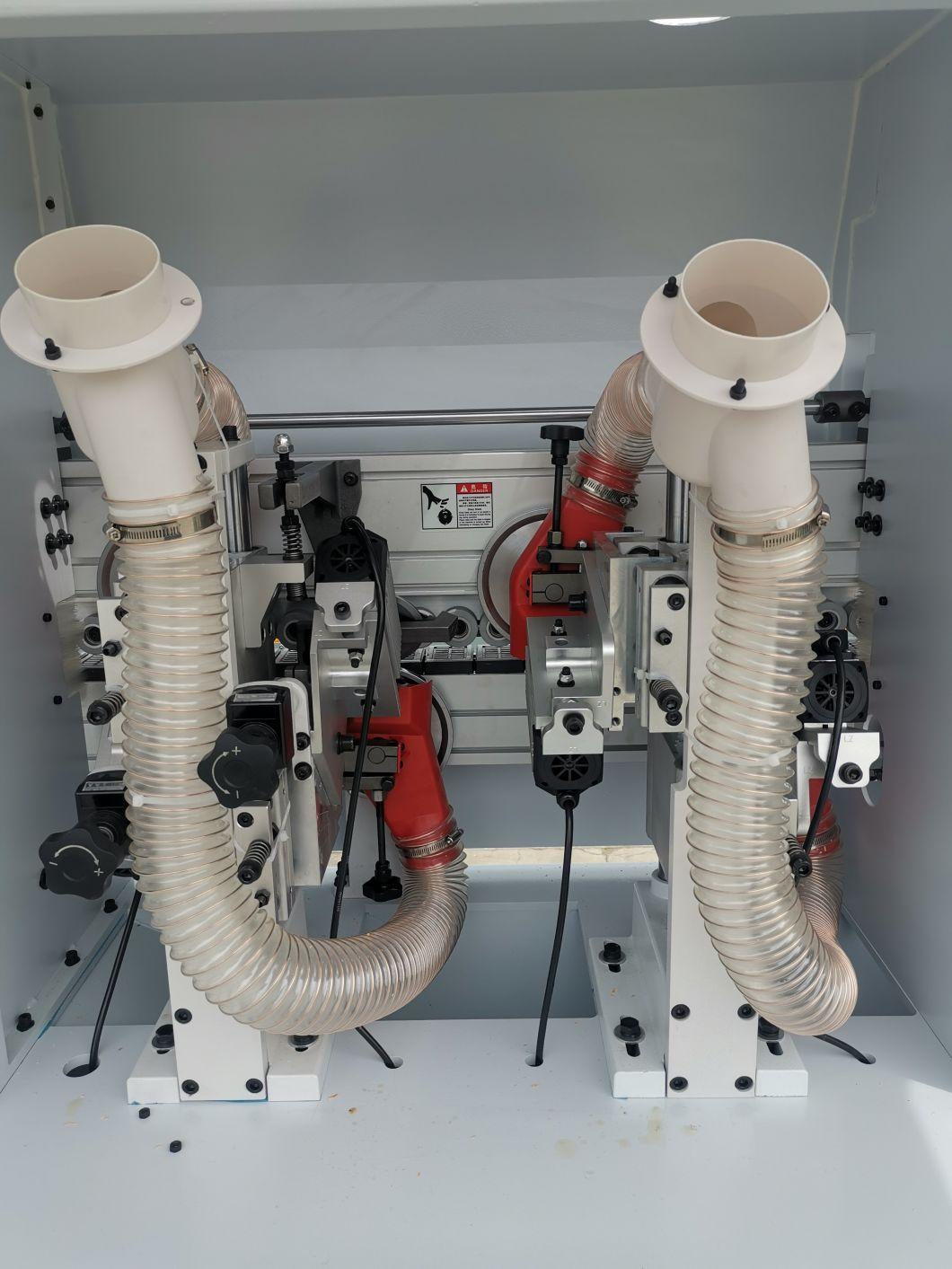

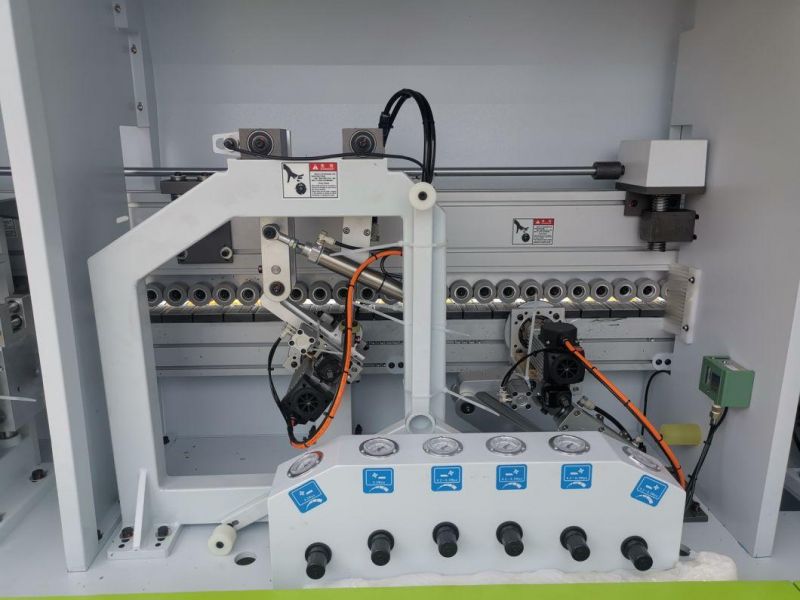

Trimming functions:
Woodworking Kdt Type Automatic Edge Banding Machine PVC Edge BanderWoodworking Kdt Type Automatic Edge Banding Machine PVC Edge Bander

Corner rounding function:
Woodworking Kdt Type Automatic Edge Banding Machine PVC Edge Bander

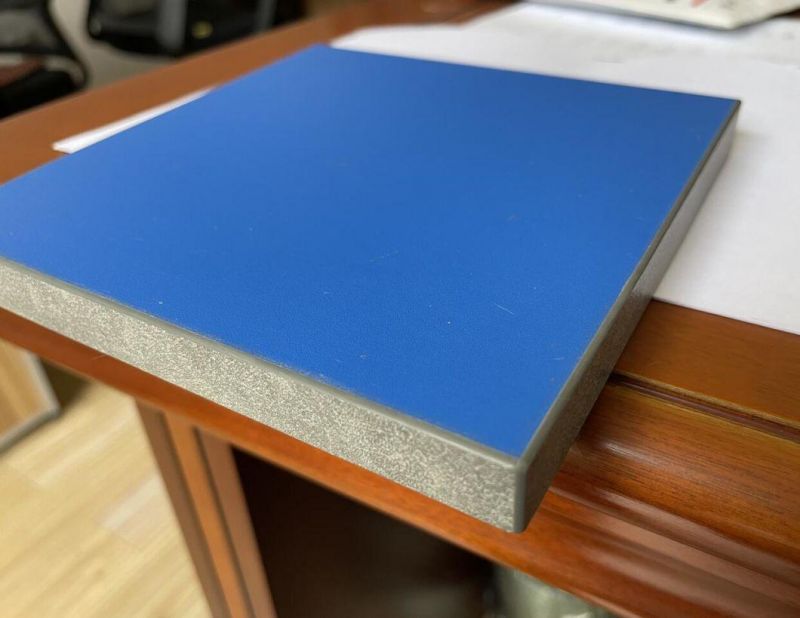

Working sample:
Woodworking Kdt Type Automatic Edge Banding Machine PVC Edge Bander
NOTE:
1. We can arrange shipment for you if you need.
2. We guarantee the machine body for one year, three months for easy-broken parts.
3. Package: standard export wooden case package/ strength film package .
4. Delivery time:20 days after getting the deposit (depends on the quantity)

Reasons to choose SOSN:
1: professional team--as much as possible to meet your needs
2: quick delivery--timely and effective
3: excellent after-sale services--no worries anymore
4: friend partner relationship--a win-win cooperation

Have any need, pls feel free to contact us
Linda Yin
