Hydraulic Rotary Composer Woodworking Machinery

Shijiazhuang Chancsmac Machine Technology Co., Ltd.
  • After-sales Service:Free Service on Internet
  • Warranty:One Year
  • Condition:New
  • Certification:ISO, CE
  • Power Type:Hydraulic
  • Voltage:380V

Base Info

  • Model NO.:MH1325,4
  • Worktops Amounts:4 Sides
  • Max. Working Thickness:150mm
  • Max. Working Width:1300mm
  • Max. Working Length:4600mm
  • Top Cylinder Diameter:80
  • Side Cylinder Diameter:10
  • Side Cylinder Amounts:10 PCS,Side
  • Open Door Cylinder Diameter:63
  • Open Door Cylinder Amount:2 PCS,Side
  • Rated Pressure of System:16MPa
  • Transport Package:PE Film
  • Specification:4700x2970x3050mm
  • Trademark:CHANCSMAC
  • Origin:China
  • Production Capacity:10 Sets, Month

Description

Basic Info.

Model NO. MH1325/4 Worktops Amounts 4 Sides Max. Working Thickness 150mm Max. Working Width 1300mm Max. Working Length 4600mm Top Cylinder Diameter 80 Side Cylinder Diameter 10 Side Cylinder Amounts 10 PCS/Side Open Door Cylinder Diameter 63 Open Door Cylinder Amount 2 PCS/Side Rated Pressure of System 16MPa Transport Package PE Film Specification 4700x2970x3050mm Trademark CHANCSMAC Origin China Production Capacity 10 Sets/ Month

Product Description

Hydraulic Rotary Composer Woodworking Machinery
Four Sides Rotary Hydraulic Composer for Solid Wood Panel Laminating

1.Introduction:
Hydraulic composer is also called edge glued panel press, clamp carrier or solid wood laminating press.

It can be used to laminate kinds of dimension of solid wood panel.
1. 3D software design to make sure machine structure reasonable.
2. Heavy duty structure design---High density braced sheetings as back worktop and pressure from the above and front can prevent the curved angle and make the board glued completely. Help customer save material and costs. (Less sanding and more output).
3. Free adjustment of pressure can meet different length and thickness panel making. Continuous pressure are ensured by pressure-supplement system to guarantee the panel quality and stablity.

2.Parameter:
ModelMH1325/4MH1346/4MH1352/4MH1362/4
Power380V 50HZ380V 50HZ380V 50HZ380V 50HZ
Worktops amounts4 sides4 sides4 sides4 sides
Max. Working thickness150mm150mm150mm150mm
Max. Working width1300mm1300mm1300mm1300mm
Max. Working length2500mm4600mm5200mm6200mm
Top cylinder diameterΦ80Φ80Φ80Φ80
Top cylinder amounts6 pcs/side10 pcs/side10 pcs/side12pcs/side
Side cylinder diameterΦ40Φ40Φ40Φ40
Side cylinder amounts6 pcs/side10 pcs/side10 pcs/side12pcs/side
Open door cylinder diameterΦ63Φ63Φ63Φ63
Open door cylinder amount2 pcs/side2 pcs/side2 pcs/side2 pcs/side
Rated pressure of system16MPa16MPa16MPa16MPa
Max pressure when fully loaded12.6kg/ cm2
( 150mm thickness)
12.6kg/ cm2
( 150mm thickness)
10.1kg/ cm2
( 150mm thickness)
10.1kg/ cm2
( 150mm thickness)
Sectional typeOne sectionOne sectionOne sectionOne section
Total power10Kw10Kw10Kw10Kw
Control typePLC controlPLC controlPLC controlPLC control
Pressure systemRecovery systemRecovery systemRecovery systemRecovery system
Vertical and Horizontal pressure  adjustmentCan be adjusted separatelyCan be adjusted separatelyCan be adjusted    separately            Can be adjusted   separately
PusherFour sides pusherFour sides pusherFour sides pusherFour sides pusher
Overall dimension  (LxWxH mm)4700x2970x30506600x2970x30507200x2970x30508200x2970x3050

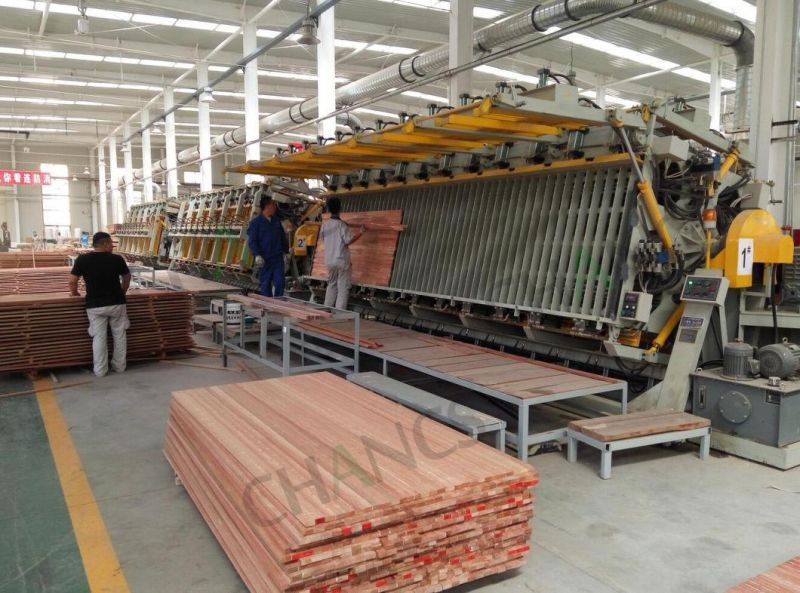

3.Product Show:

Hydraulic Rotary Composer Woodworking Machinery
Hydraulic Rotary Composer Woodworking Machinery

4.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact with us
1.  Q:What's the MOQ?
      R:  One set will be ok.
2.  Q:Provide customized machine Yes or NO?
     R: Yes. We have professional designers and engineers to supply customized machines.
3.  Q:What is payment terms?
     R: 30%T/T in advance, the balance paid before shipment after insepction.
4.  Q:What is warranty time?
     R: One year.
