Woodworking Machinery

Wood Cold Press Machine for Core Veneer

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Work Forms:Hydraulic Pressure
  • Processing Technics:Cold Press
  • Structure:Frame Type
  • Pressing Shape:Flat Press
  • Platen Surface Pressure:High Pressure
  • Pressing Layer:Multi Layer

Base Info

  • Model NO.:BY814X8,5-I
  • Work Mode:Continuous
  • Controlling Mode:CNC
  • Automatic Grade:Automatic
  • Certification:CE, ISO, FDA
  • Pressure:400-600t
  • Voltage:380V,50Hz
  • Position of Cylinder:Upside,Downside
  • Net Weight:19000kg
  • Stroke of Cylinder:1000mm
  • Thickness of Steel Plate:40mm
  • Thickness of Acctive Crossbeam:22mm
  • Transport Package:Standard Export Package
  • Specification:400T, 500T, 600T
  • Trademark:Metro
  • Origin:Shandong, China
  • HS Code:8465990000
  • Production Capacity:50set,Month

Description

ModelBY814X8/5-INorminal Gross Pressure5000KNDirection of feeding plateHorizontalMax opening1200mmDiameter of cylinder360mm(Wuxi)Numbers of cylinder2pcsSide helpful cylinder63mmX2Pressurization≤25MPAStroke of cylinder1000mmPosition of cylinderUpsidePressure of unit plate blank15kgf/cm2Dimensions of the board2560X1280mmAllowed pressure≤25MPANet weight19000kgOverall dimensionsAbout 3600X1380X3750mmControl methodAutomatic pumping stationThickness of upper and lower crossbeams900mmThickness of steel plate40mmThickness of acctive crossbeam22mmThickness of steel plateoptionedWith chains tranport device

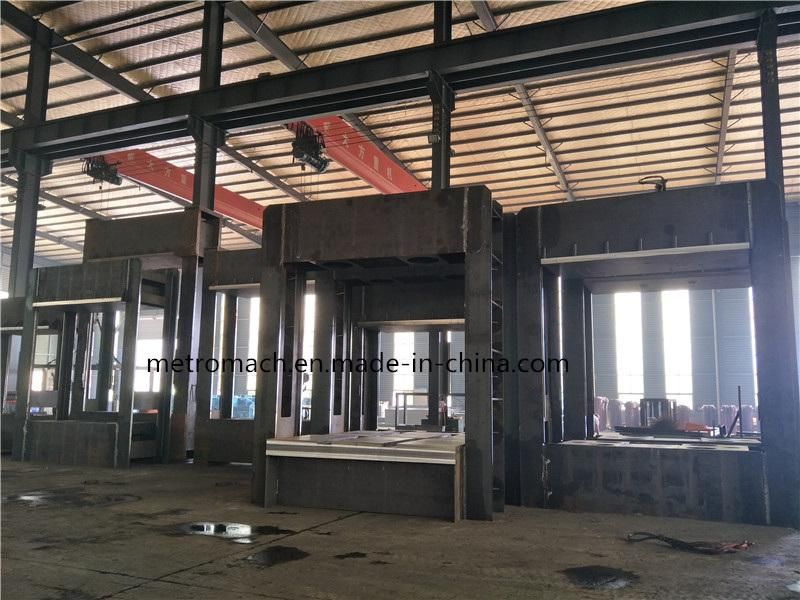

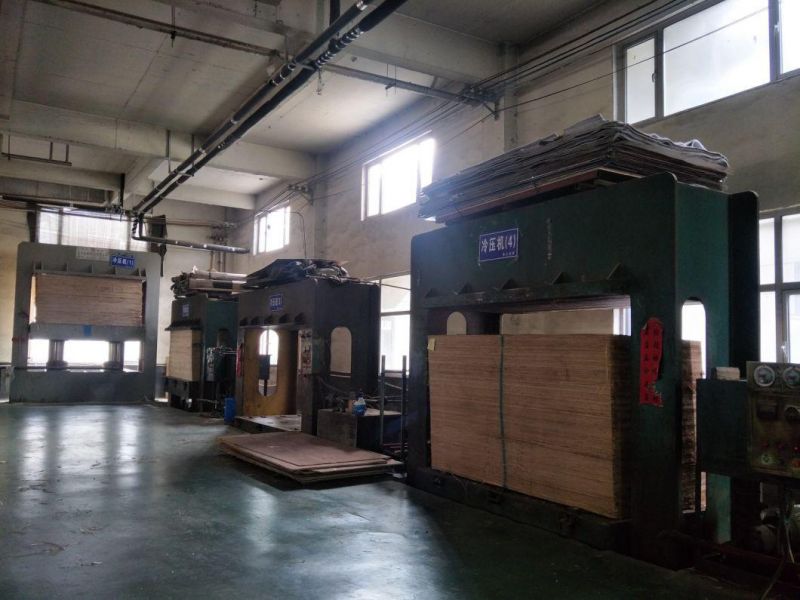

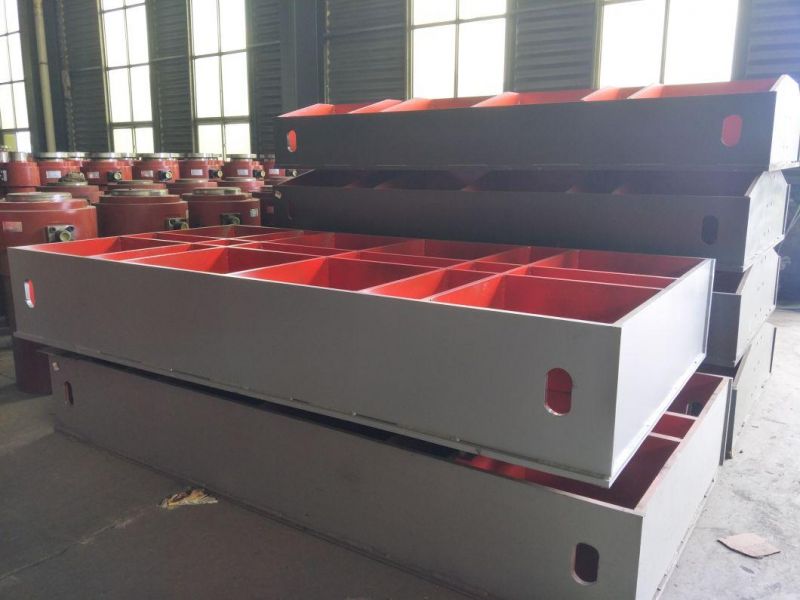

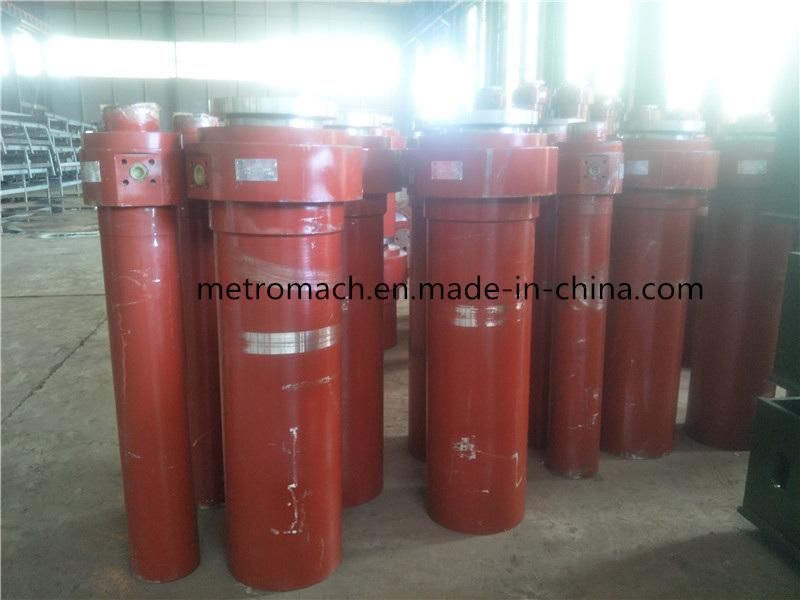

Pictures Show:
Wood Cold Press Machine for Core Veneer



Wood Cold Press Machine for Core Veneer


Wood Cold Press Machine for Core Veneer
Wood Cold Press Machine for Core Veneer


Wood Cold Press Machine for Core Veneer
Wood Cold Press Machine for Core Veneer
