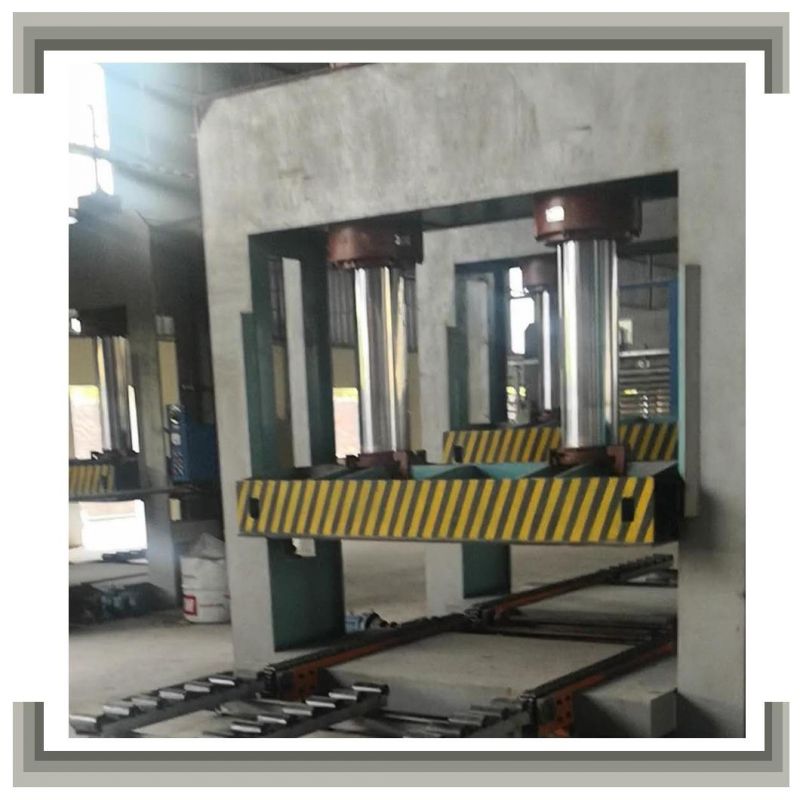

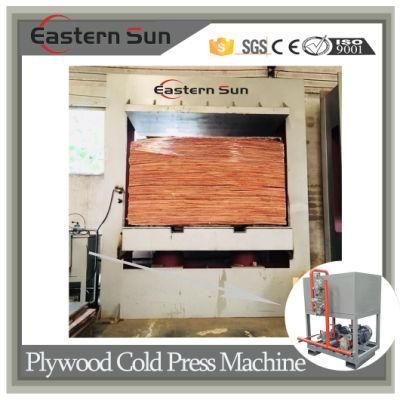

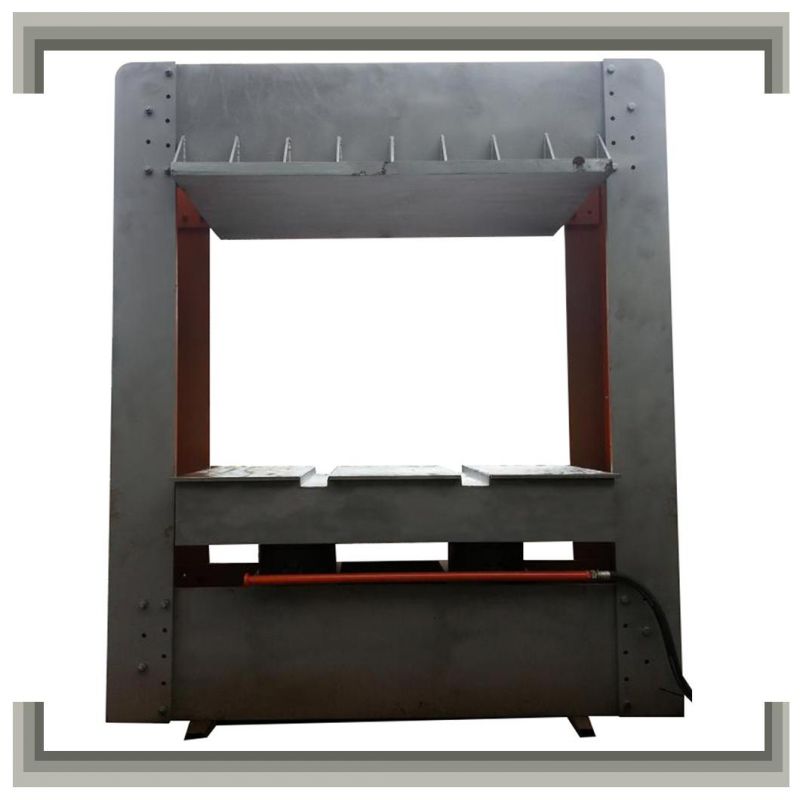

Factory High Quality Plywood Cold Press Machine for Hydraulic Woodworking Machinery
Linyi Kexin International Trade Co., Ltd.- Warranty：1 Year
- Work Forms：Hydraulic Pressure
- Processing Technics：Cold Press
- Structure：Frame Type
- Pressing Shape：Flat Press
- Platen Surface Pressure：High Pressure
Base Info
- Model NO.：KX-PCPM
- Pressing Layer：Single Layer
- Work Mode：Continuous
- Controlling Mode：CNC
- Automatic Grade：Automatic
- Certification：CE, ISO, FDA, *
- After-sales Service：24 Hour
- Name：Plywood Cold Press Machine
- Customized：Accept
- Layers：1layer
- Total Pressure：400 T,500 T,600 T
- Layer Spacing：1800 mm
- Cylinder：320mm*1050mm2PCS
- Power：11kw
- Board Feeding Direction：Transverse
- Overall Dimension：3550*1370*4200mm
- Weight：About 13 Tons
- Transport Package：Customized
- Specification：Overall dimension: 3550*1370*4200 mm
- Trademark：kexin
- Origin：China
- HS Code：846594
- Production Capacity：36 Sets ,Year
Description
40mm
Features:
1. CNC planer precision process frame. Frame i made by CNC planer precision process. To make sure plywood thickness accurcy. The frame use Q235 steel or manganese steel.
2. Cylinder. Chrome surface, anti-rust treatment, iron cast and havy duty.
3.Low heat loss, uniform heat conduction, high degree of automation, high reliability, easy adjustment, long service life, e2.

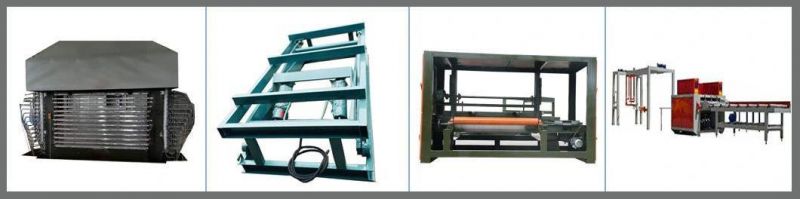

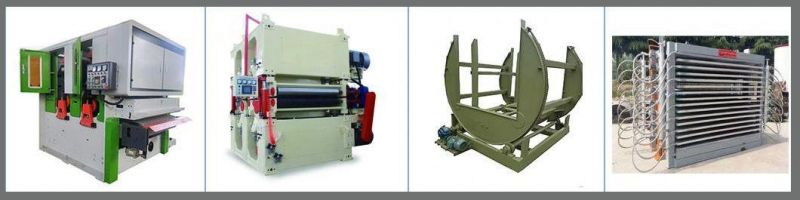

Cold Press Machine Veneer Peeling Machine Edge Trimming Saw Machine Glue Spreader Machine
Hot Press Machine Hydraulic Scissor Lift Platform Paving Machine Putty Scraping
Polishing Machine Sander Machine Turnover Machine Veneer Dryer
