• Model NO.：S400
• Drive Motor：Yaskawa Servo Motor Drive
• Control System：Syntec 6MB
• Tool Magazine：12PCS
• After Sale Service：Engineers Available to Service Machinery Overseas
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：3000KG
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：300,Month

Basic Info.

Model NO. S400 Drive Motor Yaskawa Servo Motor Drive Control System Syntec 6MB Tool Magazine 12PCS After Sale Service Engineers Available to Service Machinery Overseas Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 3000KG Trademark Mars Origin China HS Code 8465990000 Production Capacity 300/Month

Product Description

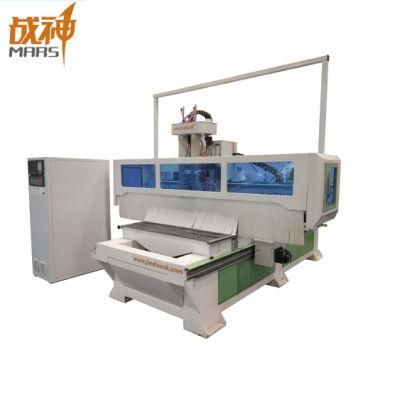

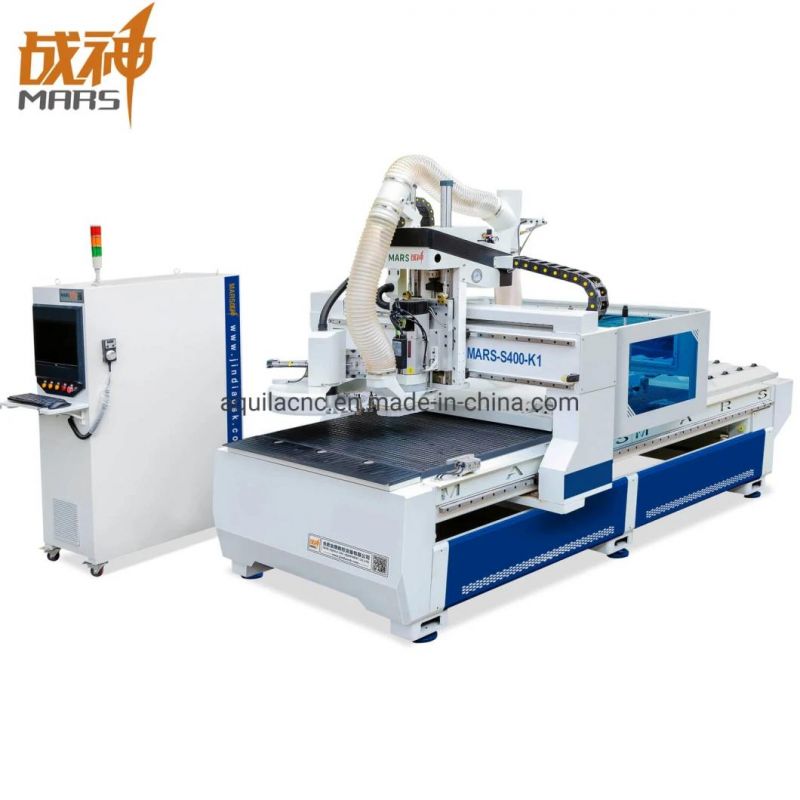

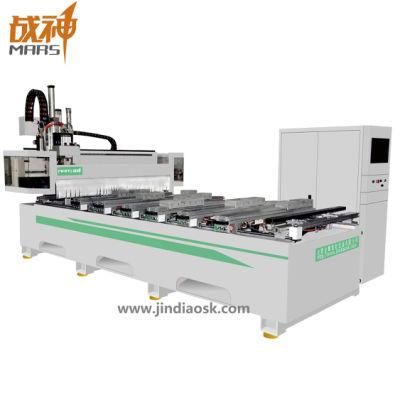

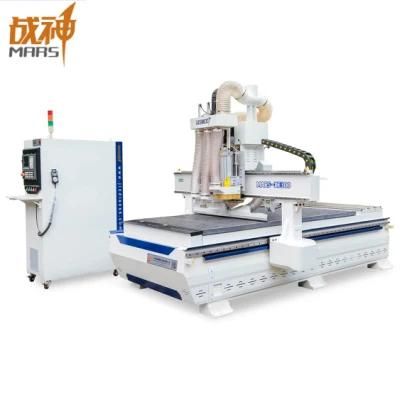

S400 Heavy Duty Woodworking CNC Machining Center
 Keywords:15 years experience of production
                  ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                  Three Brand: Mars, Golden Eagle,Borio



Description:S400 Heavy Duty Woodworking CNC Machining Center is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.

Functions:
The functions of this machine include milling on artificial stone,wood,bamboo,etc.,processing of various patterns and characters.

Applicable Materials:
Artificial stone,wood,bamboo,marble,organic board,two-color board,etc..


Application Scope:
Cabinet doors,wooden doors,solid wood,panels,doors&windows,tables&chairs,screens,wave panels,large wall hangings,advertising panels,logo&sign making.


Parameters:

Model	S400 Heavy Duty Woodworking CNC Machining Center
Working Stoke	1300*2500*300mm
Table Structure	Vacuum Table
Servo Motor	Yaskawa Servo Motor
Control System	Syntec 6MB
Spindle Power	9KW air cooling spindle
Traveling Speed	48/60/15
Tool Magazine	12
Max Working Thickness	250mm
Spindle Speed	24000rpm
Lubrication System	Automatic
Transmission	XY and Z axis are all ball screw.
Re-positioning Accuracy	±0.08mm
Max Tool Dia	90
X/Y/Z	3232/4040/2510
Net Weight	3000KG
Working Voltage	AC380/ 3PH/ 50HZ

Accessories:

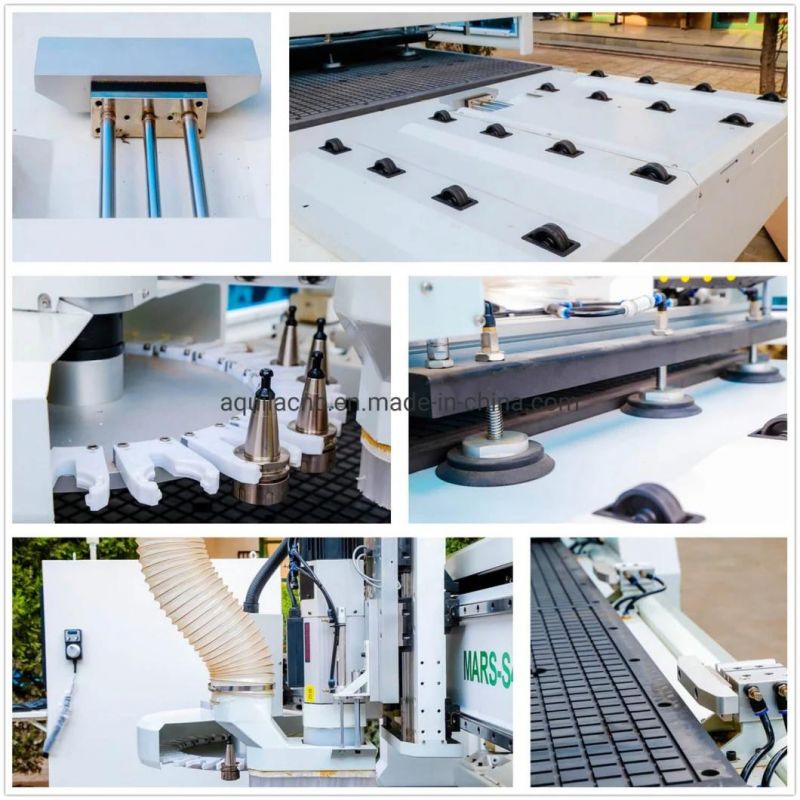

Performance Features:
1. Equipped with all the leading international brand components, with circulaar tools tool change. Moving working table, with higher processing accuracy, much longer lifetime.
2. All 3 axis ball screw drive can achieve much higher precision.
3. High-power air-cooling spindle, Japan YASKAWA servo motor and driver.
4. Vacuum table, high adsorption capacity, able to adsorb materials of different sizes.
5. Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area.
6. Syntec CNC control system can automatically accomplish multi-layer 3D job, cutting, engraving, milling, all at ease. Offline operation can be realized.

Samples:
