• Model NO.：PEM-3030
• Certification：CE, ISO, TUV
• Customized：Customized
• Condition：New
• Color：Blue
• After-sales Service：Online Support
• Spindle Power：1.5kw, 2.2kw, 3kw, 4.5kw
• Working Area：900*600, 1200*1200, 1200*1500, 1200*1800, 1300*250
• Table Material：Aluminium Alloy
• Max Engraving Speed：4, 000-7, 000mm,Min
• Spindle Cooling：6000 - 24, 000rpm
• Interface：PCI Port or USB Port
• Operational Software：Original Type3 Software, Artcam Software or Wentai
• Software Compatibility：Support CAD,Cam Software, Plt Format, Corel Draw
• Application：Cutting and Engraving Nonmetal and Metal Material
• Command Language System：English
• Transport Package：Export Sea-Worthy Packing or Air-Worthy Packing
• Specification：ISO 9001 & CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：84609090
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. PEM-3030 Certification CE, ISO, TUV Customized Customized Condition New Color Blue After-sales Service Online Support Spindle Power 1.5kw, 2.2kw, 3kw, 4.5kw Working Area 900*600, 1200*1200, 1200*1500, 1200*1800, 1300*250 Table Material Aluminium Alloy Max Engraving Speed 4, 000-7, 000mm/Min Spindle Cooling 6000 - 24, 000rpm Interface PCI Port or USB Port Operational Software Original Type3 Software, Artcam Software or Wentai Software Compatibility Support CAD/Cam Software, Plt Format, Corel Draw Application Cutting and Engraving Nonmetal and Metal Material Command Language System English Transport Package Export Sea-Worthy Packing or Air-Worthy Packing Specification ISO 9001 & CE Trademark Perfect Laser Origin China HS Code 84609090 Production Capacity 3000 Sets/Year

Product Description

Chinese Making Machinery Wood Cutting Cnc Router Machine
(Model:PEM-3030)
Contact:CandyProduct Introduction:

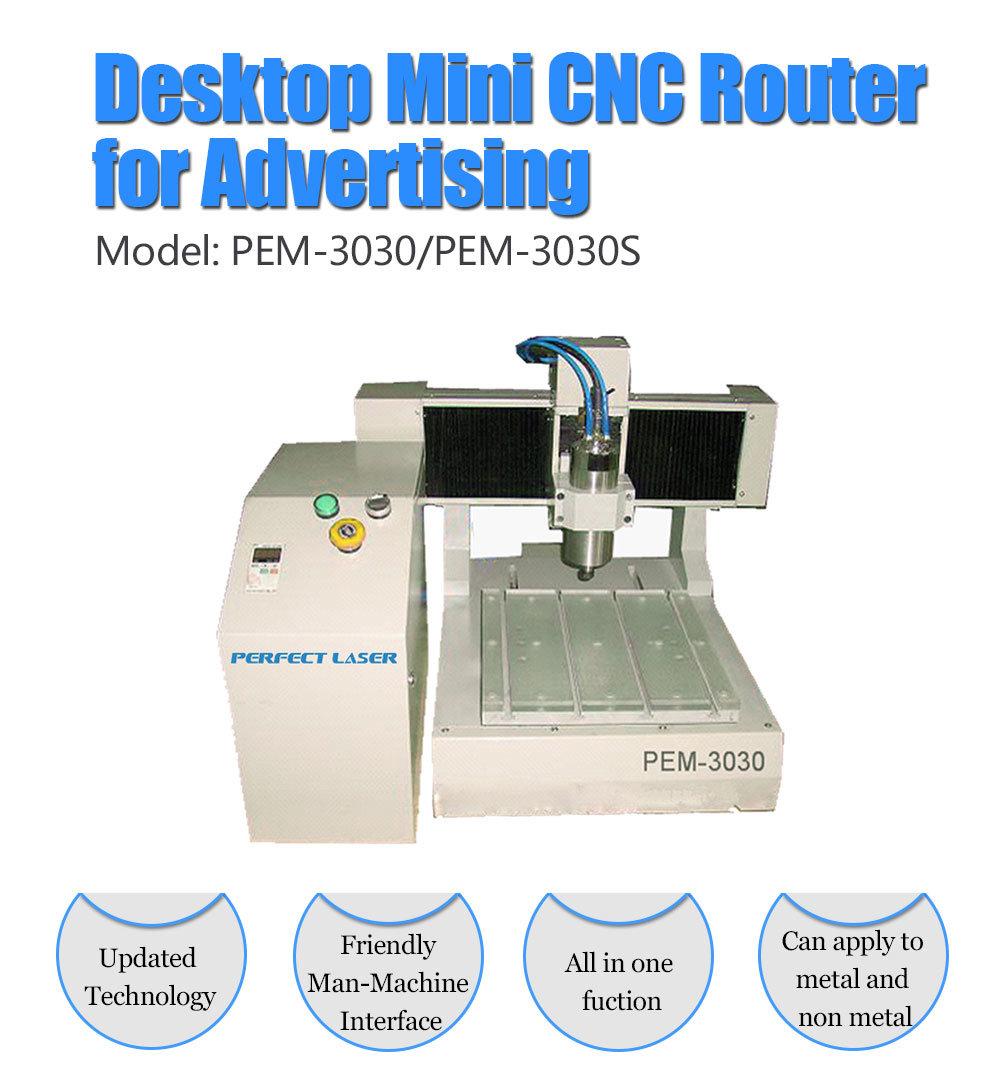

Perfect Laser PEM-3030 small wood metal CNC engraving machine is an ideal small CNC router for manufacturing architectural models, seals, art, decoration, industrial mold, construction models, instrument panels, woodwork and other processing industries.PEM-3030S Rotary Type is suitable for engraving all kinds of round and cylinder work pieces by adding an rotary fixture.

This kind of rotary engraving machine uses imported ball bearing guide screws in X, Y, Z axis to make sure high precision. Even the letters of 1mm can be clearly discernible. Also with the advanced CNC system, this small type engraving machines can run continually and smoothly with high speed.






Model	PEM-3030
Power stroke of X,Y,Z axis	300*300*80mm
Size of working table	520×540mm
Power of main axle	1.5KW
Running location precision of X,Y,Z axis	±0.03mm
Repeating location precision of X,Y,Z axis	±0.01mm
Power stroke of Z axis	120mm
Working style	Stepping motor (Option :Servo Motor)
Spindle speed of frequency conversion main axis	6000-24000rpm/min
Working voltage	AC220V/50HZ
Engraving order	G Code.uoommg
Optional main axis and Cartridge	φ3.175.φ6
XY Running sensitivity	0.02mm
Optional Item	Acrylic Polishing Machine

Special Features:

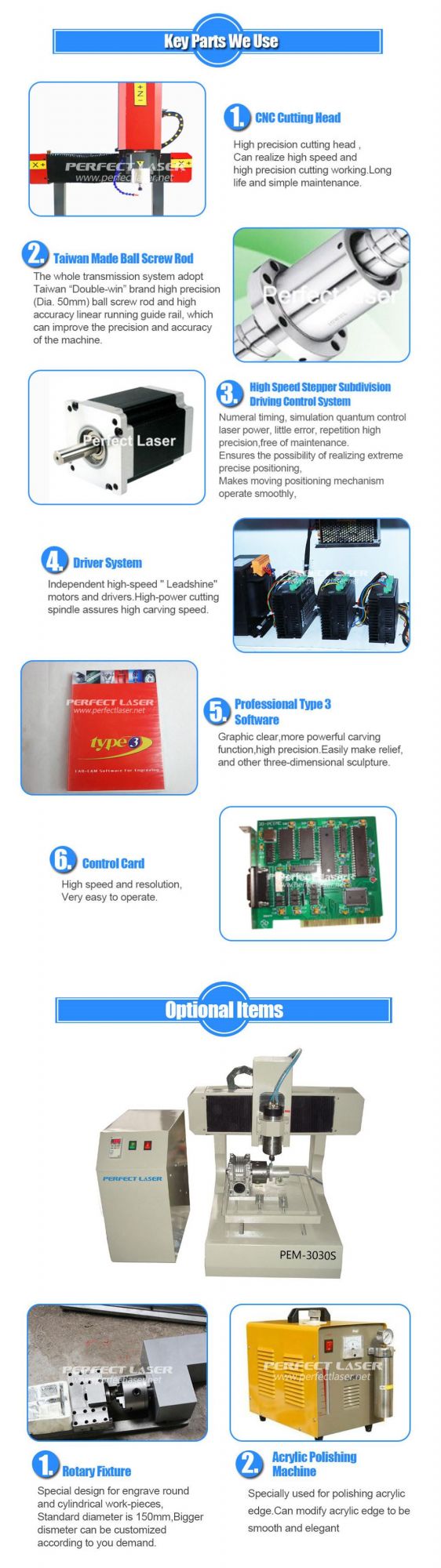

1. Adopt luxury key consumables such as Germany ball screw rod, Taiwan imported linear guide rail, imported control card, makes high efficiency and steady.

2. Controlled by computer, the rotary engraving machine can directly import CAD drawings, automatically generate and optimize tool path, groove, polish.

3. Perfect combination of CNC and PC systems, to achieve a highly automated factory equipment management, suitable for mass production of high-precision glass deep-processing products.

4. High efficiency and speed mechanical transmission, maximum speed up to 60m/min, reach European lever.

5. Long wheel utilization, tool grinding wheel are available from Ф170 to Ф110, reduce the production cost.

6. English language user interface, improved man-machine dialogue function, easy to learn and operate.

Samples & Applications:

This small CNC engraving machines are widely used advertising, seals processing, handcrafts, special instruments processing, little moulds processing, etc. And the rotary engraving machine can engrave kinds of metal or nonmetal stuff, such as: iron engraving, iron cutting, copper engraving, copper cutting ,aluminum engraving, aluminum cutting, plastic engraving, plastic cutting ,wood engraving, wood cutting .etc. Due to its numerous features and applications.

The machine can also be called small CNC router,metal CNC router,rotary engraving machine,small CNC engraving machines.

Contact us:
Perfect Laser Co., Ltd. (China)
Contact:Candy/ Sales Department
