• Control Method：Open-Loop Control
• Numerical Control：CNC,Mnc
• Processing Precision：0.02~0.03(mm)
• Performance Classification：High-End CNC Machine Tools
• Application：Wood,Stone,Mable,Tile,Granite,Tombstone,Sign Plate
• Transport Package：Woosen Case Case Package
• Specification：2500*1200mm
• Trademark：Mars
• Origin：China
• HS Code：84659900
• Production Capacity：300 Sets,Month

Basic Info.

Control Method Open-Loop Control Numerical Control CNC/Mnc Processing Precision 0.02~0.03(mm) Performance Classification High-End CNC Machine Tools Application Wood/Stone/Mable/Tile/Granite/Tombstone/Sign Plate Transport Package Woosen Case Case Package Specification 2500*1200mm Trademark Mars Origin China HS Code 84659900 Production Capacity 300 Sets/Month

Product Description

Product Description

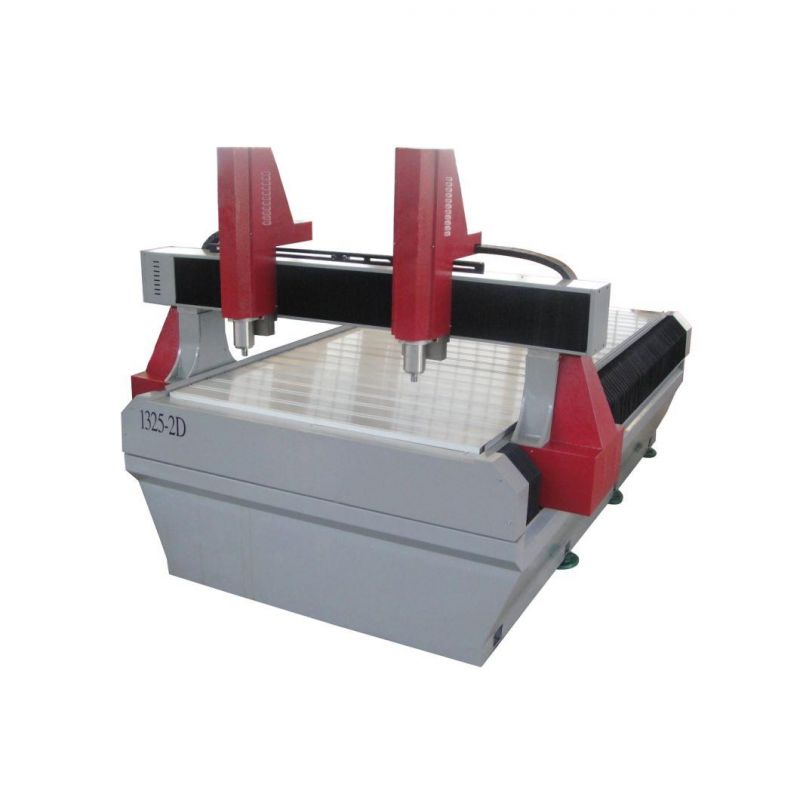

1325 Model Cabinets Doors Producing CNC Router

 Feature
 1.Equipped with world famous control system, with powerful functions, high precision, fast speed.2.All components are of world top-class brand to ensure high quality.3.CNC machining center with 5 synchronizing interpolated axes, is well suited for 3D curved surface processing.4.Working speed/ traveling speed/ cutting speed can all be controlled separately, which dramatically improve  productivity and finish quality.5.Any machine size can be customized as per your special request.
Optional Accessories

Aquila Co.devotes to design all products and accessories,can maximize meeting customers demands.According to the market's different demands, its provides various accessory spareparts for kinds of requirements. The production mode of Aquila is to Act according to actual circumstances, which won the customer's trust and favour.

Parameters


Model	4 Axis CNC Machining Center
X/Y/Z axis working stroke	1300*3000*400mm
The 4th axis working stroke	Can rotate ± 90° left and right
Table surface	T-slot vacuum Table
Frame machine	Thick steel tube welded structure, w/ aging treatment
Spindle power	9KW Italy HSD ATC air cooling spindle
Spindle speed	0-24000 rpm
Automaitc tool change	Carousel, 8pcs
Control system	Taiwan Syntec 4 axis control System
Drive sytem	Japan Yaskawa servo motor & driver
Transmission	X/Y axis helical rack & pinion, Z axis ball screw
Gue rail	Taiwan imported linear guide rail
Vacuum pump	7.5kw vacuum pump
Inverter	Fuling or Zoncn
Oil lubrication	Automatic
Positioning Accuracy	± 0.03mm
Repositioning Accuracy	± 0.03mm
Max. Rapid Travel Rate	40 m/min
Max. Working Speed	30 m/min
Command language	G code/ HPGL
Working voltage	AC380V 3PH 50HZ
Software Compatibility	Type3/ Ucancam / Artcam
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%

 Note
 1). Spindle motor can be 800W/1.5KW/2.2KW. 2). Option: Italy HSD spindle, DSP controller servo motor etc..3). Any machine size can be customized as per request.
Certificate



Why choose Hefei Aquila CNC Equipment Co., Ltd?

1.Our company has 15 years experience of production, and is a set research and development, manufacturing, sales,and has the national certification of  "High-tech enterprises."

2.With over 15 years experience and dozens of national patents, our company has passed the ISO9001:2008 Quality Management System and CE Certificate, and is also entitled as the AAA Level Enterprise which Honors Contract and Keeps Promise.

3.We have the professional R&D team and quality control system, to provide you with the most valuable products and services.

4. Our sales& service network has covered all dometic major cities and overseas markets, such as the USA, European, Southeast Asia, Middle East etc.Let you have the most perfect after-sales service.

We are searching distributors all over the world. If you have any demands, welcome to contact us and visit our factory.

Application
 1. Mold industry: casting mold, automobile, sanitary ware mold, ship, yacht, aviation industry, etc.2.3D processing: chairs, fiberglass trimming, resin and other non-metal carbon-mixed work pieces processing.3.Suitable materials: wood, styrofoam (EPS), resin, plaster, clay and non-metallic carbide composite material.
Sample




Campany show
