• Model NO.：XS200
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：3000KG
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. XS200 Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 3000KG Trademark Mars Origin China HS Code 8465990000 Production Capacity 300 Sets/Month

Product Description

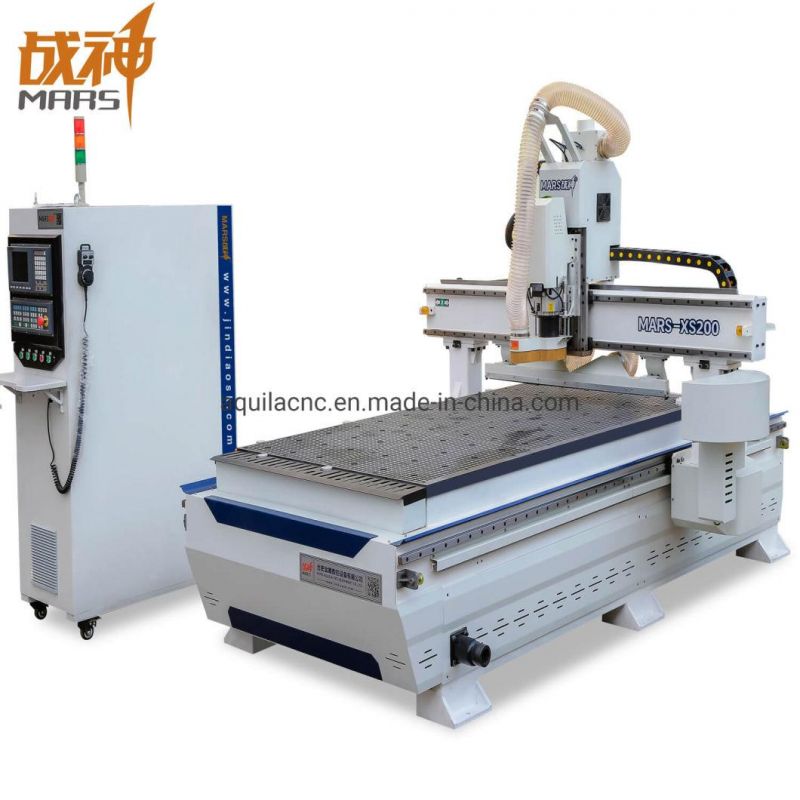

XS200 Automatic Too Change System (ATC) CNC Machine Router
 Keywords:15 years experience of production
                  ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                  Three Brand: Mars, Golden Eagle,Borio

 Description:
XS200 Automatic Too Change System (ATC) CNC Machine Router is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.

Functions:
The functions of this machine include cutting,milling,drilling and slotting.


Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.

Application Scope:
Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings.


Parameters:

Model	XS200 Automatic Too Change System (ATC) CNC Machine Router
X/Y/Z Axis Working Area	1300*2500*300mm
Machine Size	3000*4500*2600mm
Working Table	Whole line frame structure, firm and not deformation, vacuum adsorption table plus automatic positioning
Table Structure	Double vacuum chamber absorption table
Body Structure	Heavy-duty thicken steel structure w/ tempering
Control System	Taiwan Syntec 6MB control system
Drive System	Japan Yaskawa servo motor
Spindle Motor Power	HSD 9KW ATC air cooling spindle; 0 ~ 24000 rpm/min
Tool Magazine	Carrousel, 8pcs
Lubrication System	Automatic
Transmission	XY axis rack and pinion PMI, Z axis ball screw TBI
Guide Rail	Taiwan PMI/Hiwin 25mm rectangular linear rail
Inverter	Zoncn/Delta 11KW
Positioning cylinder	5pcs
Tool sensor	MARS
Limit switch	Japan Omron
Vacuum Pump	1*7.5KW water vacuum pump
Cable	MARS cable, anti-static, anti-interference, bending resistance
Beam	Reinforced steel beam
Pressor device	MARS modify
Max Travelling Speed	50m/min
Max Processing Speed	30m/min
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm
Dictate Format	G-Code / HPGL
Working Voltage	Working Voltage
Support Software	Professional cutting optimization software(JiFusen/Yunxi/Tomder/Haisense)
Net Weight	1800KG
Tool holder	HSK

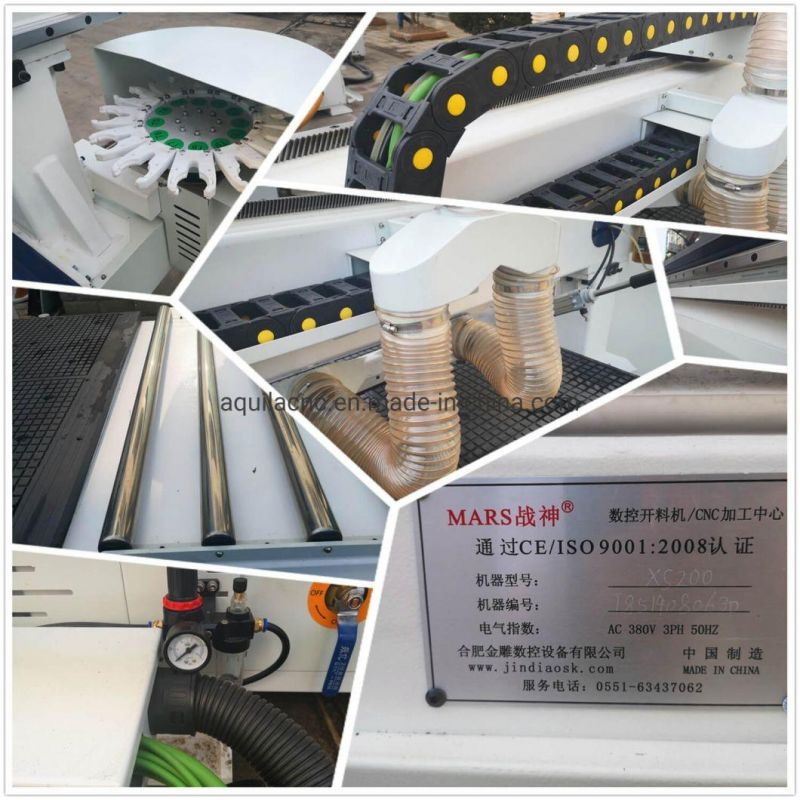

Accessories:


Performance Features:
1. Equipped with all the leading international brand components, Taiwan Syntec control system, Japan Yaskawa servo motor and driver.
2. Carousel type tool magazines support automatic tool changer, improve processing efficiency.
3. Italy 9KW high-power air-cooling spindle can withstand high-speed, heavy loading, low noise characteristics.
4. Machine body structure is made of welded thick-walled square steel tube, with five-sided tempering, to ensure the body never deformation.
5. Vacuum table, high adsorption capacity, able to adsorb materials of different sizes.
6. Taiwan-made guide rail and ball screw, high precision, long service life, good stability.
7. Taiwan Syntec control system, easy to operation,fully support automatic production.
8. Taiwan planetary reducer, with small volume, large torque, high transmission efficiency, wide range of deceleration.
9. Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area.

Samples:
