Woodworking Machinery

Home > Product > Wood Planer

630 mm Heavy Duty Wood Planer Thicknesser for Planing Furniture

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty：1 Year Warranty
  • Type：Single-sided Pressure Planer
  • Working Depth：＞200mm
  • Working Width：630 mm
  • Drivetrain：Feed Drivetrain
  • Enter Method：Pushing

Base Info

  • Model NO.：MB106H
  • Motor Power：5-10Kw
  • Cutter Shaft：1
  • Spindle Speed：＞5000rpm
  • Process Type：Medium-Sized Processing
  • Certification：ISO
  • After-sales Service：1 Year Warranty
  • Name：Planer Thicknesser
  • Min. Workpiece Thickness：5 mm
  • Min. Workpiece Length：220 mm
  • Max. Planing Capacity：5 mm
  • Transport Package：Plywood Package
  • Specification：600 kg
  • Trademark：SOSN
  • Origin：China
  • Production Capacity：200 Sets,Month

Description

Basic Info.

Model NO. MB106H Motor Power 5-10Kw Cutter Shaft 1 Spindle Speed ＞5000rpm Process Type Medium-Sized Processing Certification ISO After-sales Service 1 Year Warranty Name Planer Thicknesser Min. Workpiece Thickness 5 mm Min. Workpiece Length 220 mm Max. Planing Capacity 5 mm Transport Package Plywood Package Specification 600 kg Trademark SOSN Origin China Production Capacity 200 Sets/Month

Product Description

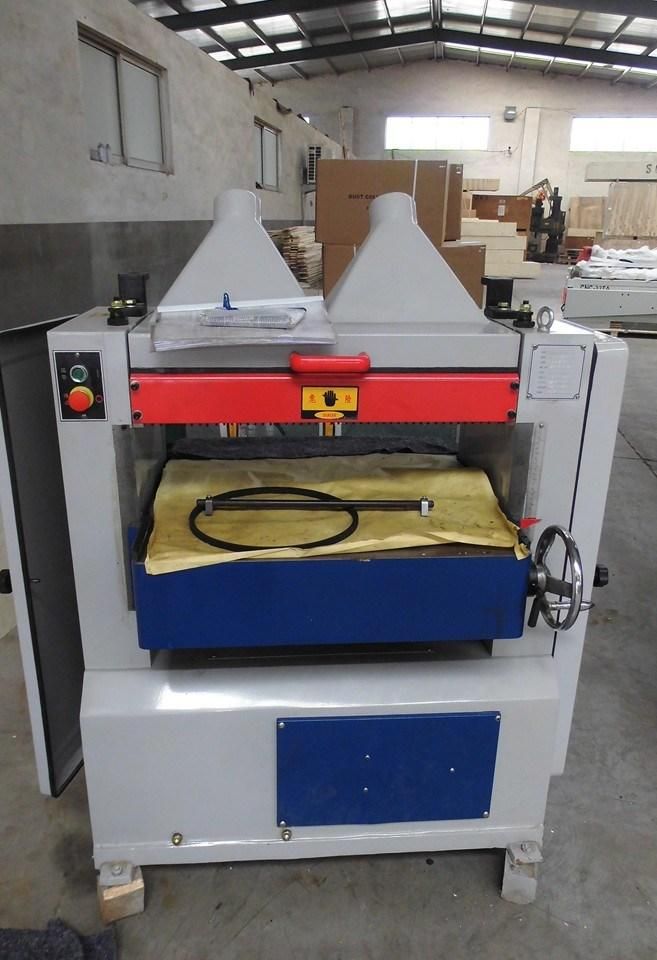

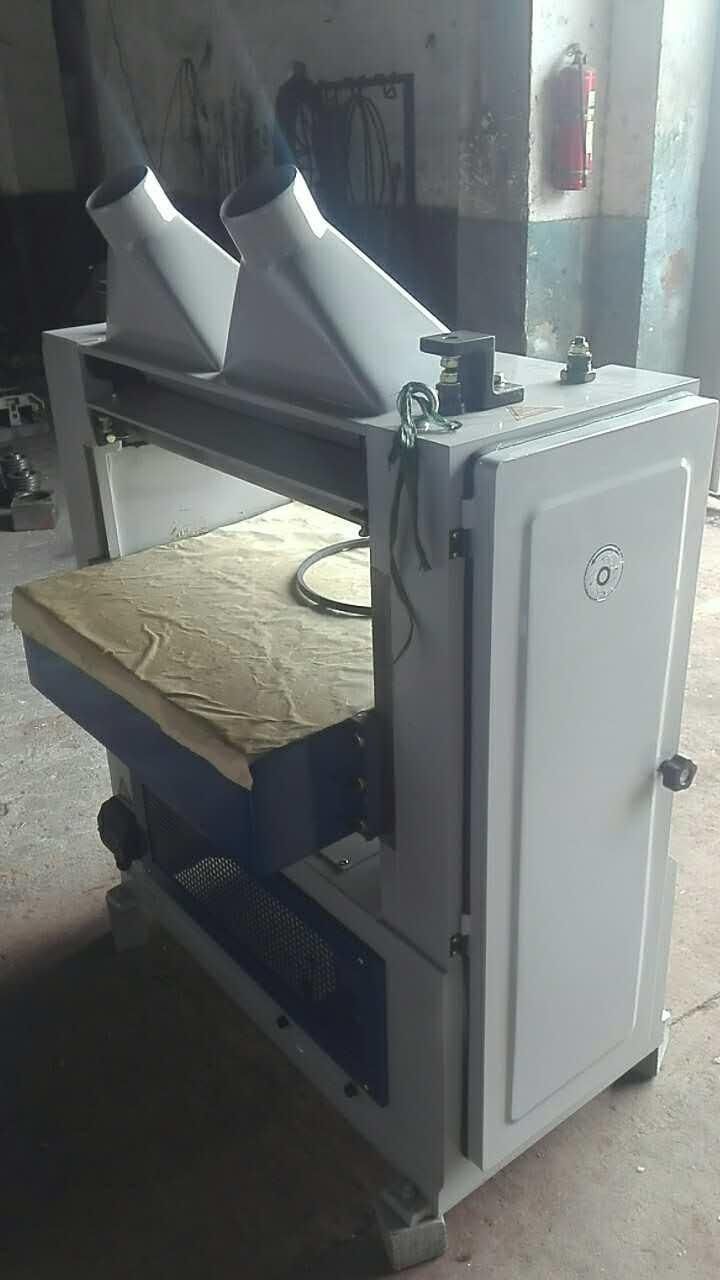

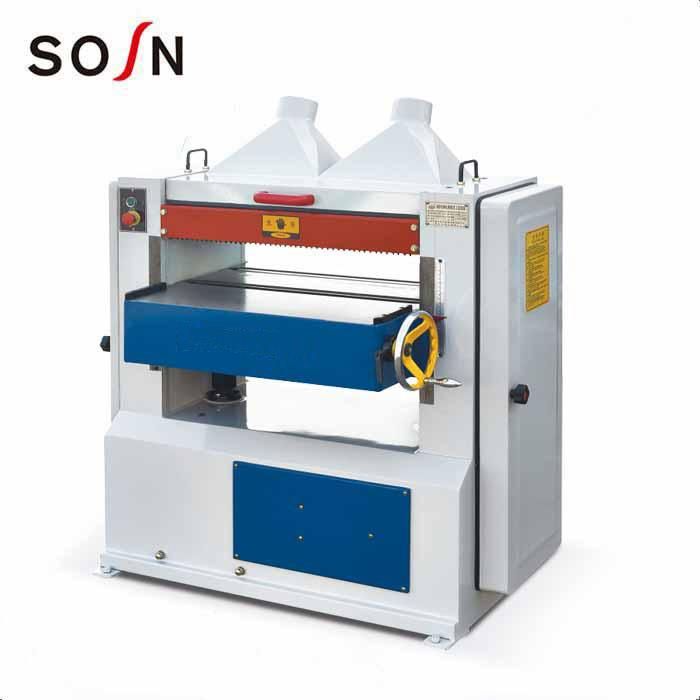

630 mm wood planer thicknesser for planing furniture MB106H
630 mm Heavy Duty Wood Planer Thicknesser for Planing Furniture


Main technical parameter:
Max. workpiece width630mm
Max. workpiece thickness205mm
Min. workpiece thickness 5mm
Min. workpiece length 220mm
Max. planning capacity5mm
Feed speed9,6.5 m/min
Spindle speed5000 r/min
Blades quantity4
Spindle diameter105mm
Motor7.5 kw,380V
Output dust diameter100mm
Net weight600kg

630 mm Heavy Duty Wood Planer Thicknesser for Planing Furniture
630 mm Heavy Duty Wood Planer Thicknesser for Planing Furniture
630 mm Heavy Duty Wood Planer Thicknesser for Planing Furniture

Have any question, pls feel free to contact us
We will try our best to supply you best service
Linda Yin
