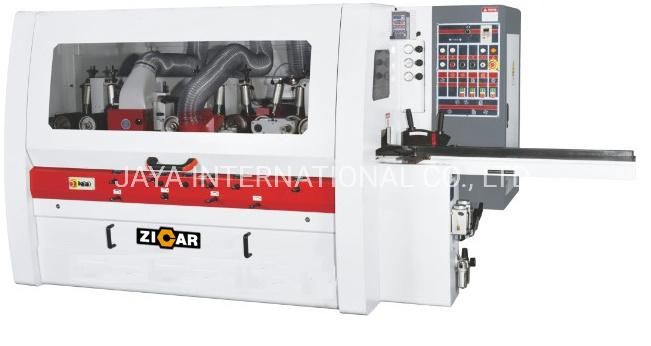

ZICAR high speed four side moulder planer with 25~230mm working width
JAYA INTERNATIONAL CO., LTD.- Warranty：1 year
- Type：Four-Side Planer
- Working Depth：8-150mm
- Working Width：25~230mm
- Drivetrain：Feed Drivetrain
- Enter Method：Mechanical
Base Info
- Model NO.：M523A
- Motor Power：47.6kw
- Cutter Shaft：20
- Spindle Speed：＞5000rpm
- Process Type：Heavy Processing
- Certification：CE, ISO
- After-sales Service：ONLINE
- Model No.：M523A
- Main Shaft Diameter：1800mm
- Main Shaft Revoluton：6800r,min
- First Bottom Spindle：7.5kw
- Left side Spindle：7.5kw
- Feed：5.5kw
- General Power：47.6kw
- Feeding Speed：10~45m,min
- Spindie diameter：40mm
- Pneumatic Source Pressure：0.6MPa
- Right side Spindle：7.5kw
- First Top Spindle：11kw
- Feed Beam beam rise &fall：1.1kw
- Dust Outlet Diameter：140mm
- Machine Size(L×W×H)：4100×1700×1760mm
- Transport Package：Film Package or Plywood Case
- Specification：4100*1700*1760mm
- Trademark：ZICAR
- Origin：China
- HS Code：846592000
- Production Capacity：100sets,Month
Description
Overview
Features
1. The machine bed is cast from high grade cast iron to ensure the stability of the machine.
2. This adopts step-less material feeding, material feedingspeed ranges from 5 to 24 m/min.
3. Each main shaft is driven by independent elecnic motor, cuting ore is poweful.
4. Main shaft is adjusted to focus on the front, operation is convenient.
5. Hard chrome plating work table is durable.
6. Equips with auxiliary unit alarming lack of material, it effectively improvises smooth feed-in while lack of material.
7. Multi-group drive rollers improve feeding efficiency;
International brands electrical parts are applied for good stability.
8. Spare parts are thick and solid to maintain high precision, high stability and high reliability.
9. Pneumatic compressed feeding roller is applied, the pressing force can be adjusted by stages.
10. Which is favorable for smooth feeding of timbers with different thickness.
11. Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.
Details Images

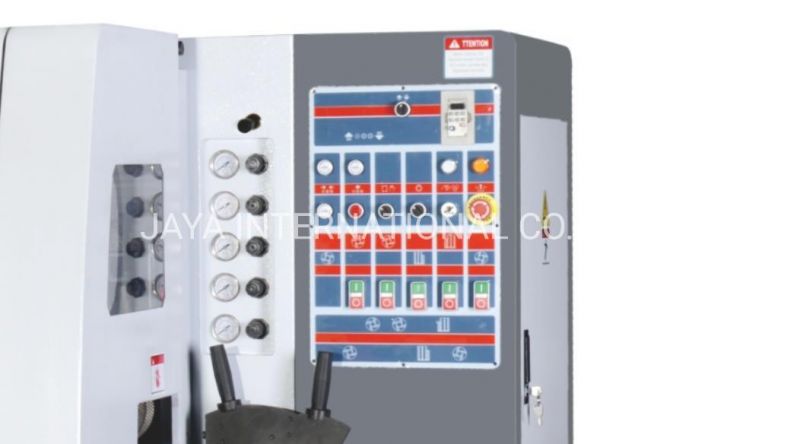

The new panel design is more intuit-ive and more beautiful, with variable frequency feeding.
Speed adjustment is convenient.

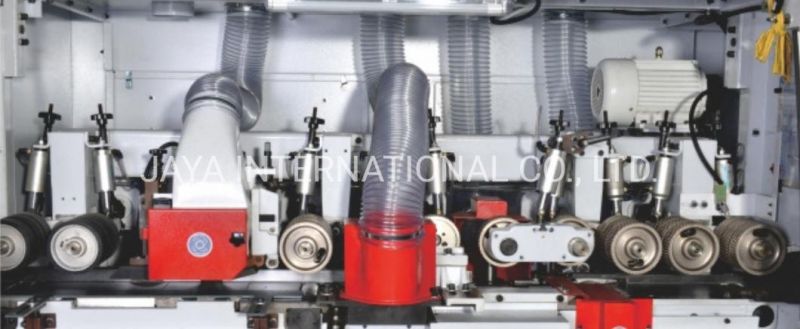

Exquisite production process, the internal structure of the machine is tight and orderly.

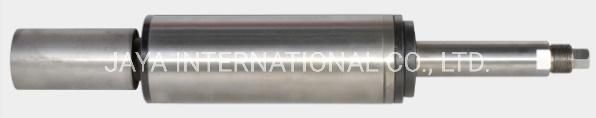

The main shaft is made of high quality steel for heat treatment and dynamic balancing.
Art equipped with brand bearings, the spindle is more stable and durable.

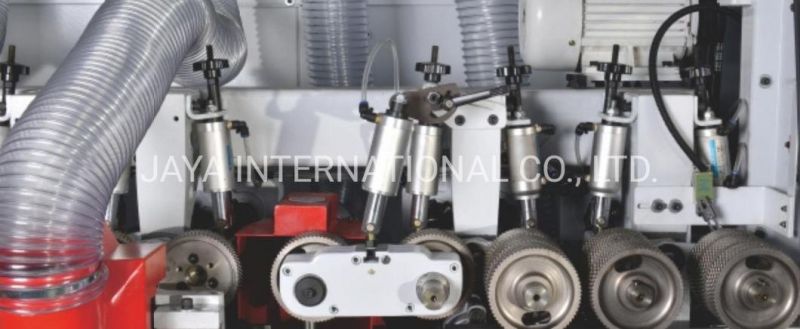

Quick liftable short material device
This structure effectively improves the feeding of short materials more smoothly, and the auxiliary feeding wheel has a transmission function and is more efficient. The feed wheel can be picked up for easy tool change or calibration.

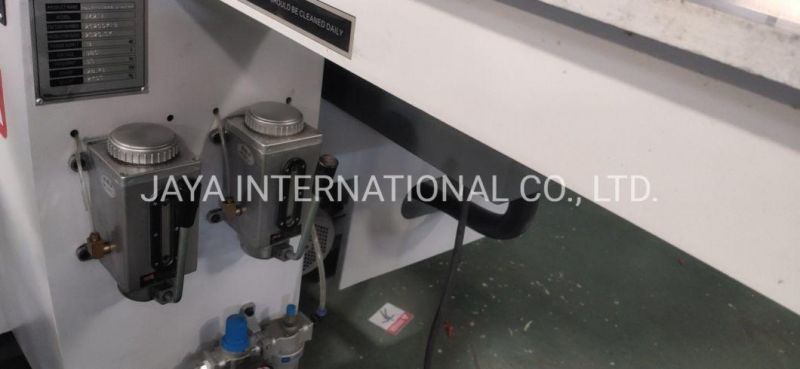

Independent dual oil circuit design, table top oil supply and centralized transmission lubrication work independently, and the operation is more flexible.
Packaging
Qualification
Our Company
JAYA INTERNATIONAL, has been dealing in woodworking machinery for more than 27 years, started from Jaya Trading at the beginning of 1992. In 2008, we made great investment andbecame the holding company of YanTai Lida woodworking machinery Co.,ltd, which has over59 years' history of manufacturing all kinds of China- ·made woodworking machinery since 1960, especially for the MQ & ML series combined woodworking machine, it has the extremelyimportant guiding function in the circle. During the past few years, with the development of thecompany and the staff, we also expanded our production line to related fields like general machinery, panel furniture making machinery ,CNC router, Laser machinery, Plywood makingmachine and related hardware, ect.
Thanks for our top quality, excellent service and competitive price, thanks for all the supportfrom our customers, now our machine has got great reputation as the brand ZICAR for woodworking machinery, MATIC for general machinery , HARRIER for CNC/ laser Machinery,PLYTEC for plywood making machine all over the world with the following advantages:
* More than 300 employees, 56 technicians, covering an area of 35000 square meters.
* ISO9001:2000, CE certified, 15 national patents.
* One-stop service, meet needs of the customers from individuals to international companies.
* OEM service accepted.
* Separate trading office: Jaya Trading with 35 experienced sales offering full scale service.
* lnquiries are typically answered within 8 hours.
* After sale Service: experienced and knowledgeable team of technical support
* Annual turnover: USD 20 million
We trust that our experience and intimate knowledge of this line will entitle us more confidence to serve our customers.
The more you know us, the more you trust us!
Customer Visit
Exhibition
F&A
1.Our Payment Way?
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we have long term cooperation with each other and have closely relationship with each other.so there is no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of one shift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situation during warranty period, and all the round-trip courier transportation cost of damaged/repaired replacement parts in warranty period should be borne by the buyer. Wearing parts are not included.
(3)24 hour technical support by email or calling.
(4)User-friendly English manual for machine using and maintaining.
4.Our Services?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support, provide engineer oversea service.
