• Model NO.：MFSP60*45
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Blue
• Output (T/H)：1.8-2
• Power (Kw)：45
• Rotor Diameter(mm)：660
• Grinding Chamber Width(mm)：450
• Rotating Speed(M/Rpm)：2970
• Transport Package：Pallet
• Specification：CE, ISO, SGS
• Trademark：Liangyou
• Origin：Jiangsu China
• HS Code：8436800000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. MFSP60*45 Warranty 1 Year Customized Customized Condition New Color Blue Output (T/H) 1.8-2 Power (Kw) 45 Rotor Diameter(mm) 660 Grinding Chamber Width(mm) 450 Rotating Speed(M/Rpm) 2970 Transport Package Pallet Specification CE, ISO, SGS Trademark Liangyou Origin Jiangsu China HS Code 8436800000 Production Capacity 5 Sets/Month

Product Description

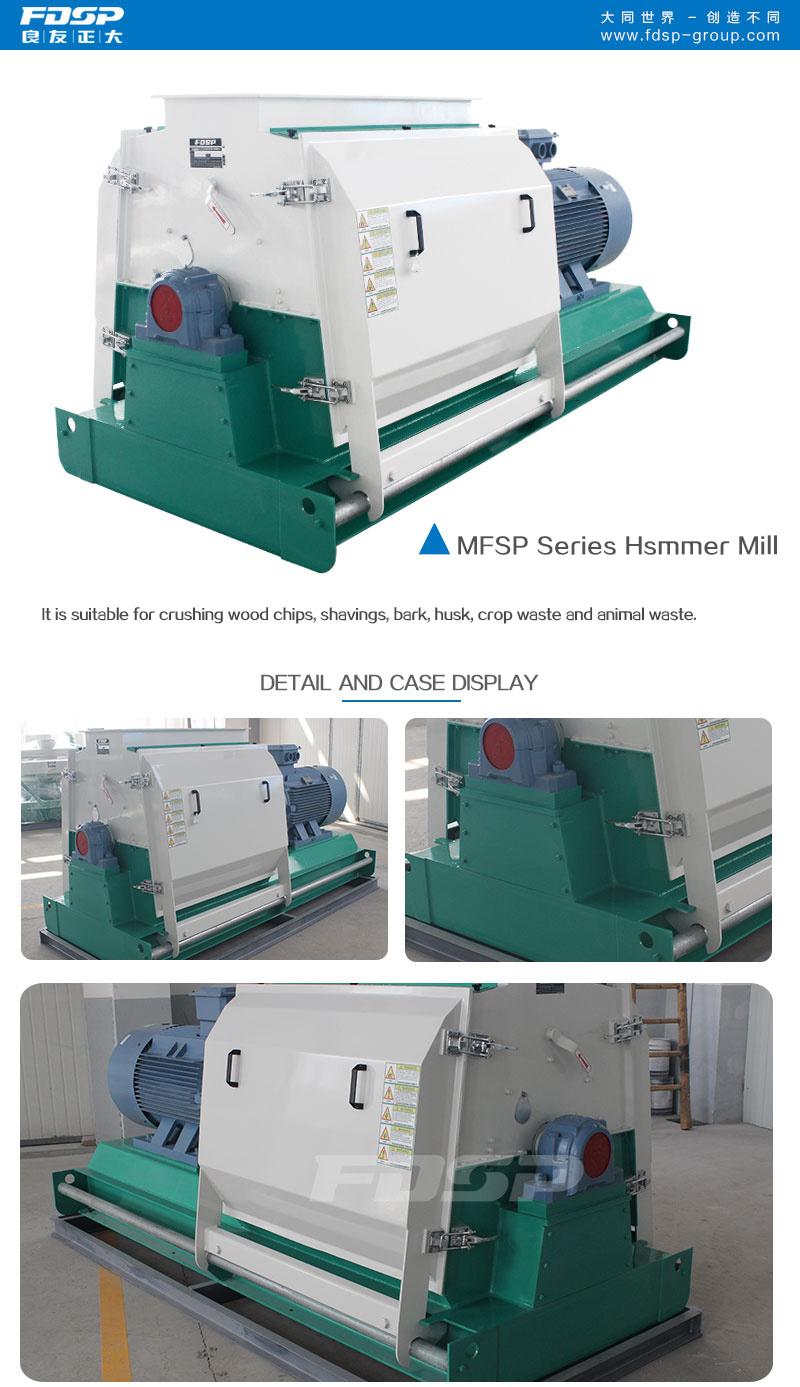

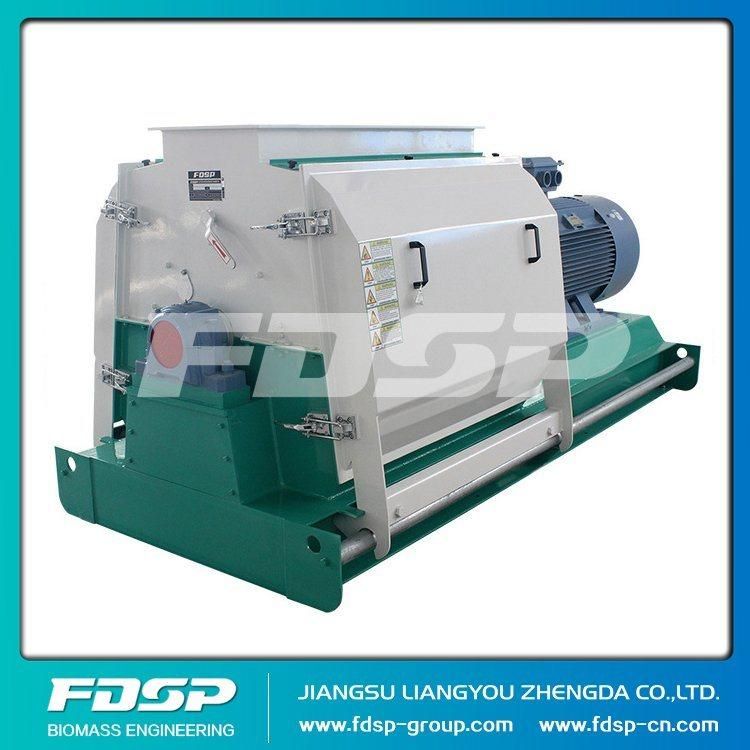

Reasonable price wood pellet hammer mill wood chip crusher

Features:
1. It is used for grinding of small wood block, chip before pelleting;
2. Multi grinding chamber to increase efficiency by 15%;
3. Multi grinding chamber to prolong service life of screen and beater;
4. Modified rotor to increase stability and minimize over heating of bearing;
5. Modified screen locking device to make assembling &disassembling easily;
6. Unique structure design of door to absorb shake and reduce noise;
7. Modified design for grinding chamber to reduce airflow resistance and increase efficiency;
8. Depress barycenter of rotor to make more balance and coarse and fine grinding can be executed easily.




Parameters of technical and performance as below:

Model	MPSF56*40	MFSP60*45	MFSP60*60	MFSP66*60	MFSP66*80	MFSP66*100
Power(kw)	37	45	55	75	90	110
Capacity(t/h)	0.8-1	1.8-2	2-2.5	3.5-4	5-6	6-7
Rotor diameter(mm)	560	600	600	660	660	660
Grinding chamber width(mm)	400	450	600	600	800	1000
Rotating speed(m/rpm)	2970	2970	2970	2970	2970	2980
Dimension(L*W*H)(mm)	1.8*0.8*1.1	1.8*0.8*1.1	1.92*1.1*1.1	2.1*1.3*1.4	2.6*1.3*1.4	3*1.3*1.4


Relevant main machinery during biomass burning pellets production process:
wood chipper-wood hammer mill(pulverizer grinder)-pre-screener-dryer-pellet mill-cooler-vibrating screener-packing machine
Please note the wood pulverizer grinder is used for cutting the wood chips which approximate size 5cm length into sawdust.



Gold service:
We treat customers sincerely and pay more attention to how to maximize return of
investment. We improve quality, reduce power consumption, shorten construction
schedule, and quick feedback in terms of technology, production, engineering and
service.  We will furnish comprehensive, professional, and thorough service to meet
customer's requirements. Thinking from customer's side, and solve problems timely.



Certifications:
FDSP has obtained ISO9001:2008 international quality system certification, CE certification for feed machinery, fertilizer machinery, biomass equipment and complete sets of production line, SGS certification
