• Model NO.：MJ6132TD
• Precision：High Precision
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• After-sales Service：24hours Online
• Attribute (E. G.: Size)：Value (E. G.: 12 Inches)
• Colour：White and Grey
• Imported Belts：From Japan
• Motor Power：5.5+1.1kw
• Sliding Table：3200*375
• Sawblade Size：300mm
• Small Sawblade Size：120mm
• Design：Can Customized
• Weight：900kg
• Control Button：English Type
• Cut Material：ABS,PVC,MDF,HPL,Solid Wood ,etc
• Transport Package：Plywood Wooden Package
• Specification：1500mm~3800mm
• Trademark：SOSN
• Origin：China
• HS Code：84659100
• Production Capacity：300 PCS,Month

Basic Info.

Model NO. MJ6132TD Precision High Precision Certification CE, ISO Customized Customized Condition New Color Customized After-sales Service 24hours Online Attribute (E. G.: Size) Value (E. G.: 12 Inches) Colour White and Grey Imported Belts From Japan Motor Power 5.5+1.1kw Sliding Table 3200*375 Sawblade Size 300mm Small Sawblade Size 120mm Design Can Customized Weight 900kg Control Button English Type Cut Material ABS,PVC,MDF,HPL,Solid Wood ,etc Transport Package Plywood Wooden Package Specification 1500mm~3800mm Trademark SOSN Origin China HS Code 84659100 Production Capacity 300 PCS/Month

Product Description

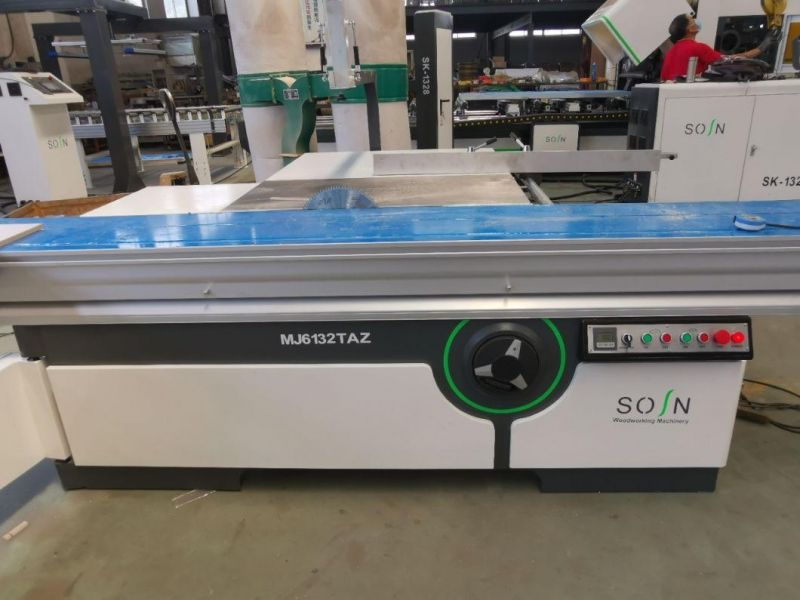

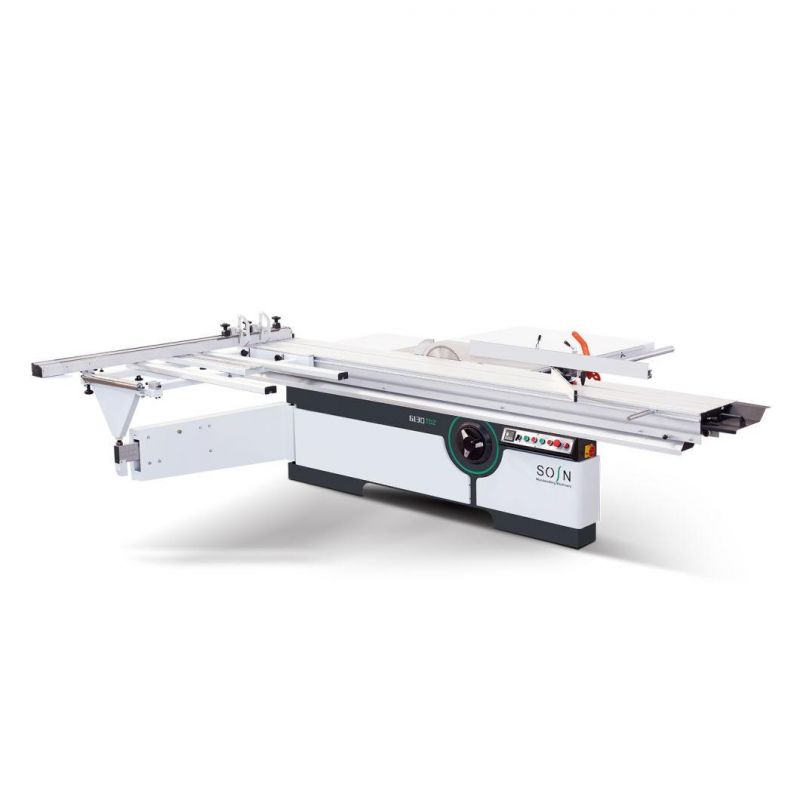

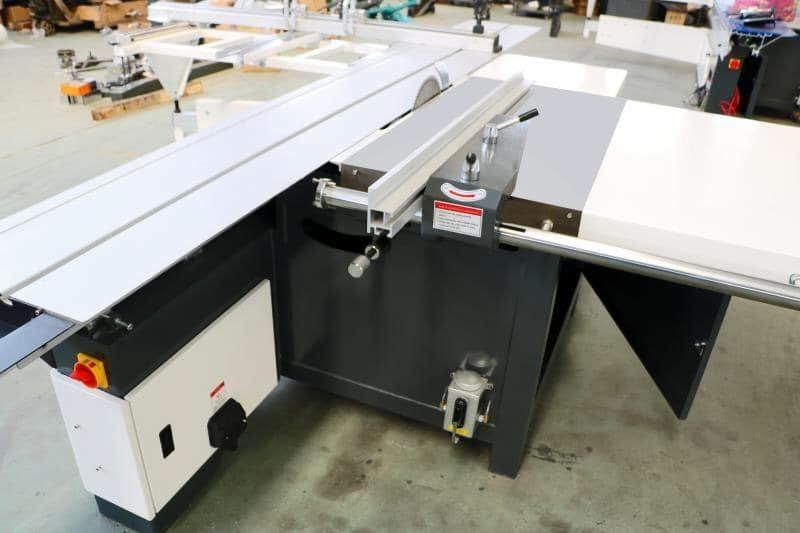

High Precision Panel Saw Mj6132td Made in China

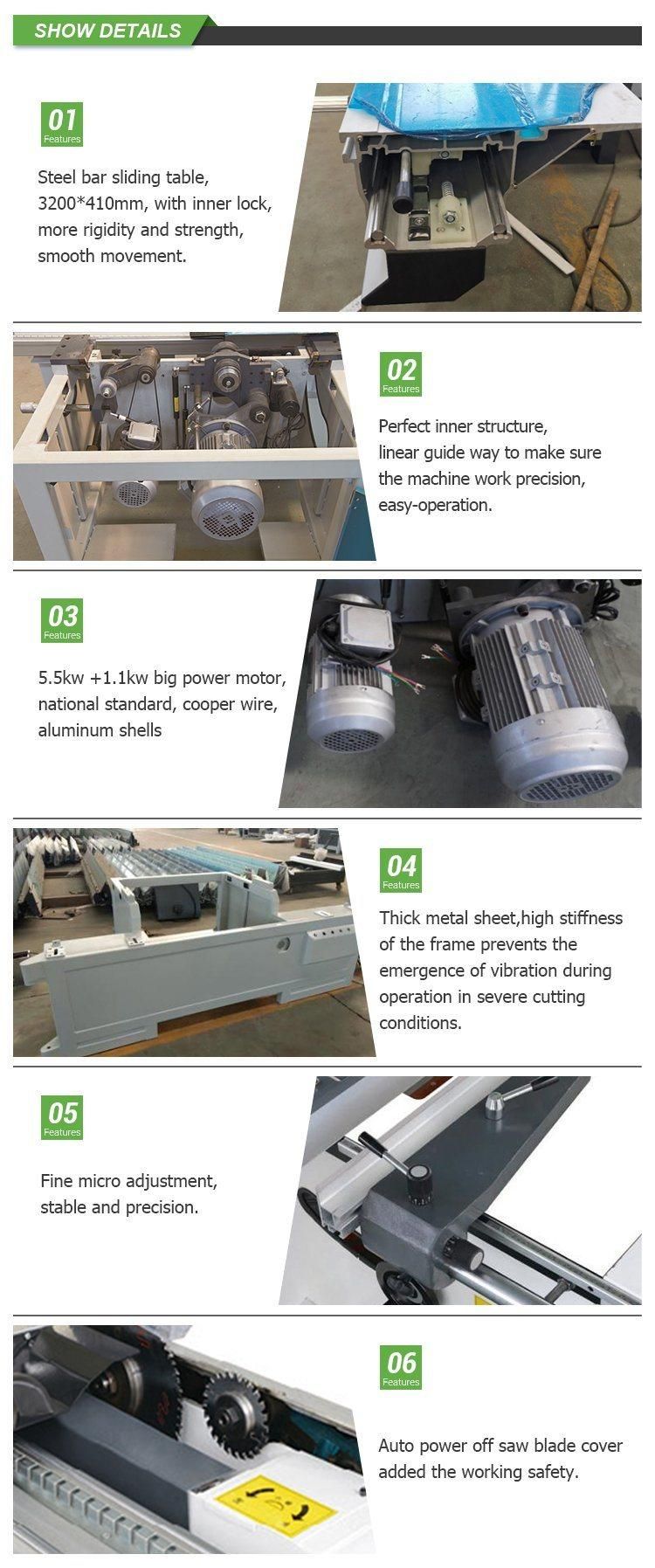

Feature:
1. Sliding table guide track is plating chromium steel bars structure, exact and durable
2. Sliding table have multipoint locking, improving working efficiency greatly.
3. With oxidation treatment, movable table surface is beautiful and hard wearing
4. Manual up & down of main saw,tilting 0-45 degree
5. The motor can change Siemens motor - 5.5+1.1kw

Main technical parameter:


Dimension of sliding table	3200X375mm
Gross cut capacity	3200mm
Width of cut between saw blade and rip fence	1250mm
Saw blade diameter	300mm (250-300mm)
scoring saw blade diameter	120mm
Speed of main saw spindle	4500/6000rpm
Speed of scoring saw blade	8000r/min
Tilting saw blade	0-45 degree
Main motor	5.5kw
Scoring motor	1.1kw
Height of cut	90mm
Height of cut 300mm saw blade at 45 degree	60mm
Main spindle diameter	30mm
Net weight	800kgs
Gross weight(with plywood wooden package)	850kgs
Overall dimensions	3200X3150X900mm

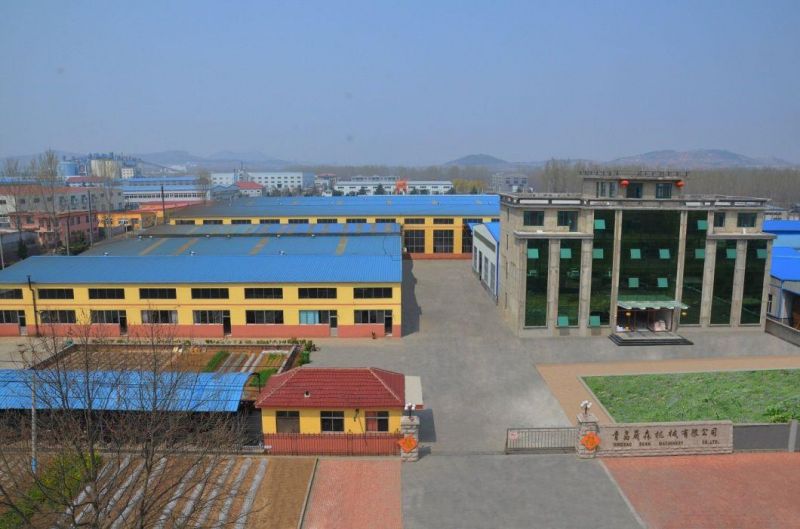

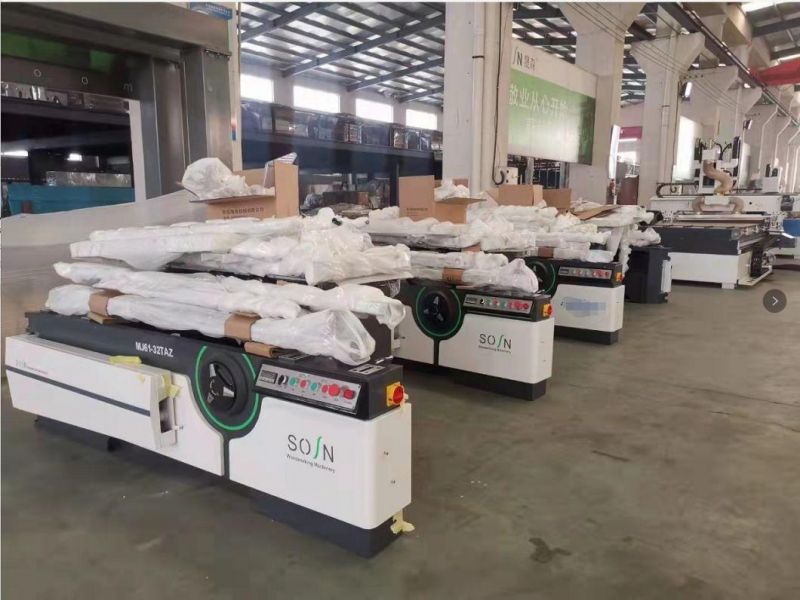

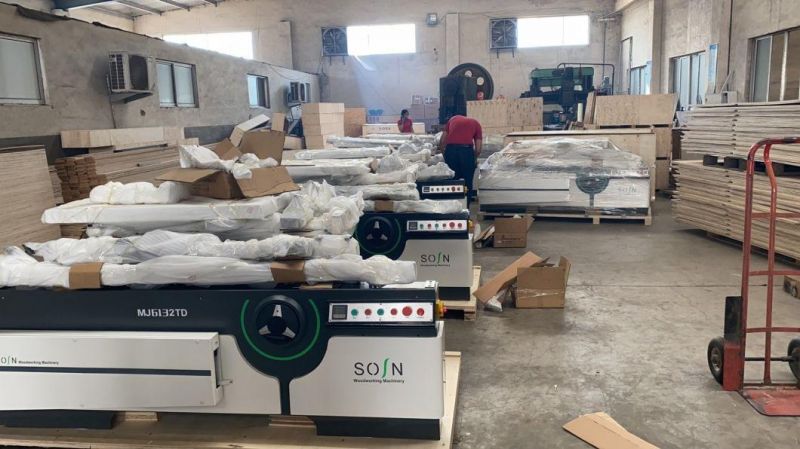

SOSN workshop:

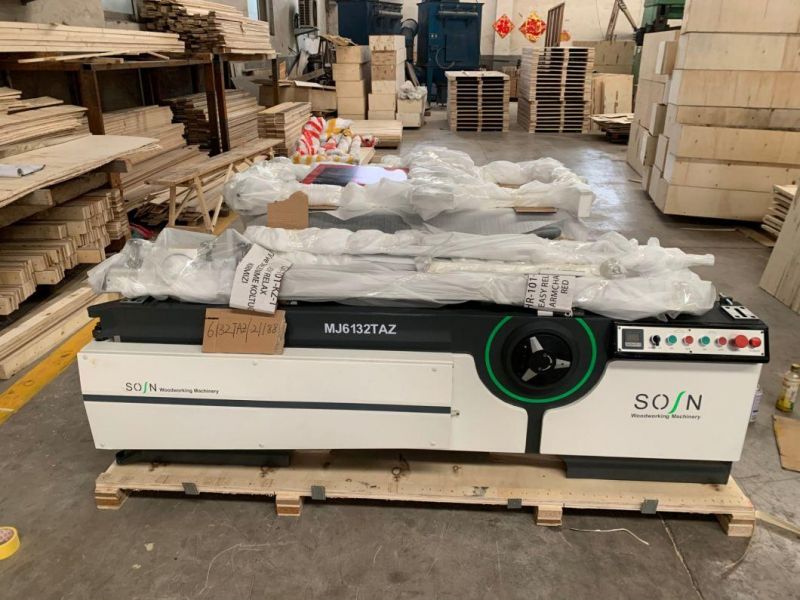

delivery and loading :

NOTE:
1. We can arrange shipment for you if you need.
2.  2 years warranty for the sliding panel saw machine.
3. Package: strong stretch film or standard export wooden case package.
4. Delivery time:20-25 days after getting the deposit.

Reasons to choose SOSN:
1: professional team--as much as possible to meet your needs.
2: quick delivery--timely and effective.
3: excellent after-sale services--no worries anymore.
4: friend partner relationship--a win-win cooperation.

 We have auto, semi-auto and manual sliding panel saw machine for your choice.

With professional experience for woodworking machines, we are your trusted supplier,  pls contact me to start our cooperation.
