• Model NO.：QMB523A
• Motor Power：38.25kw
• Cutter Shaft：5
• Spindle Speed：6800 r,min
• Process Type：Heavy Processing
• Certification：CE, ISO
• After-sales Service：3 yeas
• Weight：4600kg
• Total motor power：38.25kw
• Feeding speed：6-36 meters
• Max. sawing thickness：160mm
• Min. sawing length：840mm (intermittent) 280mm(continuous)
• Dia. of spindle：40mm
• Dia. of feeding roller：140mm
• After sale service：24 hours technical support by email, phone, video
• Professionalism：more than 50 years experience since 1970
• Voltage：380V; 220V, 440V can be customized
• Spindle：5 spindles
• Transport Package：Plywood Carton or Bulk Packing
• Specification：4280*1900*1700 (MM)
• Trademark：Qingcheng
• Origin：China
• HS Code：8465920000
• Production Capacity：20000,Sets

Basic Info.

Model NO. QMB523A Motor Power 38.25kw Cutter Shaft 5 Spindle Speed 6800 r/min Process Type Heavy Processing Certification CE, ISO After-sales Service 3 yeas Weight 4600kg Total motor power 38.25kw Feeding speed 6-36 meters Max. sawing thickness 160mm Min. sawing length 840mm (intermittent) 280mm(continuous) Dia. of spindle 40mm Dia. of feeding roller 140mm After sale service 24 hours technical support by email, phone, video Professionalism more than 50 years experience since 1970 Voltage 380V; 220V, 440V can be customized Spindle 5 spindles Transport Package Plywood Carton or Bulk Packing Specification 4280*1900*1700 (MM) Trademark Qingcheng Origin China HS Code 8465920000 Production Capacity 20000/Sets

Product Description

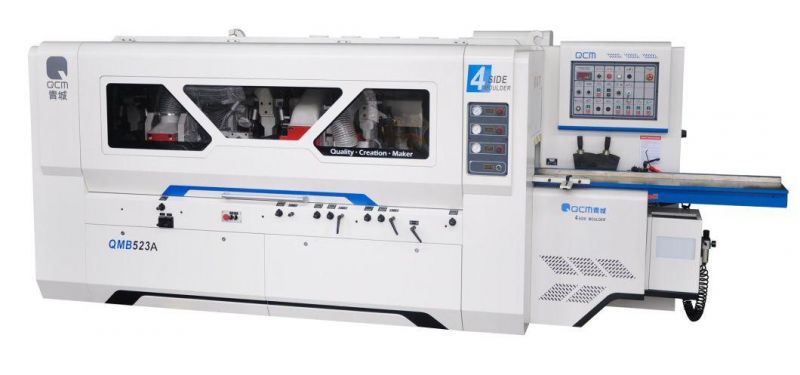

QMB523A Woodworking Machinery Wood Planer Four-side Moulder

Application:
Professional solution for wood flooring, wood moulding, MDF, wood panel, solid wood furniture, four-sided planing, four-sided moulding.

Our objective is to enhance each 4- side molder from QCM in order to upgrade your throughput and create more profits.


Quality Features Add More Value to Your Production.

QCM wide variety of 4 side moulders have all the very latest technology for increased productivity, product quality & reliability. These Moulders are designed to provide fast cutting speeds and highest quality & accuracy. These machines are precision manufactured by our highly skilled technicians and advanced machines - plus QCM service, training, and moulding know-how is offered with each moulder. No matter what your moulding jobs call for, there is a Leadermac 4 side moulder that's right for you.

Outstanding Features:
1). The machine adopts the whole casting body, its performance is stable, good precision and rigidity;
Extra Heavy One-piece Cast Iron Machine Body is specially heat treated for maximum stability and rigidity by standard configuration.

2). Fully enclosed safety shield and open the door for power failure protection, low working noise, safety and environmental protection;

3). The spindle is precision processed, dynamic balance treatment, precision assembly, its operation is stable, good precision;

4). The Table Surfaces are hard-chrome plated for maximum wear resistance.

5). The feeding system has three cylinder presses in front of the middle and back, with stable pressure and easy adjustment;

6). Multiple sets of lower drive rollers are used in front, middle and back of the working table to ensure smooth and powerful feeding;
Reference photo:





1. Technical parameters


Specifications	Unit	QMB523A
Working width	mm	20-230
Working thickness	mm	8-160
Min.working length(intermittent/continuous)	mm	840/280
Dia of spindle	mm	Φ40
Feeding speed	m/min	6-36
Rotation speed of spindle	r/min	6800
The First spindle speed	r/min	/
Other spindle speed	r/min	/
Cutter dia of first bottom cutter	r/min	Φ125
Left/Right vertical cutter	mm	Φ108-Φ200
The first upper cutter	mm	Φ108-Φ180
The Second upper cutter	mm	/
Back bottom cutter	mm	Φ108-Φ230
The Second right vertical cutter	mm	/
Total power	kW/HP	38.25/51
The First bottom cutter	kW/HP	5.5/7.5
Left vertical cutter	kW/HP	7.5/10
Right vertical cutter	kW/HP	5.5/7.5
The first upper cutter	kW/HP	7.5/10
The second upper cutter	kW/HP	/
The second bottom cutter	kW/HP	7.5/10
The second right vertical cutter	kW/HP	/
Feeding motor	kW/HP	4/5.5
Beam lifting motor	kW/HP	0.75/1
Air supply pressure	MPa	0.6
Vacuum port diameter	mm	5*Φ150
Overall dimensions	mm	4280*1900*1700
Weight	kg	4600

2. About Qingcheng Woodworking Machinery:

Qingcheng Woodwokring Machinery Co., Ltd is a professional manufacturer of woodworking machinery since 1970. With more than 50 years experience, we have developed to the top and most powerful manufacturer of woodworking machinery in China.

We mainly engaged in six series of woodworking machinery:
Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoner , and Sanding Machine

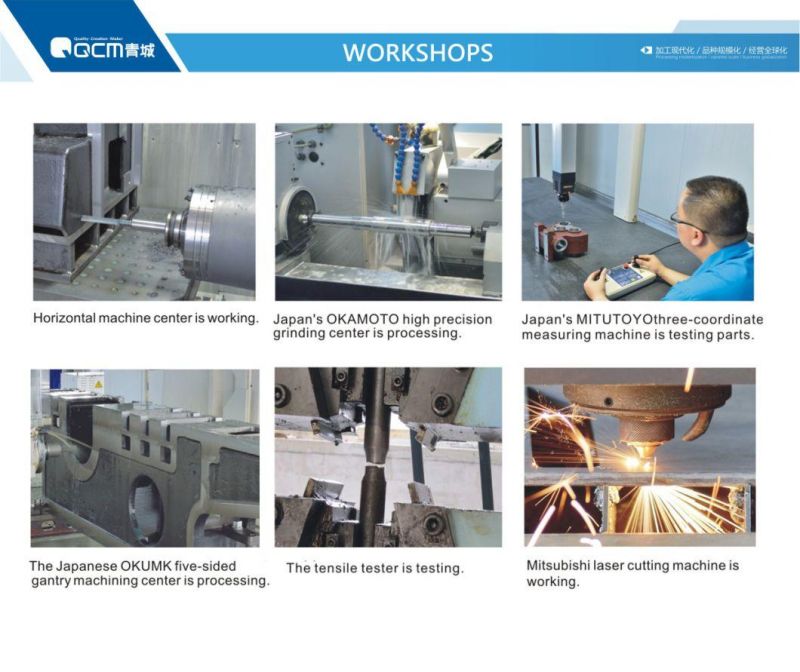

To make machinery with high precision and stability, we have introduced the world's advanced modern processing and testing equipment, including OKUMA five-surface gantry machining-center, FMS flexible machining production line, MAKINO horizontal machining center, MORI SEIKI(nine-axis linkage) lathe-mill cutting center, LGMazak vertical machining center, Mitsubishi laser cutting machine, OKK large machining center, Okamoto CNC grinding center, and Mitutoyo three coordinate measuring machine.












3. Our Products:

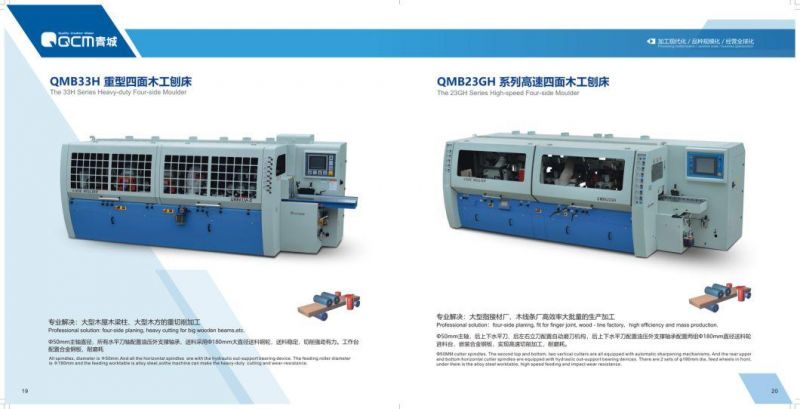

A: Four Side Moulder

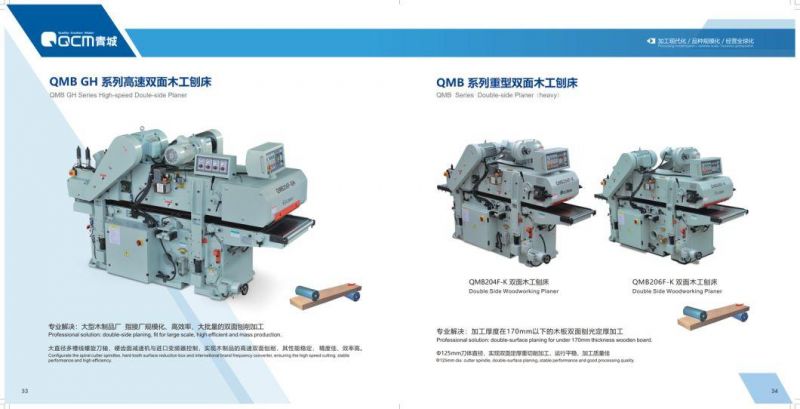

B: Double Side Planer

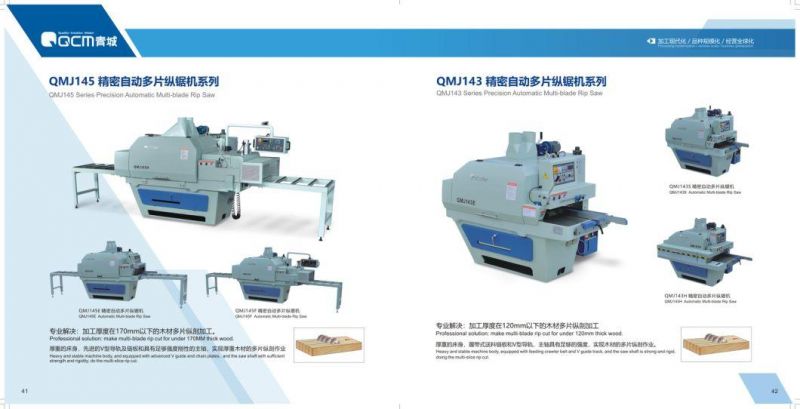

C: Rip Saw

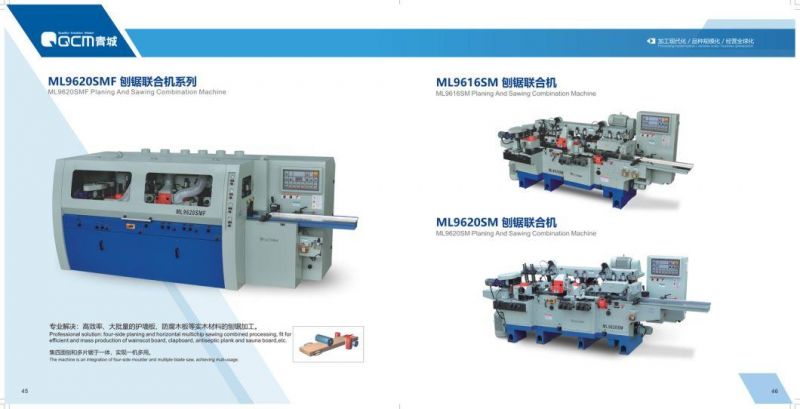

D: Planing and Sawing Combination Machine




E:Double-end Tenoining Machine

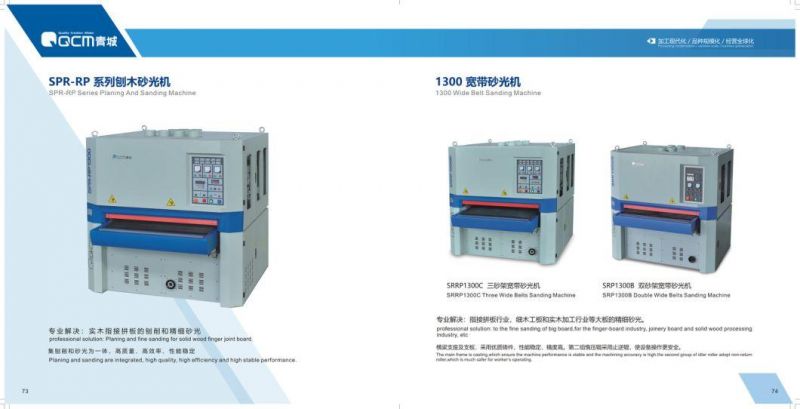

F: Sanding Machine
