Automatic Corner Rounding Edge Banding Machine for Cabinet Door

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty:12months
  • Function:Pre Milling, Gluing, Edge Banding, End Trimming, Rough Trimming, Fine Trimming, Contour Tracking, Scraping, Buffing
  • Type:Linear Edge Banding Machine
  • Edging thickness:0.4-3mm
  • Automatic Grade:Automatic
  • Panel Feeding Speed:20m,min

Base Info

  • Model NO.:FZ-450DJ
  • Certification:CE, ISO
  • Panel Thinkness:10-60mm
  • Min.length panel:120mm
  • Min.width panel:80mm
  • Manufacturing Principles:Glue Tank Overhead
  • Customized:Customized
  • After-sales Service:24 Hours on The Line
  • Motor Power:16kw
  • Overall Dimension:7300*1100*1600mm
  • Weight:2800kgs
  • Use:PVC Edge Banding Machine
  • Feed Speed:15-20m,Min
  • Panel Thickness:10-60mm
  • Edge Banding Tape Thickness:0.4-3mm
  • Transport Package:Standard Wooden Package
  • Specification:FZ-450DJ
  • Trademark:SOSN
  • Origin:Qingdao China
  • HS Code:846410100
  • Production Capacity:400 Sets Per Month

Description

Basic Info.

Model NO. FZ-450DJ Certification CE, ISO Panel Thinkness 10-60mm Min.length panel 120mm Min.width panel 80mm Manufacturing Principles Glue Tank Overhead Customized Customized After-sales Service 24 Hours on The Line Motor Power 16kw Overall Dimension 7300*1100*1600mm Weight 2800kgs Use PVC Edge Banding Machine Feed Speed 15-20m/Min Panel Thickness 10-60mm Edge Banding Tape Thickness 0.4-3mm Transport Package Standard Wooden Package Specification FZ-450DJ Trademark SOSN Origin Qingdao China HS Code 846410100 Production Capacity 400 Sets Per Month

Product Description

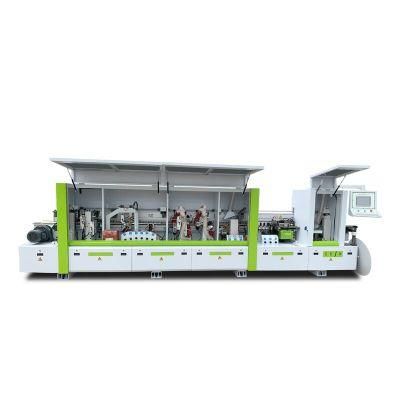

Automatic Corner Rounding Edge Banding Machine for Cabinet DoorMelamine PVC Escuadradora Enchapadora 3mm R3 Automatic Edge Banding Machine
Adopt to the linear sealing of PVC, wood plank and veneer etc.  1.using imported quality engines and electric components  2.Serialized products, a wide range of selection by customers
  3.High precision and efficiency
Automatic Corner Rounding Edge Banding Machine for Cabinet Door
Main function:

Premilling---Gluing---End trimming---rough trimming---fine trimming---scrapping---Buffing---cleaning
Feature
  • Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;
  • Pre-heating before gluing warms the work piece edge, the glue could well melt during gluing, especially suitable for wet or cold zones.
  • Corner trimming unit is designed to trim 4 corners to achieve R circular arc radius.
  • Automatic standby, one-button wake-up device and energy saving;
  • Most electric components are in world famous brand.
Main technical parameter:
Total Power15KW
Overall size 6502x1100x1705mm
Feed speed15-20m/min
Panel thickness10-60mm
Edge banding tape thickness0.4-3mm
Panel width ≥ 60mm
Working air pressure 0.8Mpa
Weight 2800kg

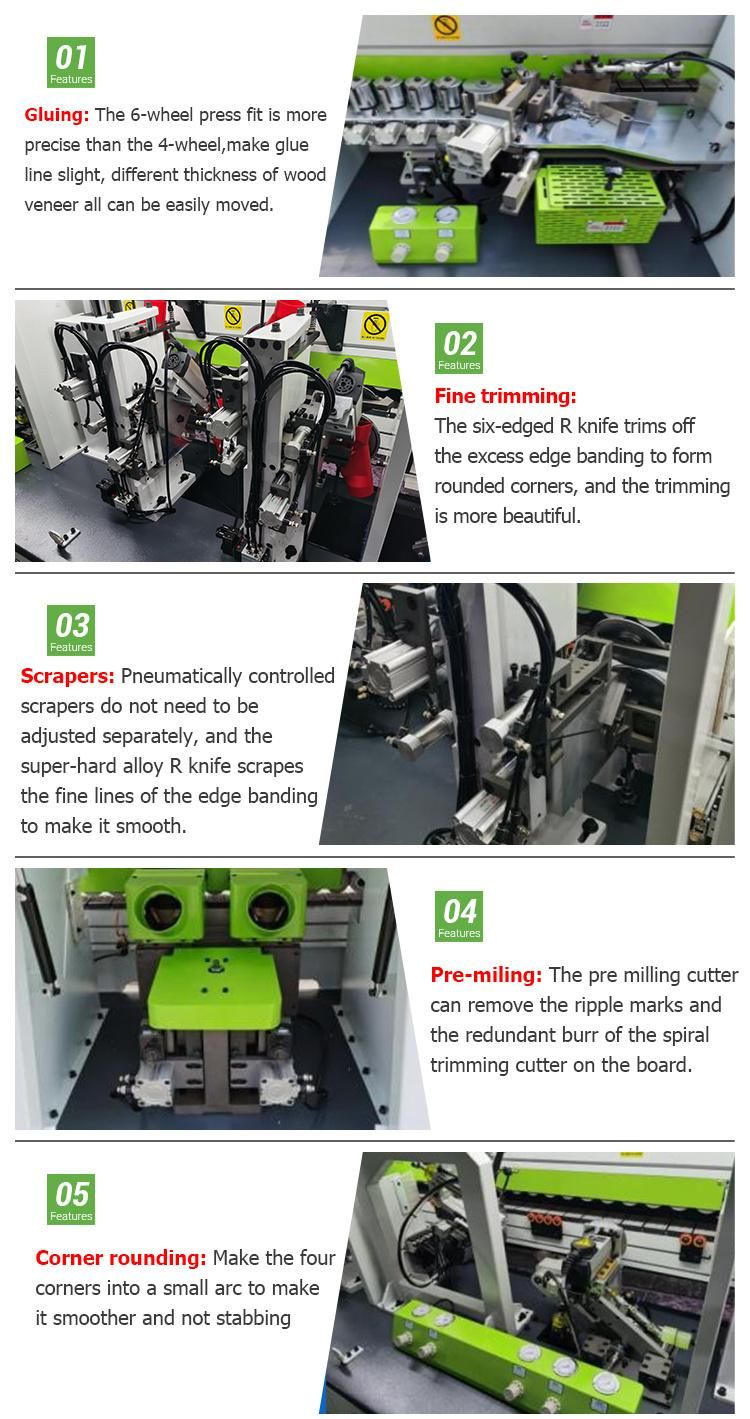

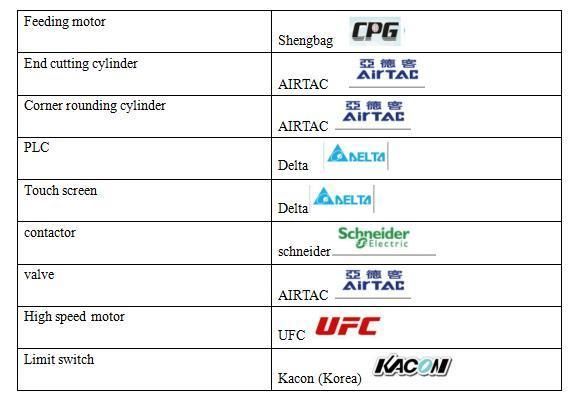

Following is components of  full automatic Edge banding machine:

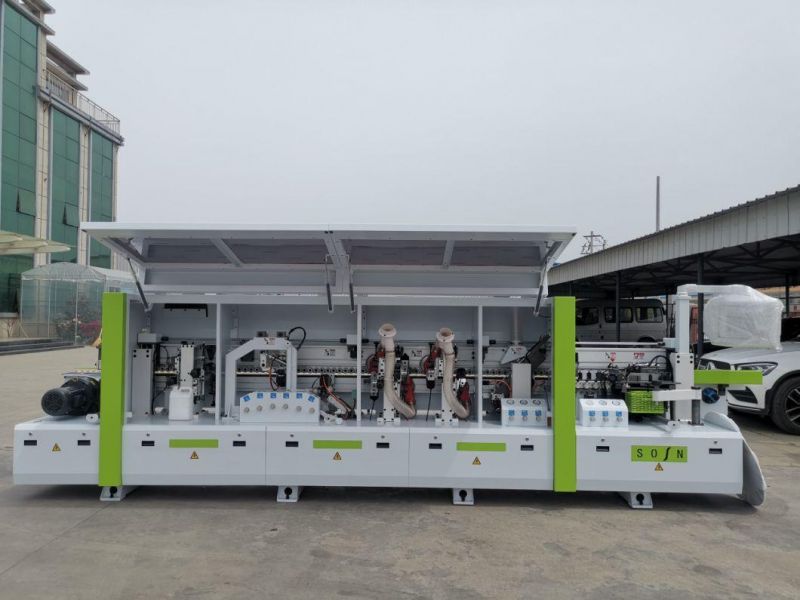

Automatic Corner Rounding Edge Banding Machine for Cabinet DoorMachine details :
Automatic Corner Rounding Edge Banding Machine for Cabinet Door

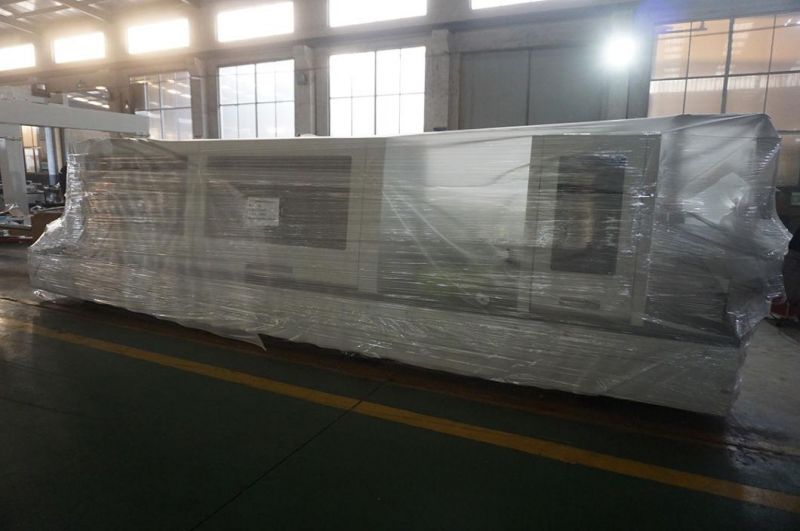

Delivery and Package
Automatic Corner Rounding Edge Banding Machine for Cabinet DoorAutomatic Corner Rounding Edge Banding Machine for Cabinet Door

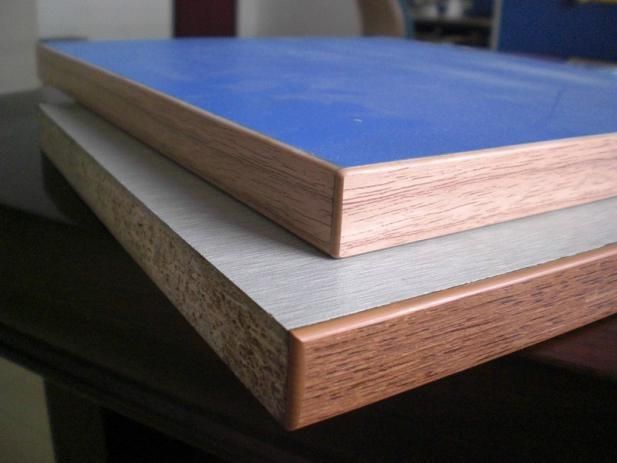

Application

Automatic Corner Rounding Edge Banding Machine for Cabinet DoorAutomatic Corner Rounding Edge Banding Machine for Cabinet DoorAutomatic Corner Rounding Edge Banding Machine for Cabinet DoorAutomatic Corner Rounding Edge Banding Machine for Cabinet DoorContact us today and you'll find we set a new benchmark in woodworking machine affordability, supply levels and customer satisfaction.
