• Model NO.：UG-1530WL
• Tool Holder：Single-tool Holder CNC Lathe
• Automatic Grade：Semiautomatic
• Precision：High Precision
• Setting Mode：Floor-type
• Controlling Mode：CNC
• Power Source：Hydraulic Pressure
• Processing Accessory：Centre CNC Lathe
• Certification：CE, ISO
• After-sales Service：24 Hours Online Service
• Processing Length：1500mm
• Turning Diameter：300mm(Chuck Diameter 160mm)
• Structure：Single Axis Two Blades
• Transmission：Lead Ball Screw & Helical Rack Pinion Transmission
• Guide Rail：Linear Square Guide Rail, Hiwin, Taiwan,
• Main Motor Power：4kw Pure Servo Motor
• Control System：Gxk 1000ta Controller with Handhweel
• Spindle：4 Axis, 3.5kw Air Cooling, Engraving, Broaching
• Atc：Automatic Tools Changing, 4 PCS
• Compatible File：,Dxf
• Tools Calibration：Automatic
• Lubrication：Semi Automatic
• Oil-Water Separator：with
• Rotate Top & Tail：Rotate Top Mohs # 5, # 70 Tailshaft
• Material Clamping Method：Air Cylinder Clamping
• Transport Package：Plywood Case
• Specification：3020*1420*1460mm, 1600kgs
• Trademark：UPGOAL
• Origin：Jinan City, Shandong Province, China
• HS Code：84659900
• Production Capacity：100 Sets,Month
• Package size per unit product：302.00cm * 142.00cm * 146.00cm
• Gross weight per unit product：1600.000kg

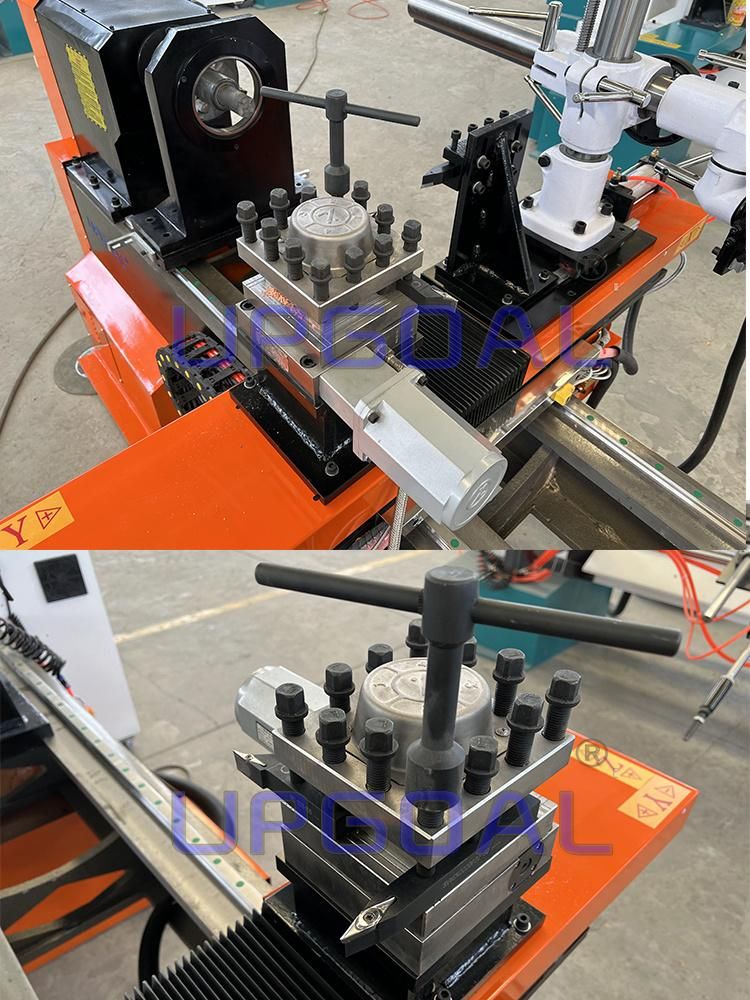

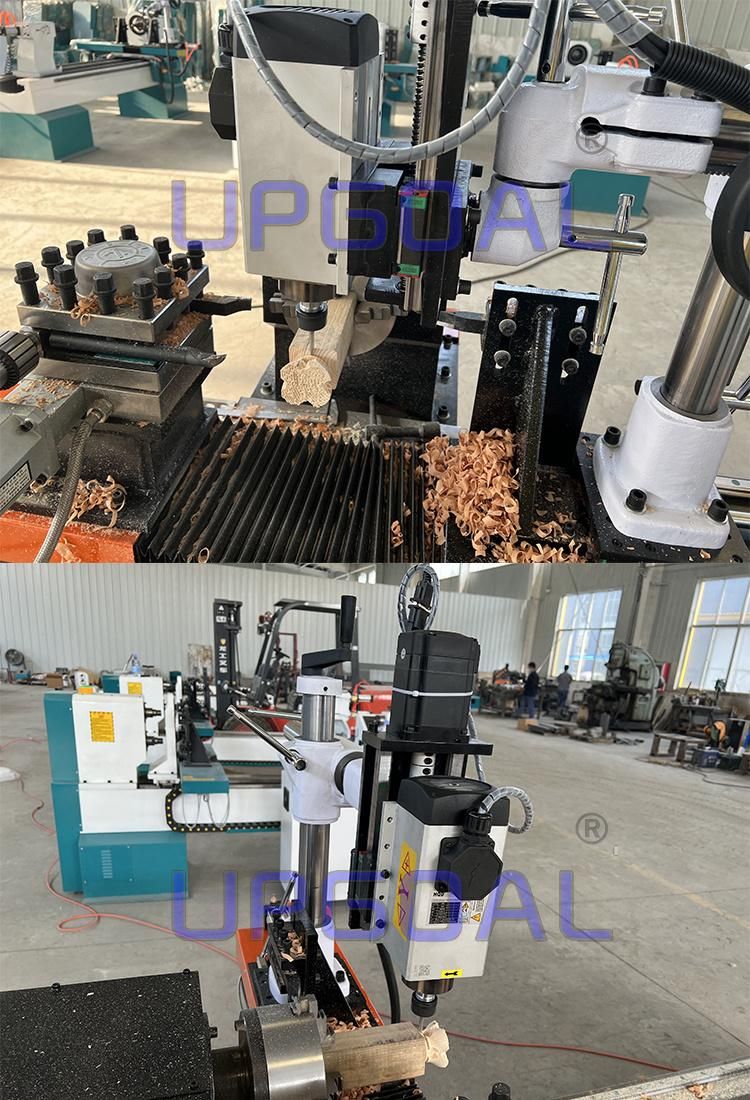

Top independent 4 axis spindle(air cooling 3.5KW) for engraving/broaching, with the universal bracket, it can be adjusted freely to increase the flexibility of milling.


Adopts double blades, one is front, the other is back, 10mm distance between 2 blades in the axis direction, improve the working efficiency. Finish one wood cylinder turning broaching engraving just needs 90s at least.

One time setting multi functional processing, auto switching for turning, broaching, milling spiral surface, curve surface, flat engraving, suitable for complicated beautiful workpiece processing.

Auto changing turning & engraving angle, meet the requirements of big diameter wood cylinder processing

Can adjust each blades turning proportion at random according to processed materials, reducing the workpiece bounce and vibration, increasing the turning wood finish.

Numerical control frequency conversion, energy-saving power, adjusting speed timely, multistage safe protection

Adopting high performance inverter, frequency conversion, step-less speed change, adjusting turning speed timely according to workpiece's diameter, saving power.

Multistage safe protection, protect motor and machine effectively, ensuring machine working under the normal loading.

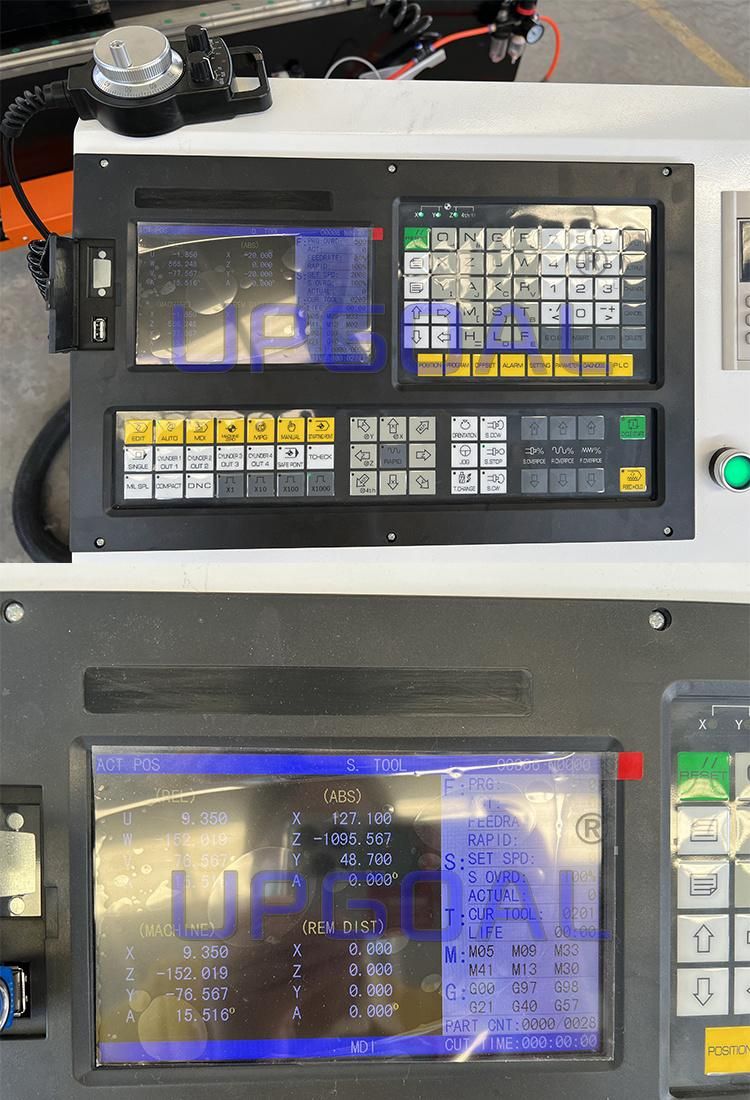

Adporting famous GXK controller with handhweel USB connection, supports 4 axis working and automatic tools chaning,  easily to change the pattern, no need programming at site, system can upgrade

Easy drawing,just draw the easy pattern, then can process, no need complicated programming.

System can upgrade with USB disk file, realizing remote redact and local operation.

Supporting single blade, double blades one time process, no need complicated program to finish multiple different turning, meets with different workpiece requirement, easy and fast.

Pause and memory function, more convenient for inspect workpiece processed quality( precision and finish), timely adjusting.

Specialized CNC control high precision control system, easy to operate, short leaning, no need specialized knowledge, fast processing speed and good uniformity of finished products.

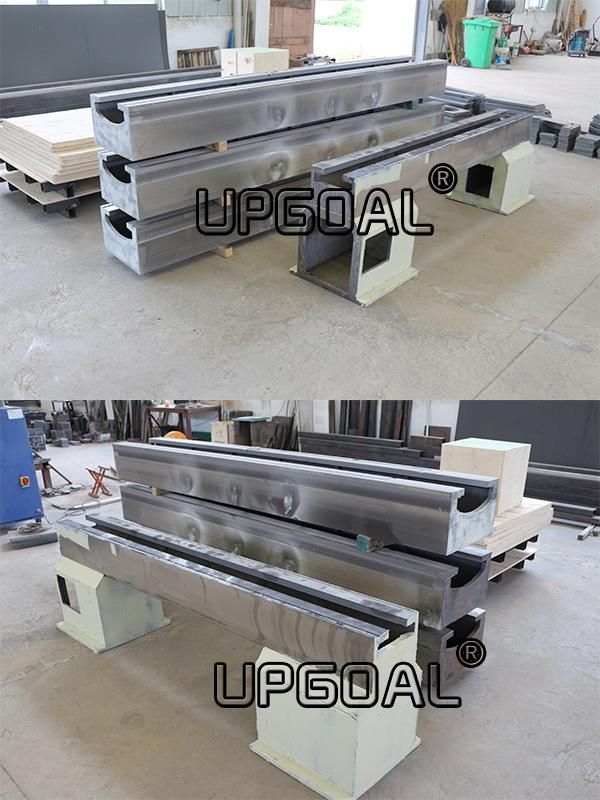

Heavy duty Cast iron machine bed, less deformation and stable transmission

Heavy duty Cast iron machine bed, less deformation and stable transmission


Machine bed's design & processing is standard according to processing machine norm, adopting one time casting, aging treatment, less deformation, increasing machine using stability.

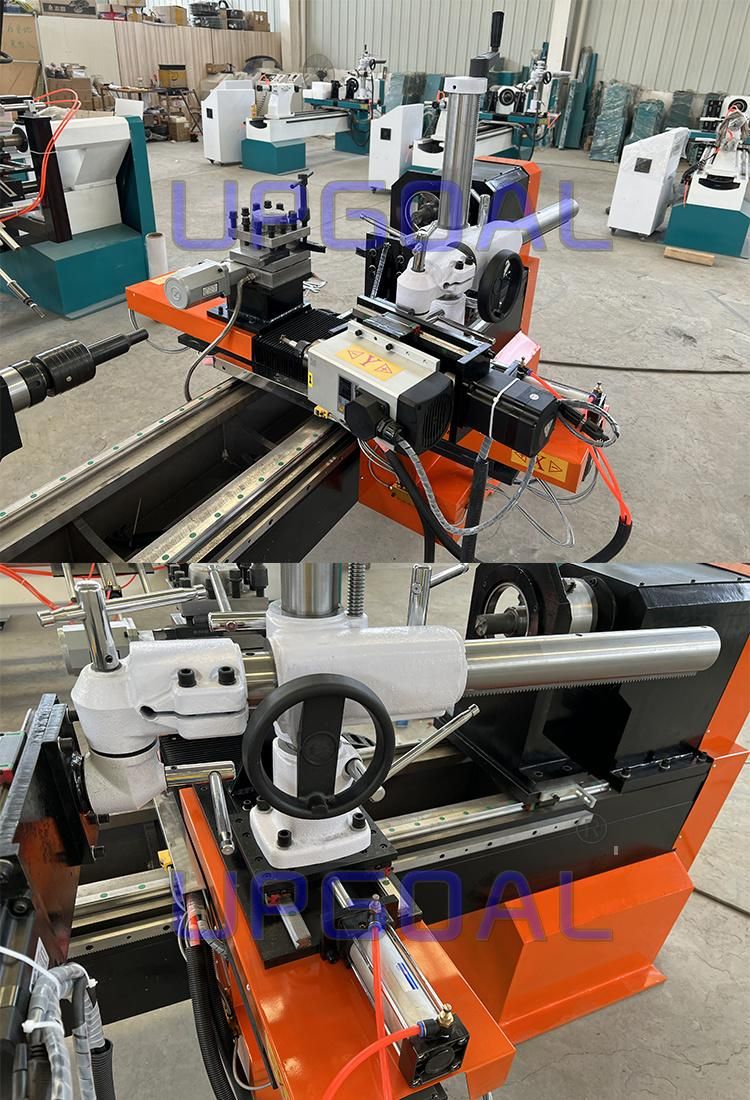

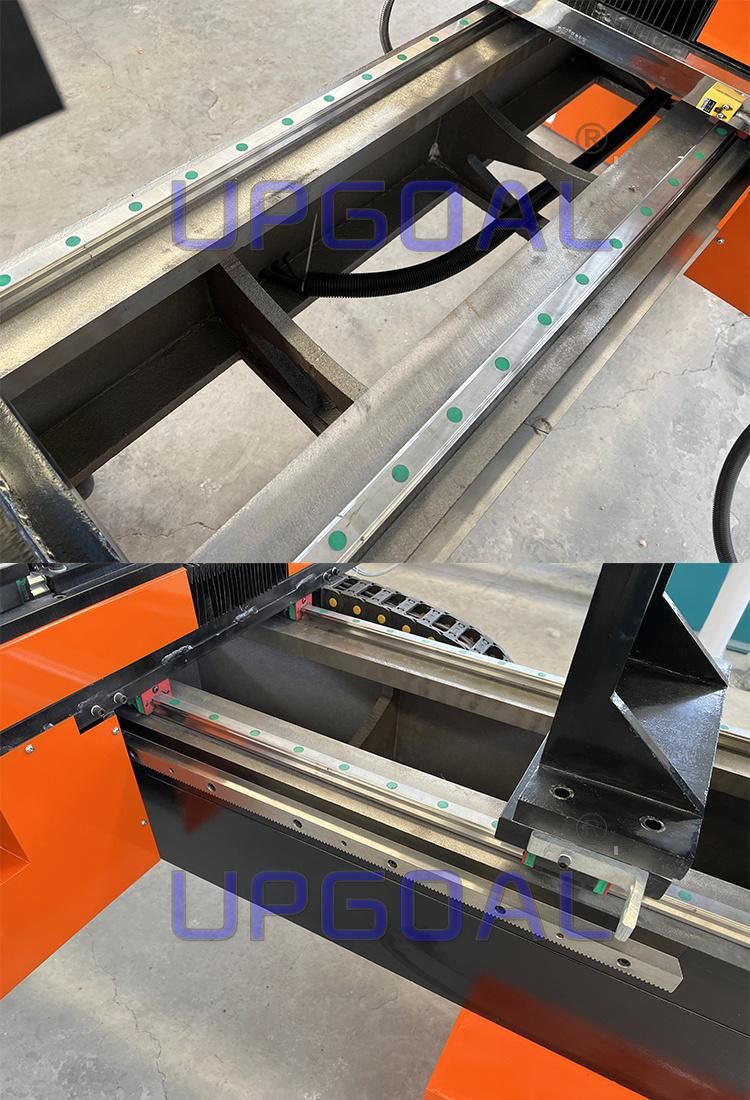

Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. X Y with precision ball screw, Z-axis with helical rack pinion transmission, high precision and more durable.

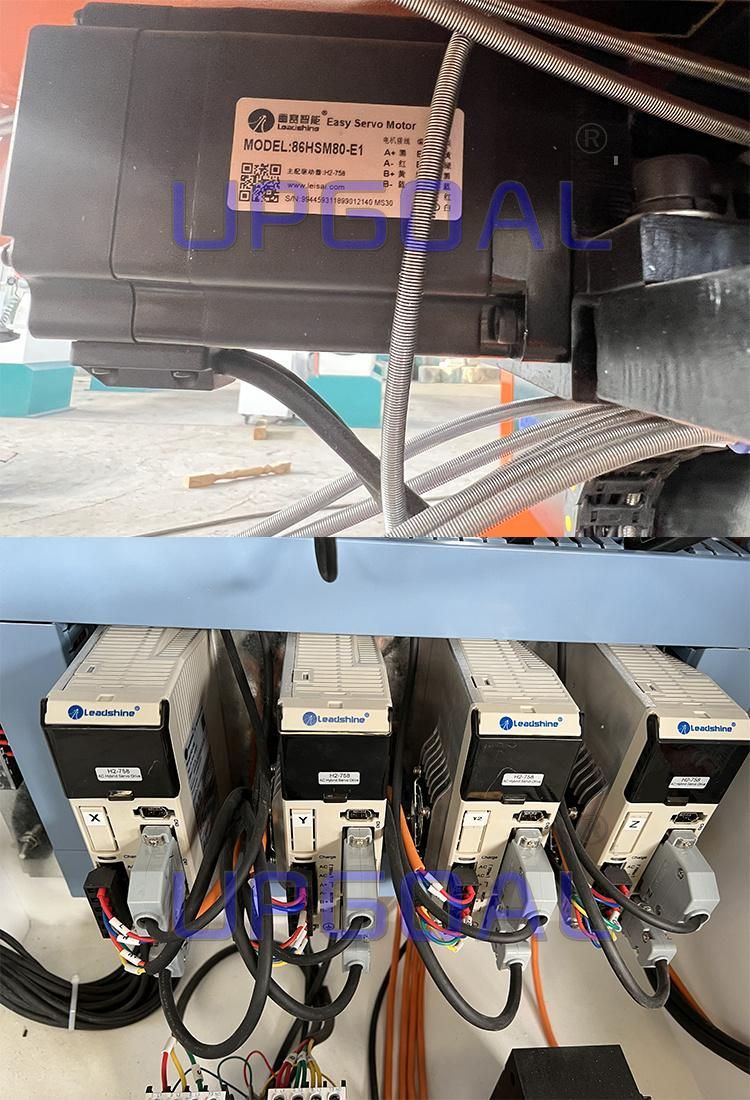

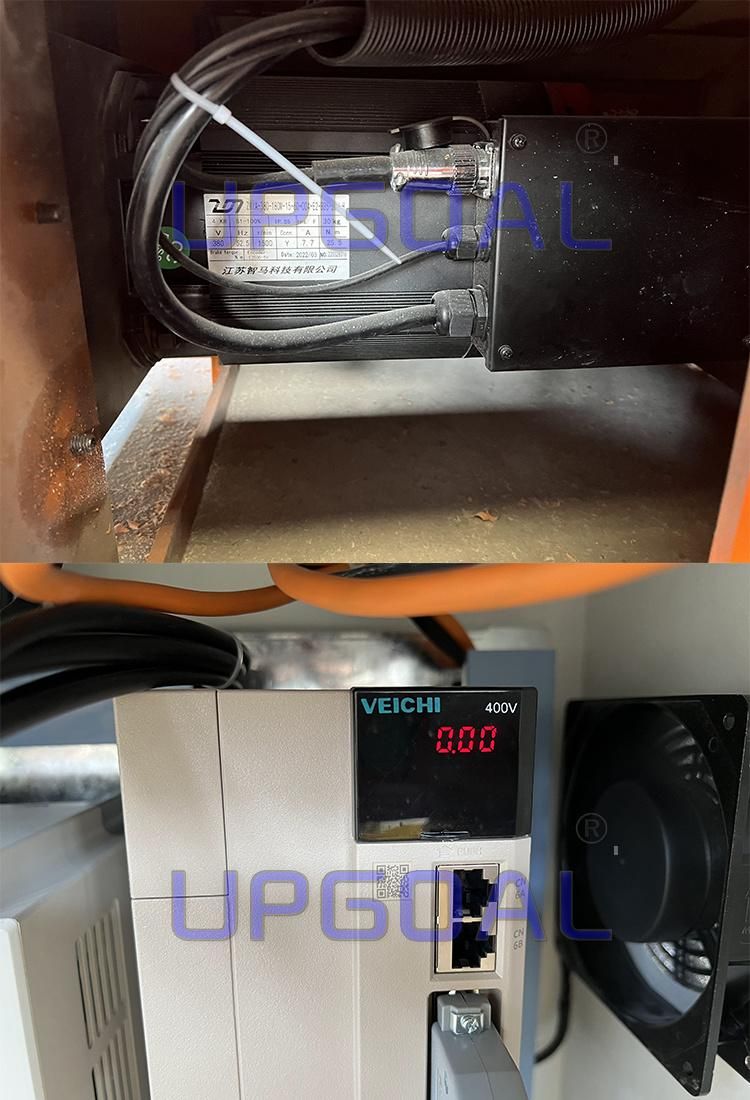

The maxin motor adorpting 4.0kw pure servo motor driver  XYZ-axis with hybrid servo motor driver,  high precision, fast speed and more stable.

Air cooled independent electronic control cabinet, lowering the temperature of control cabinet effectively, long time all electronic component life time.

With large diameter proetction sheath, adoviding wood shading during processing, and has the air cylinder clamping materials at the back tailstck., convenient and stable working

Technical Parameters


Application

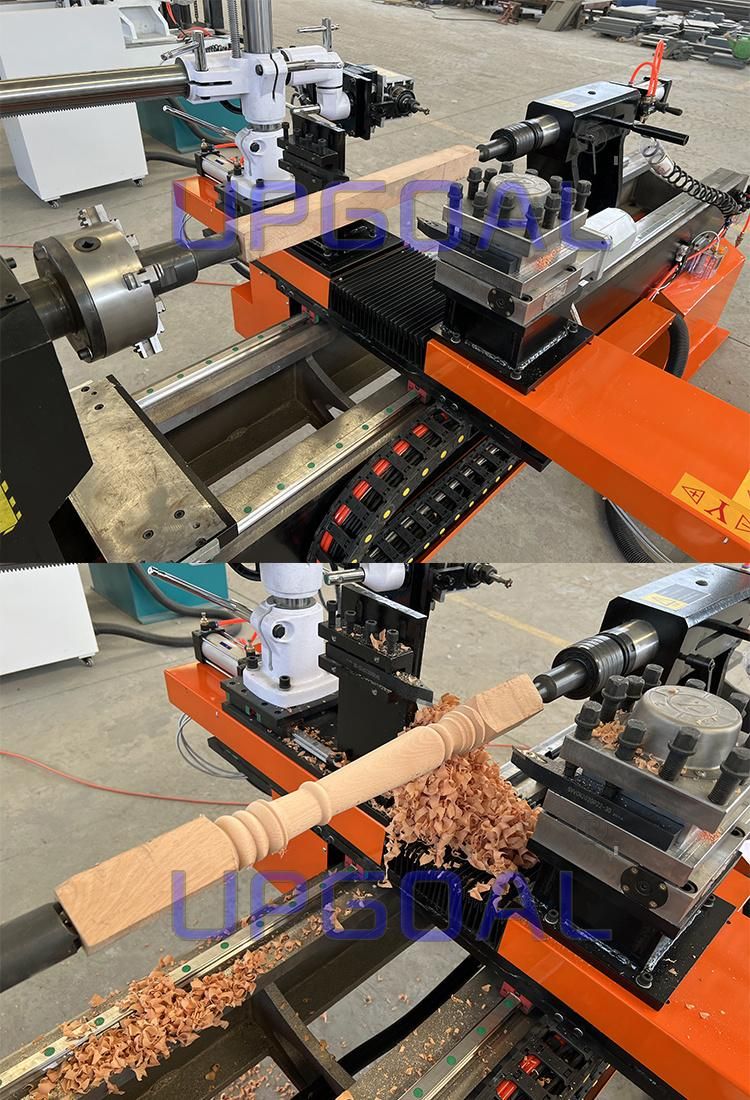

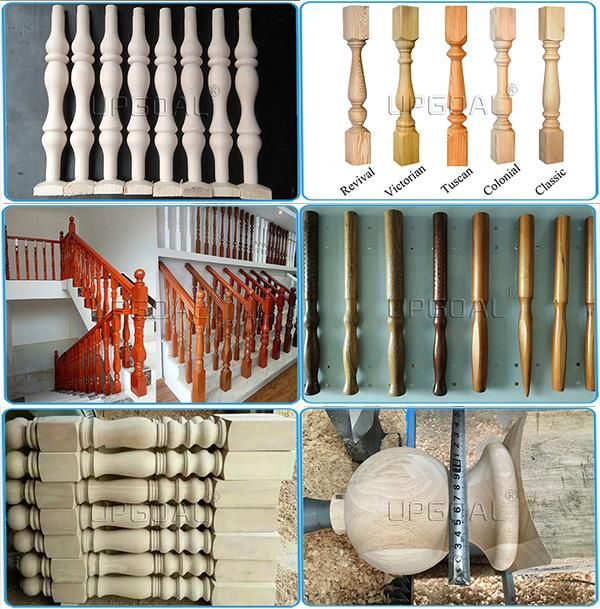

Suitable for handrail, vase,table leg, European style furniture, Roman pillar, wooden clothes hanger & washbasin, kingpost, aisle column, waist drum, solid wood furniture, solid wood stairs, home decoration,wooden decoration, wooden artware,columniform conical, arc-shaped, sphere,ect all kinds of solid of revolution wooden product or semi-finished wooden products.

Materials can be processed: all kinds of wooden materials, such as beech, oak, ailanthus birch,teak, sapele, fraxinus mandshurica, merbau, sandalwood,bubinga, ect.
